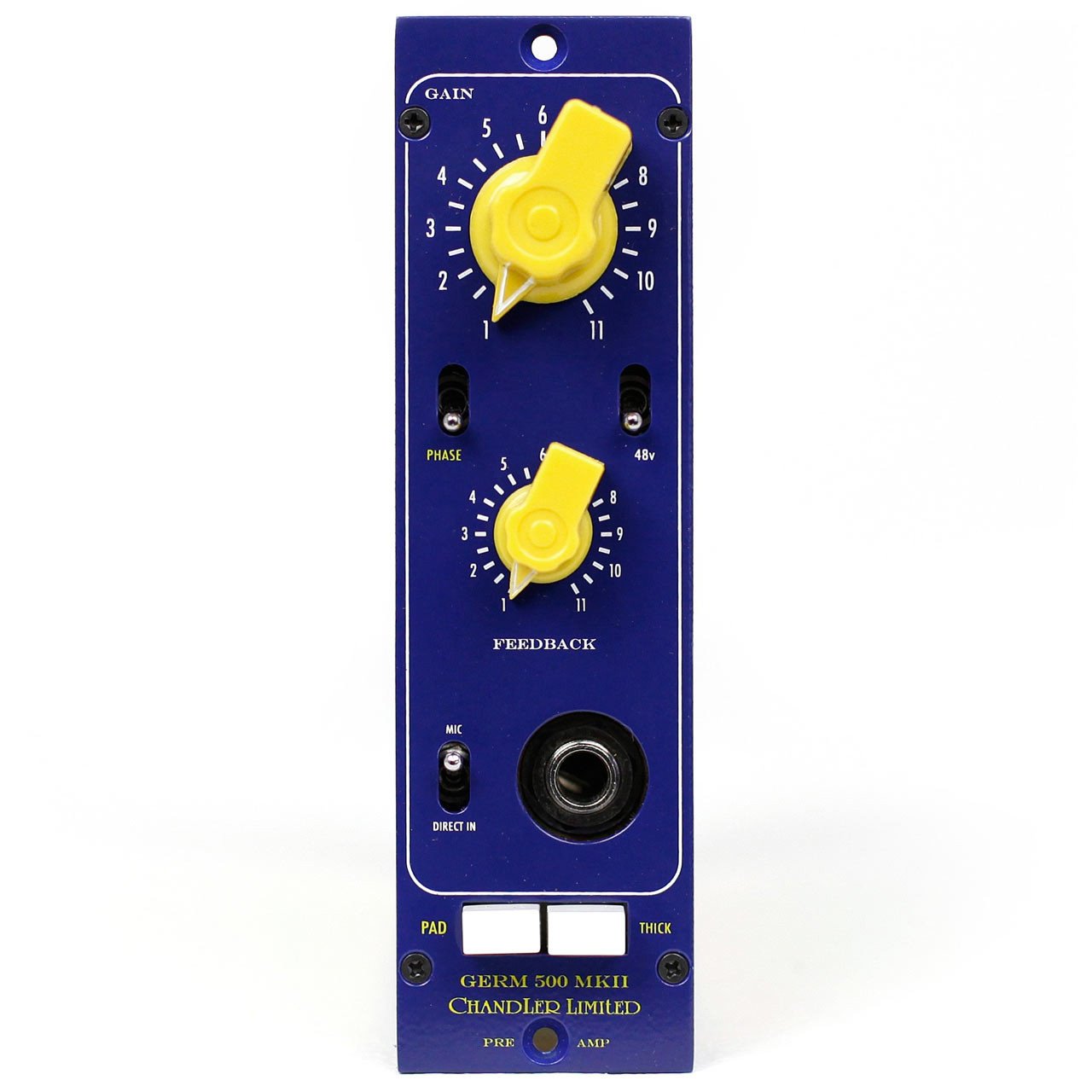

Chandler Limited Germanium 500 MKII Microphone Preamp Front

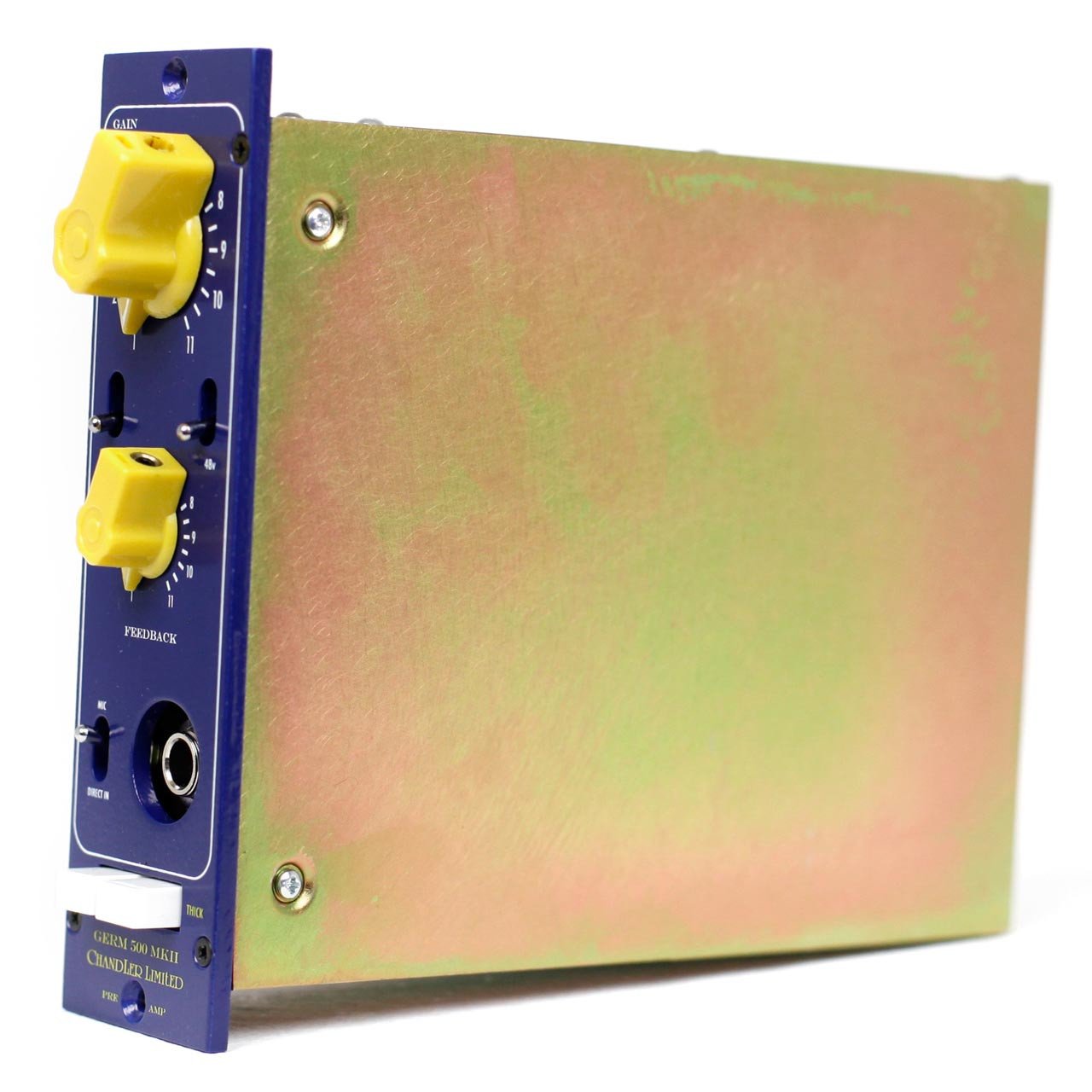

Chandler Limited Germanium 500 MKII Microphone Preamp Angle

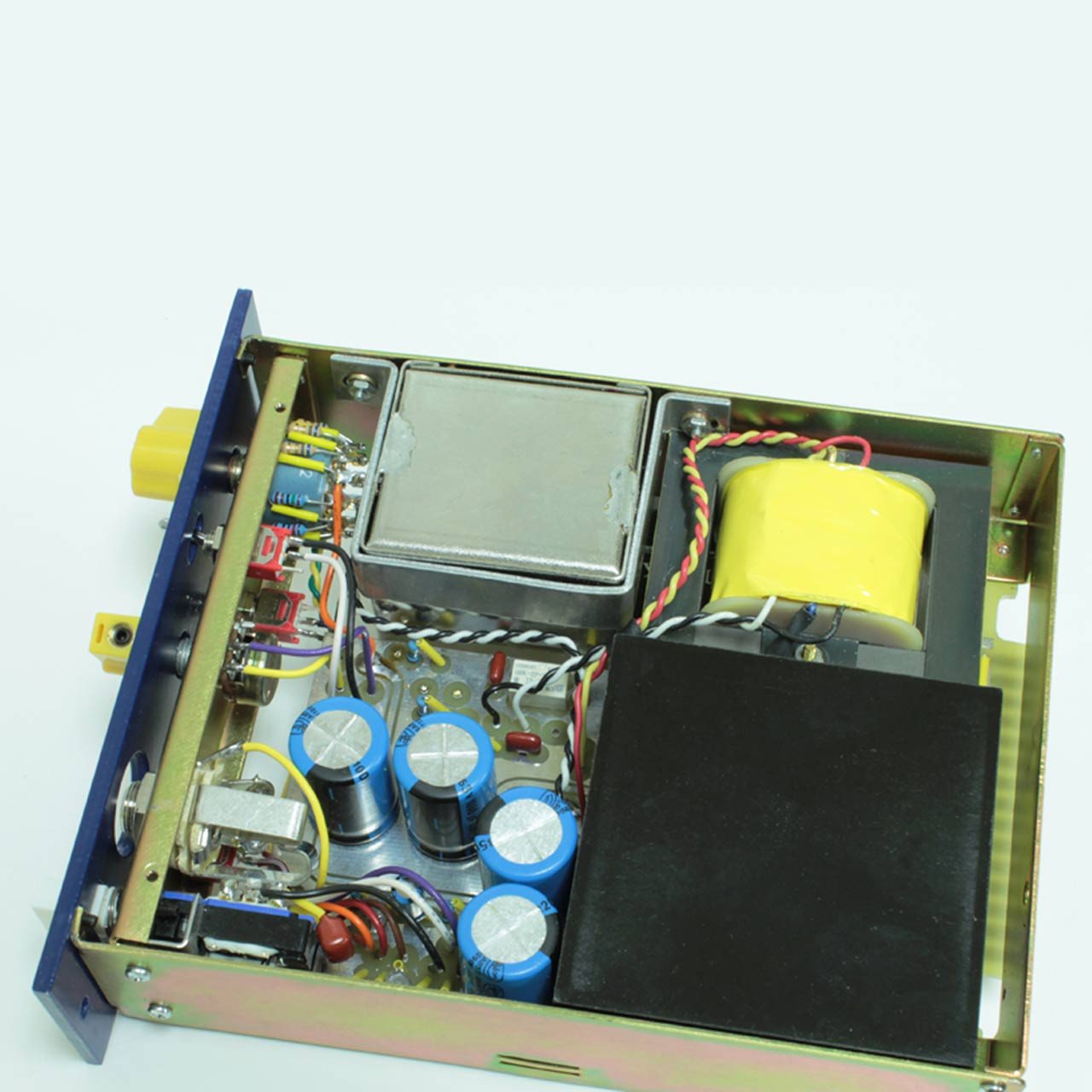

Chandler Limited Germanium 500 MKII Microphone Preamp Inside

Chandler Limited

Product Code: CHGERM500

Chandler Limited Germanium 500 MKII Microphone Preamp

$1,495.00

The Germanium preamp from Chandler sounds great, and now for added convenience is now available for use in your 500 series frame. CHANDLER LIMITED furiously enters the 500 race with its new line of 500 Series Modules for your favorite lunch box! Using all discrete circuits that combine Chandler's best designs with the hottest designs from the past, transformer balanced everything, and the American handmade quality you expect from Chandler, the 500 Series Modules will take your lunchbox or rack system to the next level!

Type: 500 Series

Category: 500 Series - Preamps

VIDEO
FEATURES
TECH SPECS

Chandler Limited Germanium 500 PRODUCT FEATURES:
The Germ 500 MKII is an updated version of our original Germ 500. This unit has an improved faceplate layout and nicer look. It uses classic germanium transistors in all Class A, transformer balanced circuits. The Germ 500 MKII is our well-known Germanium Preamp adapted for 500 series racks. We use the same transformers and amp blocks to assure the sound is consistent with our rack version. We've updated the power on the MKII so there no known power-up issues with current lunchboxes and rack systems.

All Chandler 500 series units have now been tested and proven to have no power issues in the following racks: API 500V 10-slot with L200 PSU; API 500-6B Lunchbox; API 500-6B HC “new version” Lunchbox; BAE 11-slot with power one supply; BAE 6-slot portable with power one supply; BAE 6-slot with Avedis designed supply; A-Designs 2-slot; Purple Sweet 10; and Empirical Labs 2-slot.
Chandler Limited Germanium 500 TECHNICAL SPECIFICATIONS:
FORMAT: 500 Series

CHANNELS: Mono

CIRCUIT: Class A, Discrete, Transistor

GAIN: -5db to +65db

CONNECTIONS
I/O: 500 Series Enclosure
Mic Input: Transformer Balanced, Input Impedance: 300 Ohm
DI: 1/4″ Unbalanced, Input Impedance: 100k

PHANTOM POWER: +48v

Need more info on the Chandler Limited Germanium 500? Click HERE for the manufacturer's website >>>
