Chandler Limited

CHREDD

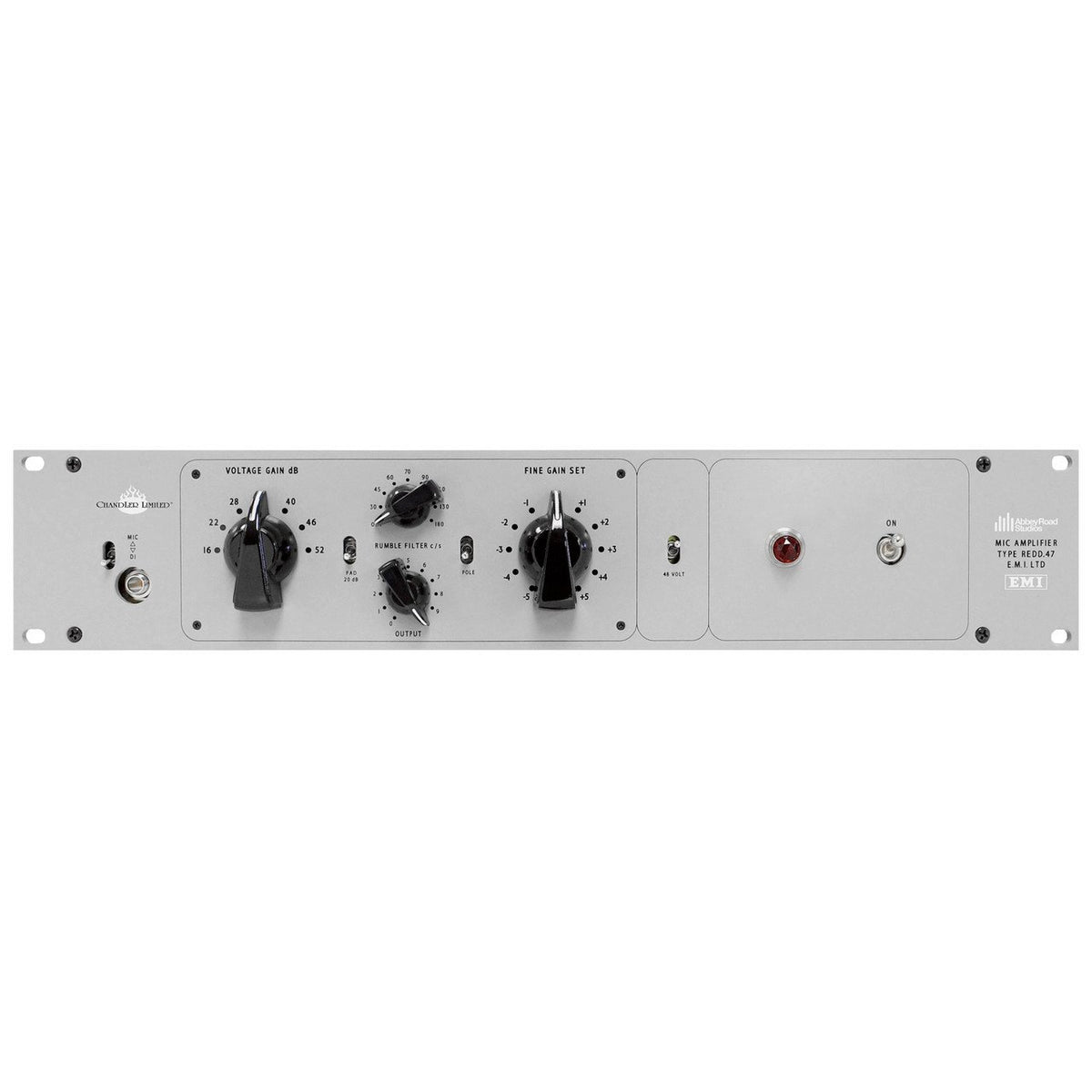

Chandler Limited REDD.47 Pre Amp

The Chandler Limited REDD.47 Pre Amp is a faithful recreation of the rare EMI REDD.51 used in Abbey Road Studios’ from 1959-1968. Designed as a central component to the EMI REDD.51 recording console, the original REDD.47 line amplifier was used to amplify virtually every stage of the audio path (mic inputs, line inputs, echo sends and monitors).


    • REDD.47 PRODUCT FEATURES:

      The REDD.47 lent its unmistakably punchy, aggressive character to music recorded at Abbey Road Studios between 1964 and 1968, including many tracks by The Beatles.

      The Chandler Limited REDD.47 Mic Amplifier offers many additional benefits to the original design including increased gain, allowing a range of tonal options from pristine clean sound to classic rich, saturated tone with up to 2% harmonic distortion before clipping. The Chandler Limited REDD.47 preamp easily reproduces the distortions heard on The Beatles’ ‘Revolution.’

      Chandler Limited’s REDD.47 tube microphone preamplifier delivers the legendary sound of Abbey Road Studios’ ‘Holy Grail’ preamp, with extra features to meet today’s recording studio standards.

      “It really is one of the nicest sounding mic pres I have ever heard or used, period, exclamation point! ” Paul Vnuk Jr. –  Recording Magazine

    • REDD.47 TECHNICAL SPECIFICATIONS:

      CHANNELS: Mono

      CIRCUIT: Tube (EF86, E88CC)

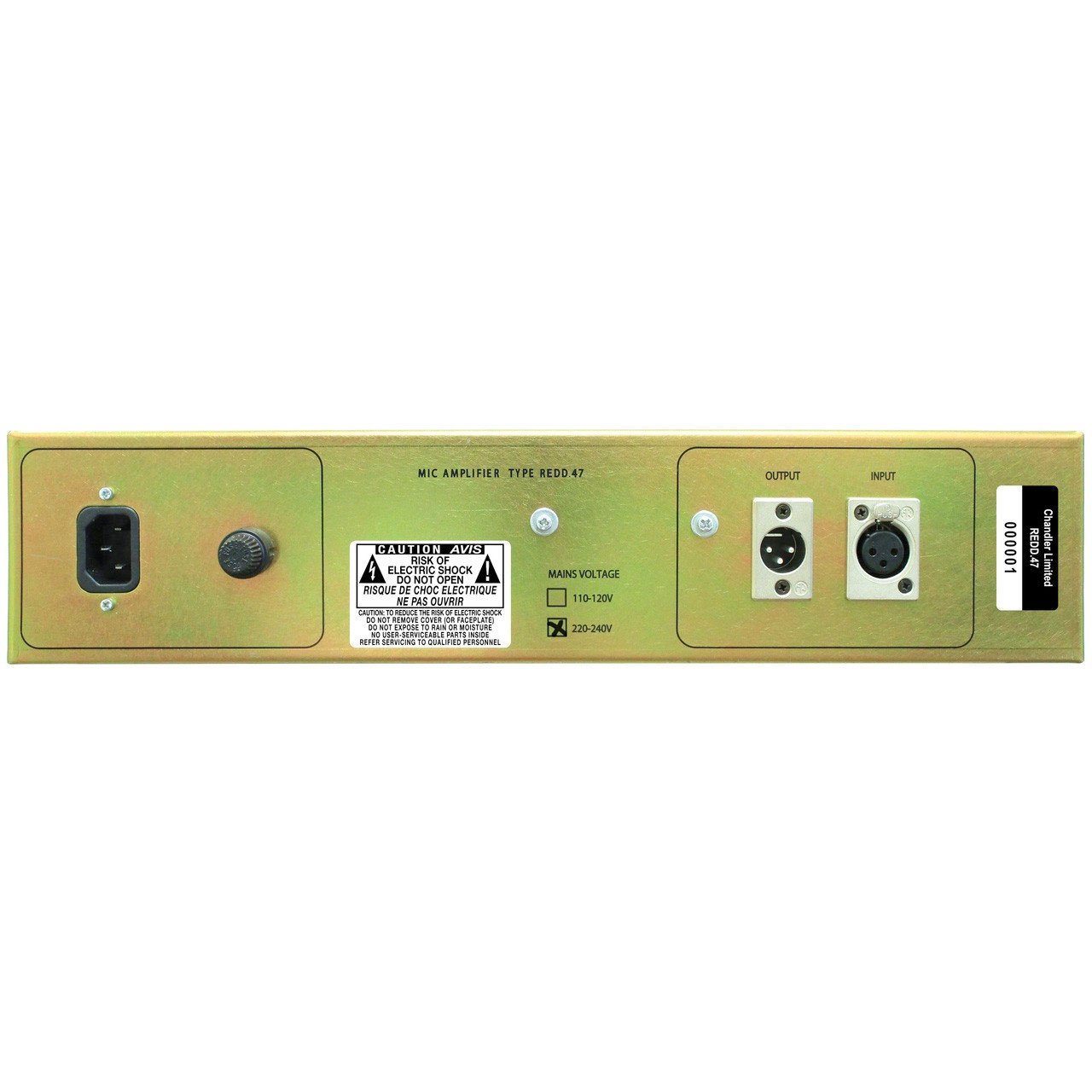

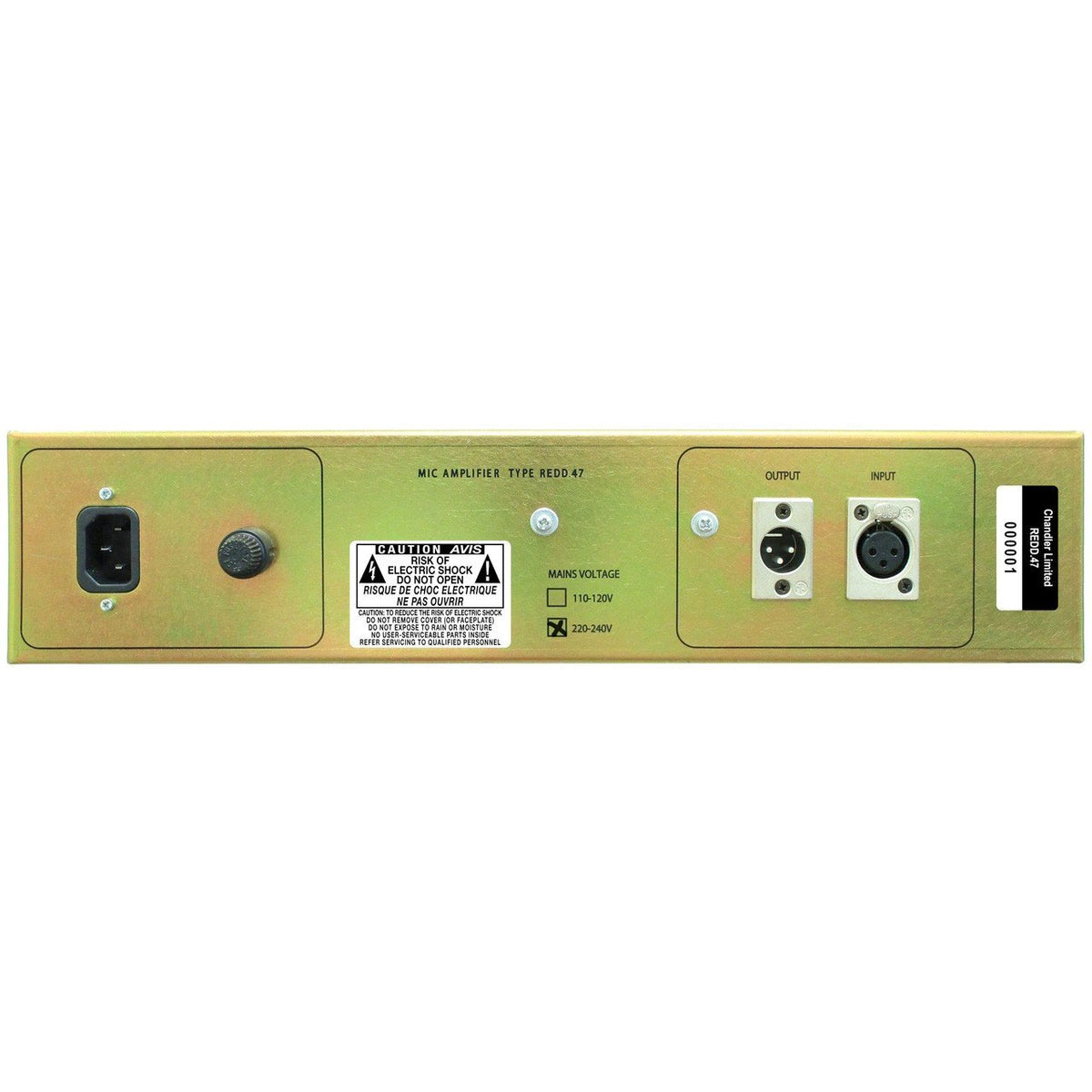

      CONNECTIONS
      Inputs: Mic/Line XLR (pin 2 hot), D/I (1/4”)
      Output: XLR (pin 2 hot)
      Transformer balanced I/O (custom wound)

      CONTROLS
      Voltage gain: Stepped 16-52db
      Fine gain: variable +/-5db
      Total Gain: +57db
      Output control: variable
      Rumble filter: Inductor based, switchable (30,45,60,70,90,110,130,180hz)
      PAD: 20db, switchable
      Phase: switchable
      Phantom Power: +48v, switchable

      POWER
      Internal power supply

Need more info on the REDD.47 Pre Amp? Click HERE for the manufacturer's website >>>
