Chandler Limited

CHCH

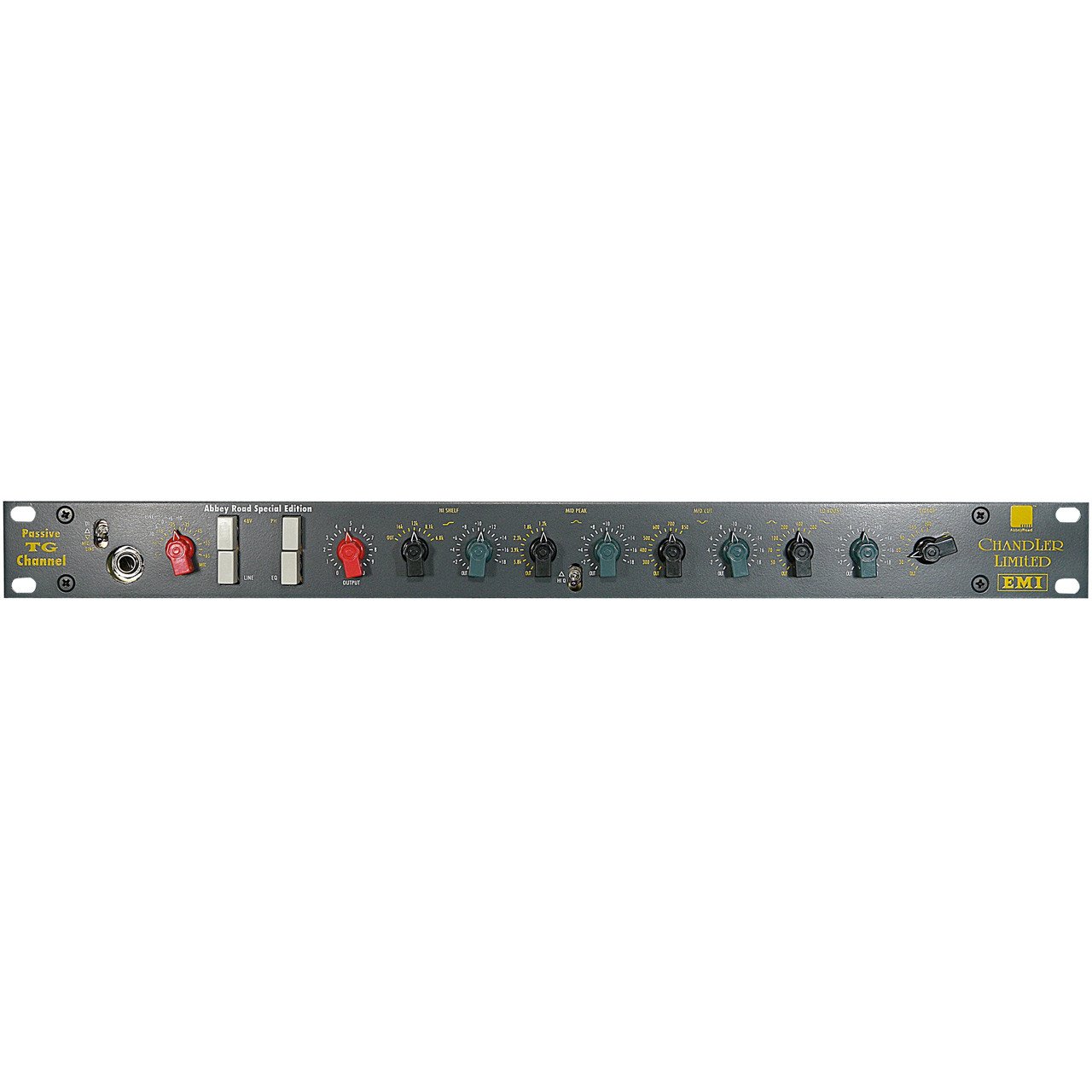

Chandler Limited TG Channel MKII

The Chandler Limited TG Channel MKII is a faithful recreation of several classic circuits. A combination of Wade’s design of the TG2 pre amp section with an equalizer that was redesigned from a circuit used in the TG12410 Transfer Console, the mastering counterpart to the original “Beatles desks.”


    • TG Channel MKII PRODUCT FEATURES:

      The active portions of the unit use the same discrete amplifiers and transformers as in the TG1 Limiter and TG2 pre amp. The TG Channel’s passive equalizer EQ is an all inductor design offering sweet high frequencies, large inductor based lows, and a very high “Q” mid cut section. Its sound is very comparable to Pultec and Lang program EQs. A simple description would be a TG Pultec with a TG pre amp thrown in.

    • TG Channel MKII TECHNICAL SPECIFICATIONS:

      CHANNELS: Mono

      CIRCUIT: Discrete, Transistor

      Mic Input: -15db to +65db, 5db increments
      Line Input: +15db to -15db

      CONNECTIONS
      I/O:
      Mic Input: XLR, Transformer Balanced, Pin 2 Hot, Input Impedance – 600 Ohm
      Line Input: Input Impedance – 10k
      DI, 1/4″ Unbalanced

      POWER
      Phantom Power: +48v
      Power: +/-28v
      Requires the Chandler Limited PSU-1 MKII power supply

Need more info on the TG Channel MKII? Click HERE for the manufacturer's website >>>
