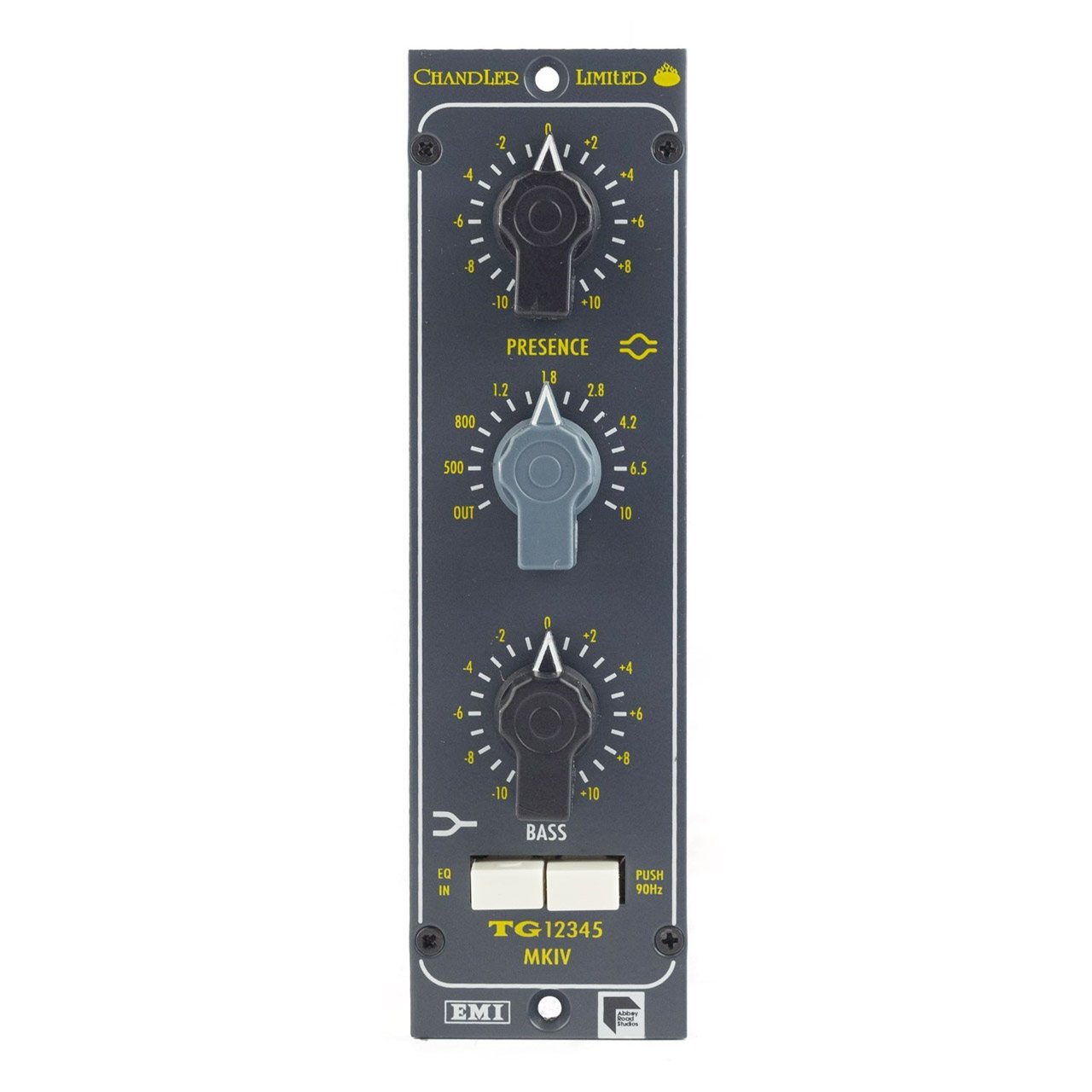

Chandler Limited TG12345 MKIV EQ - 500 Series EQ

The TG12345 MKIV EQ by Chandler Limited is an equaliser designed for the 500 series format. The TG12345 MKIV EQ is completely handmade and is based on the legendary G Microphone Cassette and TG12345 Curve Bender.

FEATURES:

• The TG12345 MKIV control set includes: presence and bass bands, with continuous boost/cut, and true bypass.

• The presence band is switchable, featuring eight frequencies and an out position. The first seven frequencies are bell type, and the eighth is a shelf at 10 kHz.

• The bass band is a shelving type, featuring two frequency options, 90 or 150 Hz.

• The remarkable character of the TG12345 MKIV EQ is silky smooth and the sound is Curve Bender sweet.

• Create an EMI TG console channel today by adding the TG12345 MKIV EQ, TG Opto compressor and TG2-500 preamp to your 500 Series rack!

• Chandler Limited is the only company in the world authorized to develop, manufacture and market the “Official Equipment” of EMI/Abbey Road Studios.

SPECIFICATIONS

FEATURES

• Channels: Mono
• Circuit: Discrete, Transistor
• Presence: Switchable, 8 Frequencies, Out position, Continuous boost/cut
• Presence Curve: Bell and Shelving (10 kHz)
• Presence Frequencies: 500, 800, 1.2, 1.8, 2.8, 4.2, 6.5, 10 kHz
• Bass: Switchable, Continuous boost/cut
• Bass Curve: Shelving
• Bass Frequencies: 150, 90 Hz
• Bypass: True Bypass

• I/O: 500 Series format (frame-dependent

• 500 Series format: +/-16v
• Max. current draw: +16v @ +105ma / -16v @ -90ma
