Cordial

CL-CPDS1CC

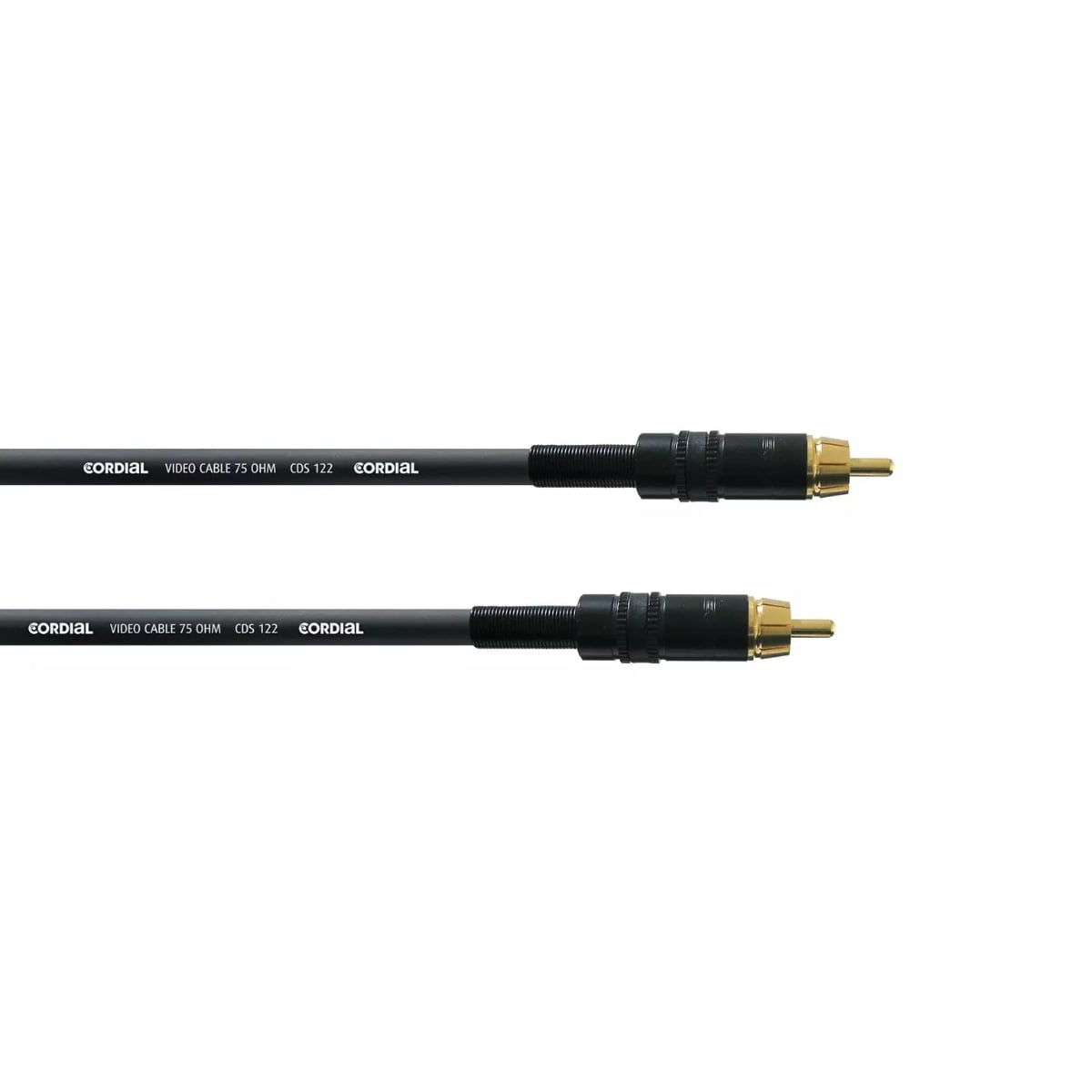

Cordial RCA/RCA 75 OHMS SPDIF

5 IN STOCK

Specifically for our S/PDIF Digital Interface Cable CPDS CC, we developed the (word clock) bulk cable CDS 122 (7x 0.20 mm conductor structure, a conductor cross-section of 0.22 mm², 75 ohms characteristic impedance). The conical, gold plated Cinch connectors are from REAN made by Neutrik®. They are often used for the low-loss connection of digital terminals in the studio, DJ, and consumer electronics sectors.

The SPDIF standard and word clock require a characteristic impedance of 75 ohms, AES/EBU 110 ohms. Only then digital audio transmission via cable will be absolutely interference-free. The CPDS CC is fine-tuned to meet exactly these specific requirements.

Features

Cable: CDS 122

Jacket: PVC

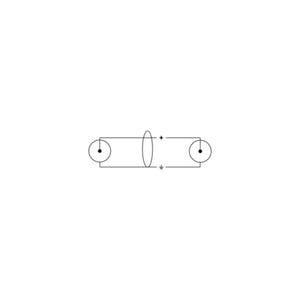

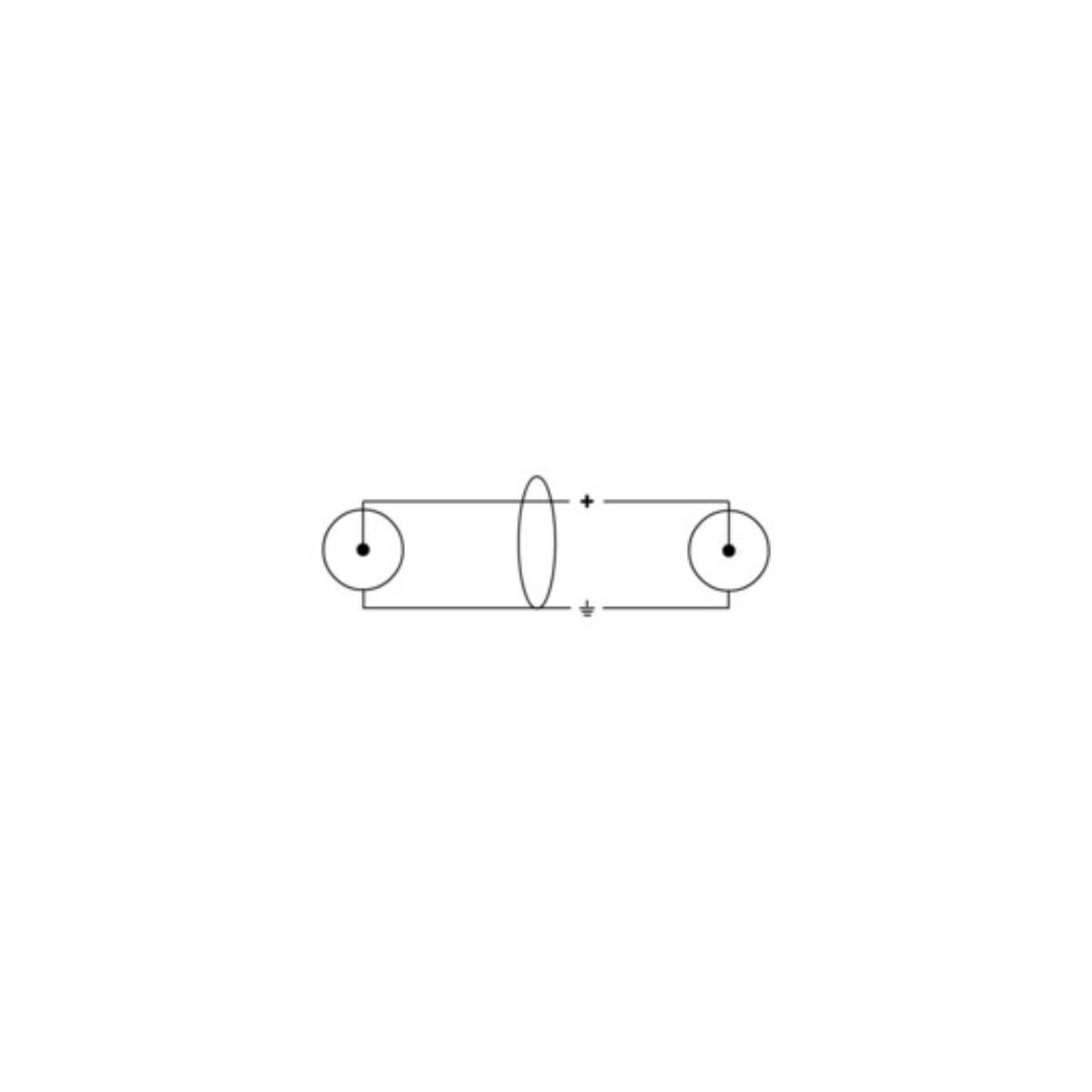

Cable assign: CC

Connector Brand: REAN ®

Plugs:  1 Cinch-RCA 1 Cinch-RCA

Specifications

Conductor area

0.22 mm²

AWG

AWG 24

Composition of conductor

7 x 0.22 mm

Material

bare copper

Conductor resistance

82 Ω / m

Shielding

bare copper braided screen

Capacity cond.-cond. (pF/m)

< 67 pF/m

category

COAX

diameter

6.1 mm

weight

45 g/m

Conductor isolation

PE
