Cranborne Audio

CA 500

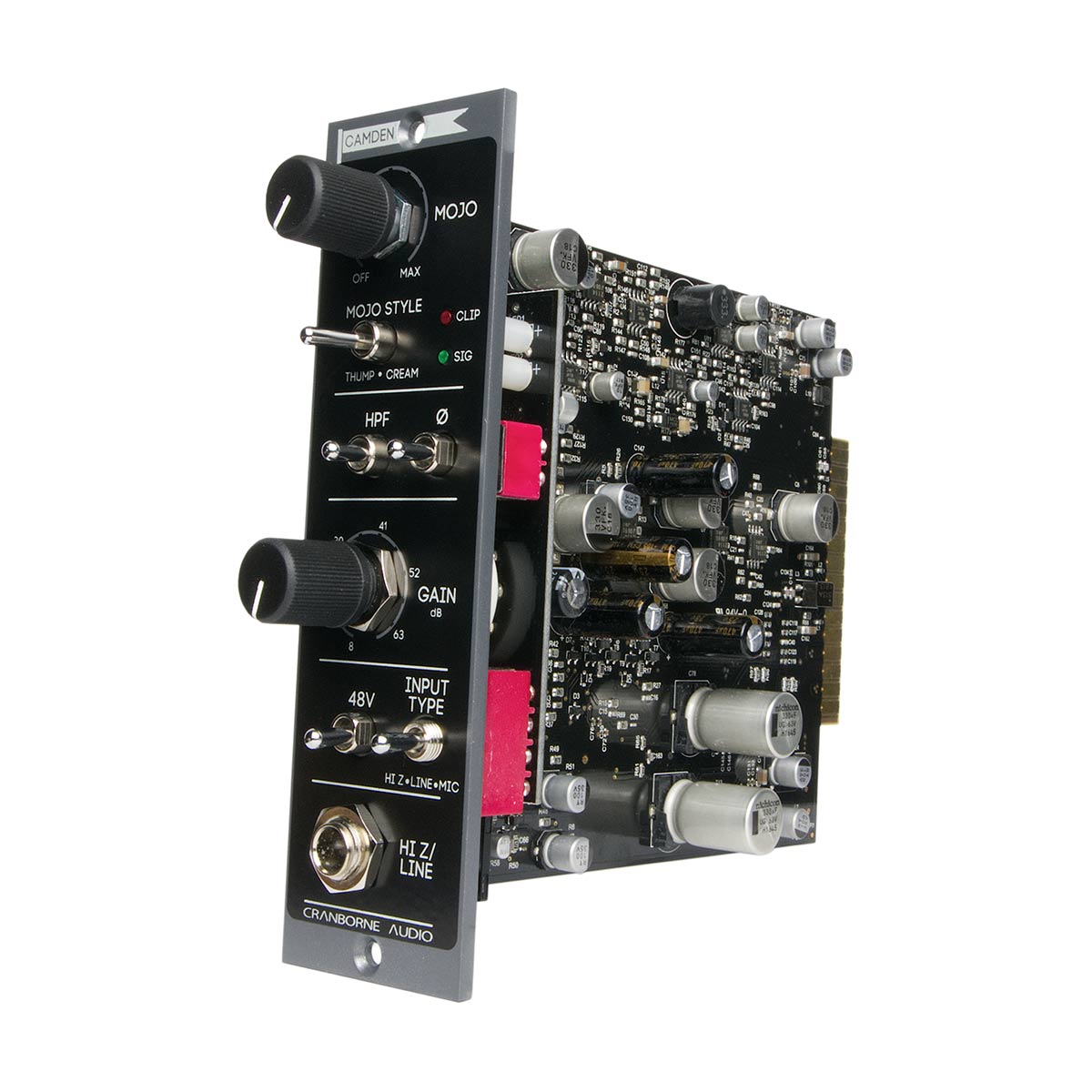

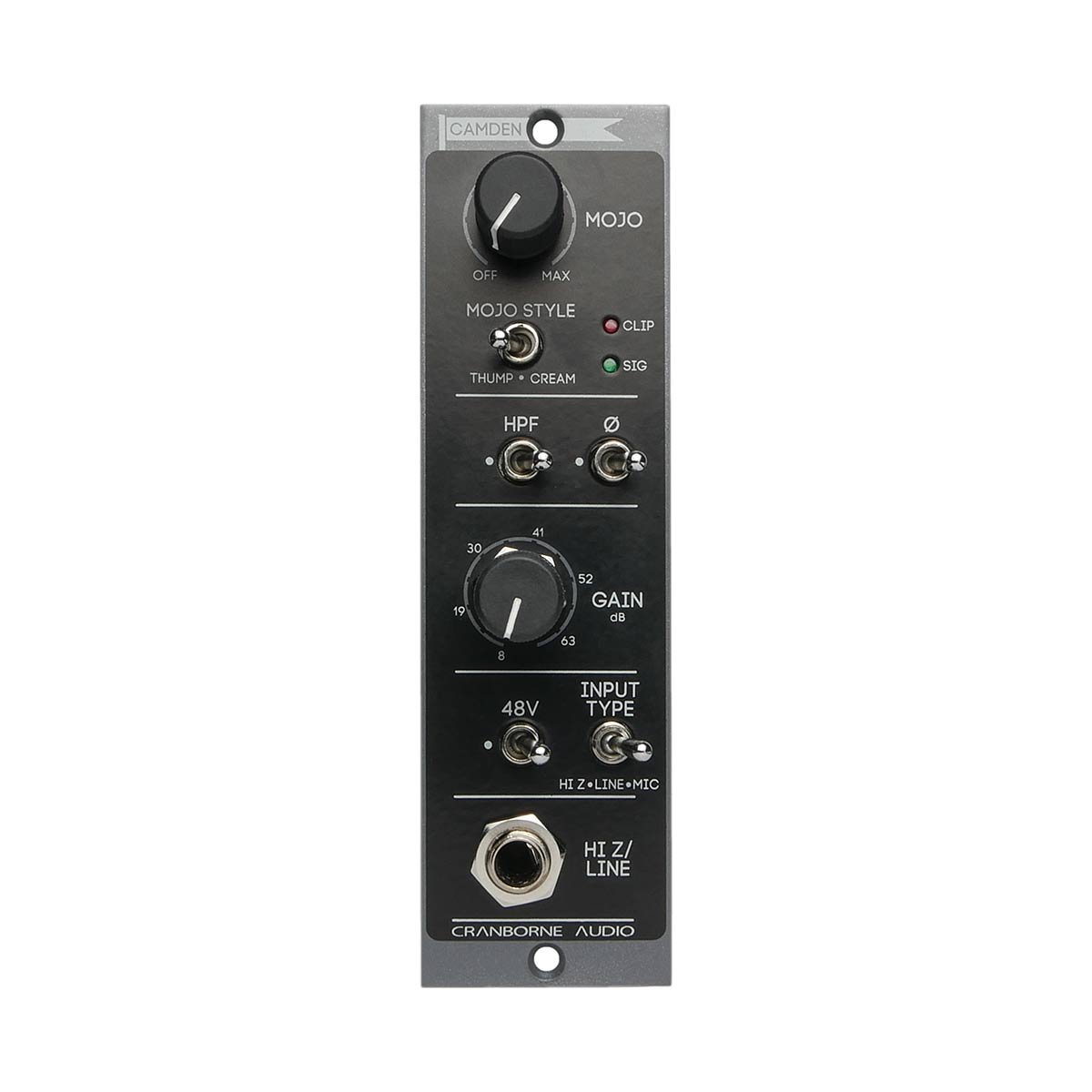

Cranborne Audio Camden 500 - 500 Series Preamp / processor

The Cranborne Audio Camden 500 is the most astoundingly clean, linear, transparent preamp you’ve ever heard. But it also has “Mojo” - 2 discrete custom analogue saturation circuits that can be applied, exaggerated, and perhaps best of all - bypassed.


Features

Camden 500 provides the utmost clarity and detail when it is most required. Its custom 'Camden' topology achieves stunning low-noise and low-distortion performance: -129.8dB EIN (150ohm, unweighted) and THD+N as low as 0.0002%.  It also sets a new standard for frequency and phase linearity: ±0.7dB frequency response from 5Hz to 200kHz at max gain and <2° phase shift @ 50Hz – 20kHz. The sum result is the most natural sounding preamp you've ever heard.

Camden 500 features "Mojo" - a custom analogue saturation circuit that transforms Camden 500 into the fattest, warmest, most colourful mic preamp in your arsenal. Designed to introduce harmonics and saturation effects that our favourite vintage gear produces, Mojo can be subtle, it can be exaggerated, but best of all it can be bypassed...

Put simply, Camden 500 is one of the cleanest, most linear, and transparent preamps on the market. Our new ‘Camden’ preamp topology allows us to push the boundaries of Frequency response, phase shift, noise, and THD performance; and we have all the specs to back that up.

Technical Specifications

  • EIN: <-129.5dBu, 150 ohm source, unweighted <-135.5dBu, Inputs common, unweighted
  • THD+N: <0.0004%, 1kHz, 35dB gain, 24dBu out
  • Phase Shift: <2.25°, 40dB gain, 20Hz to 20kHz <4°, Max gain, 20Hz to 20kHz
  • Freq. Response: <±1dB, <5 Hz to >200 kHz, all gain settings
  • CMRR: >70dB, typ >85dB, 35dB Gain, 10-20kHz, 100mV Common mode
