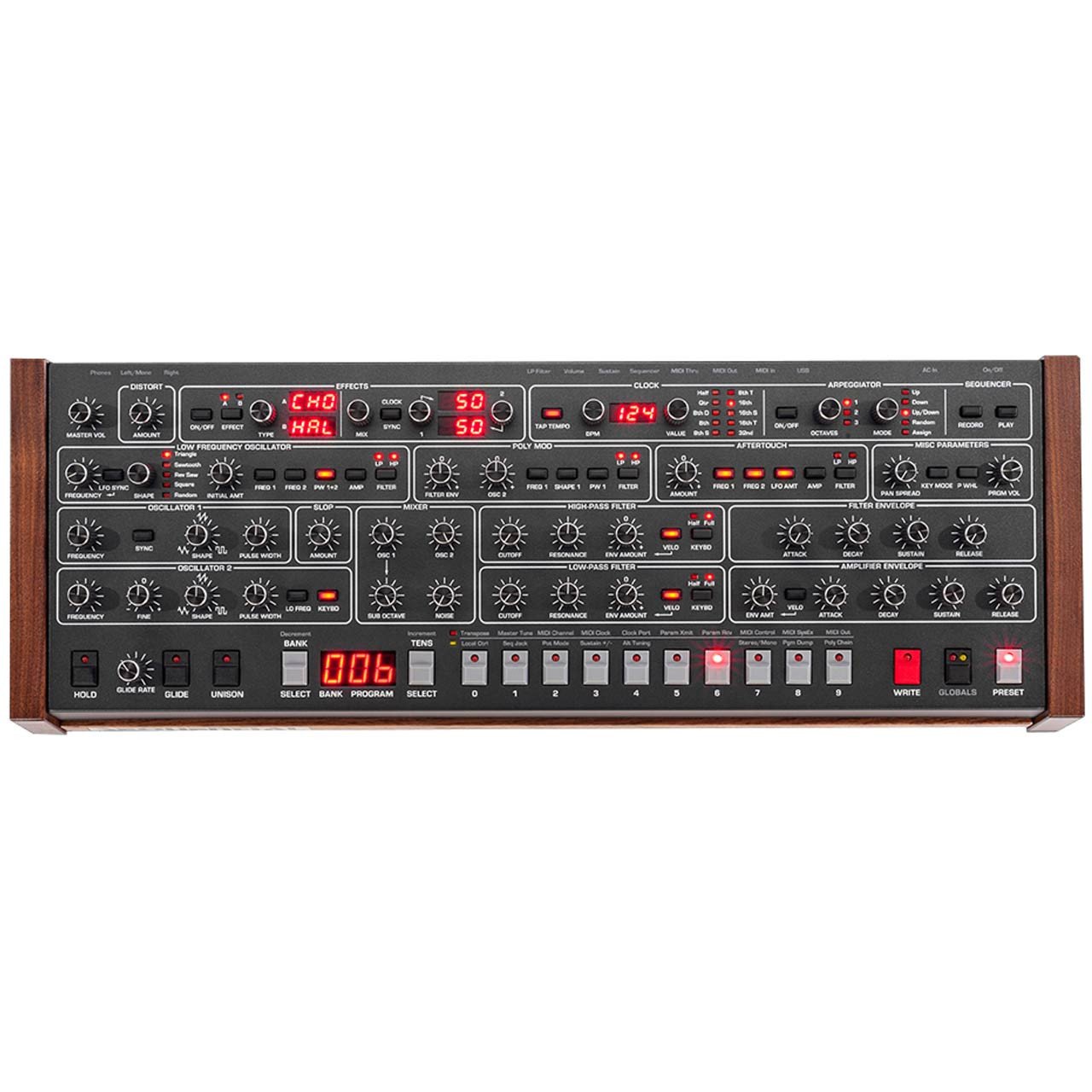

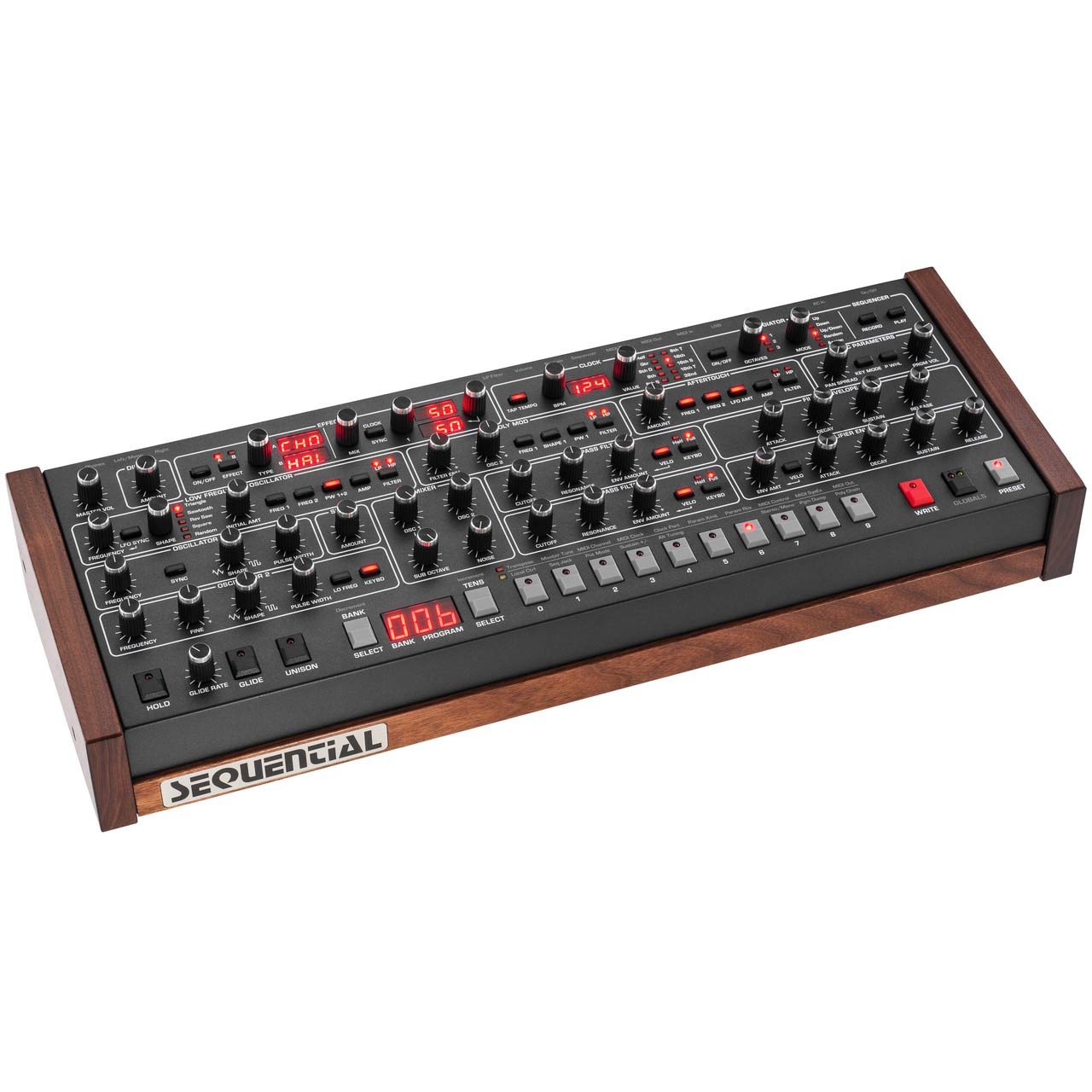

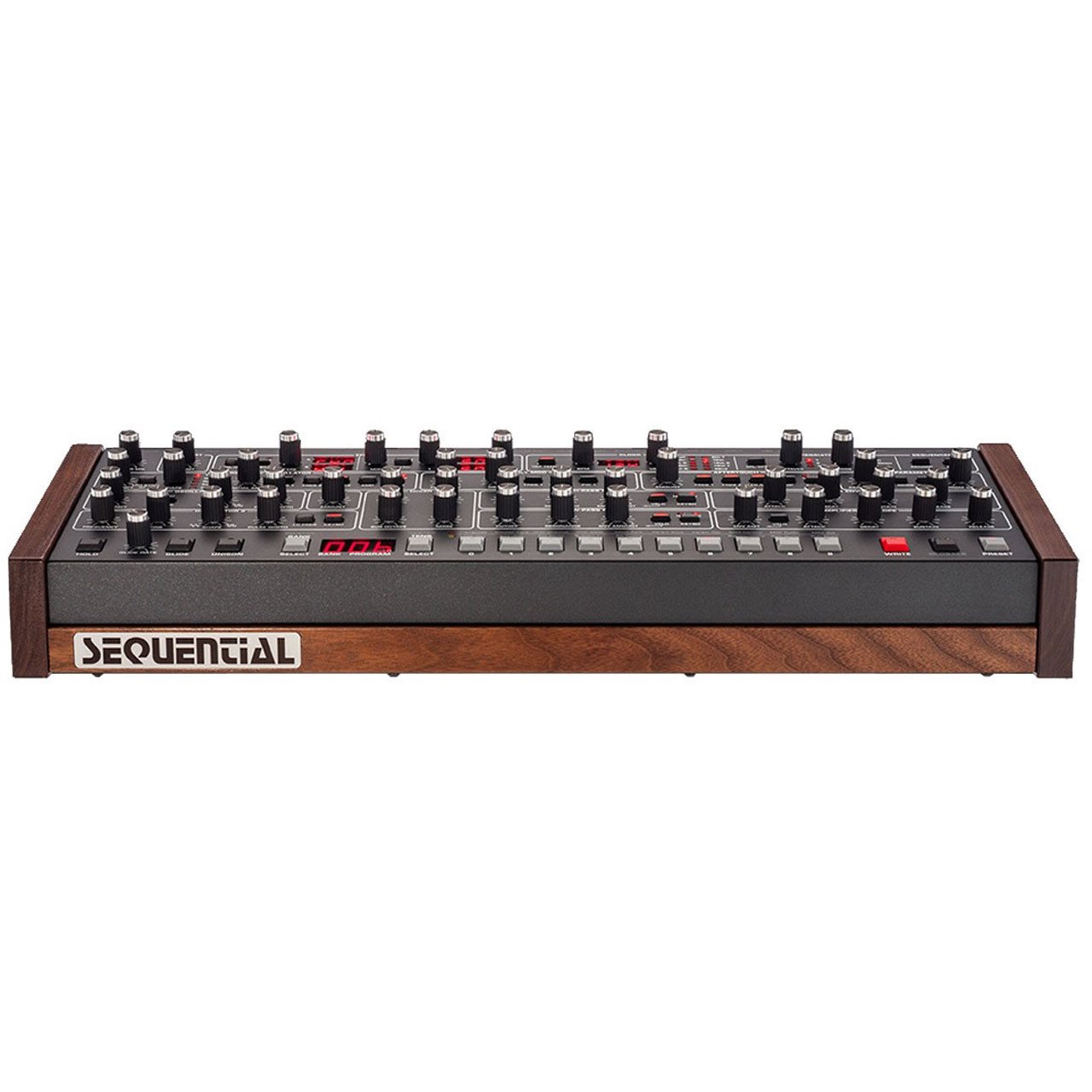

Sequential Prophet-6 Desktop Analog Synthesizer (Dave Smith Instruments)

The Dave Smith Instruments Prophet-6 Desktop Polyphonic Synthesizer provides Vintage analog sound in a unit that's small enough to fit in your backpack!  The Prophet-6 Desktop is every bit as powerful as the Keyboard version.  It has all the same controls, with full-sized knobs, switches, and absolutely no menu diving!  'But how does it sound?' you may ask...well, awesome just like the keyboard, because on the inside, it’s exactly the same!


    • DAVE SMITH INSTRUMENTS PROPHET-6 DESKTOP FEATURES:

      Vintage with a Modern Twist

      Both the Prophet-6 desktop module and keyboard are Dave Smith’s tribute to the poly synth that started it all—the Sequential Prophet-5. But it’s not simply a reissue of a classic. Rather, as Dave puts it, “It’s the result of our effort to build the most awesome-sounding, modern analog poly synth possible.” The Prophet-6 takes the best qualities of the original Prophet-5—true voltage-controlled oscillators, filters, and amplifiers—and adds enhancements such as studio-quality effects, a polyphonic step sequencer, an arpeggiator, and more. The result is pure, unadulterated analog tone with the stability and reliability of a state-of-the-art modern synth.

      Classic Tone, Classic Vibe

      Central to the warm, punchy sound of the Prophet-6 are its two newly-designed, discrete voltage-controlled oscillators (plus sub-oscillator) per voice. Continuously variable waveshapes provide the tonal palette with triangle, sawtooth, and variable-width pulse waves. There are two discrete filters per voice—a four-pole, resonant, low-pass inspired by the original Prophet-5 filter, and a two-pole, resonant, high-pass filter. Voltage-controlled amplifiers complete the all-analog signal path.

      Dual Effects

      The dual effects section provides studio-quality reverbs, delays (standard and BBD), chorus and phase shifter. While the effects themselves are digital, with 24-bit, 48 kHz resolution, a true bypass maintains a full analog signal path. There’s also an independent stereo distortion effect, which is 100% analog.

      Poly Mod and Poly Step Sequencing

      Also present from its classic predecessor is a Poly Mod section, with enhancements. True to the original, modulation sources are filter envelope and oscillator 2 (both with bi-polar control). Destinations include oscillator 1 frequency, oscillator 1 shape, oscillator 1 pulse width, low-pass filter cutoff, and high-pass filter cutoff. Another welcome reprise is Unison mode, which features configurable voice count (1-6 voices) and key modes. The polyphonic step sequencer allows up to 64 steps and up to 6 notes per step. You can create sequences polyphonically, with rests, and sync to an external MIDI clock. The full-featured arpeggiator can be synced to external MIDI clock as well.

      Easy to Program

      The knob-per-function front panel offers instant access to virtually all Prophet-6 functions. Included are 500 permanent factory programs and 500 rewritable user programs. Toggling off the Preset button enables live panel mode, in which the sound of the Prophet-6 switches to the current settings of its knobs and switches. In this state, what you see is what you hear.

      Easy to Play

      All of this awe-inspiring sound is packed into a desktop module that’s small enough to fit in a backpack. It’s an ideal combination of portability and power for the project studio or the gigging musician.

    • DAVE SMITH INSTRUMENTS PROPHET-6 DESKTOP SPECIFICATIONS:

      OSCILLATORS

      Two newly designed, discrete VCOs per voice

      Continuously variable wave shape (triangle, sawtooth, pulse, square) per oscillator

      Pulse width per oscillator

      Hard sync: oscillator 1 syncs to oscillator 2

      Triangle sub-octave generator (oscillator 1) per voice

      Low frequency mode (oscillator 2)

      Keyboard tracking on/off (oscillator 2)

      Oscillator slop amount for increased tuning instability, from subtle to extreme

      MIXER

      Oscillator 1 amount

      Oscillator 1 sub-octave amount

      Oscillator 2 amount

      White noise amount

      HIGH-PASS FILTER

      Two-pole, resonant, high-pass filter per voice

      Bi-polar filter envelope amount

      Velocity modulation of envelope amount

      Keyboard tracking: off, half, full

      LOW-PASS FILTER

      Four-pole, resonant, low-pass filter per voice, inspired by the original Prophet 5 filter

      Filter can be driven into self-oscillation with the Resonance control

      Bi-polar filter envelope amount

      Velocity modulation of envelope amount

      Keyboard tracking: off, half, full

      FILTER ENVELOPE

      Four-stage (ADSR) envelope generator

      AMPLIFIER ENVELOPE

      Four-stage (ADSR) envelope generator

      Velocity modulation of envelope amount

      LOW FREQUENCY OSCILLATOR

      Five wave shapes: triangle, sawtooth, reverse sawtooth, square, and random (sample and hold)

      Clock sync (internal or external MIDI clock)

      Initial amount

      Mod destinations: oscillator 1 frequency, oscillator 2 frequency, oscillator 1 and 2 pulse width, low-pass filter cutoff, high-pass filter cutoff

      POLY MOD

      Sources: filter envelope (bi-polar) and oscillator 2 (bi-polar)

      Destinations: oscillator 1 frequency, oscillator 1 shape, oscillator 1 pulse width, low-pass filter cutoff, high-pass filter cutoff

      AFTERTOUCH

      Source: channel (mono) aftertouch with bi-polar amount

      Destinations: oscillator 1 frequency, oscillator 2 frequency, LFO amount, amplifier envelope amount, low-pass filter envelope amount, high-pass filter envelope amount

      CLOCK

      Master clock with tap tempo

      BPM control and display

      MIDI clock sync

      ARPEGGIATOR

      Selectable note value: 16th note, 8th note triplet, 8th note, dotted 8th note, quarter note

      One, two, or three octave range

      Up, down, up/down, random, and assign modes

      SEQUENCER

      Polyphonic step sequencer with up to 64 steps and rests

      EFFECTS

      Stereo analog distortion

      Dual, 24-bit, 48 kHz digital effects, including: reverb (room, hall, plate, spring), delay (full bandwidth digital delay and emulated bucket brigade and tape delays), chorus, and phase shifter

      Delay sync

      True bypass maintains fully analog signal path when digital effects are off

      PERFORMANCE CONTROLS

      Polyphonic glide (portamento)

      Hold switch latches held notes on

      Unison (monophonic) mode with configurable voice count, from one to all six voices, and key modes

      Preset switch: when off, the front panel is live; what you see is what you hear

      PATCH MEMORY

      500 user and 500 factory programs in 10 banks of 100 programs each

      Direct program access, including Prophet 5-style single-button access to the current set of 10 programs

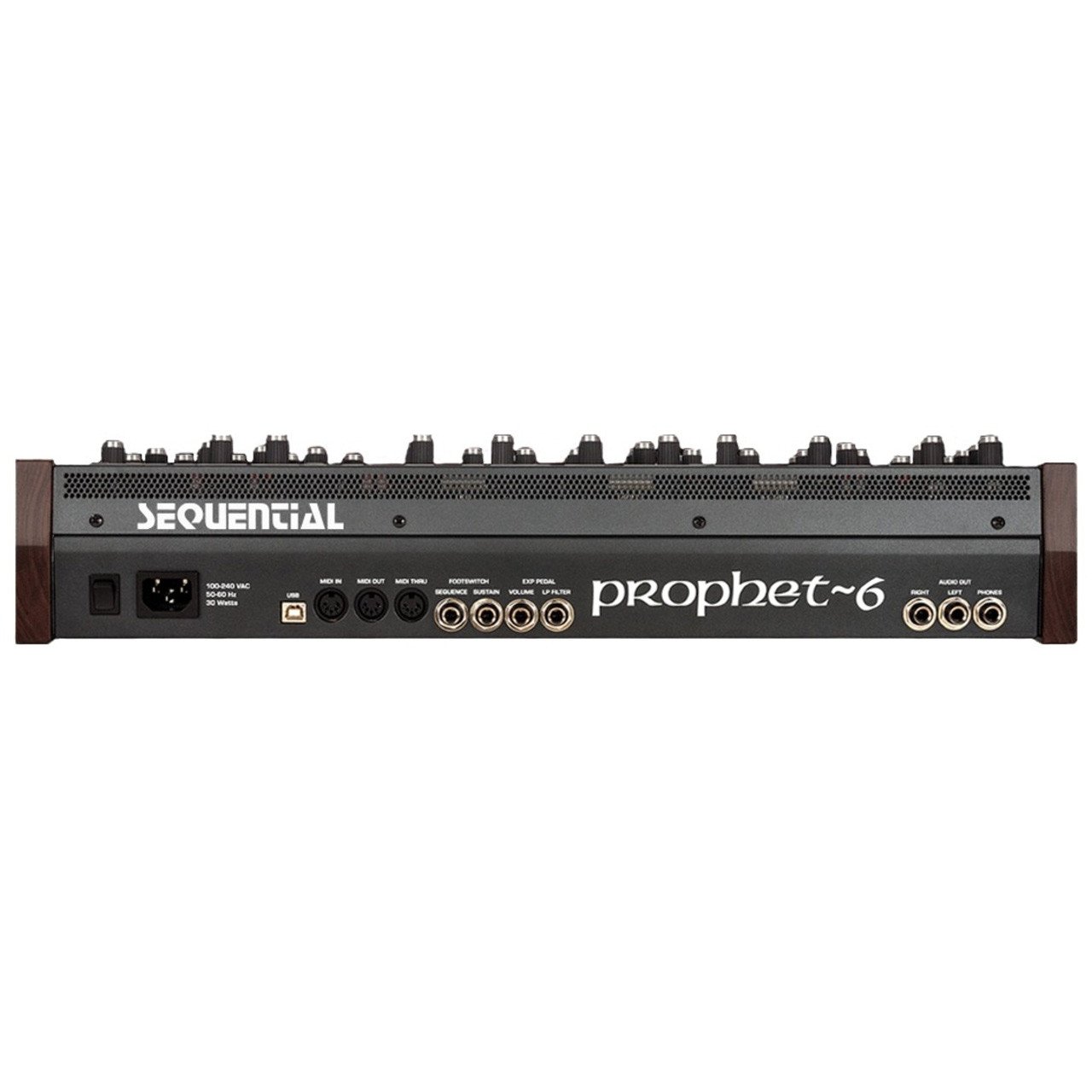

      IN/OUT

      Left and right audio outputs (2 x 1/4” phone jack)

      Headphone output (stereo, 1/4” phone jack)

      MIDI in, out, and thru ports

      USB for bidirectional MIDI communication

      Low-pass filter cutoff expression pedal input

      Volume expression pedal input

      Sustain footswitch input

      Sequencer start/stop footswitch input

      POWER

      IEC AC power inlet for internal power supply

      Operates worldwide on voltages between 100 and 240 volts at 50 to 60 Hz; 30 watts maximum power consumption

      PHYSICAL SPECS

      21.25” L x 7.43” W x 4.4″ H (54.0 cm x 18.9 cm x 11.2 cm)

      13.0 lbs (5.9 kg)

      Walnut end panels and trim

Need more info on the Prophet-6 Desktop? Click HERE for the official Dave Smith Instruments product listing >>>
