DVX DM 12

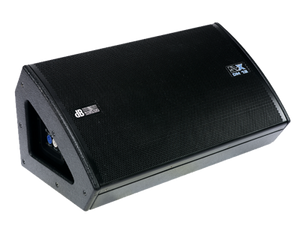

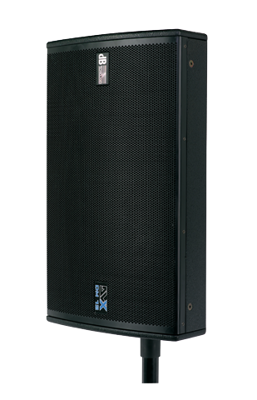

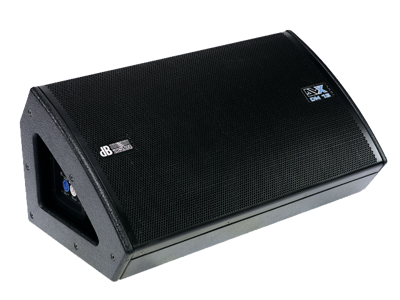

DB Technologies 2-way stage monitor, 1 x 12" RCF neodymium woofer with 3" VC, 1 x 1,4" CD driver

Notify me when this product is available:

Active Speaker 12"/1.4" 750W The DVX DM12 is an active bi-amped stage monitor. Powerful, assertive, and engineered for professional applications, it is the perfect choice for midsized to large stages.Featuring a discrete, unobtrusive design, the ultra low-profile enclosure sports a high-performance 12" RCF® neodymium woofer paired with a 1.4" RCF® neodymium compression driver and rotatable aluminium CD horn precision matched for on-stage monitoring. Unlike conventional multifunctional speakers, the DVX DM 12 is a pro-grade performer developed specifically for use as a floor monitor. Optimised to resist feedback even at extremely high levels, it delivers the true-to-nature response and dynamic balance that today's artists demand. The integrated digipro®  digital power amps deliver the requisite output. The switched-mode power supplies with PFC ensure touring rigs get all the juice they need to perform at their peak even when a venue's mains power is weak and voltage is low. The onboard controller encompasses an active equaliser, active x-over including phase and time alignment, limiters, and switchable system presets that adapt the monitor's performance to suit the given application.Made of rugged multiplex and coated with tough black lacquer, the cabinet sets up at two different angles. It is also equipped with a pole mount, enabling the DVX DM12 to be set on a tripod or speaker pole.Technical data

  • Speaker Type: 2-Way Active Speaker

Acoustical data

  • Frequency Response [-10dB]: 55 - 20.000 Hz
  • Frequency Response [ /- 3dB]: 68 - 19.000 Hz
  • Max SPL: 131 dB
  • HF: 1.4 "
  • Type HF: RCF Neodymium Compression Driver
  • Voice Coil HF: Titanium 2.5 "
  • Directivity: 40x90 °
  • Horn: CD Horn, Aluminium
  • Rotatable Horn: Yes
  • LF: 12 "
  • Type LF: RCF Neodymium
  • Voice Coil LF: 3 "

Amplifier

  • Amp Technology: digipro
  • Amp Class: Class D
  • HF Amp: 250 W/RMS
  • LF Amp: 500 W/RMS
  • Cooling: Convection

Processor

  • Controller: DSP24 Bit/ 48 kHz
  • System Presets: Flat, Monitor
  • Limiter: RMS, Peak, Thermal, Multiband-Limiter
  • Crossover Frequency MF-HF: 1320 Hz
  • Slope MF-HF: 24 dB/Octave

Input Section

  • Signal Input: XLR fem, sym.
  • Input Sensitivity [dBu]: -00 - max. -3 dBu
  • Signal Output: XLR male, sym
  • Power Socket: Powercon In/Out
  • Voltage Range: 240 V

Mechanics

  • Housing: Multiplex birch plywood
  • Housing Design: Low Profile Multifunctional
  • Colour: Black
  • Surface Texture: Textured acrylic lacquer
  • Handles: 1x per side
  • Pole Mount: 36mm
  • Angles Up: 35, 55 °
  • Front Grille: 1,5mm metal backed with acoustic foam rubber
  • Rigging Points: 6x M8
  • Width: 660 mm (26.4 in)
  • Height: 305 mm (12.2 in)
  • Depth: 378 mm (15.12 in)
  • Weight: 17.5 kg (38.58 lbs)
