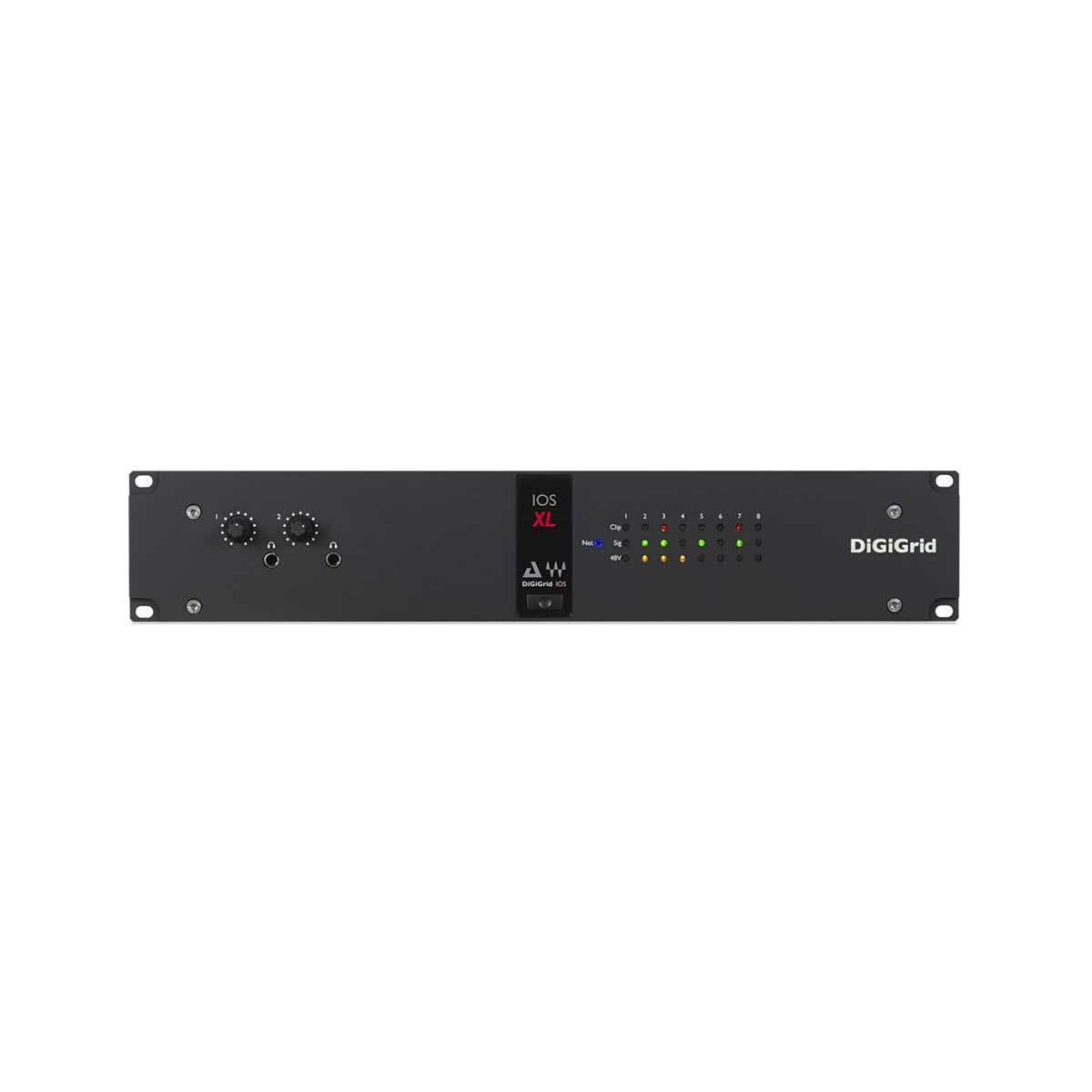

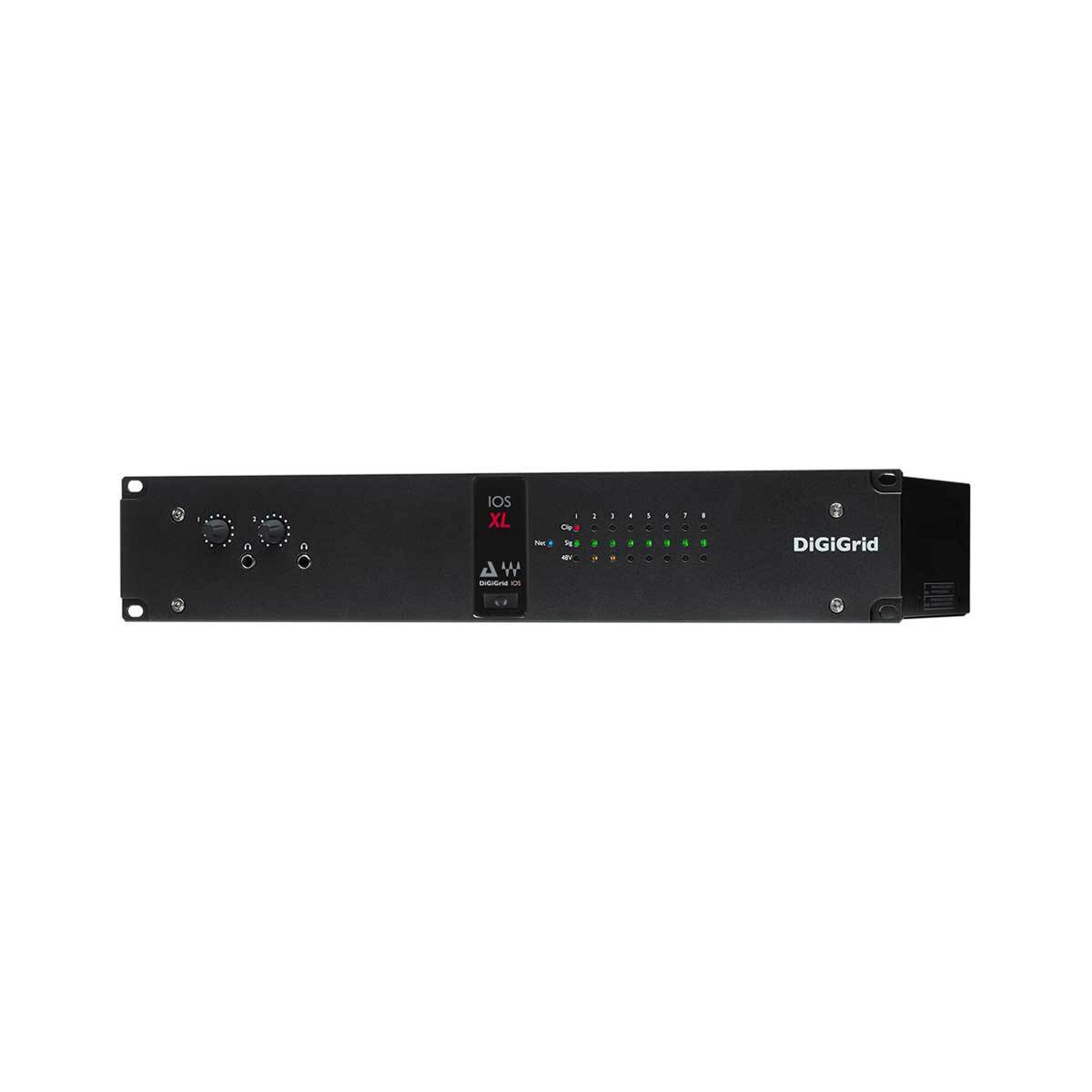

    DiGiGrid IOS-XL integrated audio interface with i7V3 Extreme Soundgrid DSP Server

    2 In Stock

    DiGiGrid IOS-XL is a comprehensive audio interface with a built-in extreme SoundGrid DSP server that adds more plugin processing power to your system. Ideal for professional and personal production environments alike, the IOS-XL is the all-in-one solution for Studio and Live.

    Together with the SoundGrid Studio System, DiGiGrid IOS-XL enables you to mix and monitor in real time using hundreds of SoundGrid-compatible Waves and third-party plugins, with an incredibly low latency of only 0.8 milliseconds.

    Product Features:

    • 8 mic/line ins, 8 line outs, 2 headphone outs
    • Built-in SoundGrid DSP server
    • ASIO and Core Audio-compatible audio interface
    • Award-winning software-controlled preamps
    • MIDI, S/PDIF, and AES/EBU ins and outs
    • Connects via a single Ethernet cable (Cat 5e/Cat 6)
    • Quick-view front panel metering and status indicators
    • High-definition ADC/DAC conversion

    Technical Specifications:

    General Specifications

    DiGiGrid IOS-XL features 8 mic/line inputs with broadcast/studio-quality preamps; 8 line outputs; 2 headphone outputs; and MIDI I/O, S/PDIF, and AES ins and outs.

    IOS-XL also features a built-in network switch. To connect more SoundGrid-compatible components to your system, all you need is a single Cat 5e/Cat 6 Ethernet cable.

    • Internal SoundGrid DSP Server (SoundGrid Extreme V3 Server equivalent)
    • 8 channel mic/line ins (XLR/TRS combo)
    • 8 channel line outs (TRS or 25-pin D-con)
    • 4 SoundGrid RJ45 Ethernet ports
    • AES/EBU or S/PDIF I/O (switchable)
    • Optional sample rate conversion on AES / SPDIF inputs
    • 2 headphone outputs with front panel analog level controls
    • 1 AC input
    • 1 USB port (for software upgrades/support only.)
    • 2U rack-mounted
    • Supported sample rates: 44.1, 48, 88.2, 96 kHz (176.4 and 192 kHz will be supported in the future)
    • Word clock I/O
    • Clock synchronization via Word Clock input, AES/EBU, SPDIF, SoundGrid (Sync over Ethernet)), Internal
    • MIDI I/O
    • Reset switch

    Analog Inputs

    Input Impedance: Mic: 2K5 / Line: 8K0 Ohms

    Gain Range: Mic: 0 dB to +52.5 dB in 7.5-dB steps / Line: -10 dB to +42.5 dB in 7.5-dB steps

    Fine control provides an additional 0dB to 7dB in 0.5-dB steps

    Maximum Input Level: Mic: +26 dBu / Line: +36 dBu

    Mic Equivalent Input Noise: > -126 dB (150 Ohm source, gain +59.5 dB)

    Harmonic Distortion: Typically < 0.01% @ unity gain, -10dB input @ 1 kHz

    Frequency Response: +/-0.5 dB (20 Hz to 20 kHz)

    Channel Separation: Better than 90 dB (40 Hz to 15 kHz)

    Analog Outputs

    Maximum Output Level: +22 dBu

    Residual Output Noise: <90 dB (20 Hz to 20 kHz)

    Frequency Response: +/-0.5 dB (20 Hz to 20 kHz)

    Output Impedance: 50 Ohms

    Channel Separation: Better than 90 dB (40 Hz to 15 kHz)

    Harmonic Distortion: Typically < 0.01% @ unity gain, -10dB input @ 1 kHz

    Weight and Dimensions

    Height Width Depth Weight
    2U / 88.1mm 19″ / 482.60 mm 356 6Kg
