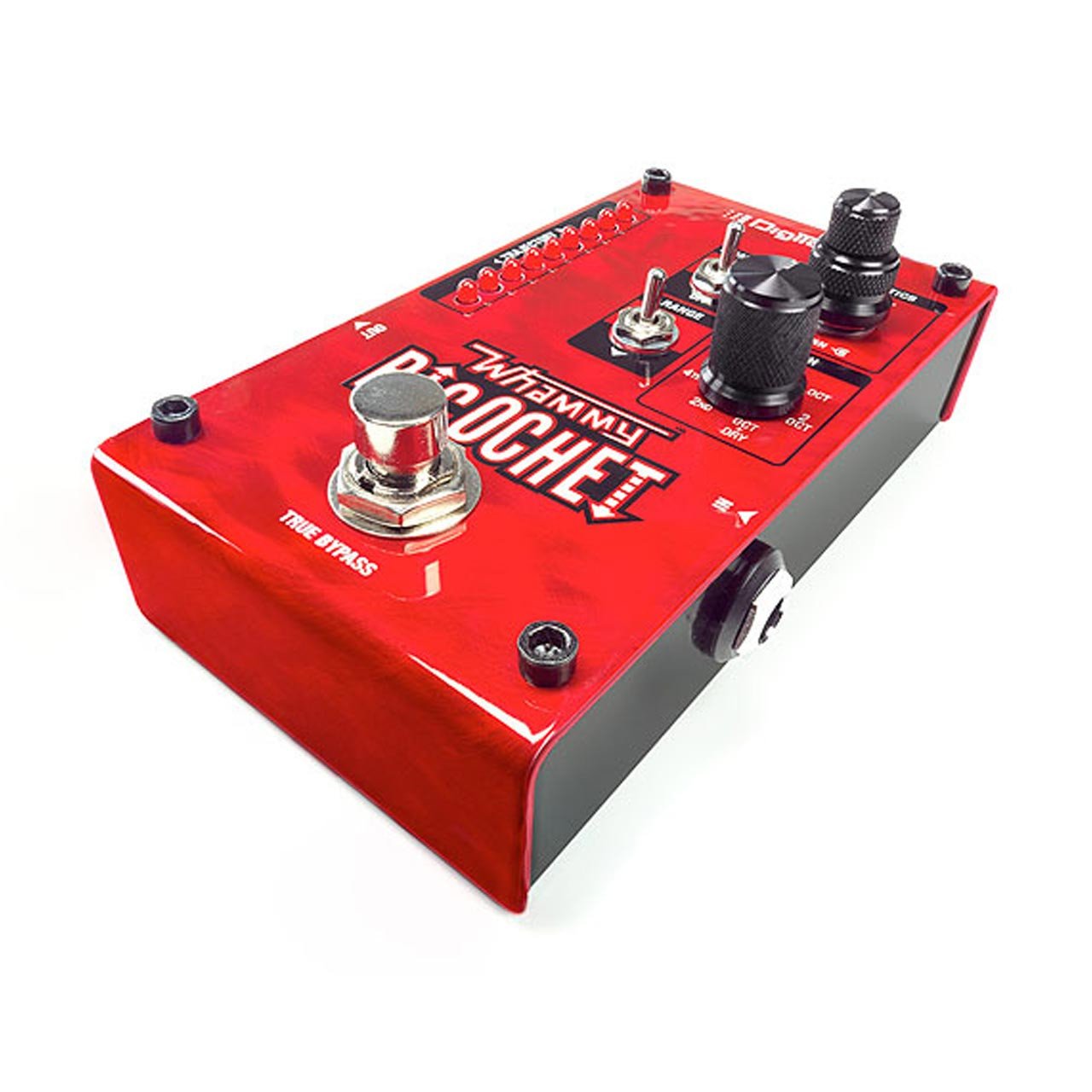

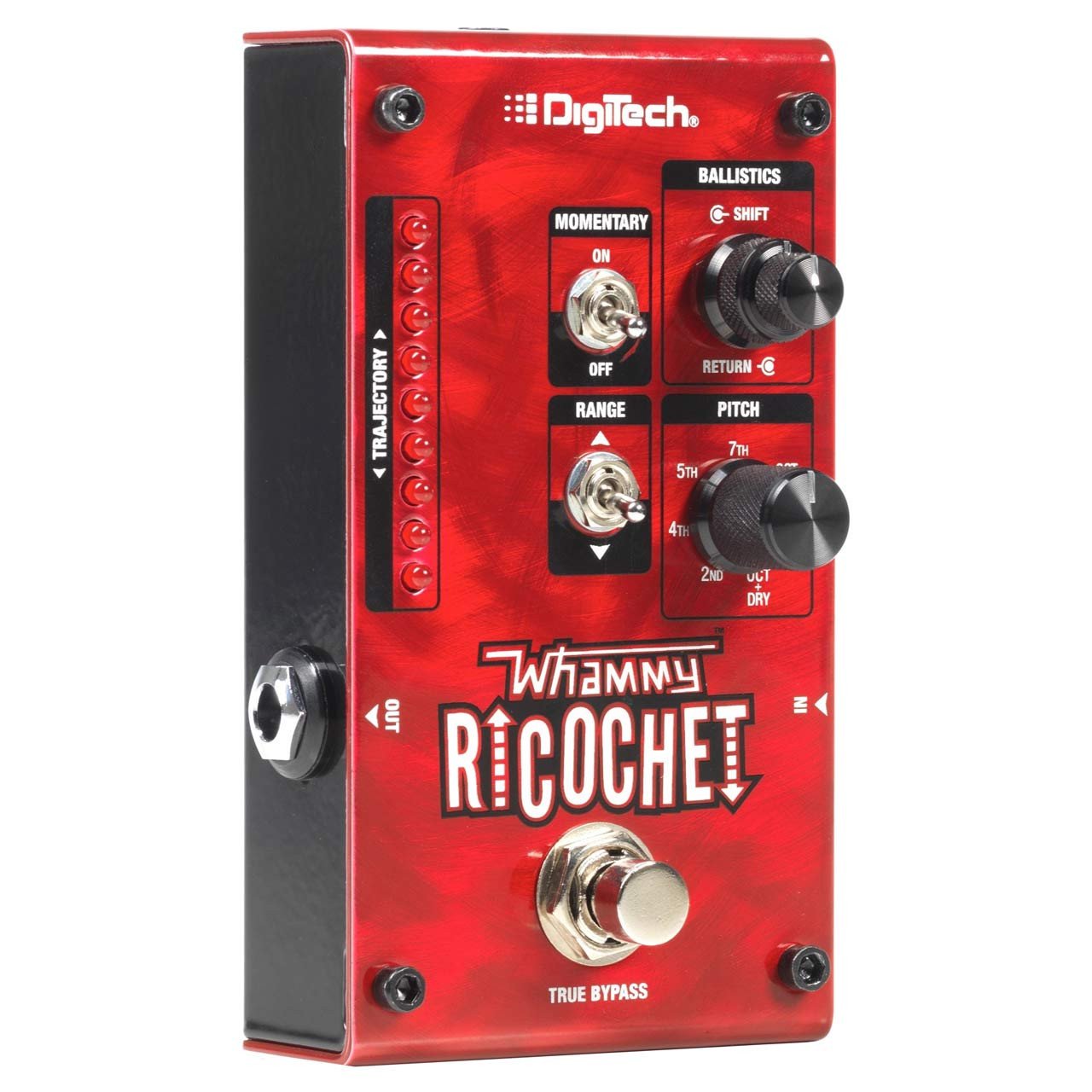

    Digitech Whammy Ricochet Pitch Shift Pedal

    3 In Stock

    The DigiTech Whammy Ricochet, is a stomp-box style pitch shifting guitar pedal. The Ricochet allows you to choose from 7 different pitch selections ranging from a tone, right up to a double octave. By holding down on the foot-switch you can activate the pitch shift without using a treadle. Other features include an LED meter that depicts the pedals pitch movements, programmable rise-and-fall times, and latch mode. Latch mode can be used to maintain the destination pitch.


      • DigiTech Whammy Ricochet Features:

        Famous Whammy™ sound without a bulky treadle
        Bend notes up or down across 2 octaves
        7 Selectable Pitch intervals
        Ultimate control of Shift and Return time
        LED Trajectory Ladder provides instant visual feedback
        Classic and Chords mode
        Momentary or Latching footswitch
        True Bypass in latching mode
      • DigiTech Whammy Ricochet Specifications:

        Input: 1/4” Unbalanced (Tip-Sleeve)
        Max Input Level: +5 dBu
        Input Impedance: 1 MΩ (Effect enabled or effect bypassed w/ Momentary switch on) True Bypass (Effect bypassed w/ Momentary switch off)
        Output: 1/4” Unbalanced (Tip-Sleeve)
        Max Output Level: +10 dBu
        Output Impedance: 1 kΩ (Effect enabled or effect bypassed w/ Momentary switch on) True Bypass (Effect bypassed w/ Momentary switch off)
        Controls: Ballistics Control, Pitch Control, Range Switch, Momentary Switch, Effect On/Off
        Sample Rate: 44.1 kHz in classic mode, 22 kHz in chords mode
        Frequency Response: 20 Hz–16 kHz (classic mode), 20 Hz–11 kHz (chords mode)
        Signal to Noise Ratio: > -106dB (A weighted); ref = max level, 22 kHz bandwidth
        A/D/A Converter: 24-bit
        THD: 0.004% @ 1 kHz; ref = 1 dBu w/ unity gain

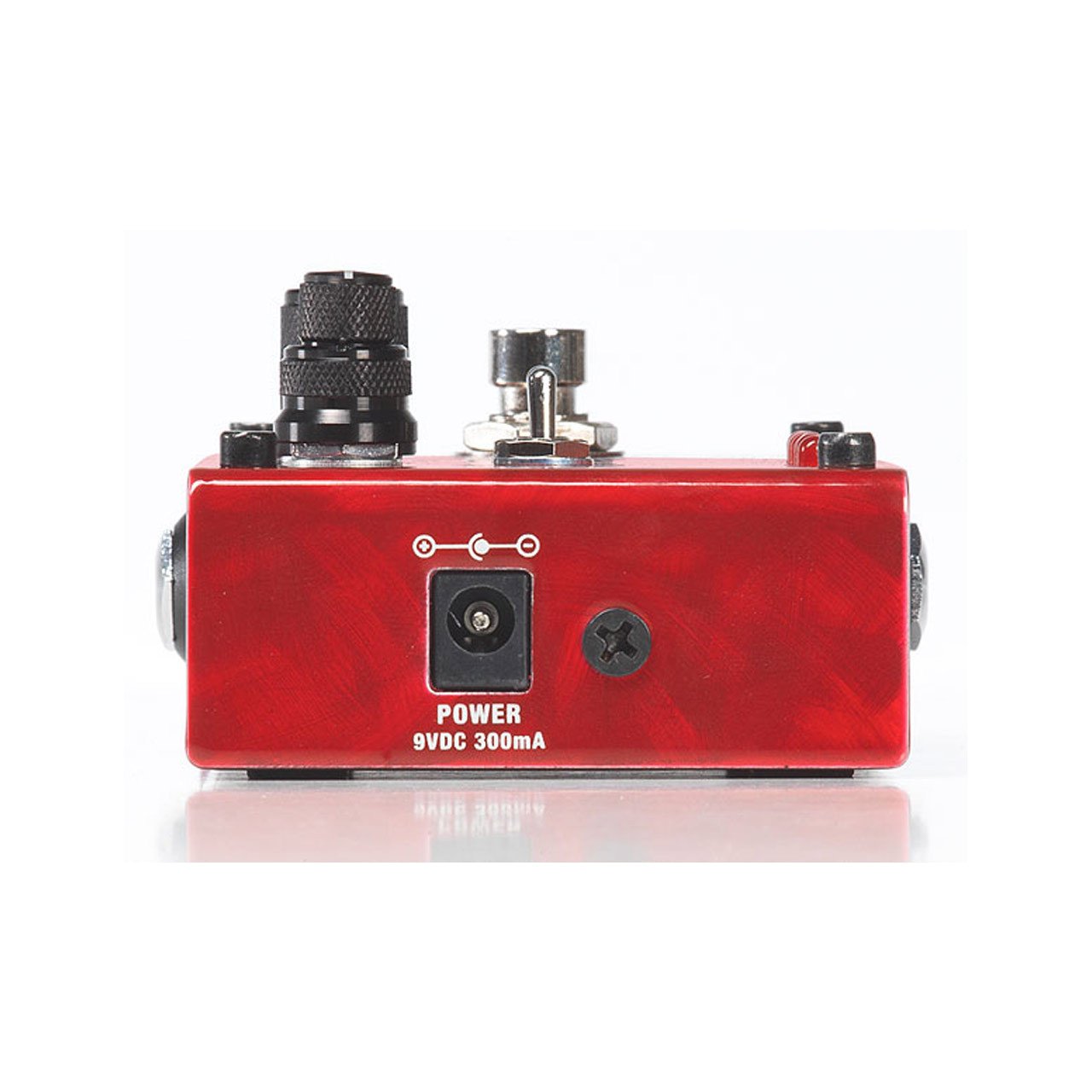

        Power Consumption: 2.1 Watts (235 mA typical @ 9 VDC)
        Power Requirements: 9 VDC External Adapter (sold separately)
        Power Supply: PS0913DC-01 (US, JA, EU); PS0913DC-02 (AU, UK)
        Power Adapter Output: 9 VDC 1.3 A
        Weight: 0.80 lbs. (0.363 kgs.)
        Dimensions: 4.75” (L) x 2.875” (W) x 1.75” (H)
