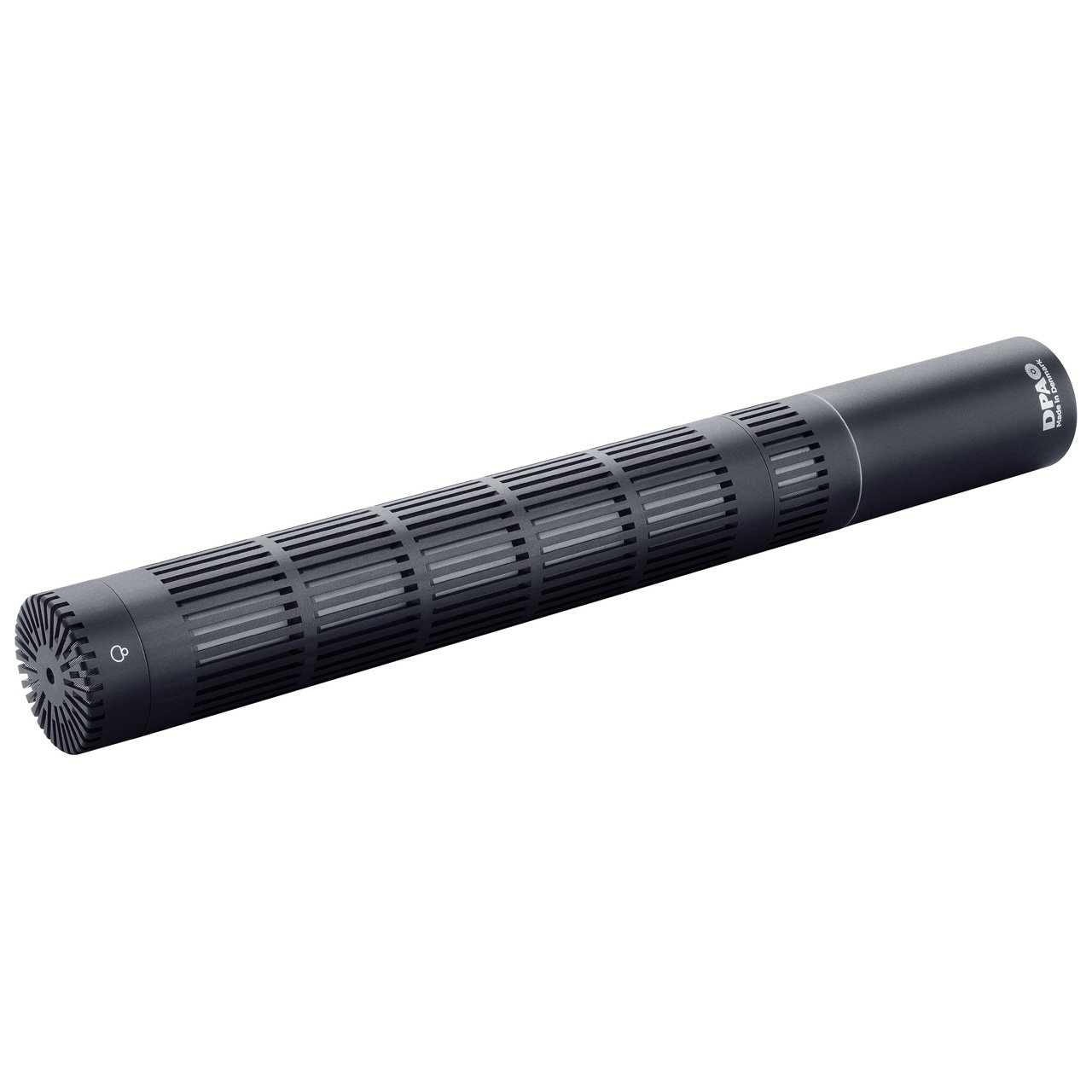

    DPA 4017C Compact Shotgun Microphone

    Notify me when this product is available:


    SPECIAL ORDER ITEM

    Designed for a broad range of applications, the d:dicate™ 4017 Shotgun Mic is ideal for use with camera systems, in fixed positions at sports facilities, for broadcast / ENG/film booming and even in studio recording environments.

    FEATURES

    • Small and lightweight

    • Excellent RF immunity

    • Highly immune to humidity

    • Uniform off-axis response

    • Highly directional pattern

    • Sleek shotgun for distant miking

    • Integrated active cable

    SPECIFICATIONS

    • Directional pattern: Supercardioid, lobe-shaped

    • Principle of operation: Pressure gradient, with an interference tube

    • Cartridge type: Pre-polarized condenser

    • Frequency range: 20 Hz - 20 kHz

    • Frequency range, ±2 dB, at 60 cm (23.6 in) 40 Hz - 18 kHz with typ. 3 dB soft boost at 15 kHz

    • Sensitivity, nominal, ±2 dB at 1 kHz 19 mV/Pa; -34.4 dB re. 1 V/Pa

    • Equivalent noise level, A-weighted Typ. 13 dB(A) re. 20 µPa (max. 15 dB(A))

    • Equivalent noise level, ITU-R BS.468-4 Typ. 24 dB (max. 26 dB)

    • S/N ratio (A-weighted), re. 1 kHz at 1 Pa (94 dB SPL) Typ. 81 dB(A)

    • Total harmonic distortion (THD) < 1% up to 137 dB SPL peak

    • Dynamic range Typ. 124 dB

    • Max. SPL, peak before clipping 146 dB

    • Output impedance 100 Ω

    • Minimum load impedance 2 kΩ

    • Cable drive capability 100 m (328 ft)

    • Output balance principle Impedance balancing with Active Drive

    • Common mode rejection ratio (CMRR) > 50 dB

    • Power supply (for full performance) 48 V Phantom power (± 4 V)

    • Current consumption 2.8 mA

    • Connector XLR-3M. Pin 1: shield, Pin 2: signal + phase, Pin 3: - phase

    • Colour Matte Black

    • Weight 70 g (2.5 oz)

    • Microphone diameter 19 mm (0.75 in)

    • Capsule diameter 19 mm (0.75 in)

    • Microphone length 154 mm (6 in)

    • The maximum output voltage, RMS 4.5 V

    • Polarity +V at pin 2 for positive sound pressure

    • Temperature range -40°C to 45°C (-40°F to 113°F)

    • Relative humidity (RH) Up to 90%
