DPA Microphones

DP-CO4099MS

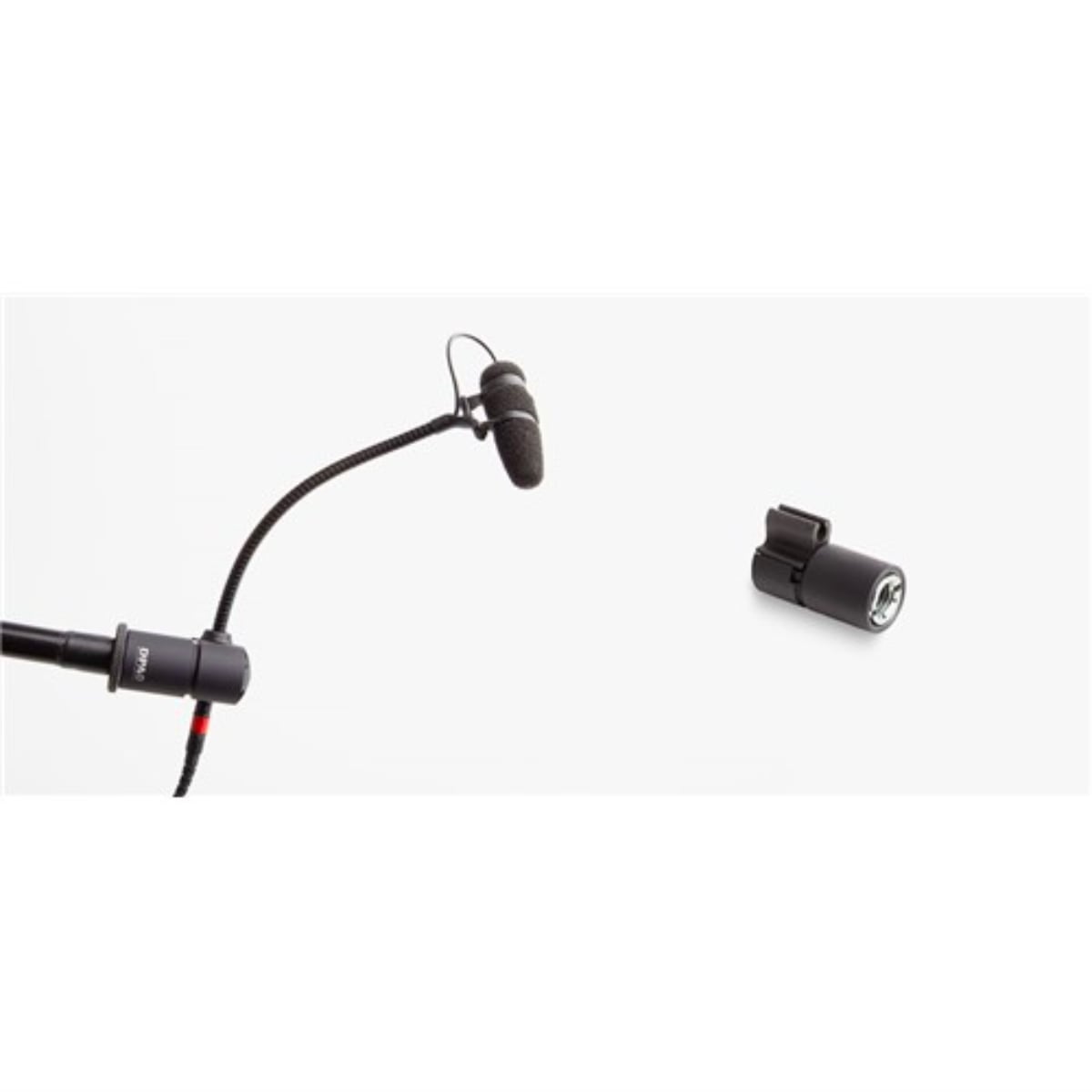

DPA 4099 Core Mic - Loud SPL with Mic Stand Mount 3/8" and 5/8" Thread


Please contact me with information about availability and pricing for DPA 4099 Core Mic - Loud SPL with Mic Stand Mount 3/8" and 5/8" Thread




4099 CORE MIC, LOUD SPL WITH MIC STAND MOUNT 3/8" AND 5/8" THREAD

Features

  • CORE by DPA technology inside
  • Supercardioid condenser microphone
  • Handles high SPLs
  • Superior gain-before-feedback
  • Flexible and easy mounting
  • Gentle and easy to mount on the instrument
  • Detachable cable and a versatile gooseneck extender

Stand Mount

Even though the 4099 CORE is often used attached directly to a specific instrument, many users have asked for a solution to mount the mic on a regular microphone stand. Now you can get the unparalleled sound of the  4099 CORE for Loud SPL easily mounted on a mic stand.

This mount has both 3/8" and 5/8" threads thanks to the supplied insert. The construction of the holder allows for quick and easy insertion and removal of the microphone. In addition, the holder can be rotated so that the microphone is oriented vertically or horizontally

Specifications

  • Directional pattern: Supercardioid

  • Principle of operation: Pressure gradient

  • Cartridge type: Pre-polarized condenser

  • Frequency response: 20 Hz - 20 kHz

  • Effective frequency range ±2 dB, at 20 cm (7.9 in): 80 Hz - 15 kHz with 2 dB soft boost at 10-12 kHz. Second-order low-cut filter at 80 Hz with DAD4099-BC

  • Sensitivity, nominal, ±3 dB at 1 kHz: 6 mV/Pa; -44 dB re. 1 V/Pa

  • Equivalent noise level, A-weighted: Typ. 23 dB(A) re. 20 μPa (max. 26 dB(A))

  • Distortion, THD < 1%: 128 dB SPL RMS, 131 dB SPL peak

  • Dynamic range: Typ. 108 dB

  • Max. SPL, THD 10%: 142 dB SPL peak

  • Rated output impedance: From MicroDot: 30 - 40 Ω. From DAD4099-BC or DAD6001-BC: 100 Ω

  • Cable drive capability: Up to 300 m (984 ft) with DAD6001-BC/DAD4099-BC XLR Adapter

  • Output balance principle: Signal balanced with DAD4099-BC or DAD6001-BC XLR Adapter

  • Common mode rejection ratio (CMRR): > 60 dB from 50 Hz to 15 kHz with DAD4099-BC or DAD6001-BC XLR Adapter

  • Power supply (for full performance): For wireless systems: Min. 5 V - max. 10 V through DPA adapter With DAD6001-BC or DAD4099-BC: P48 (Phantom Power). Will work from 12 V

  • Current consumption: Typ. 1.5 mA (microphone). 3.5 mA with DAD4099-BC or DAD6001-BC XLR Adapter

  • Connector: MicroDot

  • Colour: Black

  • Weight:

    • Microphone: 17 g (0.60 oz)

    • Mic Stand Mount (MS4099): 27.5 g (0.97 oz)

  • Microphone diameter: 5.7 mm (0.22 in)

  • Microphone length: 45 mm (1.8 in)

  • Cable length: 1.8 m (5.9 ft)

  • Cable diameter: 1.6 mm (0.06 in) / 2.2 mm (0.09 in)

  • Polarity: +V at MicroDot pin for positive sound pressure (and pin 2 on DAD4099-BC or DAD6001-BC XLR adapter)

  • Temperature range: -40°C to 45°C (-40°F to 113°F)

  • Relative humidity (RH): Up to 90%

  • Gooseneck length: 140 mm (5.5 in)

  • Sensitivity selection tolerance (at 1 kHz): ±1 dB
