DP-4080-DC-D-B00

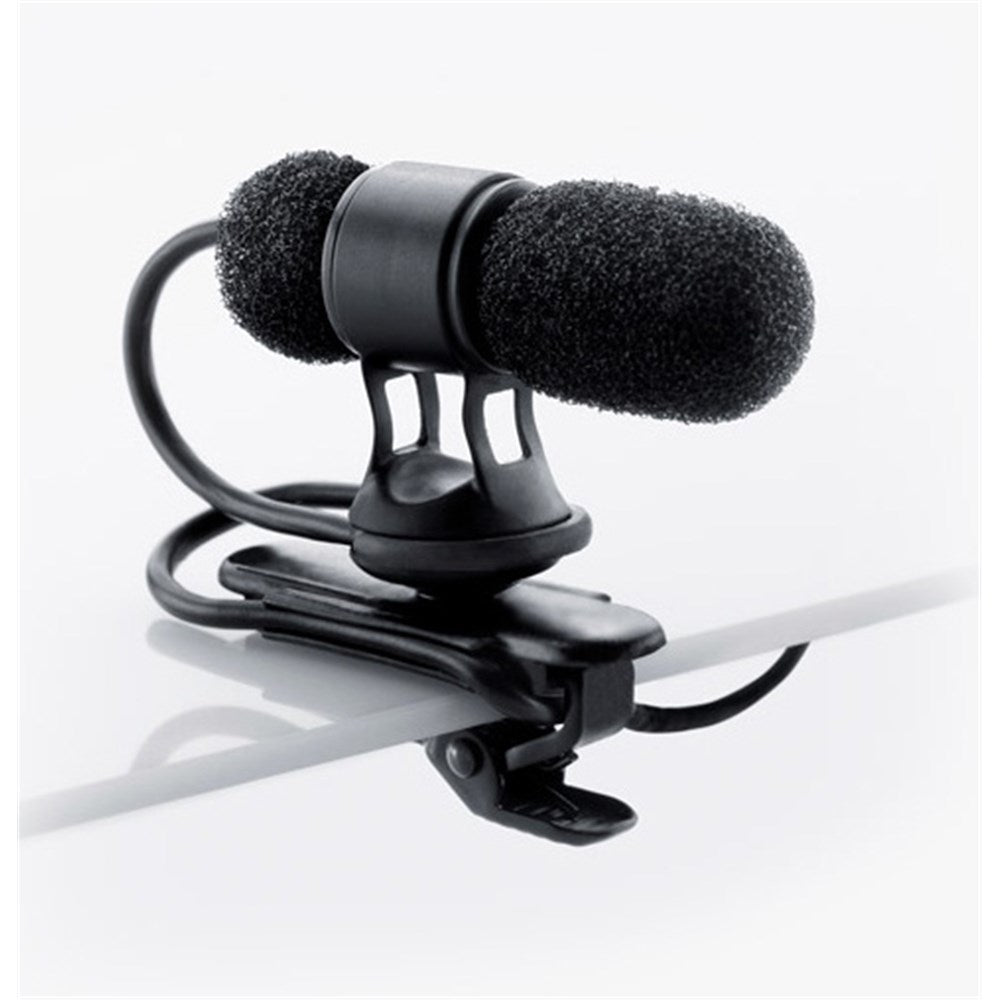

DPA CORE 4080 Cardioid Mic Normal SPL, Black, with MicroDot connector
While d:screet™ Omni Mics are ideal for situations where a broad pickup pattern is essential and off-axis noise is not a problem, in some challenging acoustic environments a directional microphone is the better choice. The d:screet™ 4080 Cardioid Lavalier captures the human voice with an unusually high degree of definition. This mic offers maximum side rejection and excellent sonic focus on the subject. It is designed for broadcast, conference and other live performances both in the studio and in the field.
Type: Lapel Microphones
Features
- Excellent speech reproduction
- Discreet, compact design
- Fits both left and right buttoned shirts
- Delivered with both black and white pop filters
- Modular adapter system fits most professional wireless systems
Specifications
| Directional pattern | Cardioid |
| Principle of operation | Pressure gradient |
| Cartridge type | Pre-polarized condenser |
| Frequency range | 20 Hz - 20 kHz |
| Frequency range, ±2 dB | 250 Hz - 17 kHz with typ. 4 dB soft boost at 4 - 6 kHz (-5 dB at 100 Hz) |
| Sensitivity, nominal, ±3 dB at 1 kHz | 20 mV/Pa; -34 dB re. 1 V/Pa |
| Equivalent noise level, A-weighted | Typ. 23 dB(A) re. 20 µPa (max. 26 dB(A)) |
| S/N ratio (A-weighted), re. 1 kHz at 1 Pa (94 dB SPL) | Typ. 71 dB(A) |
| Total harmonic distortion (THD) | < 1% up to 123 dB SPL peak, < 1% up to 120 dB SPL RMS sine |
| Dynamic range | Typ. 100 dB |
| Max. SPL, peak before clipping | 134 dB |
| Output impedance | 30 - 40 O |
| Cable drive capability | Up to 300 m (984 ft) |
| Power supply (for full performance) | Min. 5 V - max. 50 V through DPA adapter for wireless systems or 48 V phantom power ±4 V with DAD6001-BC XLR adapter |
| Connector | MicroDot |
| Color | Black |
| Weight | 15 g (0.5 oz) incl. Cable and MicroDot connector |
| Microphone diameter | 10 mm (0.4 in) |
| Capsule diameter | 5.4 mm (0.21 in) |
| Microphone length | 30 mm (1.2 in) |
| Cable length | 1.2 m (3.9 ft) |
| Cable color | Black |
| Cable diameter | 1.6 mm (0.06 in) |
| Polarity | Positively increasing sound pressure produces positive going voltage on MicroDot pin |
| Temperature range | -40°C to 45°C (-40°F to 113°F) |
| Relative humidity (RH) | Up to 90% |
