$1,199.00$1,469.00
DP-2006C

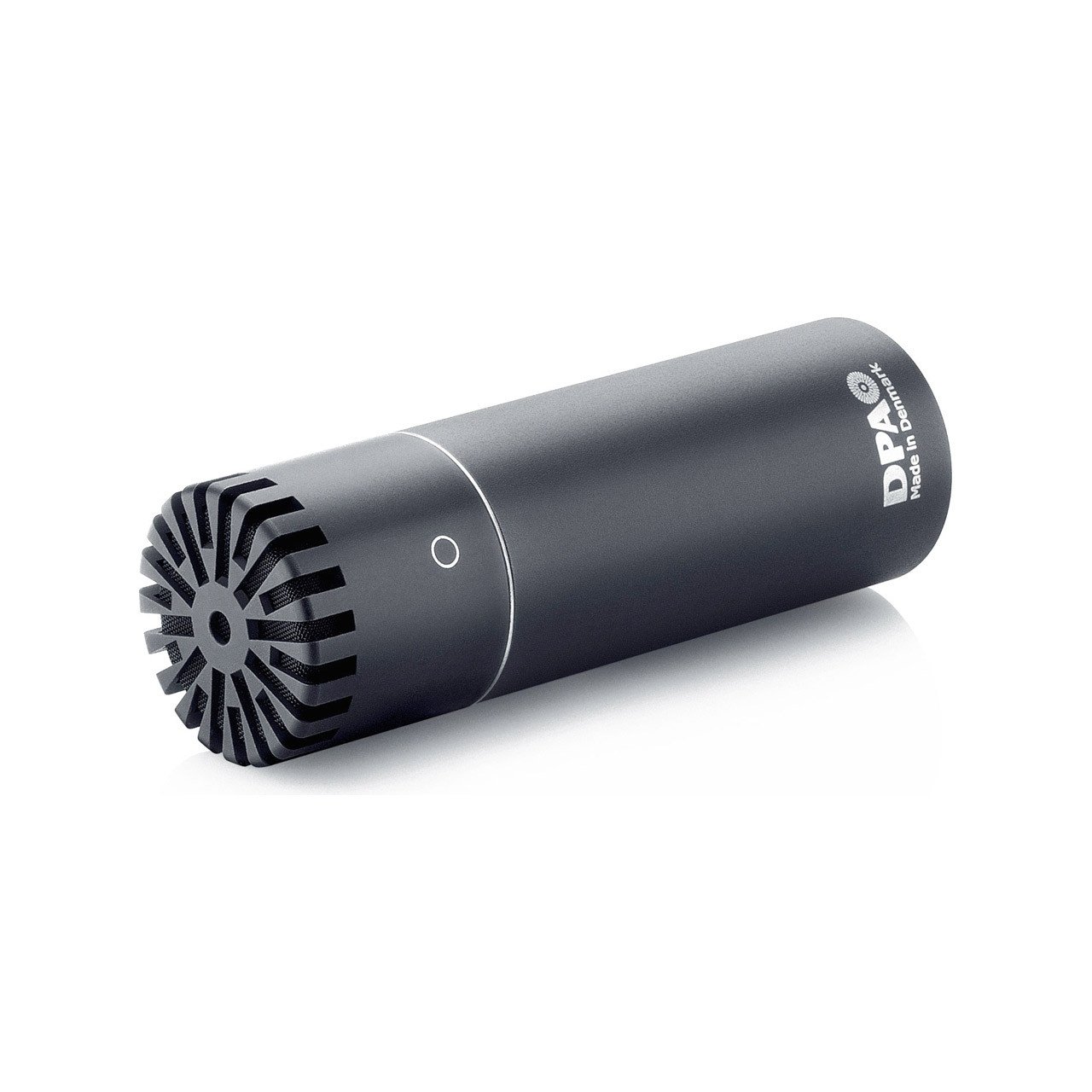

DPA d:dicate 2006C Twin Diaphragm Omni Microphone, Compact
Type: Condenser Microphones
The DPA d:dicate 2006C Compact Twin Diaphragm Omni Microphone has strong sound/design references to the DPA 4006 omni. The main difference is in the capsule technology... The 2000 series features the new Twin Diaphragm Capsule technology and redefines the term value for money.
FEATURES
- Modular flexibility
- Twin-Diaphragm-Capsule technology
- Acoustic authenticity
- Linear in a large frequency bandwidth
SPECIFICATIONS
| Directional pattern: | Omnidirectional |
|---|---|
| Principle of operation: | Pressure |
| Cartridge type: | Pre-polarized condenser, Twin Diaphragm Capsule |
| Frequency range: | 20 Hz to 20 kHz |
| Frequency range, ± 2 dB: | 50 Hz to 20 kHz with typ. 3 dB soft boost at 14 kHz |
| Sensitivity, nominal, ± 2 dB at 1 kHz: | 40 mV/Pa; -28 dB re. 1 V/Pa |
| Equivalent noise level, A-weighted: | Typ. 16 dB(A) re. 20 µPa (max. 18 dB(A)) |
| Equivalent noise level, ITU-R BS.468-4: | Typ. 28 dB (max. 30 dB) |
| S/N ratio (A-weighted), re. 1 kHz at 1 Pa (94 dB SPL): | Typ. 78 dB(A) |
| Total Harmonic Distortion (THD) at 1 kHz: | < 1 % up to 130 dB SPL peak |
| Dynamic range: | Typ. 114 dB |
| Max. SPL, peak before clipping: | 134 dB |
| Minimum load impedance: | 2 kohm |
| Output impedance: | < 200 ohm |
| Cable drive capability: | 100 m (328 ft) |
| Output balance principle: | Impedance balancing with Active Drive |
| Common Mode Rejection Ratio (CMRR): | > 50 dB |
| Power supply (for full specifications): | 48 V Phantom power (± 4 V) |
| Current consumption: | 2.8 mA |
| Connector: | XLR-3M. Pin 1: shield, Pin 2: signal + phase, Pin 3: - phase |
| Color: | Matte black |
| Microphone weight: | 60 g (2.1 oz) |
| Microphone diameter: | 19 mm (0.75 in) |
| Microphone length: | 58 mm (2.3 in) |
| Output voltage, RMS: | > 4 V |
| Polarity: | +V at Pin 2 for positive sound pressure |
| Temperature range: | -40 °C to 45 °C (-40 °F to 113 °F) |
| Relative Humidity (RH): | Up to 90% |
