  • DP-4006A

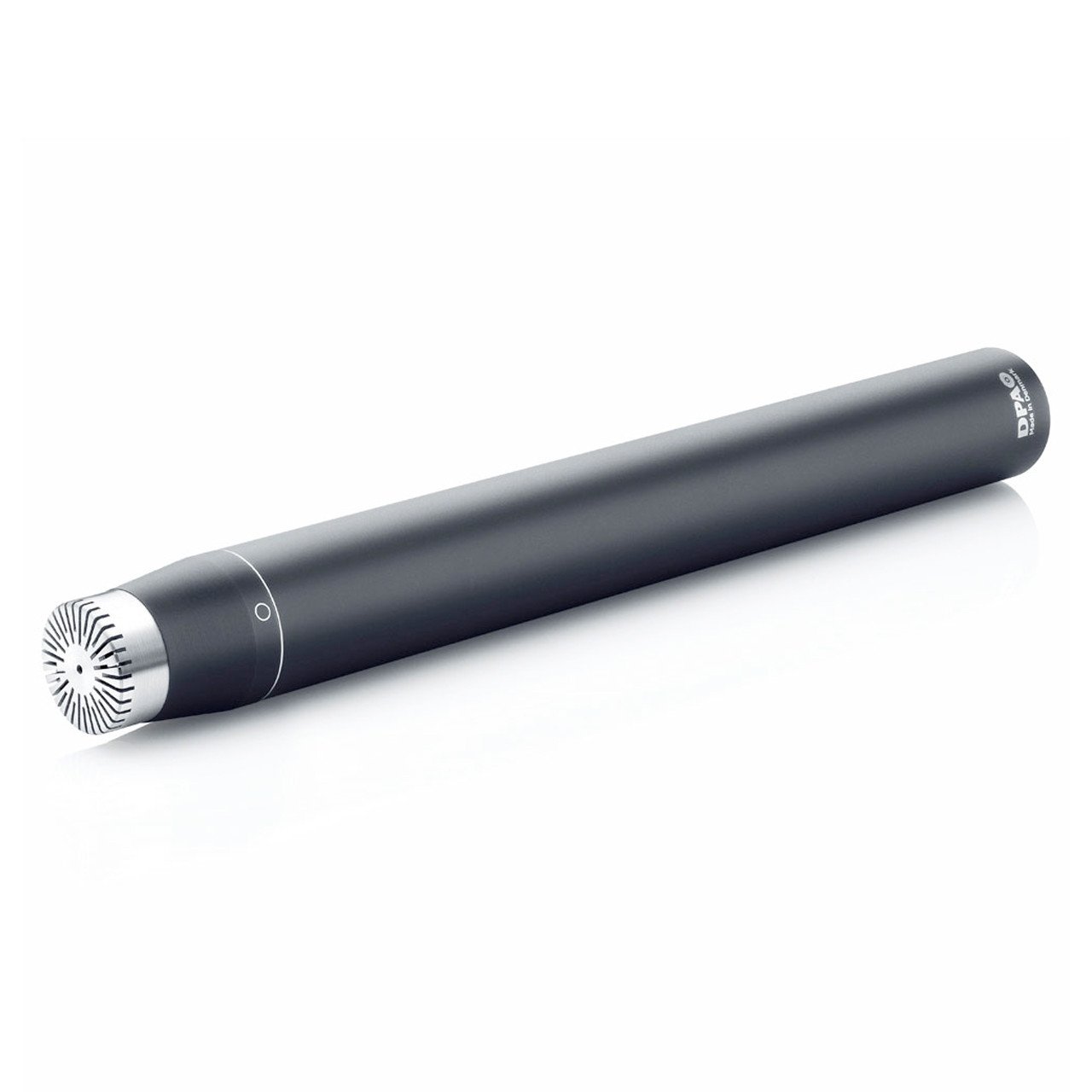

    DPA d:dicate 4006A Omnidirectional Microphone

    2 In Stock

    The DPA d:dicate 4006A Omni Microphone is one of the most popular and versatile mics in DPA's standard range.  The 4006A has developed a fantastic reputation by repeatedly exhibiting its total transparency in any recording situation, and by picking up incredible detail and depth of sound.

    FEATURES

    • Neutrality

    • Versatility

    • Precision

    • Recording standard

    SPECIFICATIONS

    Directional characteristics:
    Omnidirectional
    Principle of operation:
    Pressure
    Cartridge type:
    Pre-polarized condenser
    Frequency range:
    10 Hz to 20 kHz
    Frequency range, ± 2 dB:
    10 Hz to 20 kHz
    Sensitivity, nominal, ±2 dB at 250 Hz:
    40 mV/Pa; -28 dB re. 1 V/Pa
    Equivalent noise level, A-weighted:
    Typ. 15 dB(A) re. 20 µPa (max. 17 dB(A))
    Equivalent noise level, ITU-R BS.468-4:
    Typ. 27 dB (max. 29 dB)
    S/N ratio (A-weighted), re. 1 kHz at 1 Pa (94 dB SPL):
    Typ. 79 dB(A)
    Total Harmonic Distortion (THD):
    < 1 % up to 139 dB SPL peak
    Minimum load impedance:
    2 kΩ
    Dynamic range:
    Typ. 124 dB
    Max. SPL, peak before clipping:
    147 dB
    Switchable attenuator:
    0 dB / -20 dB
    Output impedance:
    < 200 ohm
    Cable drive capability:
    100 m (328 ft)
    Output balance principle:
    Impedance balancing with Active Drive
    Common Mode Rejection Ratio (CMRR):
    > 60 dB
    Power supply (for full specifications):
    48 V Phantom power (± 4 V)
    Current consumption:
    2.8 mA
    Connector:
    XLR-3M. Pin 1: shield, Pin 2: signal + phase, Pin 3: - phase
    Color:
    Matte black
    Weight:
    163 g (5.7 oz)
    Diameter:
    16 to 19 mm (0.63 to 0.75 in)
    Capsule diameter:
    16 mm (0.63 in)
    Length:
    170 mm (6.7 in)
    Output voltage, RMS:
    > 5 V
    Polarity:
    +V at Pin 2 for positive sound pressure
    Temperature range:
    -40 °C to 50 °C (-40 °F to 122 °F)
    Relative Humidity (RH):
    Up to 90 %
    Classification:
    Conforms to IEC 61672 Class I (with Near-field Grid DD0251)
    Matching tolerance:
    ± 0.5 dB
    Phase deviation for kit:
    < 5°



    Need more info on the d:dicate 4006A? Click HERE for the official DPA product listing >>>
