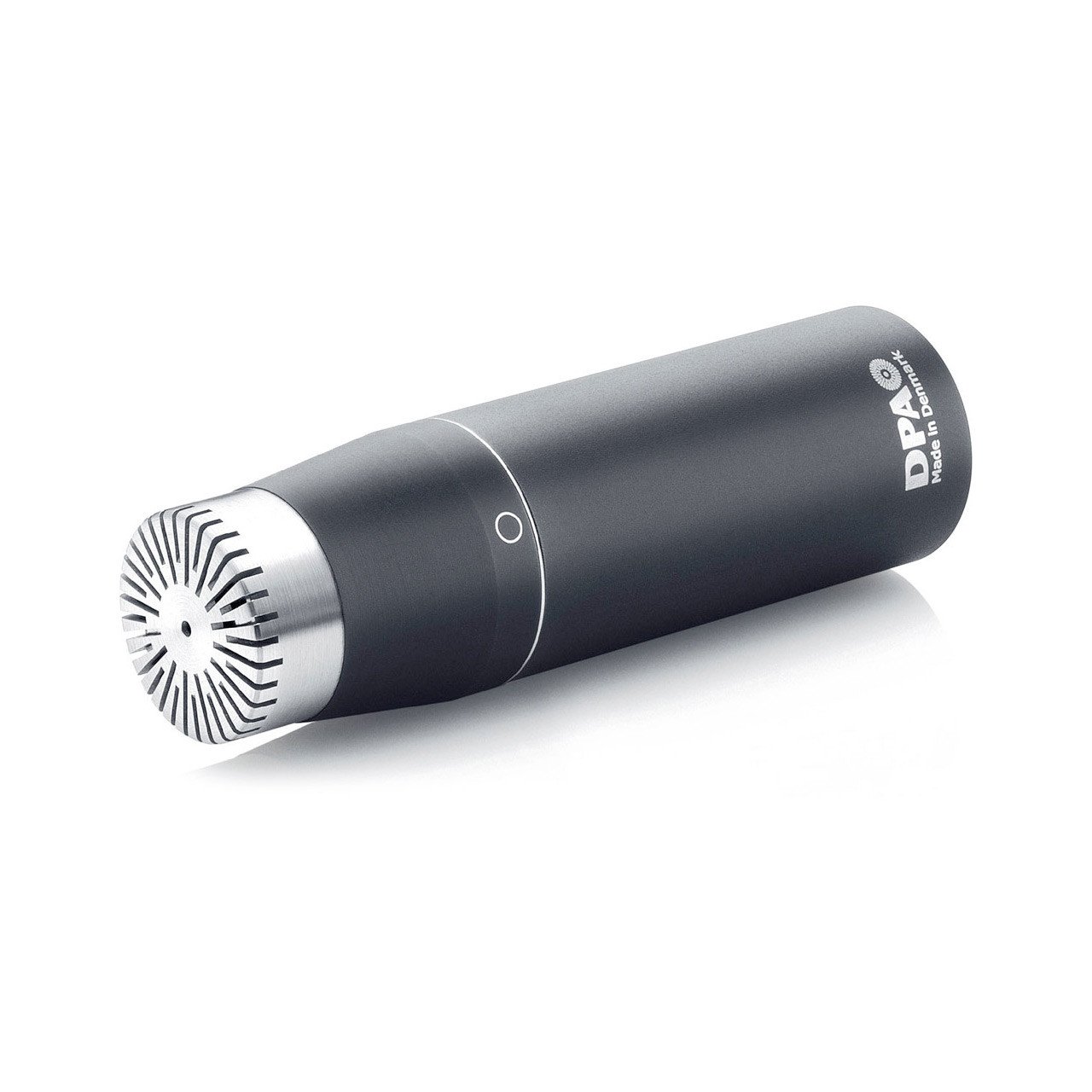

DPA d:dicate 4006C Omnidirectional Microphone, Compact

The DPA d:dicate 4006C Compact Omni Microphone has developed a fantastic reputation by being productive in almost any recording situation by picking up incredible detail and depth of sound.  The 4006C is a great choice whenever a small, inconspicuous mic is required for high quality recording - also a popular choice for A-B stereo pairs in concert halls where quality recordings can sometimes be compromised by classic architecture.  The 4006C can be mounted, hung or concealed making it ideal for large open spaces with a live audience, film applications, or in the studio for close-miking instruments such as double bass, trumpet and piano.

    • DPA d:dicate 4006C PRODUCT FEATURES:

      • Neutrality
      • Versatility
      • Precision
      • Recording standard

      Directional characteristics: Omnidirectional
      Principle of operation: Pressure
      Catridge type: Pre-polarized condenser
      Frequency range: 10 Hz to 20 kHz
      Frequency range, ± 2 dB: 20 Hz to 20 kHz
      Sensitivity, nominal ±2 dB at 1 kHz: 40 mV/Pa; -28 dB re. 1 V/Pa
      Equivalent noise level, A-weighted: Typ. 15 dB(A) re. 20 µPa (max. 17 dB(A))
      Equivalent noise level, ITU-R BS.468-4: Typ. 27 dB (max. 29 dB)
      S/N ratio (A-weighted), re. 1 kHz at 1 Pa (94 dB SPL): Typ. 79 dB(A)
      Total Harmonic Distortion (THD): < 1 % up to 134 dB SPL peak
      Dynamic range: Typ. 119 dB
      Max. SPL, peak before clipping: 140 dB
      Minimum load impedance: 2 kohm
      Output impedance: < 200 ohm
      Cable drive capability: 100 m (328 ft)
      Output balance principle: Impedance balancing with Active Drive
      Common Mode Rejection Ratio (CMRR): > 50 dB
      Power supply (for full specifications): 48 V Phantom power (± 4 V)
      Current consumption: 2.8 mA
      Connector: XLR-3M. Pin 1: shield, Pin 2: signal + phase, Pin 3: - phase
      Color: Matte black
      Weight: 63 g (2.2 oz)
      Diameter: 16 to 19 mm (0.63 to 0.75 in)
      Capsule diameter: 16 mm (0.63 in)
      Length: 64 mm (2.5 in)
      Output voltage, RMS: > 4 V
      Polarity: +V at Pin 2 for positive sound pressure
      Temperature range: -40 °C to 45 °C (14 °F to 113 °F)
      Relative Humidity (RH): Up to 90%
      Matching tolerance: ± 0,5 dB
      Phase deviation for kit: < 5°
Need more info on the d:dicate 4006C? Click HERE for the official DPA product listing >>>
