DPA Microphones

DP-4017B

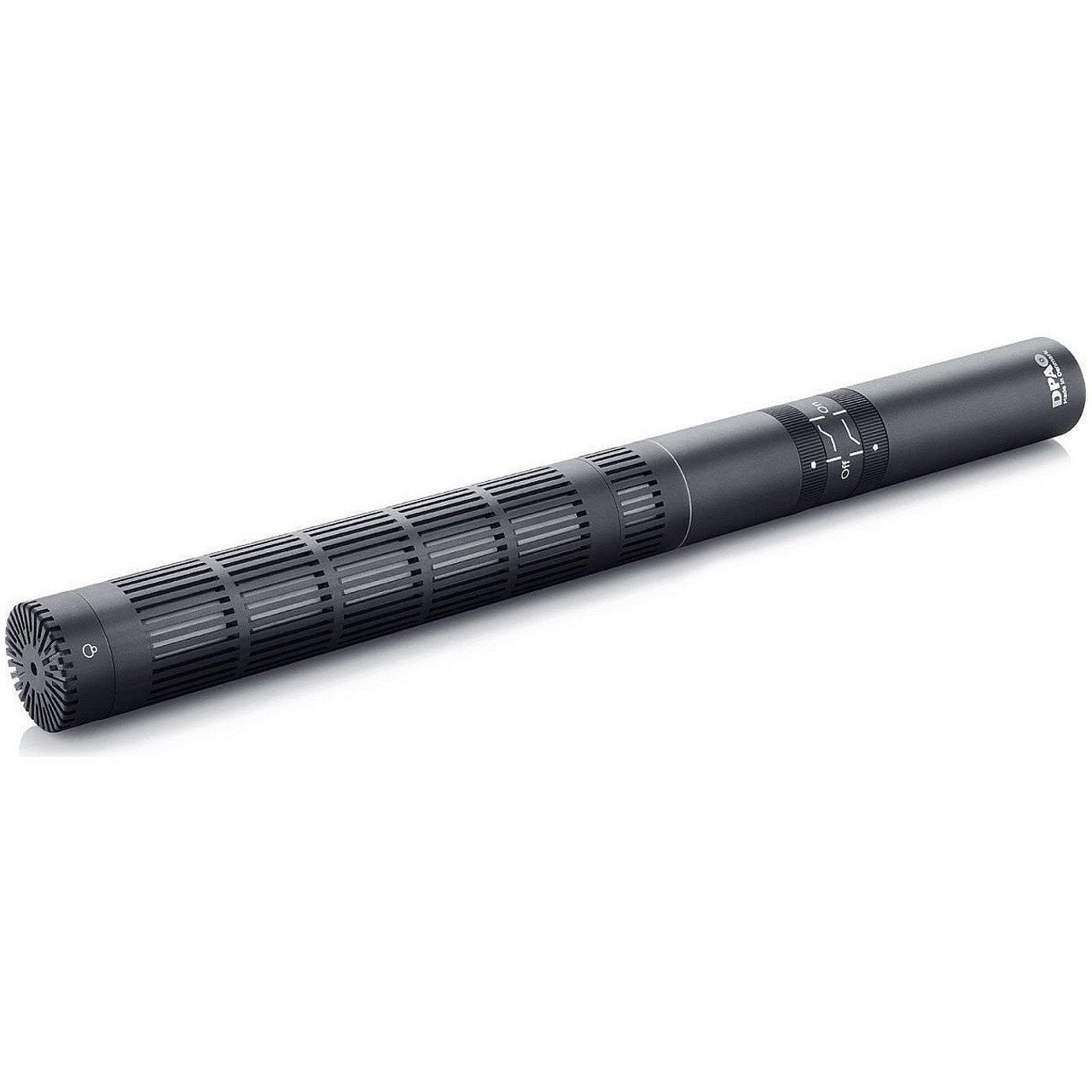

DPA d:dicate 4017B Shotgun Microphone

The DPA 4017B Shotgun Microphone is part of the acclaimed d:dicate™ microphone series, meaning that capsules and preamplifiers are interchangeable between other d:dicate and d:facto products. This allows for infinite possibilities when creating your own pristine location recording microphone collection. Key features of the DPA 4017B are it's incredibly low weight (68grams), extreme off-axis rejection; due to the combination of interference tube and supercardioid capsule design, and the two selectable filters for high-frequency boost and low-frequency roll off.


    • DPA d:dicate 4017B PRODUCT FEATURES:

      - Small and lightweight
      - Excellent RF Immunity
      - Uniform off-axis response
      - Highly directional pattern

    • DPA d:dicate 4017B TECHNICAL SPECIFICATIONS:

      Directional pattern
      Supercardioid, lobe-shaped

      Principle of operation
      Pressure gradient, with interference tube

      Cartridge type
      Pre-polarized condenser

      Frequency range
      20 Hz - 20 kHz, permanent third order high pass filter at 50 Hz

      Frequency range, ±2 dB, at 60 cm (23.6 in)
      70 Hz - 18 kHz with typ. 3 dB soft boost at 15 kHz

      Sensitivity, nominal, ±2 dB at 1 kHz
      19 mV/Pa; -34.4 dB re. 1 V/Pa

      Equivalent noise level, A-weighted
      Typ. 13 dB(A) re. 20 µPa (max. 15 dB(A))

      Equivalent noise level, ITU-R BS.468-4
      Typ. 24 dB (max. 26 dB)

      S/N ratio (A-weighted), re. 1 kHz at 1 Pa (94 dB SPL)
      Typ. 81 dB(A)

      Total harmonic distortion (THD)
      < 1% up to 137 dB SPL peak

      Dynamic range
      Typ. 124 dB

      Max. SPL, peak before clipping
      138 dB

      Switchable attenuator, filters etc.
      High boost: +4 dB at 8 kHz. Low cut: First order filter, below 120 Hz

      Output impedance
      100 Ω

      Minimum load impedance
      2 kΩ

      Cable drive capability
      100 m (328 ft)

      Output balance principle
      Signal balanced

      Common mode rejection ratio (CMRR)
      > 40 dB

      Power supply (for full performance)
      48 V Phantom power (± 4 V)

      Current consumption
      4.5 mA

      Connector
      XLR-3M. Pin 1: shield, Pin 2: signal + phase, Pin 3: signal - phase

      Color
      Matte black

      Weight
      68 g (2.4 oz)

      Microphone diameter
      19 mm (0.75 in)

      Capsule diameter
      19 mm (0.75 in)

      Microphone length
      212 mm (8.3 in)

      Maximum output voltage, RMS
      2.0 V

      Polarity
      +V at pin 2 for positive sound pressure

      Temperature range
      -40°C to 45°C (-40°F to 113°F)
      Relative humidity (RH)
      Up to 90%

Need more info on the d:dicate 4017B? Click HERE for the official DPA product listing >>>
