  • DP-4018FJS

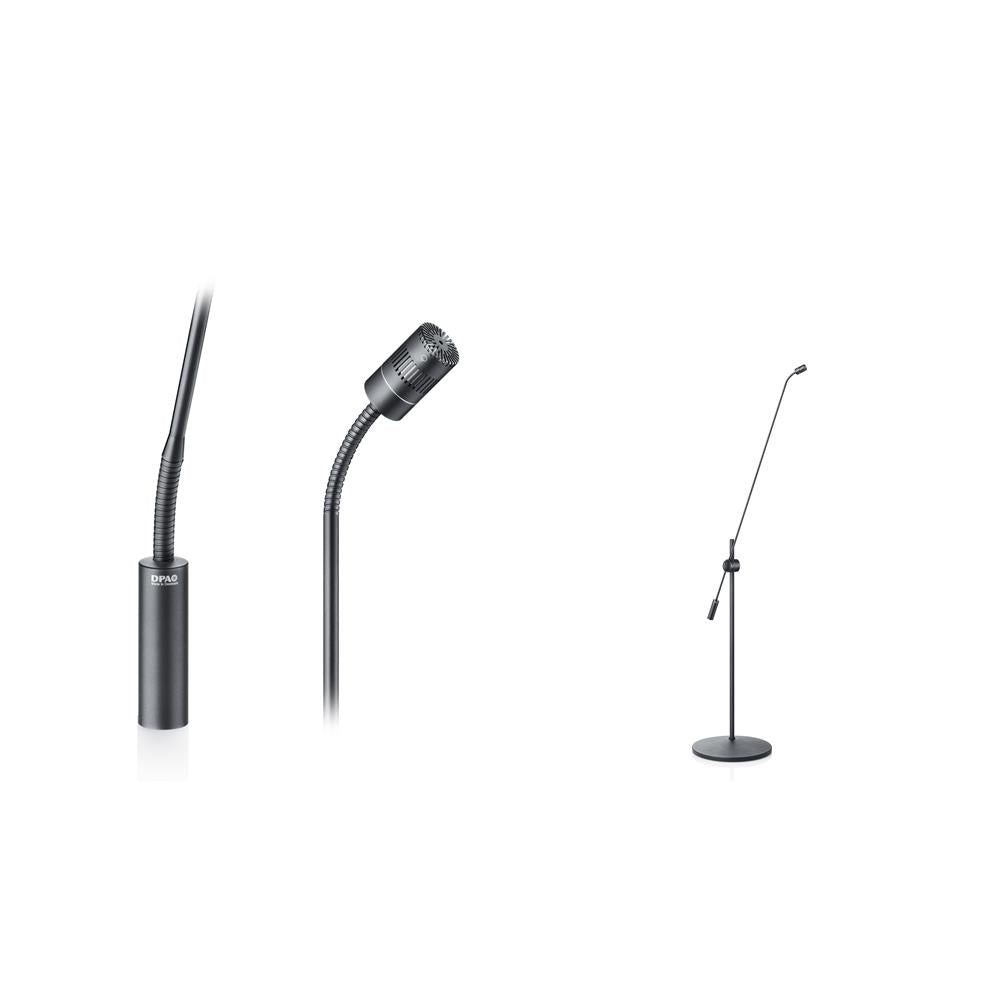

    DPA d:dicate™4018FJS Supercardioid Mic, Single 75 cm Boom, Floor Stand

    Notify me when this product is available:

    Only 2 available at this price! Confirm stock prior to ordering

    Elegant and exclusive design

    • Low noise and natural voice
    • Highly directional for high isolation
    • Uniform, frequency independent directionality
    • Exclusive, elegant design
    • Integrated shock-mounting in floor base
    • Rapidly stabilizing microphone boom pole
    • Modular flexibility (d:dicate™ capsules)

    A complete cardioid microphone floor stand solution in the modular d:sign™ Microphone Series offering a high-quality stage voice or instrument mic.

    Specifications

    Directional pattern: Supercardioid
    Principle of operation: Pressure Gradient
    Cartridge Type: Pre-polarized condenser
    Frequency range: 20 Hz to 20 kHz
    Frequency range, ± 2 dB: 40 Hz to 18 kHz
    Sensitivity, nominal, ± 2 dB at 1 kHz: 12 mV/Pa; -38 dB re. 1 V/Pa
    Equivalent noise level, A-weighted: Typ. 16 dB(A) re. 20 µPa (max. 19 dB(A))
    Equivalent noise level, ITU-R BS.468-4: -
    S/N ratio (A-weighted), re. 1 kHz at 1 Pa (94 dB SPL): Typ. 78 dB(A)
    Total Harmonic Distortion (THD) at 1 kHz: < 1 % up to 137 dB SPL peak
    Minimum load impedance: 2 kohm
    Dynamic range: Typ. 121dB
    Max. SPL, peak before clipping: 142dB
    Output impedance: 100 ohm
    Cable drive capability: 100 m (328 ft)
    Output balance principle: Impedance balancing
    Common Mode Rejection Ratio (CMRR): > 40 dB
    Power supply (for full specifications): 48 V Phantom power (± 4 V)
    Current consumption: 3.5 mA
    Color: Matte black
    Weight: -
    Microphone Diameter: 19 mm (0.75 in)
    Capsule diameter: 19 mm (0.75 in)
    Output voltage, RMS: 2.2V
    Microphone Length: -
    Polarity: +V at Pin 2 for positive sound pressure
    Connector: XLR-3M. Pin 1: shield, Pin 2: signal + phase, Pin 3: - phase
    Relative Humidity (RH): Up to 90%
    Temperature range: -40 °C to 45 °C (-40 °F to 113 °F)
