DPA Microphones

DP-ST2011C

DPA d:dicate ST2011C Stereo Pair Condenser Microphones

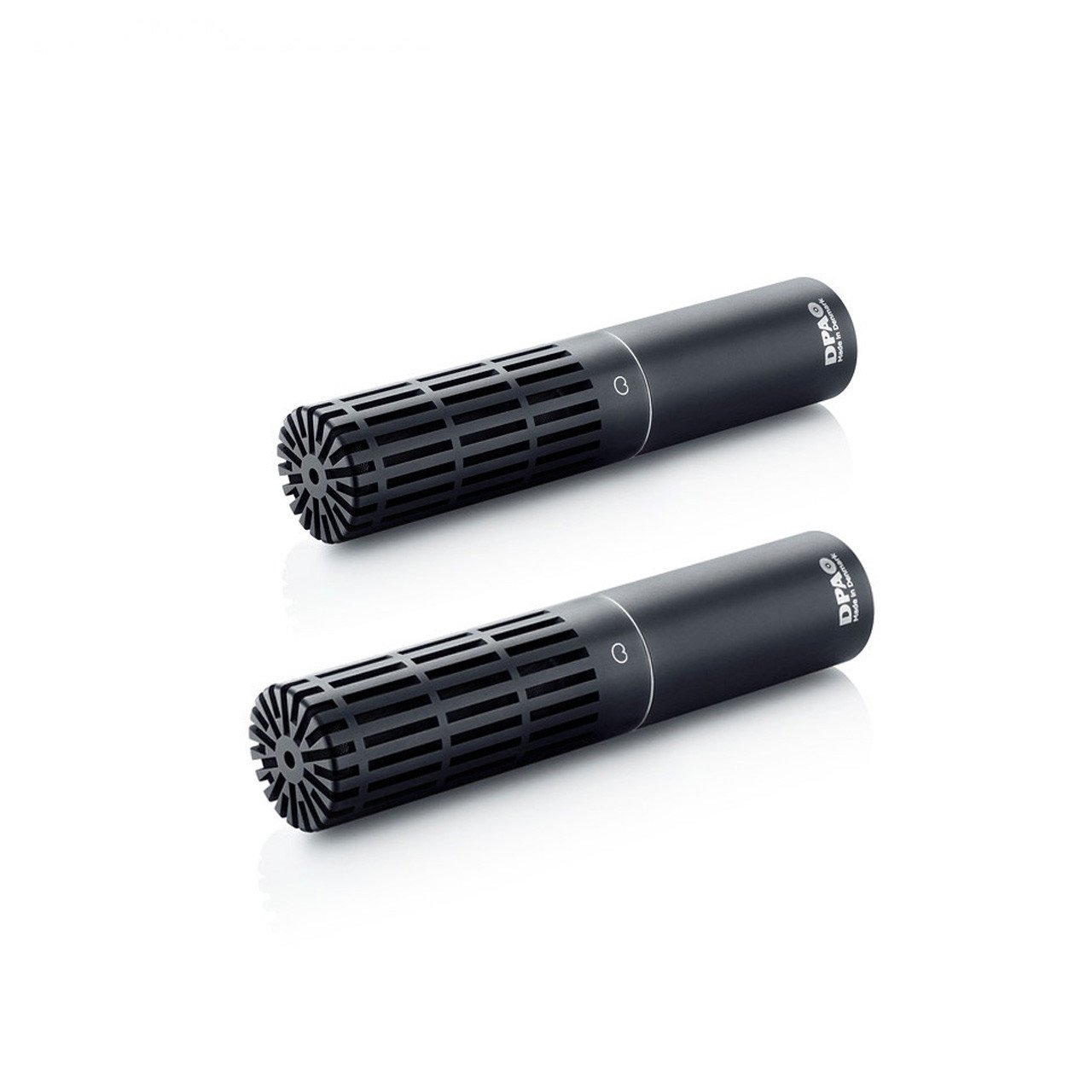

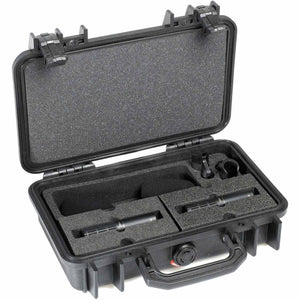

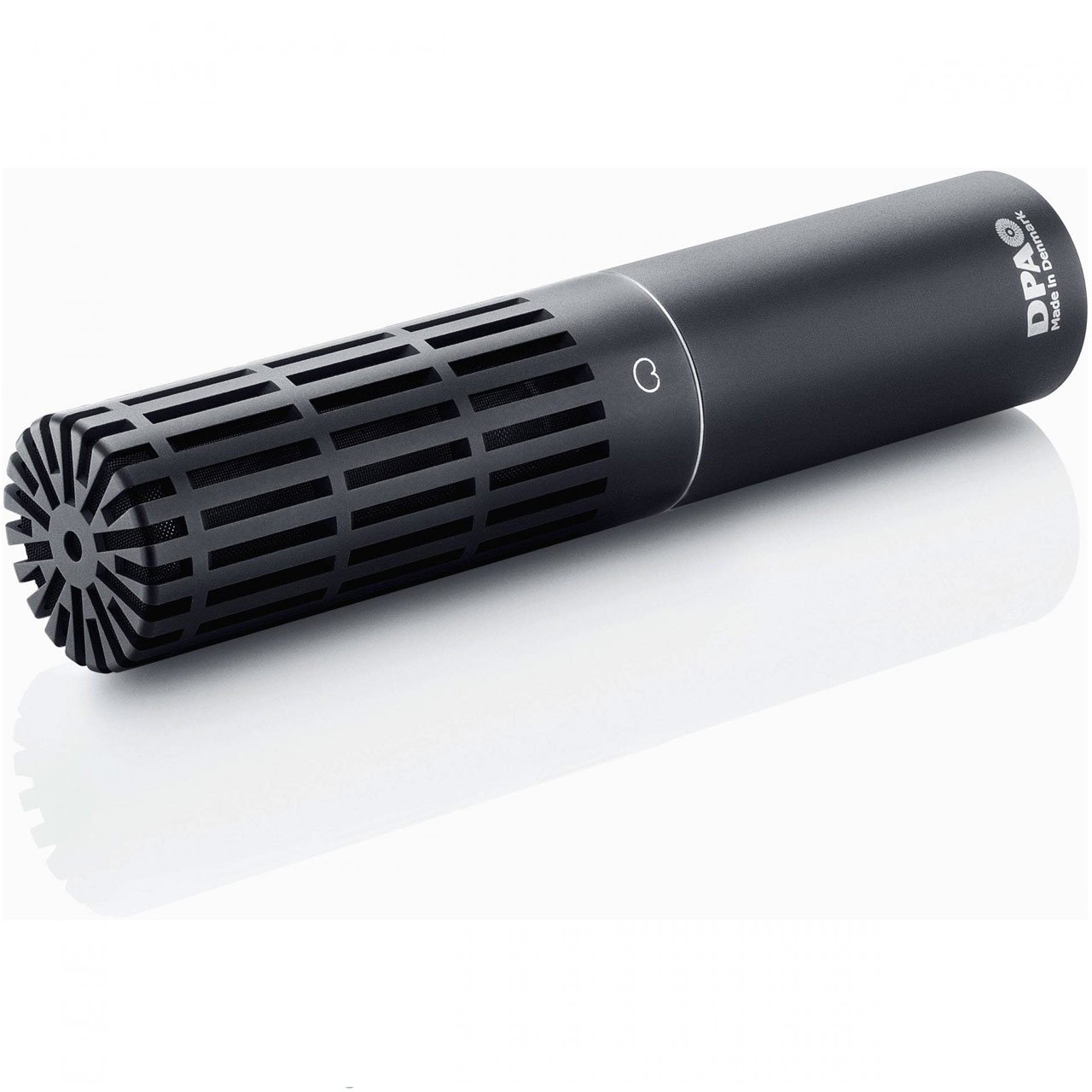

The DPA d:dicate™ ST2011C Stereo Pair includes 2 x 2011C twin diaphragm cardioid condenser microphones - matched within 1.5 dB of each other, 2 x Microphone clips & Windscreens and a super durable Peli™ hardshell case! Amazing value. The 2011C microphone is part of DPA’s reference Standard group, meaning both capsule and body are interchangeable with other DPA products such as the 4000 series capsules or MMP-8 bodies. DPA have defined their reputation based on sonic excellence, and the 2011C stereo set is ideal for XY or ORTF stereo miking for live or studio applications, where precision and detail is paramount.


    • DPA d:dicate ST2011C PRODUCT FEATURES:

      - Sensitivity-selected pair
      - Blends clarity, richness and dynamics
      - Twin diaphragm capsule and interference tube technologies
      - Superb stage separation and level control
      - Low-profile mounting options
      - Modular flexibility
      - Peli™ Case transportation and protection
    • DPA d:dicate ST2011C TECHNICAL SPECIFICATIONS:

      Directional pattern
      Cardioid

      Principle of operation
      Pressure gradient, with interference tube

      Cartridge type
      Pre-polarized condenser, Twin Diaphragm Capsule

      Frequency range
      20 Hz - 20 kHz

      Frequency range, ±2 dB, at 30 cm (11.8 in)
      50 Hz - 17 kHz with 3 dB soft boost at 12 kHz

      Sensitivity, nominal, ±2 dB at 1 kHz
      10 mV/Pa; -40 dB re. 1 V/Pa

      Equivalent noise level, A-weighted
      Typ. 20 dB(A) re. 20 µPa (max. 23 dB(A))

      Equivalent noise level, ITU-R BS.468-4
      Typ. 33 dB (max. 36 dB)

      S/N ratio (A-weighted), re. 1 kHz at 1 Pa (94 dB SPL)
      Typ. 74 dB(A)

      Total harmonic distortion (THD)
      < 1% up to 137 dB SPL peak

      Dynamic range
      Typ. 117 dB

      Max. SPL, peak before clipping
      146 dB

      Output impedance
      100 Ω

      Minimum load impedance
      2 kΩ

      Cable drive capability
      100 m (328 ft)

      Output balance principle
      Impedance balancing with Active Drive

      Common mode rejection ratio (CMRR)
      > 50 dB

      Power supply (for full performance)
      48 V Phantom power (± 4 V)

      Current consumption
      2.8 mA

      Connector
      XLR-3M. Pin 1: shield, Pin 2: signal + phase, Pin 3: - phase

      Color
      Matte black

      Weight
      64 g (2.3 oz)

      Microphone diameter
      19 mm (0.75 in)

      Microphone length
      92 mm (3.6 in)

      Maximum output voltage, RMS
      > 4 V

      Polarity
      +V at pin 2 for positive sound pressure

      Temperature range
      -40°C to 45°C (-40°F to 113°F)

      Relative humidity (RH)
      Up to 90%

Need more info on the d:dicate™ ST2011C? Click HERE for the official DPA product listing >>>
