DPA Microphones

DP-6060-OC-U-B00

DPA d:screet 6060 Series Subminiature Microphone


The DPA d:screet 6060 CORE Subminiature Microphones are just 3 mm (0.12 in) in size. What they lack in size, they more than make up for in clarity, consistency and durability – three qualities that really matter. The 6060 is designed for nomal SPL levels such as capturing speech as a lavalier mic, or for close-miking a wide range of instruments.


    • DPA d:screet 6060 Product Features:

      Amazing 3 mm CORE capsule technology

      Renowned DPA sound in a 60% smaller package

      Stainless steel, PVD-coated mic housing

      Modular adapter system fits most professional wireless systems

    • DPA d:screet 6060 Technical Specifications:

      Directional pattern

      Omnidirectional

      Principle of operation

      Pressure

      Cartridge type

      Pre-polarized condenser

      Frequency range

      20 Hz - 20 kHz

      Frequency range, ±2 dB

      40 Hz - 20 kHz with 4 dB soft boost at 8 - 20 kHz

      Sensitivity, nominal, ±3 dB at 1 kHz

      20 mV/Pa; -34 dB re. 1 V/Pa

      Equivalent noise level, A-weighted

      Typ. 24 dB(A) re. 20 μPa (max. 26 dB(A))

      S/N ratio (A-weighted), re. 1 kHz at 1 Pa (94 dB SPL)

      Typ. 70 dB(A)

      Total harmonic distortion (THD)

      < 1% up to 126 dB SPL peak

      Dynamic range

      Typ. 102 dB

      Max. SPL, peak before clipping

      134 dB

      Output impedance

      From MicroDot: 30 - 40 Ω. From DAD6001-BC: 100 Ω

      Cable drive capability

      Up to 300 m (984 ft) with DAD6001-BC XLR adapter

      Power supply (for full performance)

      Min. 5 V to max. 10 V through DPA adapter for wireless systems. With DAD6001-BC: 48 V phantom power ±4 V for full performance. Works from 12V

      Connector

      MicroDot, TA4F Mini-XLR, 3-pin LEMO, Mini-Jack

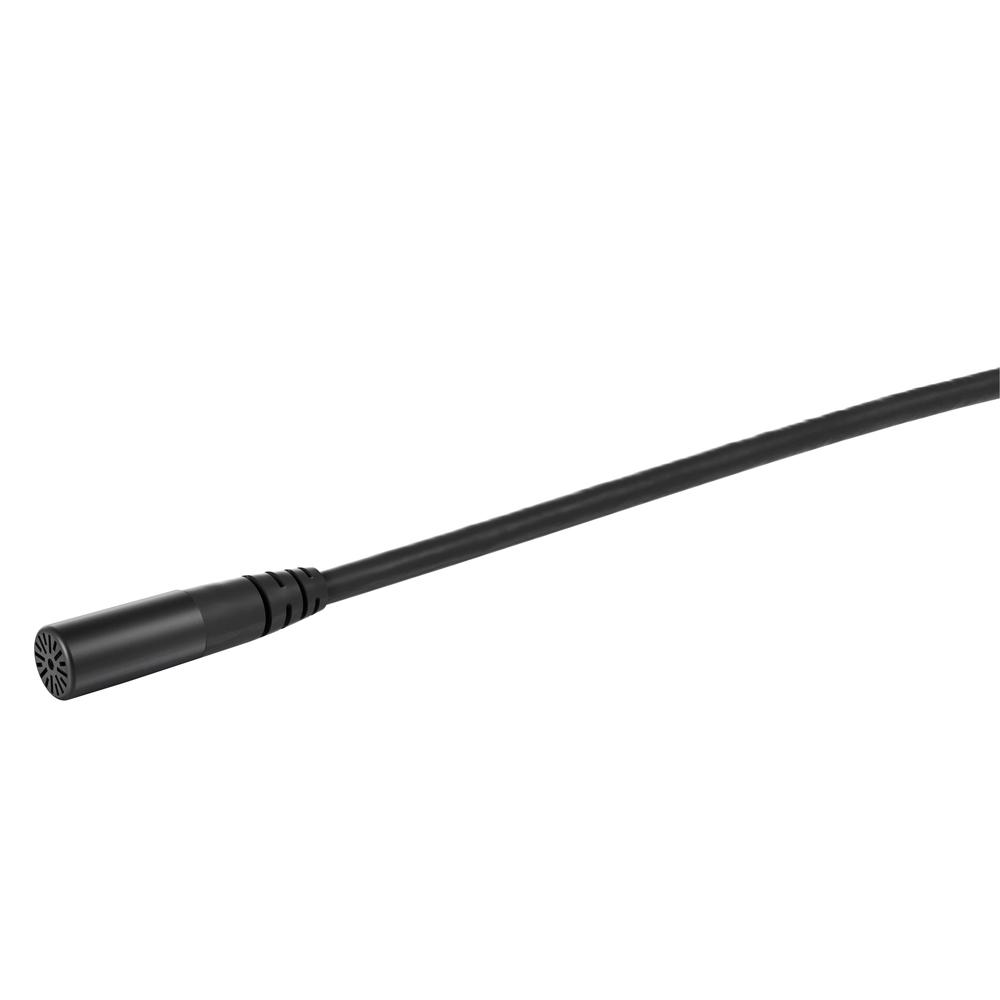

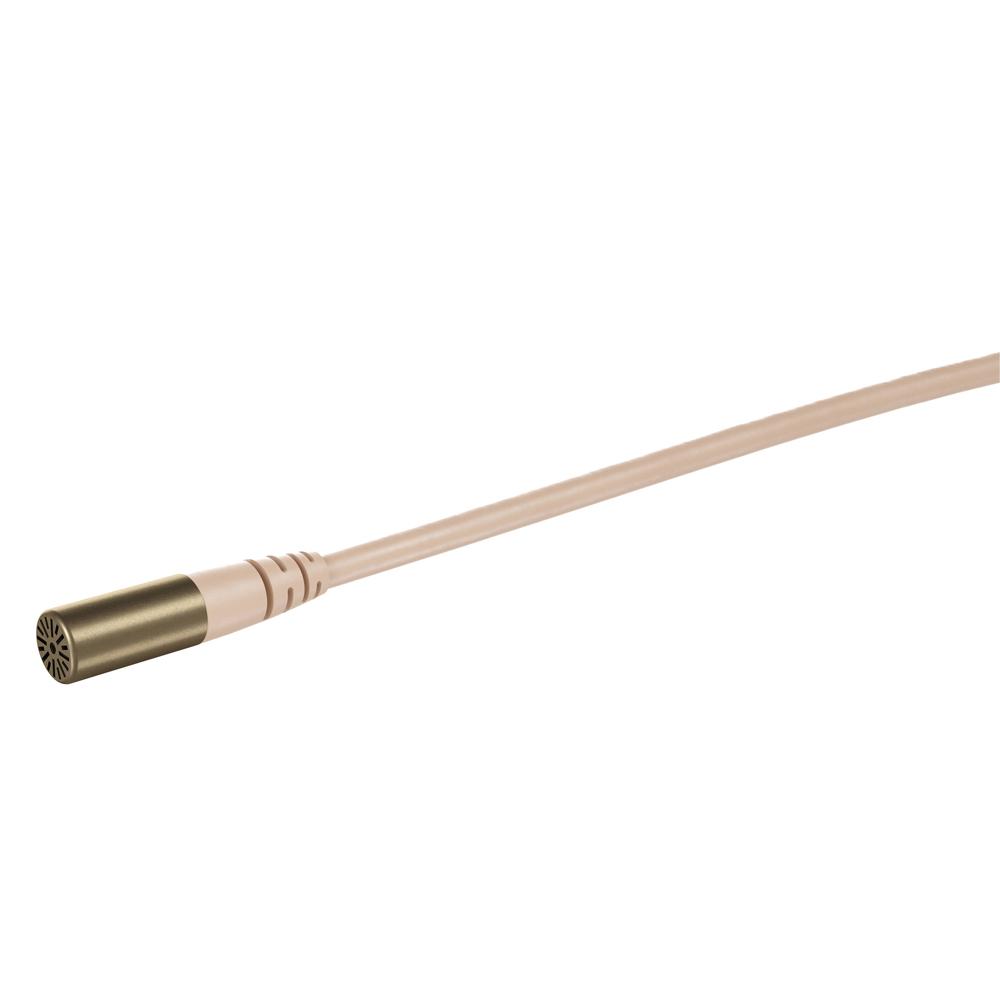

      Color

      Black or beige

      Weight

      8 g (0.29 oz) incl. Cable and MicroDot connector

      Microphone head size (h x w x d)

      3.4 / 14.4 mm (0.13 / 0.57 in)

      Capsule diameter

      3 mm (0.12 in)

      Cable length

      1.8 m (5.9 ft)

      Polarity

      Positively increasing sound pressure produces positive going voltage on MicroDot pin

      Temperature range

      -40°C to 45°C (-40°F to 113°F)

      Relative humidity (RH)

      Up to 90%
