DPA Microphones

DP-CO4099CM

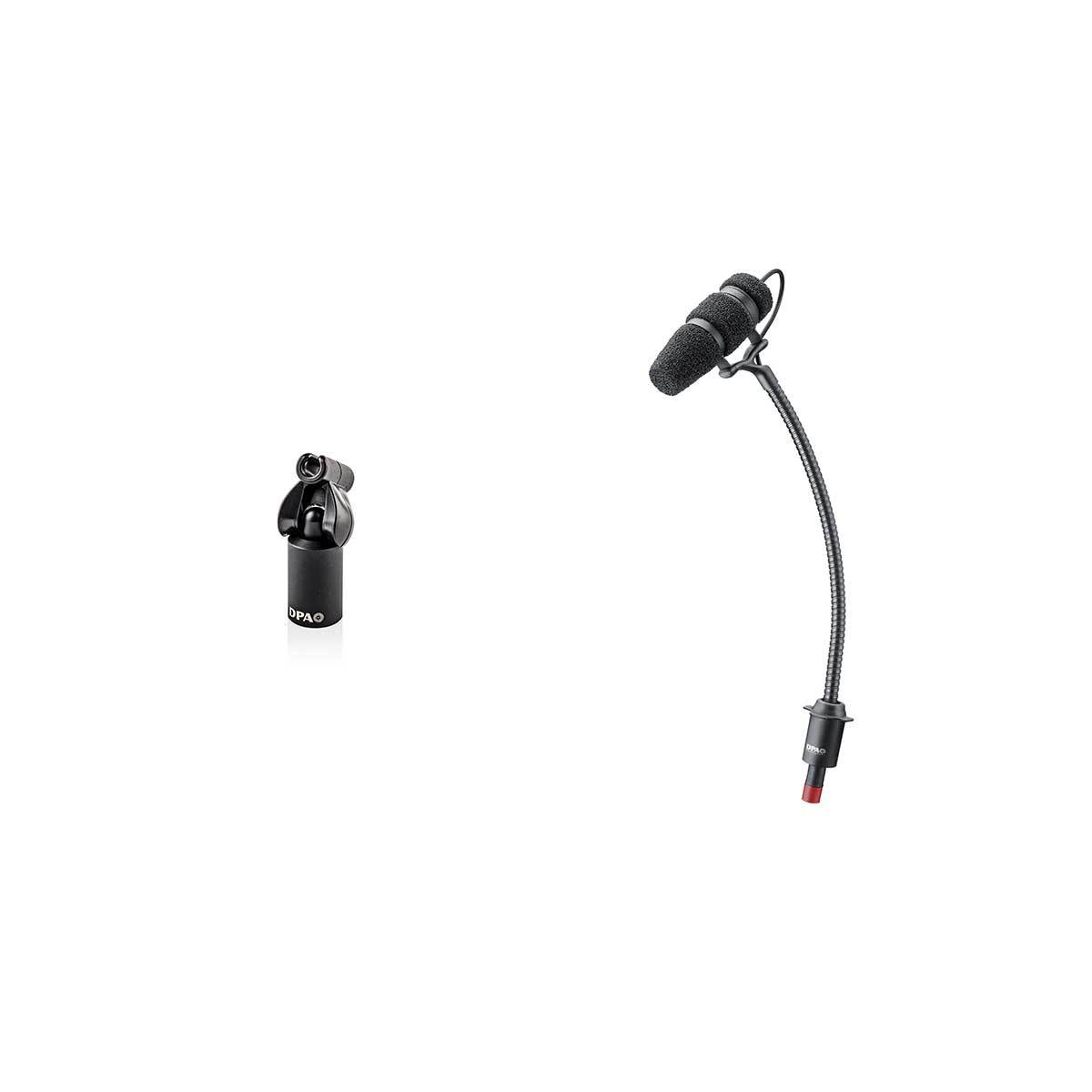

DPA d:vote™ CORE 4099 Mic, Loud SPL with Clamp Mount

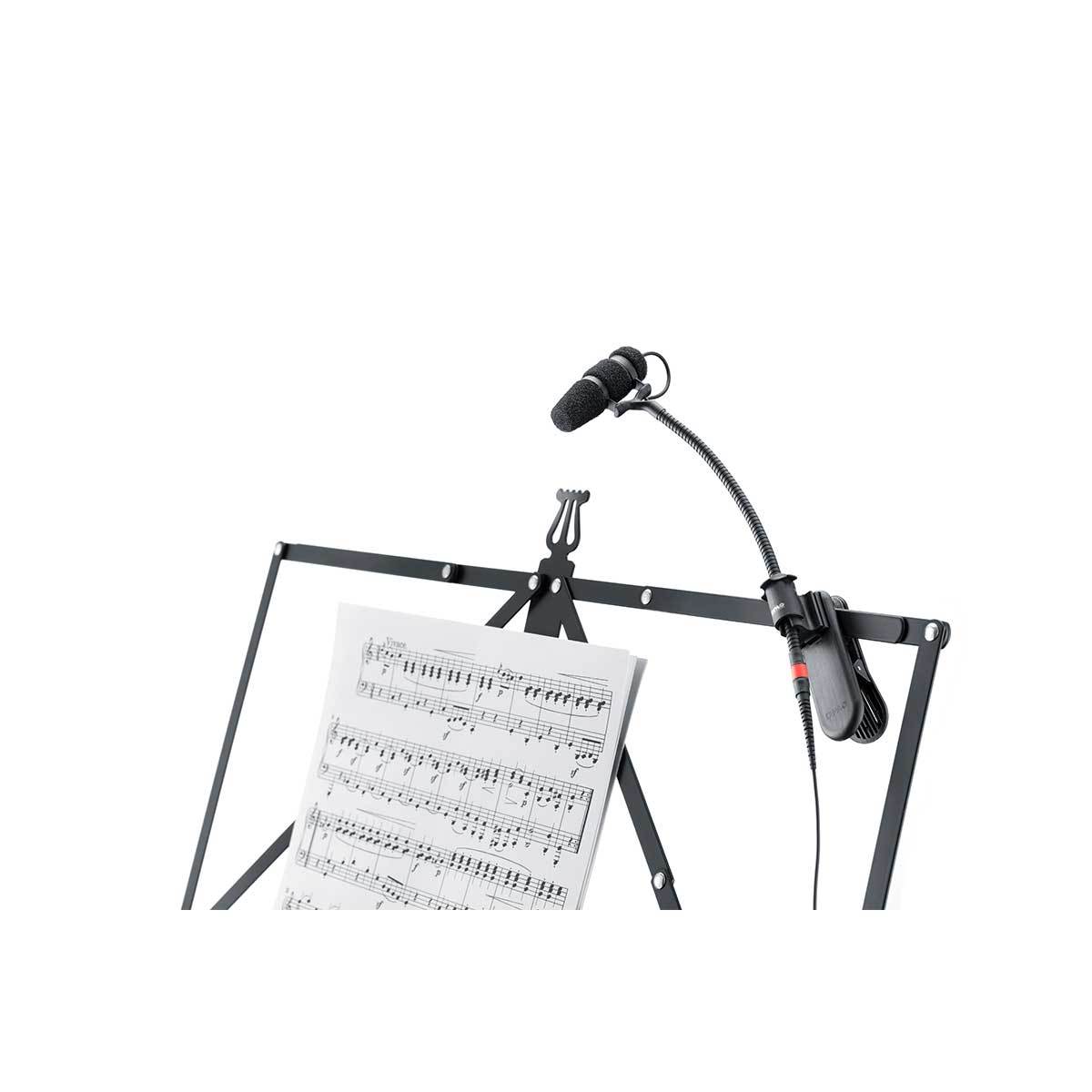

The d:vote™ CORE 4099 for Loud SPL with a mount designed to be flexible, easy to use and quick to move. With a strong spring, the mount can be clamped onto many surfaces and instruments such as saxophones and brass instruments.

    • Product Features:

      d:vote™ CORE 4099 Instrument Microphone Clip Mount (4099-DC-1-201-CM).
      CORE by DPA technology inside
      Supercardioid condenser microphone
      Handles high SPLs
      Superior gain-before-feedback
      Flexible and easy mounting
      Gentle and easy to mount on the instrument
      Detachable cable and a versatile gooseneck extender
    • Technical Specifications:

      Directional pattern

          Supercardioid

      Principle of operation

          Pressure gradient

      Cartridge type

          Pre-polarized condenser

      Frequency range

          20 Hz - 20 kHz

      Frequency range, ± 2 dB, at 20 cm (7.9 in)

          80 Hz - 15 kHz with 2 dB soft boost at 10-12 kHz

      Sensitivity, nominal, ±3 dB at 1 kHz

          6 mV/Pa; -44 dB re. 1 V/Pa

      Equivalent noise level, A-weighted

          Typ. 23 dB(A) re. 20 μPa (max. 26 dB(A))

      S/N ratio (A-weighted), re. 1 kHz at 1 Pa (94 dB SPL)

          Typ. 71 dB(A)

      Total harmonic distortion (THD)

          < 1% up to 131 dB SPL peak

      Dynamic range

          Typ. 108 dB

      Max. SPL, peak before clipping

          142 dB

      Output impedance

          From MicroDot: 30 - 40 Ω. From DAD4099/DAD6001-BC: 100 Ω

      Cable drive capability

          Up to 300 m (984 ft) with DAD4099 or DAD6001-BC XLR Adapter

      Output balance principle

          Signal balanced with DAD4099 or DAD6001-BC XLR Adapter

      Common mode rejection ratio (CMRR)

          > 60 dB from 50 Hz to 15 kHz with DAD4099 or DAD6001-BC XLR Adapter

      Power supply (for full performance)

          Min. 5 V to max. 50 V through DPA adapter for wireless systems

      Current consumption

          Typ. 1.5 mA (microphone). 3.5 mA with DAD4099 or DAD6001-BC XLR Adapter

      Connector

          MicroDot

      Colour

          Black

      Weight

          27 g (0.95 oz)

      Microphone diameter

          5.4 mm (0.21 in)

      Microphone length

          45 mm (1.8 in)

      Cable length

          1.8 m (5.9 ft)

      Cable diameter

          1.6 mm (0.06 in) / 2.2 mm (0.09 in)

      Polarity

          +V at MicroDot pin for positive sound pressure (and pin 2 on DAD4099 or DAD6001-BC XLR adapter)

      Temperature range

          -40°C to 45°C (-40°F to 113°F)

      Relative humidity (RH)

          Up to 90%

      Gooseneck length

          140 mm (5.5 in)
