  • DP-DAD6001-BC

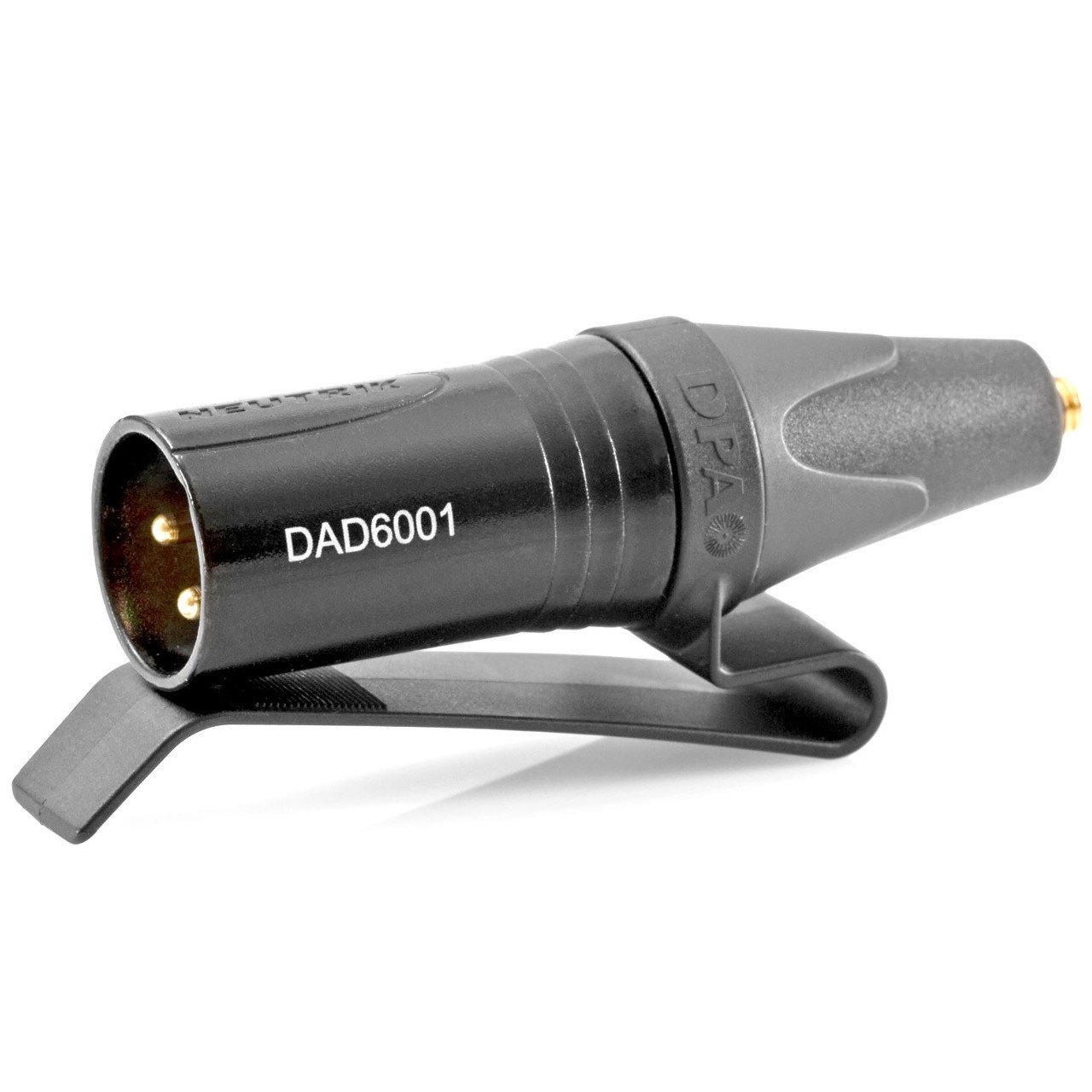

    DPA DAD6001-BC: MicroDot to 3-pin XLR (P48) w. Belt Clip

    2 In Stock

    The DPA DAD6001-BC is an Adapter for powering Miniature Microphones via standard P48 phantom power. The DAD6001 is designed for use with Miniature Microphones from DPA only. Belt clip included.


        • DPA DAD6001-BC PRODUCT FEATURES:

          DAD6001-BC: MicroDot to 3-pin XLR (P48) w. Belt Clip

          The DAD6001 is active signal balanced which improves suppression of induced electromagnetic noise.

          Common Mode Rejection Ratio (CMRR) is better than 60 dB from 50 Hz to 15 kHz.

          The adapter is functional at 12 V phantom power but needs 48 V ± 4 V to reach full specifications – see diagram.

        • DPA DAD6001-BC TECHNICAL SPECIFICATIONS:

          Output impedance:

          100 ohm

          Cable drive capability:

          300 m (984 ft)

          Power supply:

          48V ±4 V

          Current consumption:

          3.5 mA

          CMRR at 1 kHz:

          > 60 dB

    Need more info on the DAD6001-BC? Click HERE for the official DPA product listing >>>
