Drawmer

DRA-4X4R

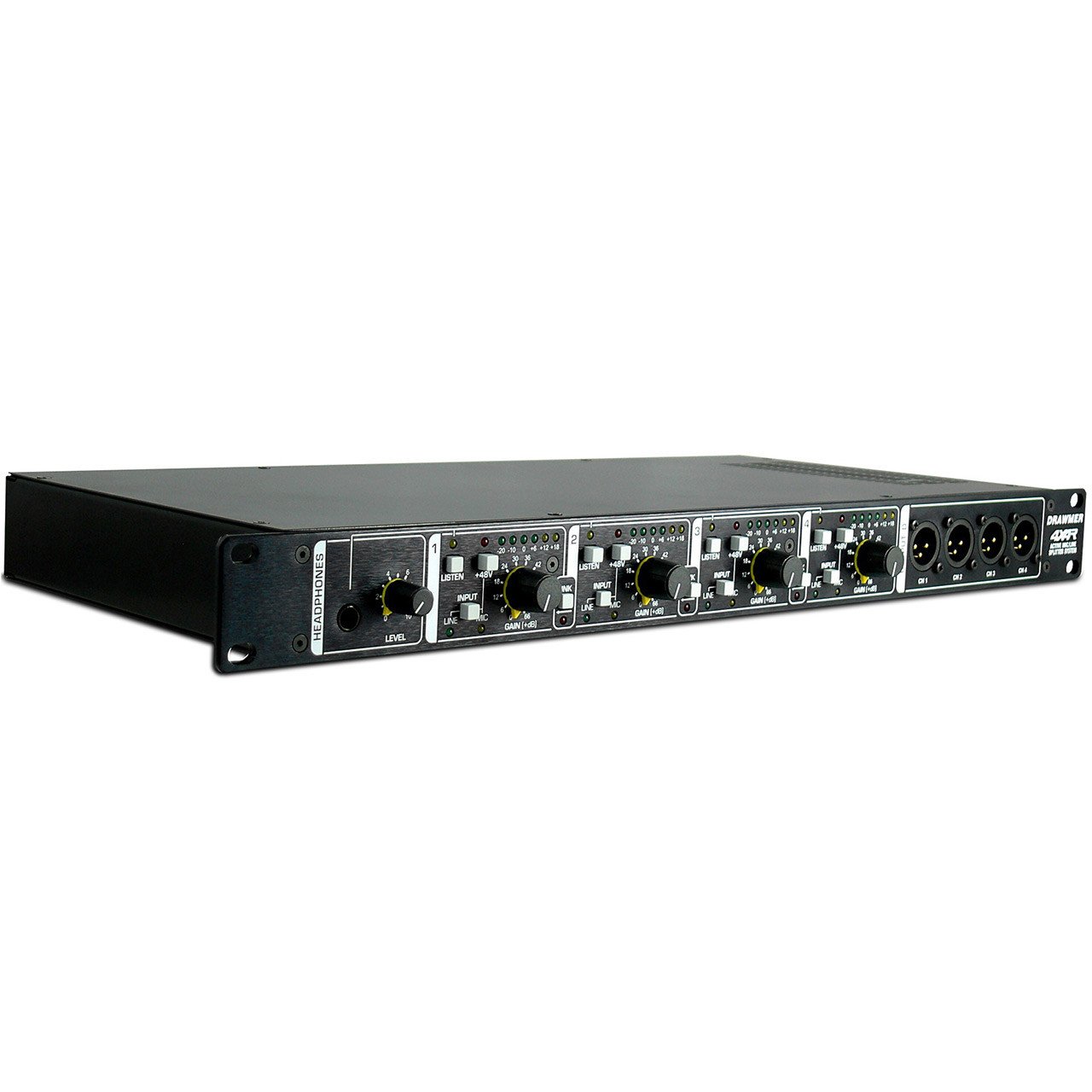

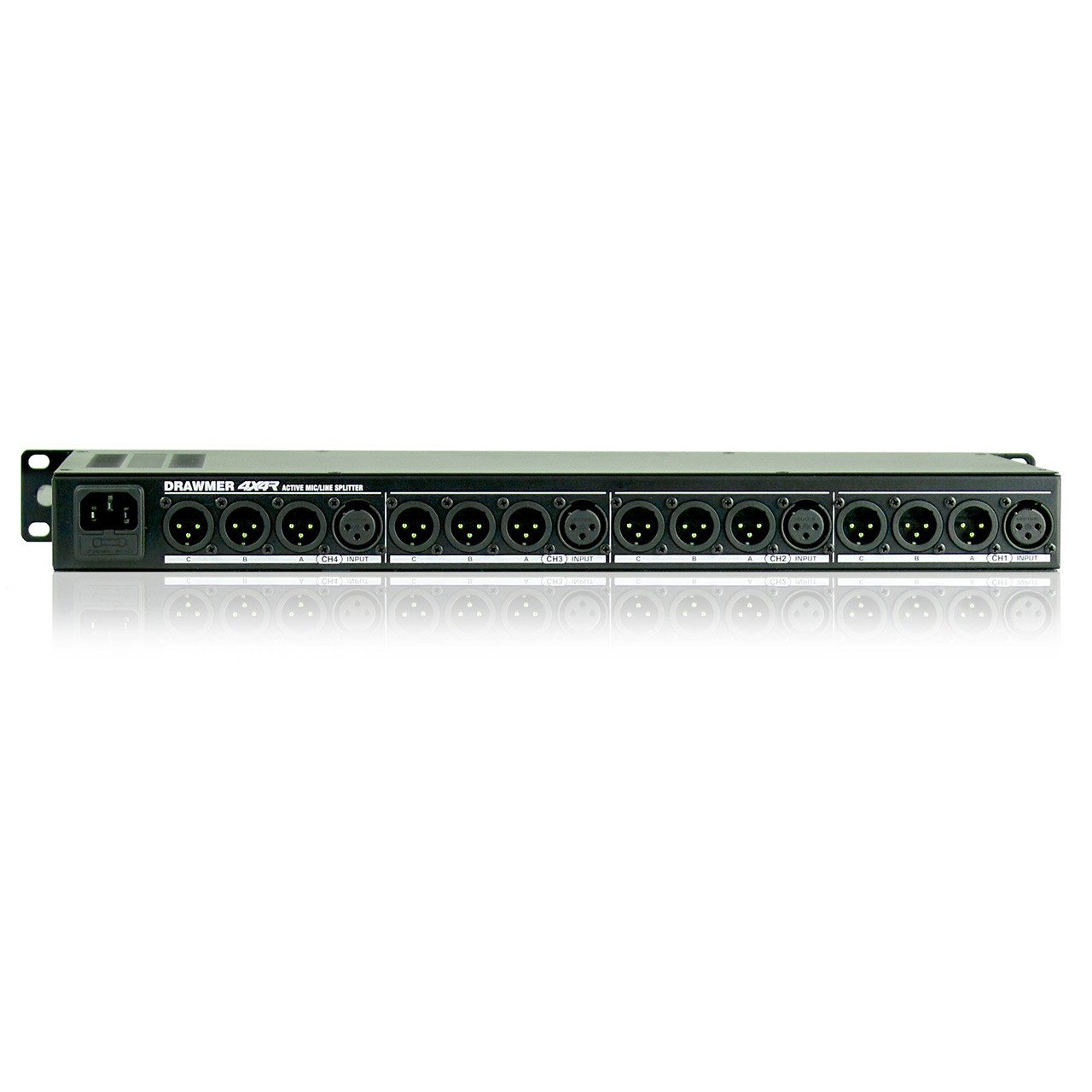

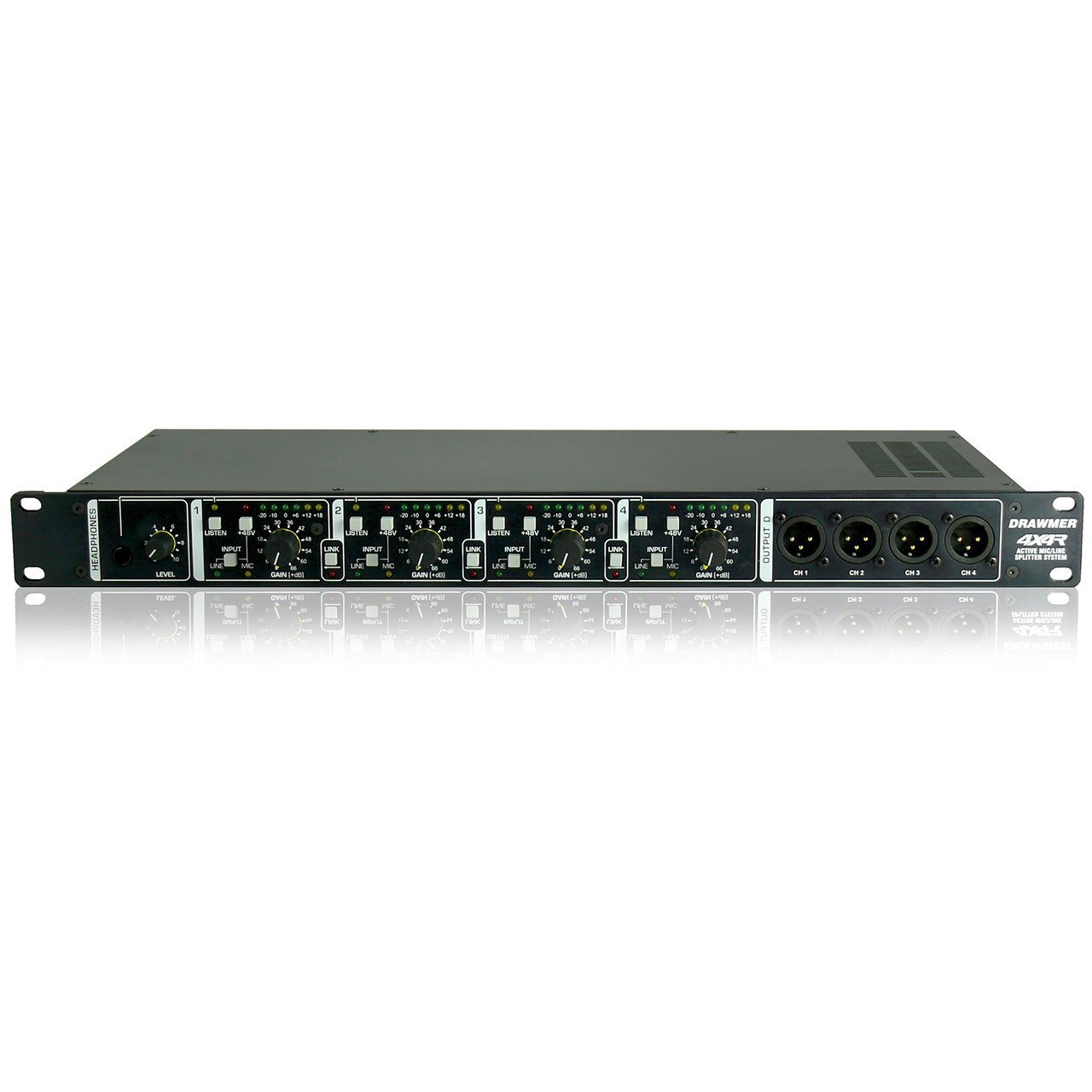

Drawmer 4X4R - Rackmount Active Splitter

Drawmer’s rack-mountable mic/line splitter, classy and compact build and complete with front panel metering. Excellent sound quality as you would expect. The 4x4R is a 4 in/16 out mic/line signal splitter. Its extremely high audio quality, robust build make it the ideal tool to provide multiple outputs for live sound, broadcast coverage, sports events, live recording, press conferences, corporate events and any situation where distribution of high quality audio is required.


      • Drawmer 4X4R PRODUCT FEATURES:

        It incorporates 4 studio grade mic/line pre-amps, each providing up to 66dB of gain and 16 balanced output stages, each with the option of transformer isolation and comprehensive linking facilities all in a 1U rackmountable housing.

      • Drawmer 4X4R TECHNICAL SPECIFICATIONS:

        Inputs

        4 STUDIO GRADE MIC/LINE PRE-AMPS.
        INDEPENDENT INPUT BARGRAPH METERING.
        66dB OF VARIABLE GAIN.
        48V PHANTOM POWER.
        MIC/LINE SWITCHING.
        HEADPHONE MONITORING FACILITY.

        Outputs

        4 OUTPUTS PER CHANNEL.
        ACTIVE SPLITTING ALLOWS FOR LONG CABLE RUNS.
        OPTIONAL TRANSFORMER ISOLATION.
        LINKING.

        Can be configured as

        1 IN / 16 OUT.
        2 X1 IN / 8 OUT.
        1 IN / 12 OUT PLUS 1 IN / 4 OUT.
        4 X4 IN / 4 OUT.

Need more info on the 4X4R? Click HERE for the official Drawmer product listing >>>
