Drawmer

DRA-KICKBOX 4X4

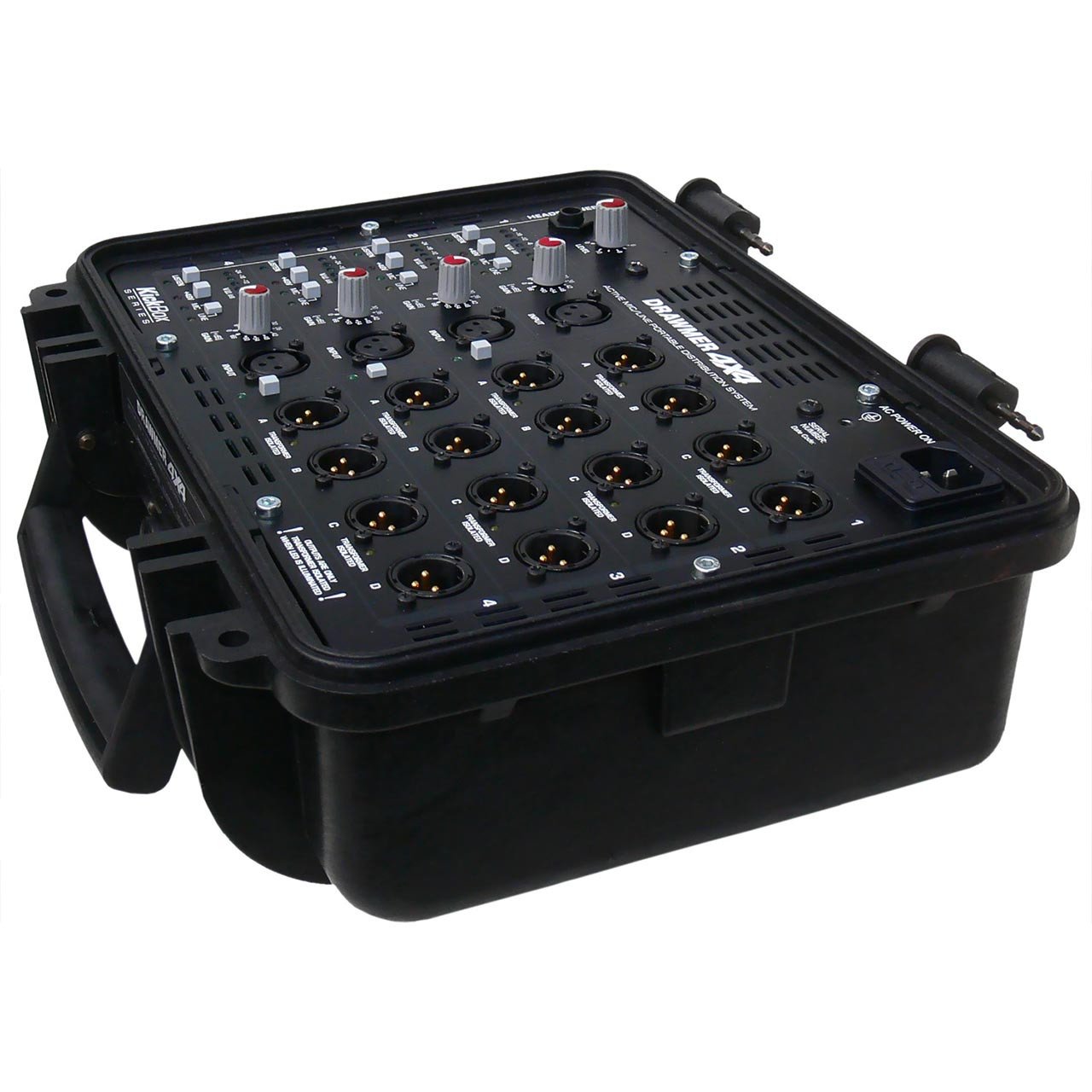

Drawmer Kickbox 4X4 - Portable Active Splitter

1 IN STOCK

An extremely well build, transparent sounding and multi-functional mic/line splitter box, as you would expect from Drawmer. Great for a host of live audio applications. The Kickbox 4x4 is an ‘all terrain’ 4 in/16 out mic/line signal splitter. Its extremely high audio quality, robust build and portability make it the ideal tool to provide multiple outputs for live sound, broadcast coverage, sports events, live recording, press conferences, corporate events and any situation where distribution of high quality audio is required. It incorporates 4 studio grade mic/line pre-amps, each providing up to 66dB of gain and 16 balanced output stages, each with the option of transformer isolation and comprehensive linking facilities. The 4x4 is supplied as standard in a road proof case with a removable lid for unhindered access to all controls and connections.


      • Drawmer Kickbox 4X4 PRODUCT FEATURES:

        PORTABILITY.

        INTERSTACKABLE.

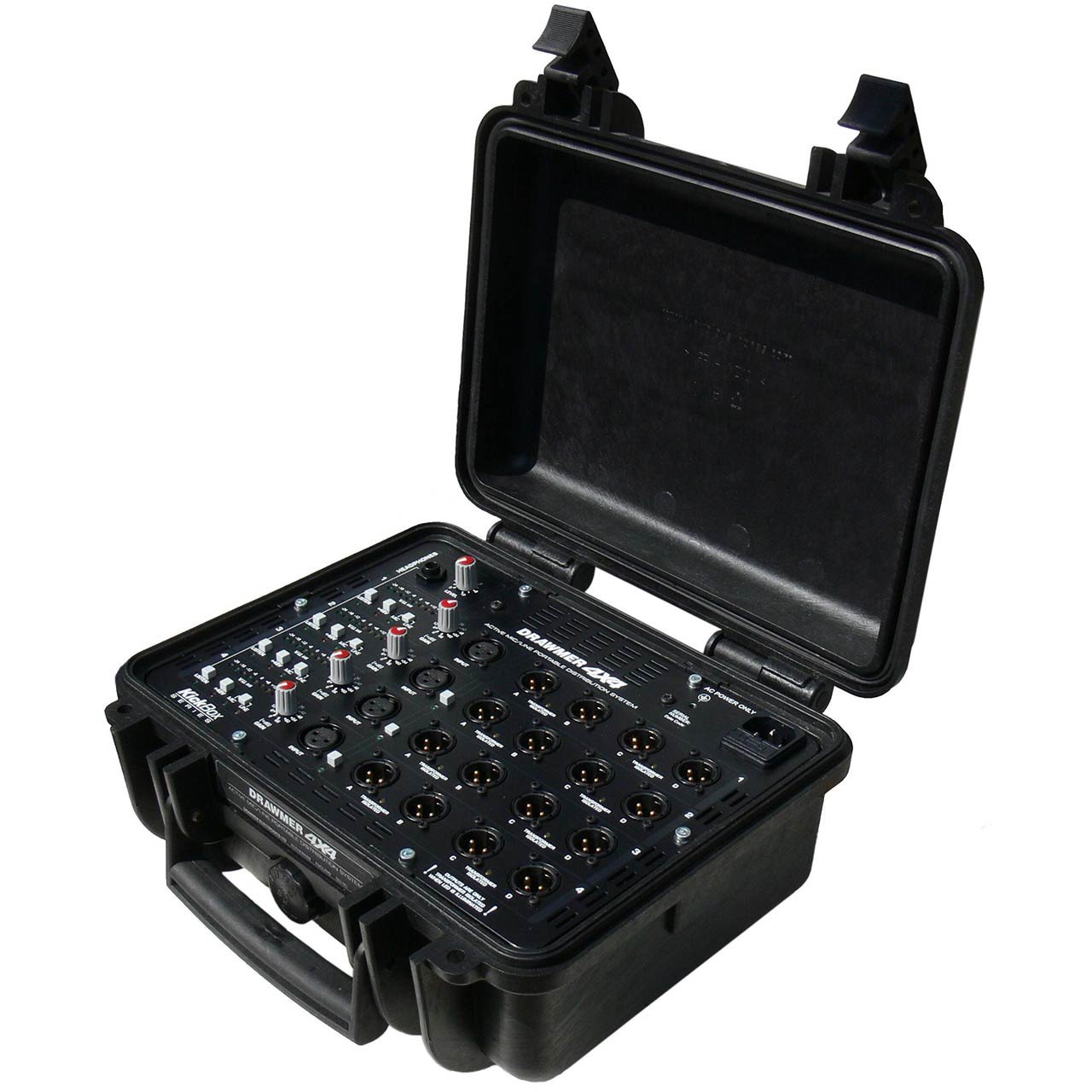

        REMOVABLE LID TO PROVIDE EASY ACCESS AND CABLE ROUTING.

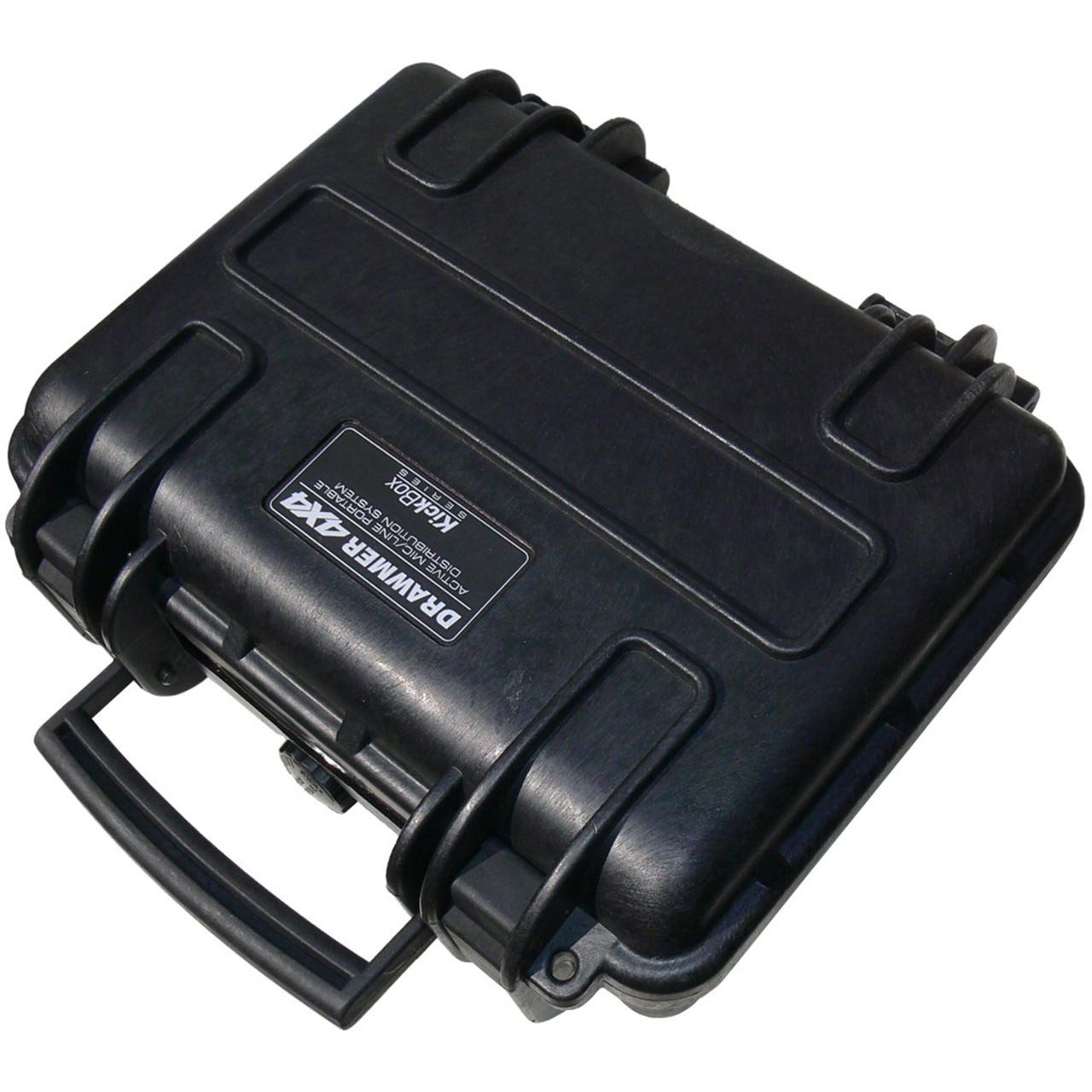

        COMPACT SELF CONTAINED ROAD PROOF CASE ELIMINATES THE NEED FOR BULKY FLIGHT CASES.

        WHEN LOCKED IT’S DUST / WATER / CORROSION PROOF.

      • Drawmer Kickbox 4X4 TECHNICAL SPECIFICATIONS:

        Inputs

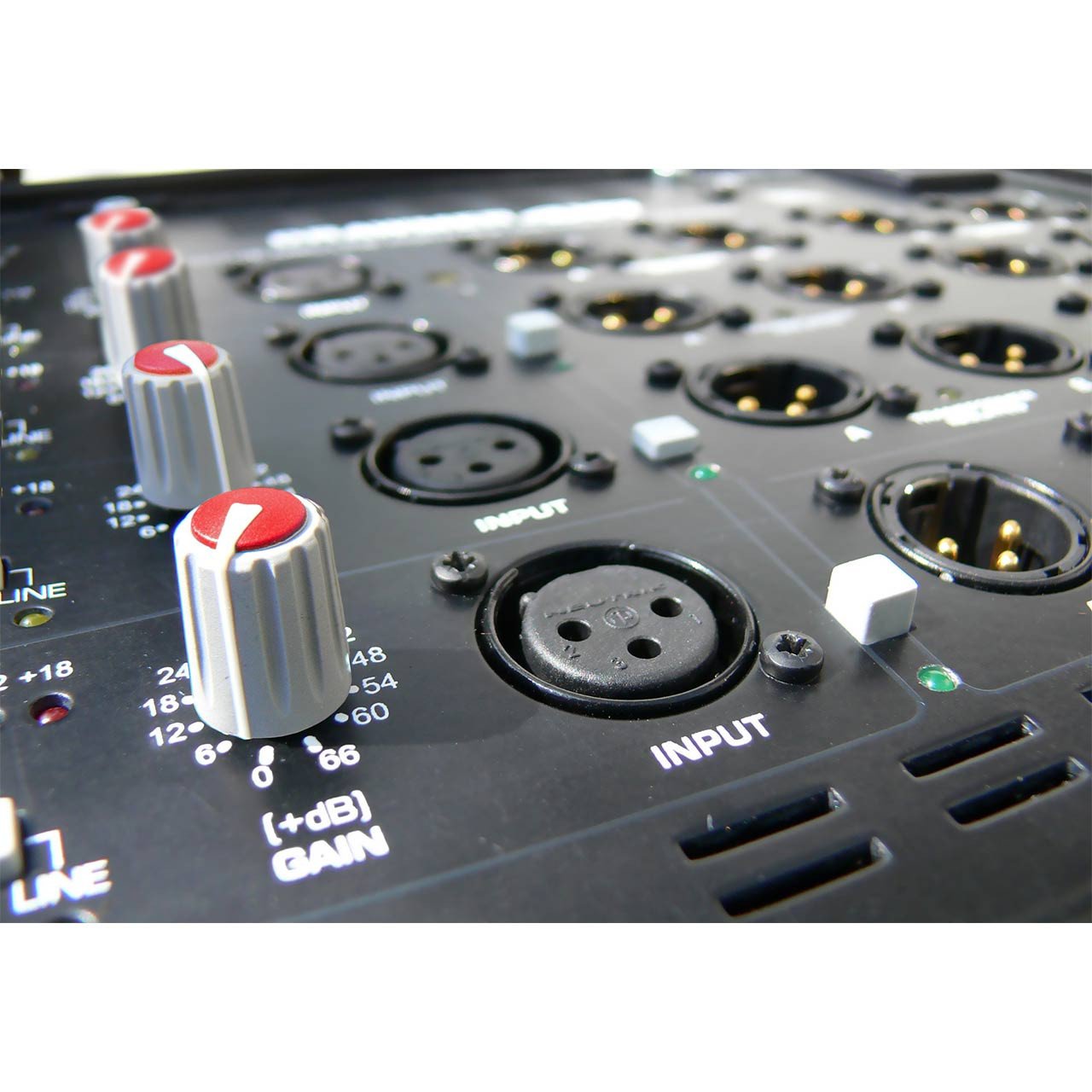

        4 STUDIO GRADE MIC/LINE PRE-AMPS.
        INDEPENDENT INPUT BARGRAPH METERING.
        66dB OF VARIABLE GAIN.
        48V PHANTOM POWER.
        MIC/LINE SWITCHING.
        HEADPHONE MONITORING FACILITY.

        Outputs

        4 OUTPUTS PER CHANNEL.
        ACTIVE SPLITTING ALLOWS FOR LONG CABLE RUNS.
        OPTIONAL TRANSFORMER ISOLATION.
        TRANSFORMER LOADED LED STATUS.
        LINKING.

        Can be configured as

        1x 1 IN/16 OUT.
        2x 1 IN/ 8 OUT.
        1x 1 IN/12 OUT plus 1 IN/4 OUT.
        4x 1 IN/4 OUT.
