Drawmer

DRA-MC1.1

Drawmer MC1.1 - Monitor PreAmp

The Drawmer MC1.1 is a high-end monitor pre-amp at a very affordable price - especially given the MC1.1 is designed and built in the UK! Derivative of the same quality and transparency of the MC2.1, the MC1.1 has been simplified for both post-production and home entertainment applications. One key addition to the MC1.1, is the inclusion of a new RIAA phono pre-amp for directly connecting your turntable. The MC1.1 offers 2 x stereo outputs and a sub/mono out over XLR and RCA connectors. 2 x XLR inputs and a phono input too. Monitor and source select switches on the front, with dedicated master volume and headphone volume knobs too!


    • Drawmer MC1.1 Features:

      Fall in love with your vinyl again!

      Hot on the heels of the Drawmer MC2.1 well known for its functionality and transparency comes its new sibling the MC1.1 Monitor Preamp, offering the same fantastic sound but with a revised feature set more suitable for a less complex post production booth or home use where multiple speaker setups are not permissible or even required, and with the addition of a new RIAA phono stage the MC1.1 is a great solution for your precious turntable setup.

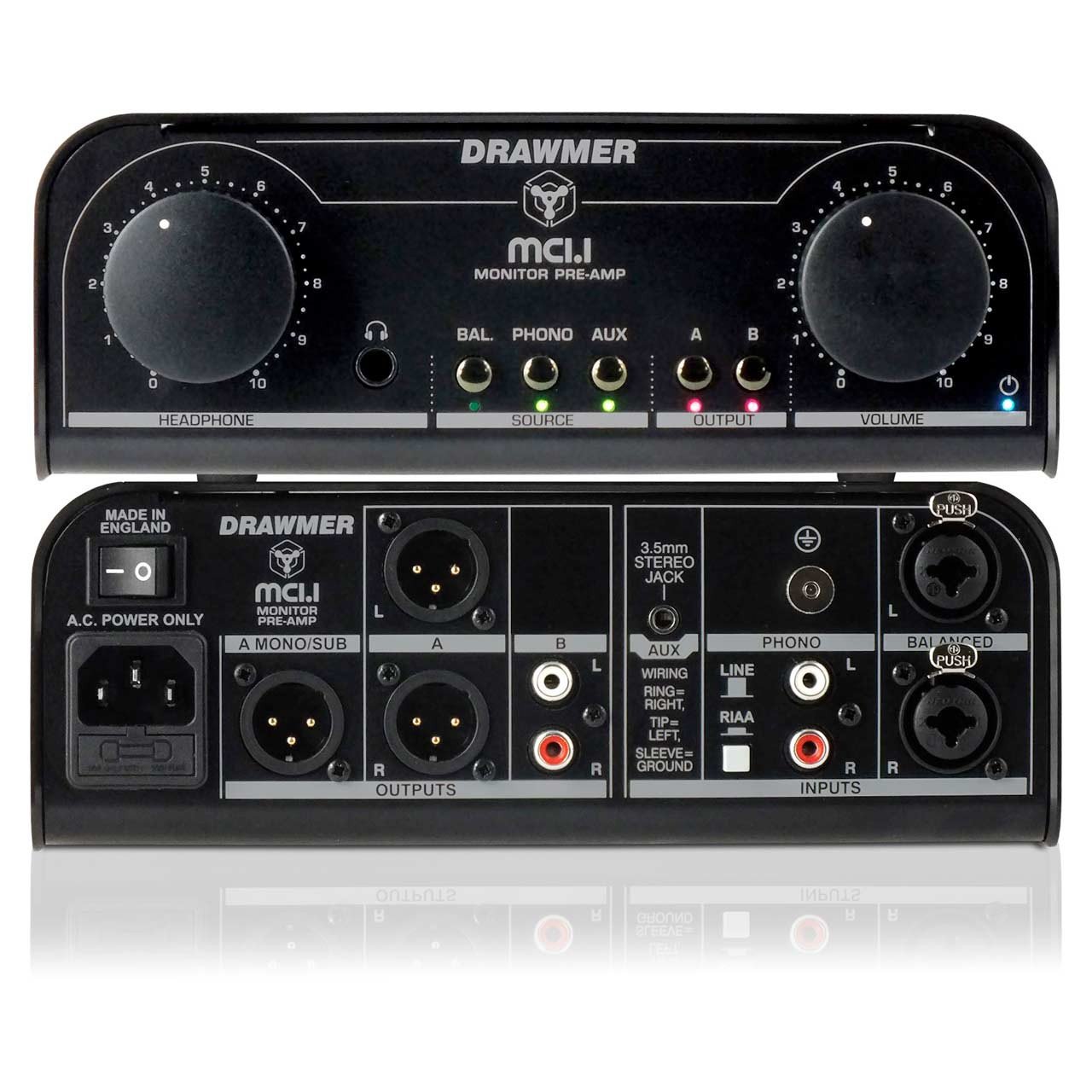

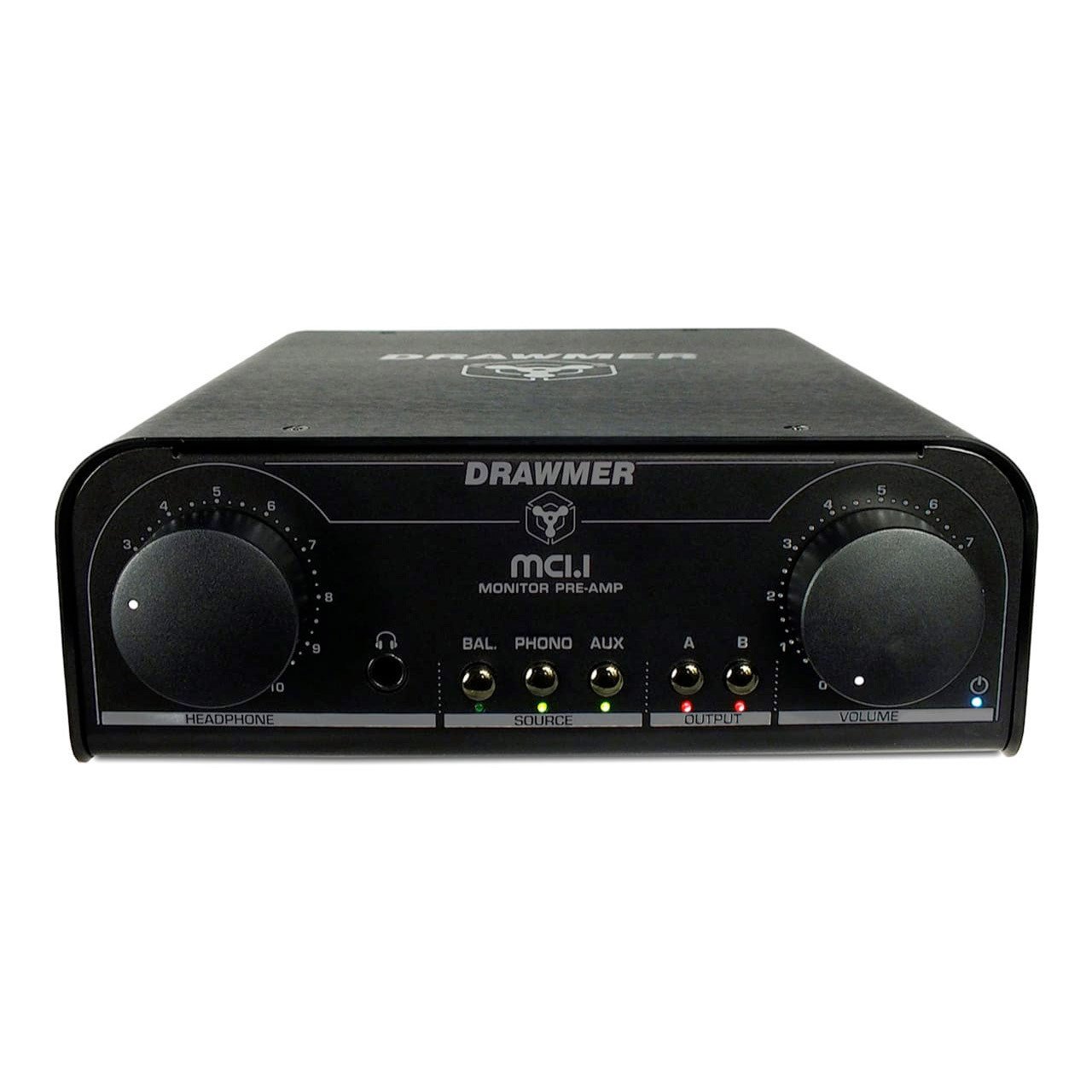

      The front panel is dominated by the two large, independent volume controls for the main line outs and the headphone amplifier, both incorporate a paralleled custom quad pot for excellent channel matching and the smoothest possible action. There are also individual switches for each input source and output section making an elegantly simple yet functional user interface.
    • Drawmer MC1.1 Specifications:

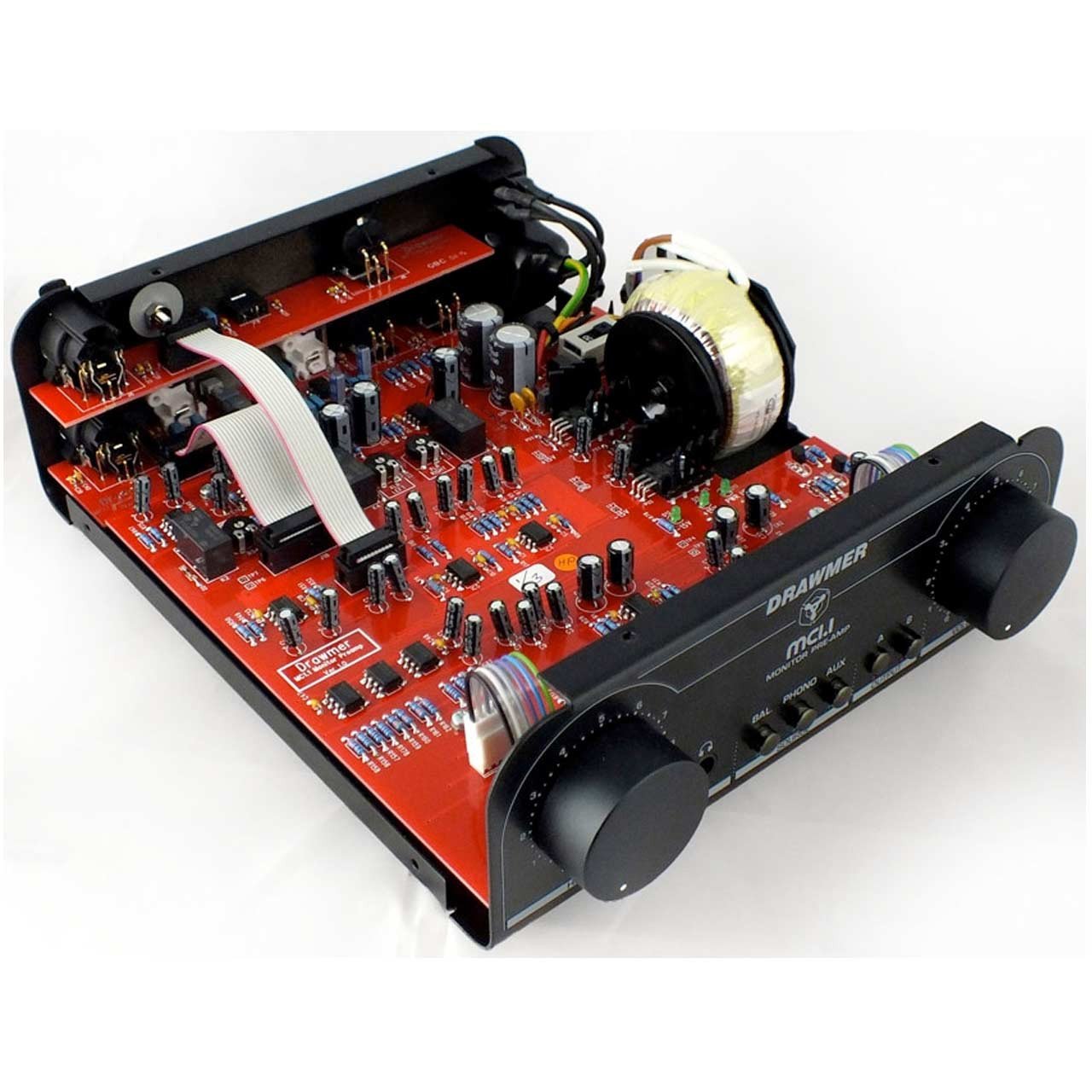

      Ultra low noise and transparent circuit design.
      Linear power supply with low hum toroidal transformer and internal voltage selector switch.

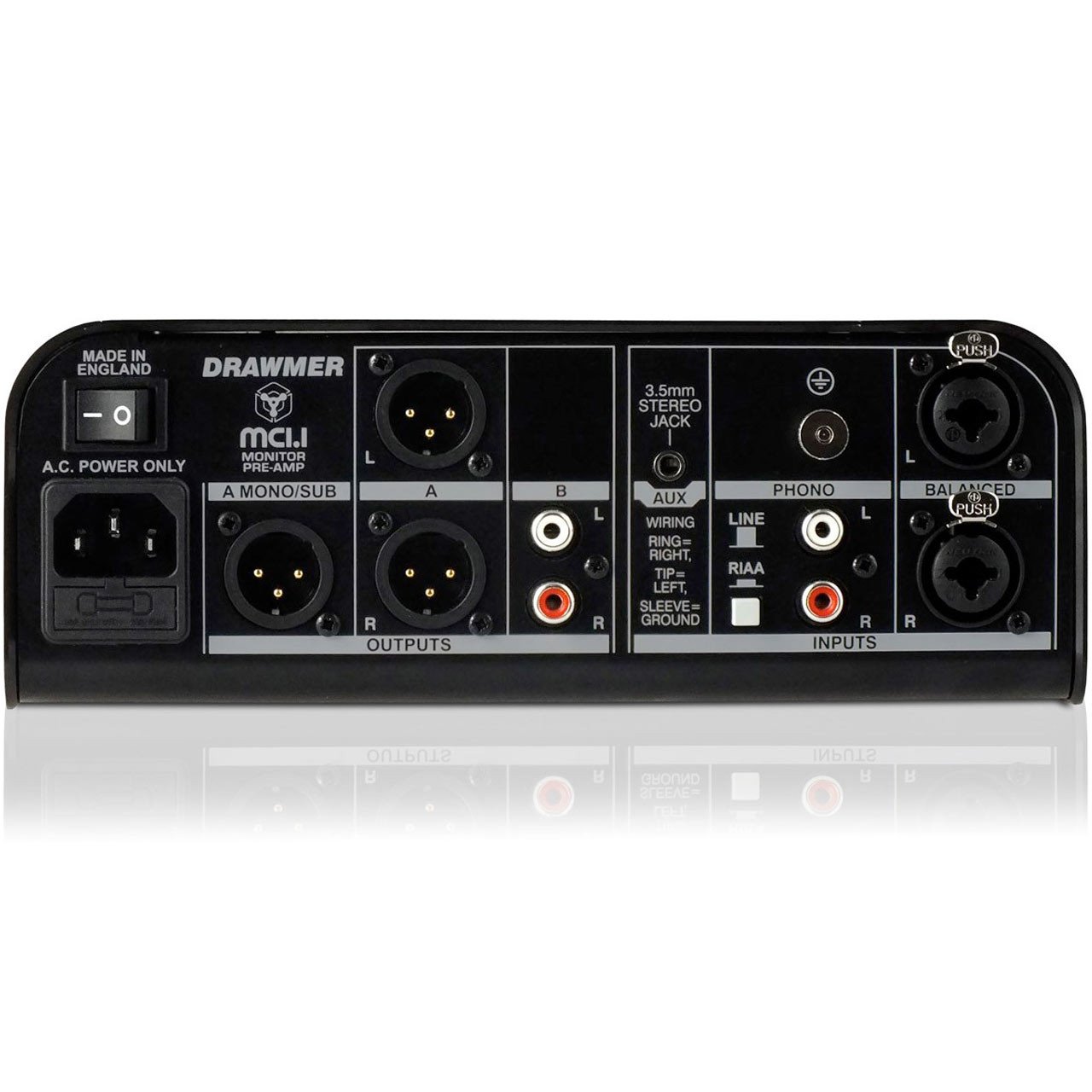

      3 Input Sources - Balanced XLR, MP3 Player 3.5mm Jack & Switchable Line/Phono (RIAA MM) RCA.
      Two switchable output stages, Balanced XLR and RCA.
      Mono Sub woofer output available simultaneous to balanced outs.
      Parallelled custom quad pots on main and headphone level controls for excellent channel matching and smooth feel.
      Independent volume controls for the main outputs and headphone section.
      Rugged steel chasis and stylish brushed aluminium cover.
      Can be stacked and is rack mountable (with the MCB 2U mounting kit).
      Dimensions: L 272mm x W 215mm x H 81mm. Weight: 2.5kg.
      Designed and manufactured by Drawmer in the UK.
Need more info on the Drawmer MC1.1?
