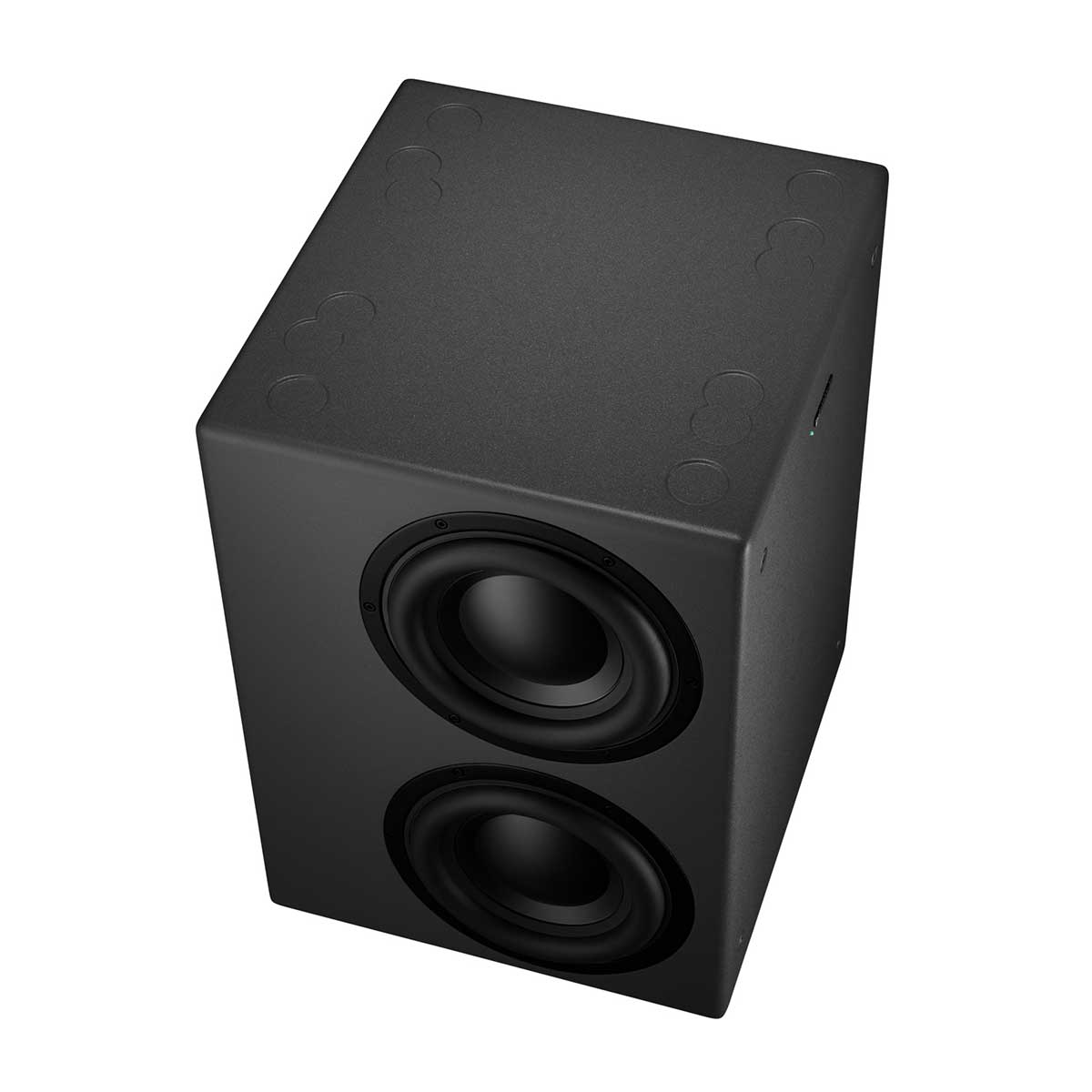

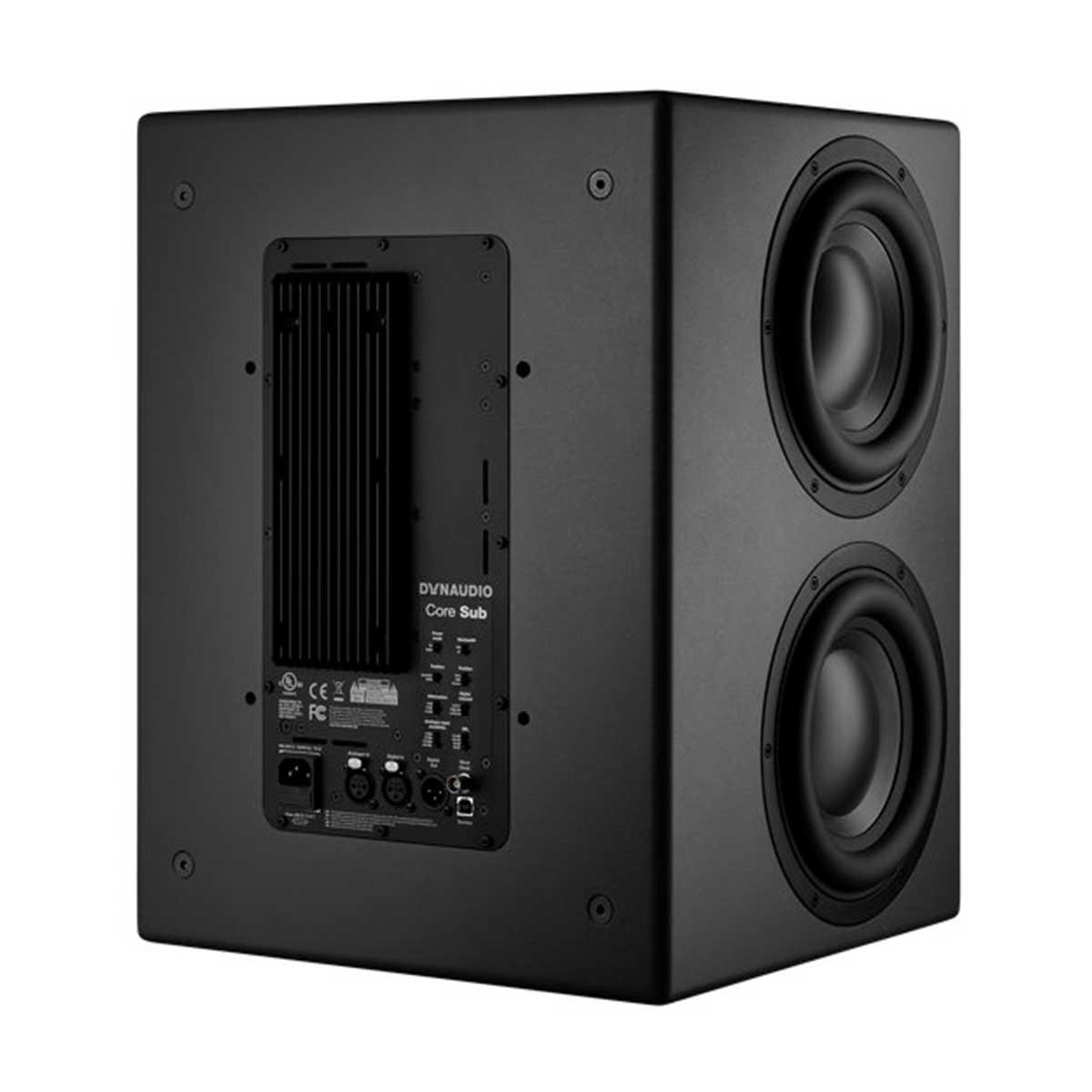

    Dynaudio Core Sub

    2 In Stock

    The Dynaudio Core Sub is the ideal low-frequency extension for all speakers in Dynaudio's Core studio monitor range.These go really low! it digs down with a flat response to 15Hz with a 6dB roll-off at 13.5Hz. There’s no meaningful low frequency that it won’t reproduce utterly faithfully.


    Combine its handcrafted cabinet – made at Dynaudio's factory in Denmark – with four of their latest low-frequency drive units and 1000W of Pascal class-D amplification, and you get a subwoofer worthy of supporting the ground-breaking Core speakers.

    Core Sub uses the same DSP engine found in all the Core speakers, which means you can customise its response based on where it’s placed in the room. Its analogue and AES digital inputs let you calibrate it to work in any configuration from single-channel extension though 2.1-channel bass management and on to a theatrical LFE channel with the headroom to really nail it. Put your Cores in HP and you’re ready to go.

    By using the same electronic platform as the rest of the Core products, we can ensure that the Sub’s behaviour and tonality are identical to the monitors – which means you get a totally integrated system, not a separate product just for bass.

    Power? You’ve got it…
    Core Sub uses the same DSP engine found in all the Core speakers, which means you can customise its response based on where it’s placed in the room. Its analogue and AES digital inputs let you calibrate it to work in any configuration from single-channel extension though 2.1-channel bass management and on to a theatrical LFE channel with the headroom to really nail it. Put your Cores in HP and you’re ready to go.

    By using the same electronic platform as the rest of the Core products, we can ensure that the Sub’s behaviour and tonality are identical to the monitors – which means you get a totally integrated system, not a separate product just for bass.

    It’s physically integrated, too. The design makes it possible to stack more units and combine it with other Core products. You can even use the VESA mount if you want to get it up on the wall. And it’s mix-and-match. For example: add two Subs per side with a Core 47 in between, regulate the dB and all is aligned – both physically and sonically. (Although we can’t promise your gold discs will stay in the same place on the wall.)

    Finesse? That too…
    Each Sub delivers 120dB, integrating perfectly with the power on offer from the rest of the Core series. It’s versatile, too – it’s digital and analogue, you can stack up to three together and on the top there are indentations to perfectly align any core monitors.

    Core Sub has four 9in side-firing handmade Dynaudio hybrid woofers – Dynaudio’s new MSP+ Hybrid Drive units – which are made primarily from aluminium for stiffness, and are designed specifically for subwoofers. To counter ringing from the aluminium, it utilises a dual-action damping system that combines paper dampening on the back of the driver and Dynaudio’s own Magnesium Silicate Polymer material in a dampening cap on the front, ensuring the best performance. This driver is an improved version of the one you find in the highly acclaimed 18s woofer. The quest was simple; make the best bass driver possible.

    Make no mistake: Core Sub isn’t just another boom-box. This is a highly accurate low-frequency delivery system.

    Get ready to be moved. Literally.

    Features

    • Designed, developed, tested and made in Denmark. All the drivers are hand-made at Dynaudio HQ, and each speaker is individually calibrated before it leaves our factory
    • Core Sub uses new Dynaudio MSP+ Hybrid Drive units – made with MSP and aluminium – designed specifically for subwoofers. Dual-action damping ensures tight, controlled bass
    • Uses the same DSP engine you'll find in the rest of the Core range – so you can customise its response to its position in the room for seamless consistency and integration
    • Use as many Subs as you need with your Core speakers – stack them in neat arrays or even mount them on walls. Core Sub aligns physically and electronically with your studio

    Technical specifications

    Woofer: 4 x 9in
    Inputs: Analogue and AES3 digital inputs (no sample-rate conversion)
    Resolution: Maximum 24-bit / 192 kHz, depending on input signal
      (32, 44.1, 48, 96 & 192 kHz sample rates supported, analogue runs at 192 kHz)
    Max SPL: 120 dB
    Frequency response (- 6 dB): 13.5 Hz – 200 Hz
    Frequency response (+/- 3 dB): 15 Hz – 165 Hz
    Box principle: Sealed enclosure
    Amplifiers: Pascal Class-D amplifiers: LF 2 x 500 W
    Dimensions: 390 mm, 365 mm, 514 mm (W x D x H)
      15 3⁄8in, 14 3⁄8in, 20 1⁄4in (W x D x H)
    Weight: 48 kg (105.8 lb)
