  • RA-BigShot-EFX

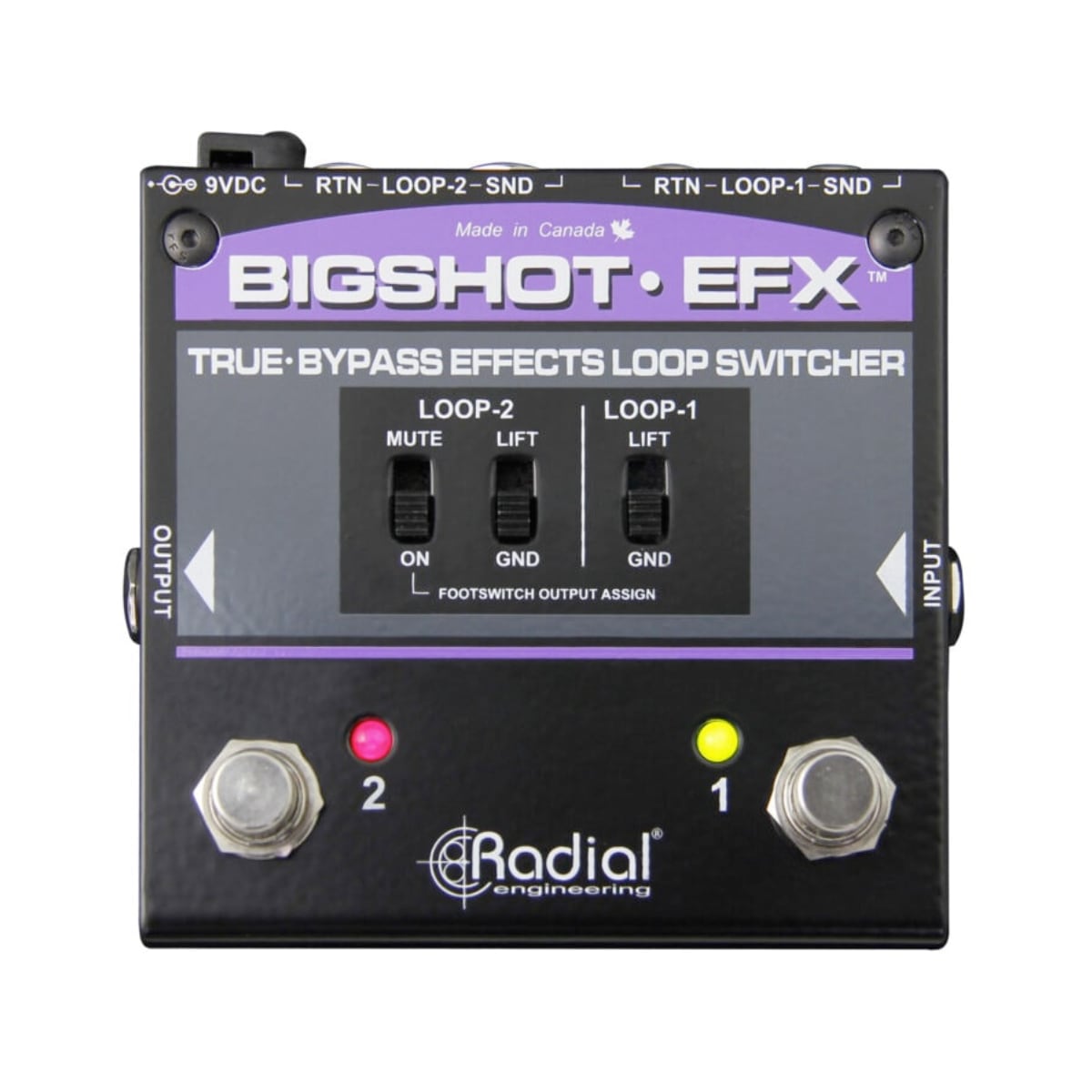

    Radial Engineering BigShot EFX Effects loop controller, true-bypass with two discrete loops

    5 In Stock

    The BigShot EFX is a true-bypass effects loop switcher that lets you set up two separate effects loops and insert them into your pedal chain.


    • Switch between two separate effects loops

    • Take noisy pedals out of the signal chain

    • Create a true-bypass signal path with all pedals

    • Super-bright LEDs for instant status update

    The BigShot EFX gives you the ability to take an entire chain of effects pedals in or out of your signal path with a single footswitch, providing you with a streamlined way to manage multiple pedals on stage. Two effects loops are provided and can be individually activated, or run simultaneously with Loop-1 feeding Loop-2 for even more creative options. You can also set up Loop-2 as a mute for silent tuning or instrument changeovers. Since each loop is a true bypass, it allows you to keep noisy or tone-robbing pedals out of the signal path when they are not needed.


    Audio circuit type: Passive, true-bypass
    Frequency response: 20Hz – 20kHz
    Gain: -0.3dB
    Ground lift
    Input Connectors: Two 1/4" inputs
    Output Connectors: Two 1/4" outputs
    Extras: Mute turns Footswitch 2 to a mute switch for silent tuning through Loop-2
    Construction: 14-gauge steel
    Finish: Durable powder coat
    Size (L x W x D): 3.9" x 3.6" x 2" (99 x 91.4 x 50.8mm)
    Weight: 1.25 lb (0.56 kg)
    Shipping size (L x W x D): 6.25" x 4.25" x 3" (158.7 x 108 x 76.2mm)
    Shipping weight: 1.55 lb (0.70 kg)
    Power: 9VDC, center pole negative
    Conditions: For use in dry locations only between 5°C and 40°C
    Warranty: Radial 3-year, transferable
