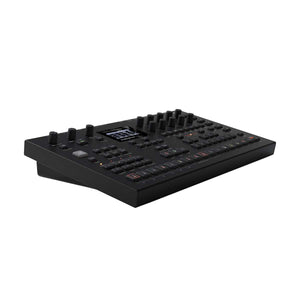

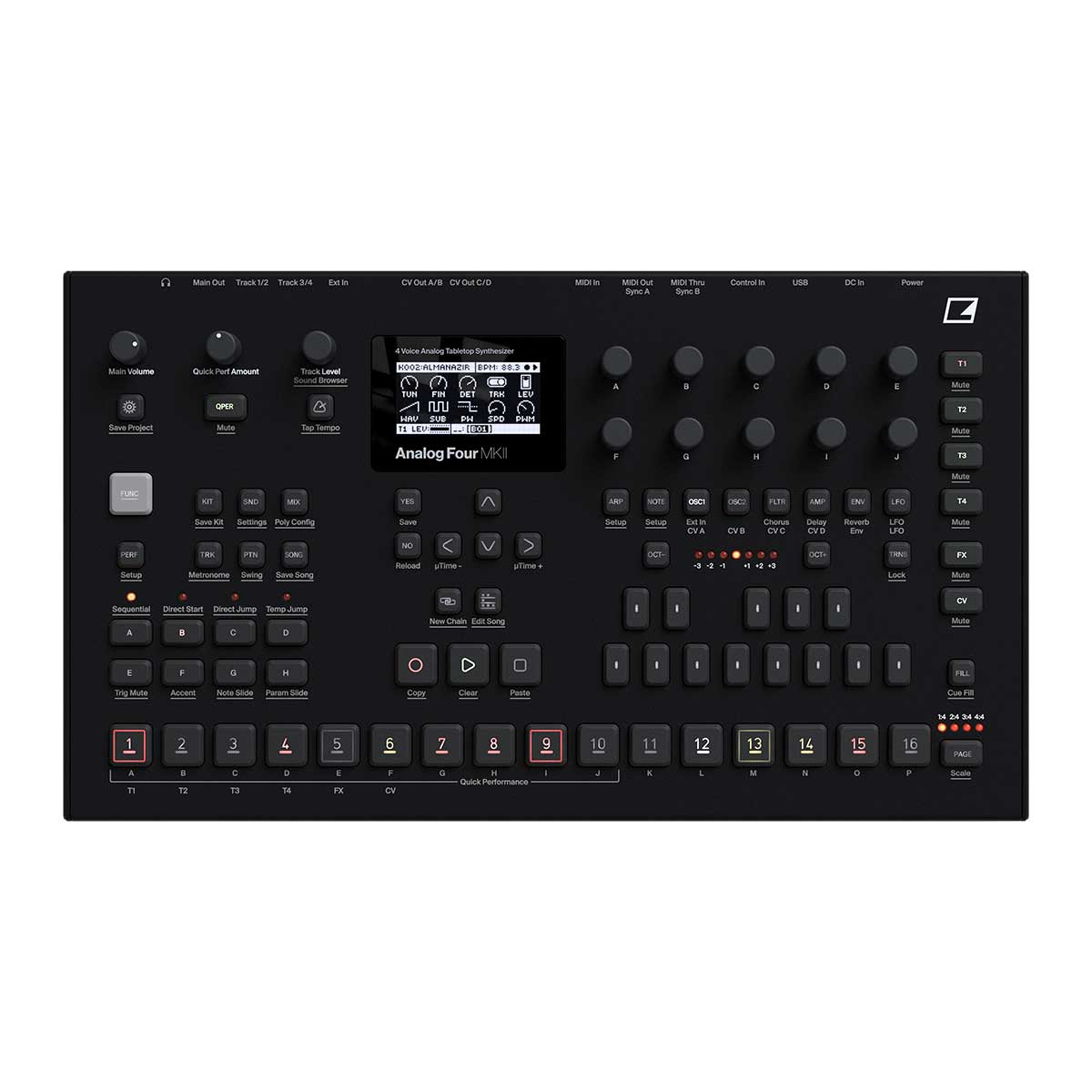

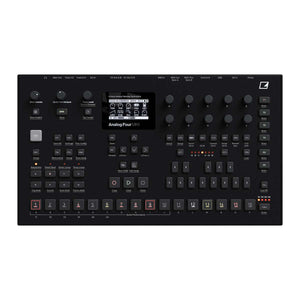

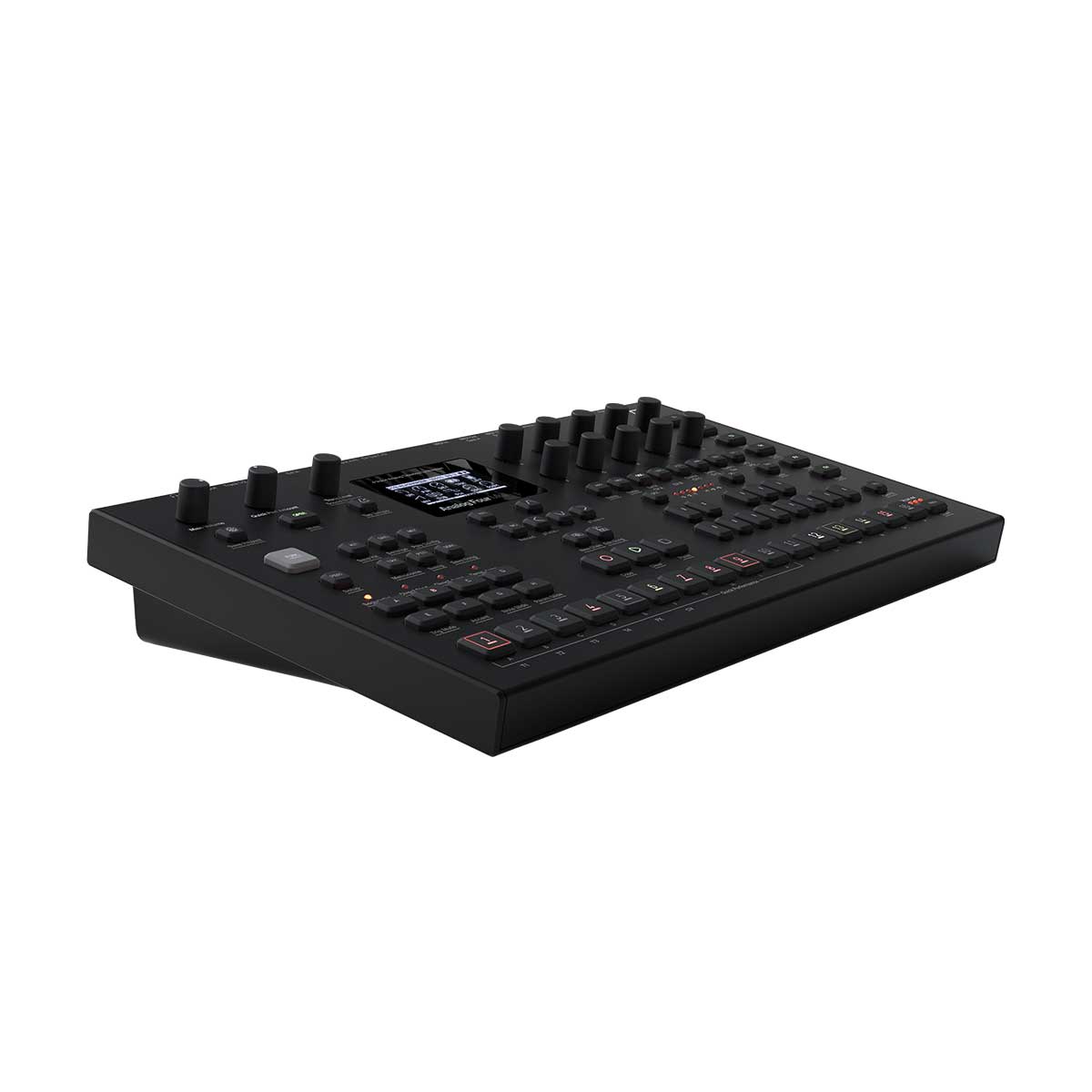

Elektron Analog Four MKII Black (2020) Desktop Analogue Synthesizer
The Elektron MKII Black (2020) features completely new look and re-worked circuitry for an even more enhanced, defined and rich bass (compared to the MKI). Newly designed OLED with brighter colours for playing live, along with improved back-lit buttons too. Other key developments include added user buttons for fast workflow, a stereo output per voice and CV & expression inputs for more hands-on control. The MKII Analog Four maintains a completely analogue signal-path with four synth voices.
What’s new? Reworked analog circuitry delivering very deep and defined bass Enhanced analog overdrive for more bite and growl Crisp, large OLED screen providing optimal feedback in dimly lit environments Ultra durable back-lit buttons. Rated for 50 million presses Precise, hi-res encoders Quick performance controls Increased amount of dedicated buttons enabling quicker workflow Stereo audio outputs for each voice Expression/CV inputs for external control of Analog Four MKII parameters Overbridge with higher bandwidth Premium cast aluminium enclosure
Highlights 4 synth voices, each with: Fully analog signal path 2 × analog oscillator 2 × sub-oscillator 1 × noise generator 1 × 4-pole analog lowpass ladder filter 1 × 2-pole analog multi-mode filter 1 × analog overdrive circuit 2 × assignable LFO 1 × amp envelope 2 × assignable envelope Up to 4 notes of polyphony Up to 4 part multitimbrality Up to 4 note unison playback Chorus, Delay and Reverb send FX Quick Performance controls Live friendly Elektron sequencer CV/Gate sequencing
Overbridge enabled Overbridge is a software suite from Elektron, offering powerful tools when using Analog Four MKII together with computers. It comes in two variants: Basic and Premium.
Elektron Analog Four MKII TECHNICAL SPECIFICATIONS:

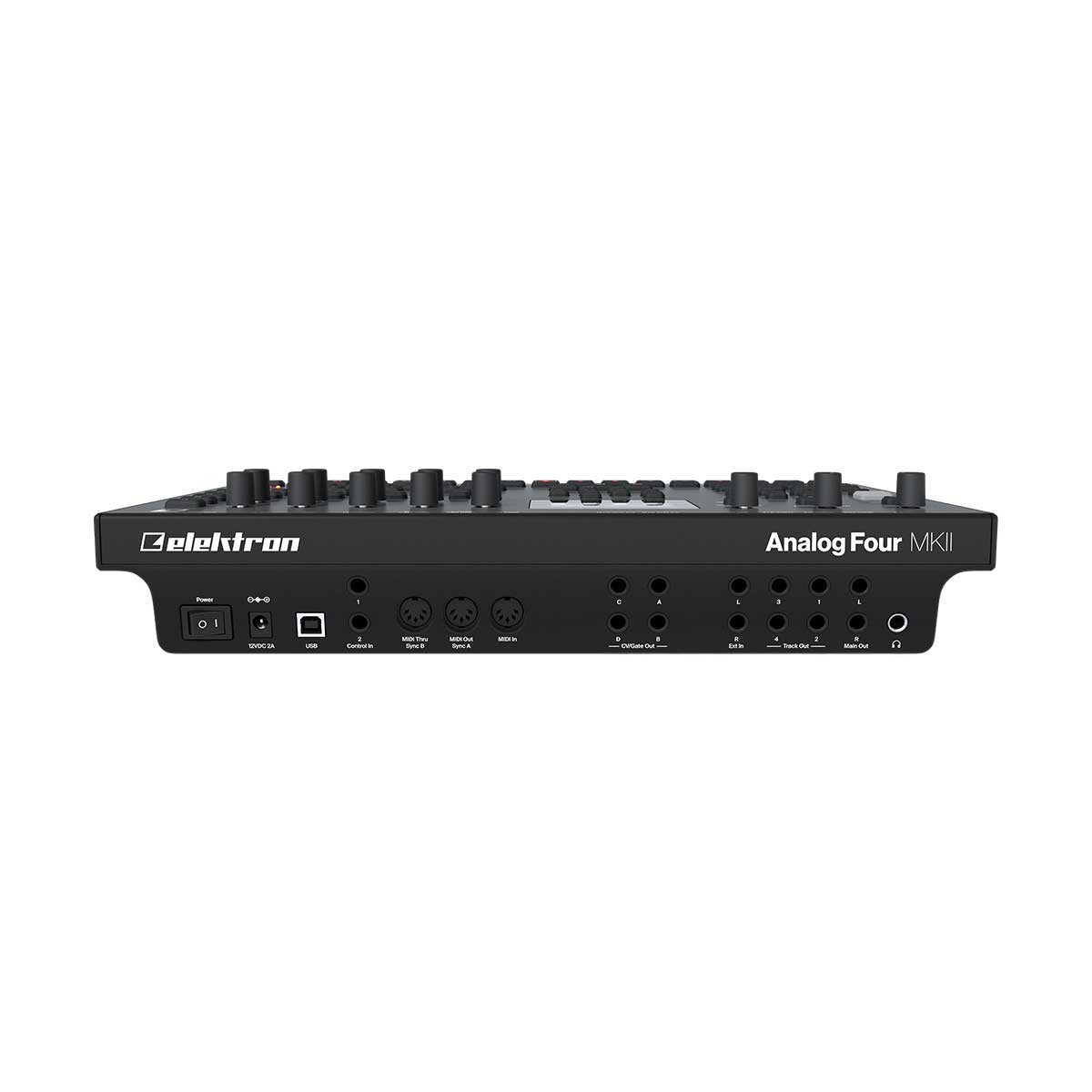

1 × ¼″ headphones output 2 × ¼″ impedance balanced main output 4 × ¼″ separate stereo voice output 4 × ¼” CV/Gate output 2 × ¼″ unbalanced external input 2 × ¼″ expression/CV input 1 × USB 2.0 High Speed port MIDI IN/OUT/THRU ports with DIN Sync Out Ultra crisp 128 × 64 OLED screen Precise hi-res encoders Durable back-lit buttons W385 × D225 × H82 mm (15.2 × 8.85 × 3.3″) including power switch, knobs and rubber feet Weight approx. 2.4 kg (5.3 lbs) Fully compatible with Analog Four MKI projects/data
