Eve Audio

60/SC307

EVE Audio SC307 3-Way 7 Inch Active Monitors - PAIR

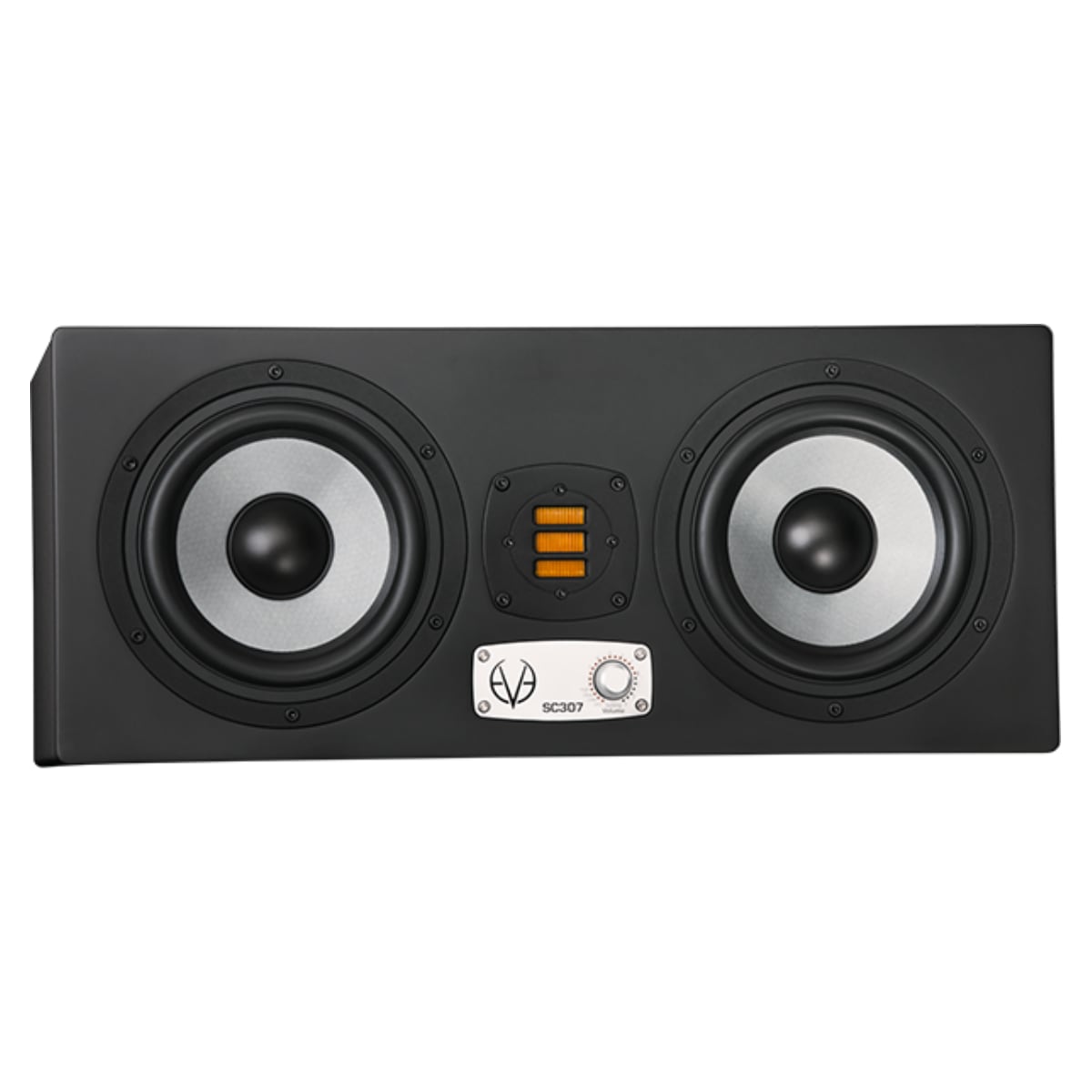

Ribbon tweeters sound like silk - EVE have certainly captured the intrinsic sound of this design in the SC307 active studio monitors. The SC307 is the second model in Eve's three-way system monitor range. This powerful monitor is perfectly suited for both near- and midfield monitoring.


    • EVE Audio SC307 PRODUCT FEATURES:

      And, in surround set ups, the SC307 will work excellently as a center channel too.  The SC307 combines the power from three different amplifiers to deliver a very efficient, dynamic and low noise sound reproduction.  Eve's three-way systems are developed for critical and detailed listening. Although they will be able to provide lots of power and thunderous bass frequencies, they will also excel if you're looking for a precise and very detailed pair of speakers.

      Tech Talk

      Eve's three-way systems are designed around the concept to distribute the frequencies properly between all individual components and raise the efficiency of your speakers effectively.

      In Eve's three-way systems, each driver (woofers or tweeter) gets its own amplifier. One of the woofers serves frequencies up to 300 Hz as a kind of "bass" whilst the other woofer gives you a fuller range as a bass-midrange driver, up to the 3000 Hz crossover frequency. From that frequency on, their AMT tweeter takes over. This minimizes interference between the drivers and also allows the SC307 to deliver a very efficient and dynamic sound reproduction.

      What this design philosophy means is that less effective physical work is being made by each individual woofer, as the band of frequencies to be reproduced are divided between both woofers. This in turn will result in less mechanical inertia and a more efficient sound transmission.

      Both woofers consist of their proprietary 6.5" SilverCone, the same which is used in their two-way system, the SC207. However, due to the fact that two of these woofers are being used simultaneously, you get a bigger frequency response down to 40 Hz.

      The SC307 also makes use of the proprietary AMT RS2 tweeter, which uses a bigger front plate, and a bigger internal magnet to drive the AMT tweeter with greater efficiency.

      The three 100 W PWM power amplifiers won't leave you lacking any power either, as the maximum sound pressure level of 114 dB (SPL @ 1m) will attest.

      And no worries determining how to place the SC307 in your room or studio properly. Their DSP section will assist you in choosing the speaker for left and right hand side. So you will always get proper symmetry between your speakers, instead of having to move them around as usually. With a DIP switch located, on the rear of speakers these settings for room adaption can be temporarly locked.

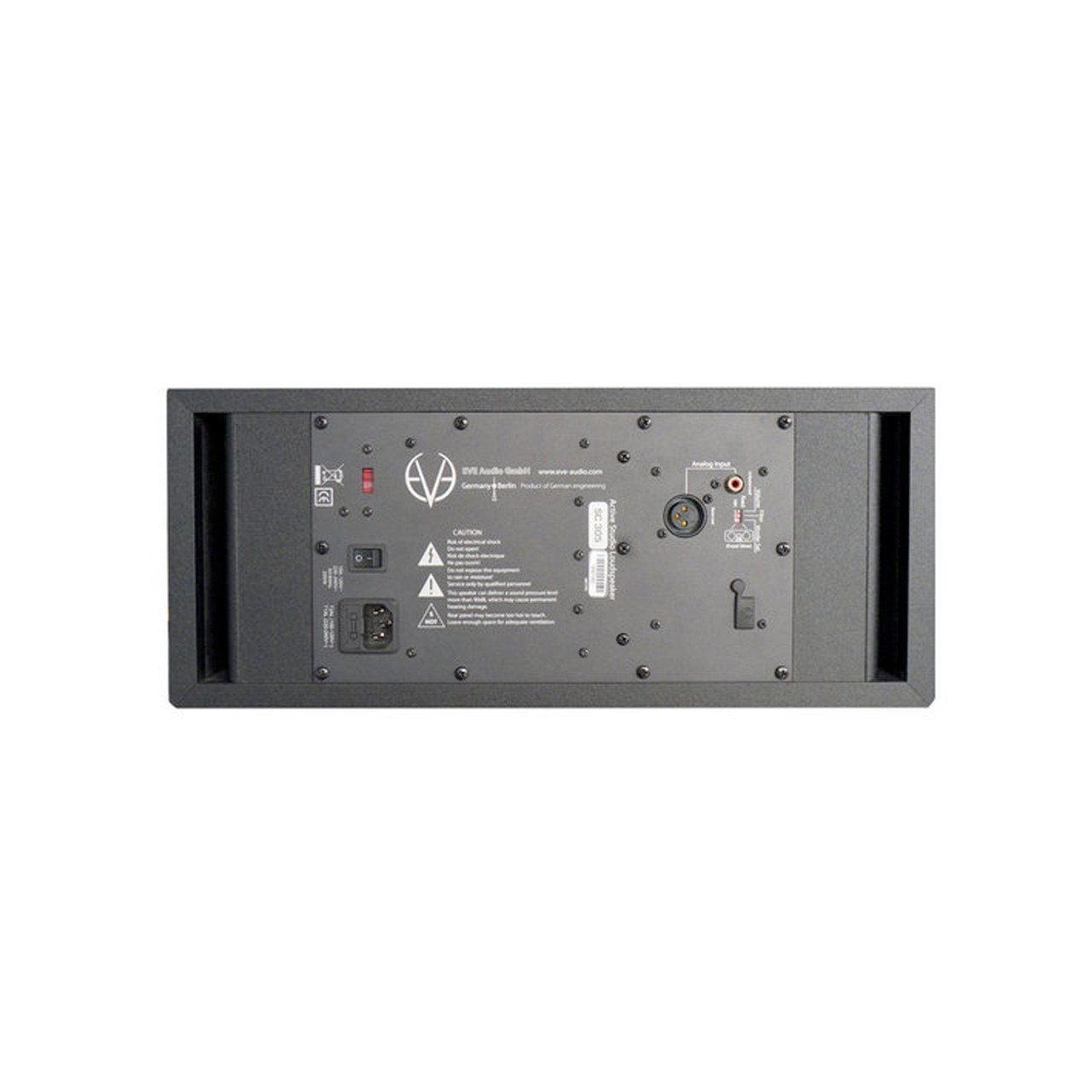

      As with every other EVE Audio speaker, you get both balanced XLR inputs and unbalanced RCA inputs for greater convenience.

      DSP

      With every EVE Audio speaker, you also get high resolution DSP electronics. One push knob operation and you will have access to accurate volume control and several different filter settings that will help you tailor your monitors to the way you work. And if you always avoid digital processing, Eve's got you covered. The DSP engine is supported with a high quality A/D converter from Burr-Brown, which delivers a pristine signal to the DSP section. And since the PWM amplifiers are directly connected to the DSP, no additional conversion is necessary. Please visit Eve's DSP page to learn more about their DSP philosophy.

      Bass Port Design

      It's all in the geometry. One of the downside effects of port compression is bass distortion. As you turn up the volume, the efficiency of the port reduces and distortion will increase.

      Eve opted for a large rear rectangular port with no hard edges for their bass port designs. That's one of the reasons EVE monitors have a high efficiency on the lower frequencies.

      The results? High sound pressures with tight and punchy bass frequencies that don't cause port distortion. Crank up the volume, and EVE will deliver a round bass. And with no holes to look at every time you glance at your speakers.
    • EVE Audio SC307 TECHNICAL SPECIFICATIONS:

      Description 3-way System
      Dimensions (WxHxD) [mm] 500 x 215 x 310
      Dimensions (WxHxD) ["] 19.69 x 8.46 x 12.2
      Free-field frequency range (-3dB) 40Hz - 21kHz
      Tweeter AMT RS2
      Mid-Woofer 165mm/6.5"
      Woofer 165mm/6.5"
      Cross-over frequency 300Hz/3000Hz
      Maximum SPL @ 1m 114dB
      Number of amplifiers 3
      Total short-term output power 250W
      Output power (woofer) 2 x 100W
      Output power (tweeter) 50W
      Protection limiter
      Settings
      Volume -inf. - +6dB
      High-shelf filter (-5dB - +3dB) > 3kHz
      Desk filter boost (0dB - +3dB) 80Hz
      Desk filter cut (-5dB - 0dB) 160Hz
      Low-shelf filter (-5dB - +3dB) < 300Hz
      Level-fix dip switch
      Filter-fix dip switch
      Woofer-change dip switch
      Connectors
      XLR in (impedance) (10k)
      RCA in (impedance) (10k)
      Power consumption
      Standby < 1W
      Full output 120VA
      Misc.
      Weight kg/lb. 12.4 / 27.3
    • SYSTEM REQUIREMENTS:

      N/A
Need more info on the EVE Audio SC307? Click HERE for the manufacturer's website >>>
