  • EVE-POWERMAX-1233-000

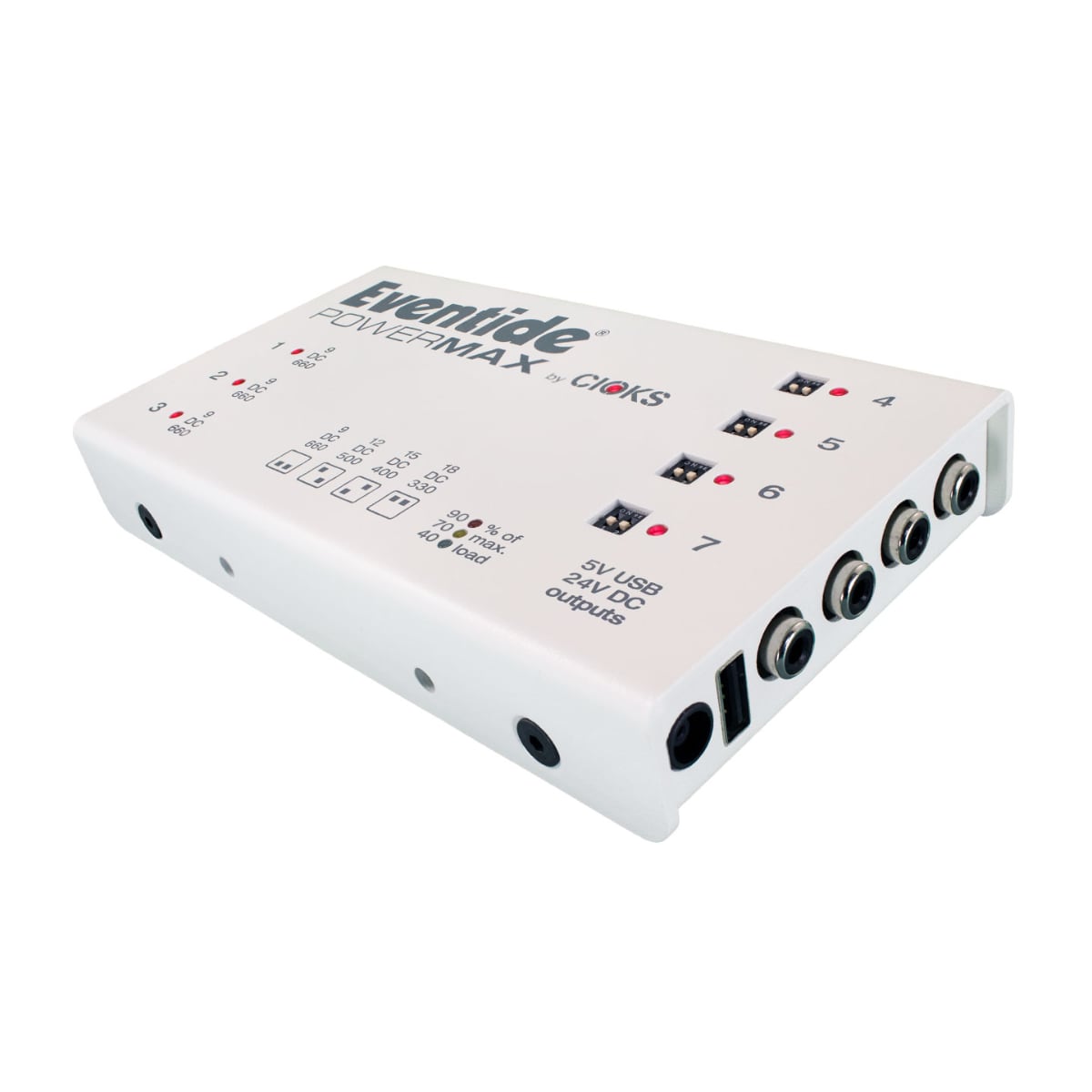

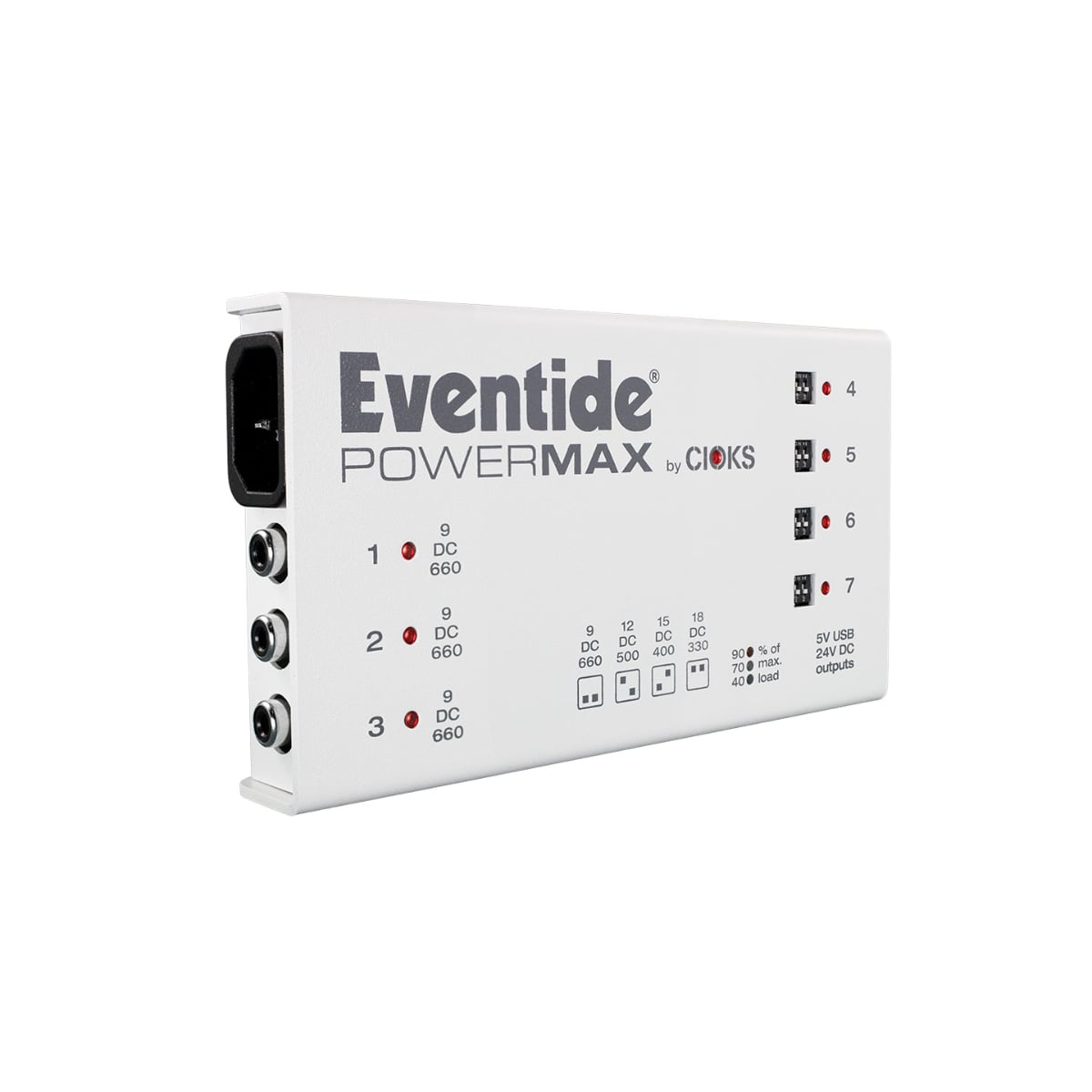

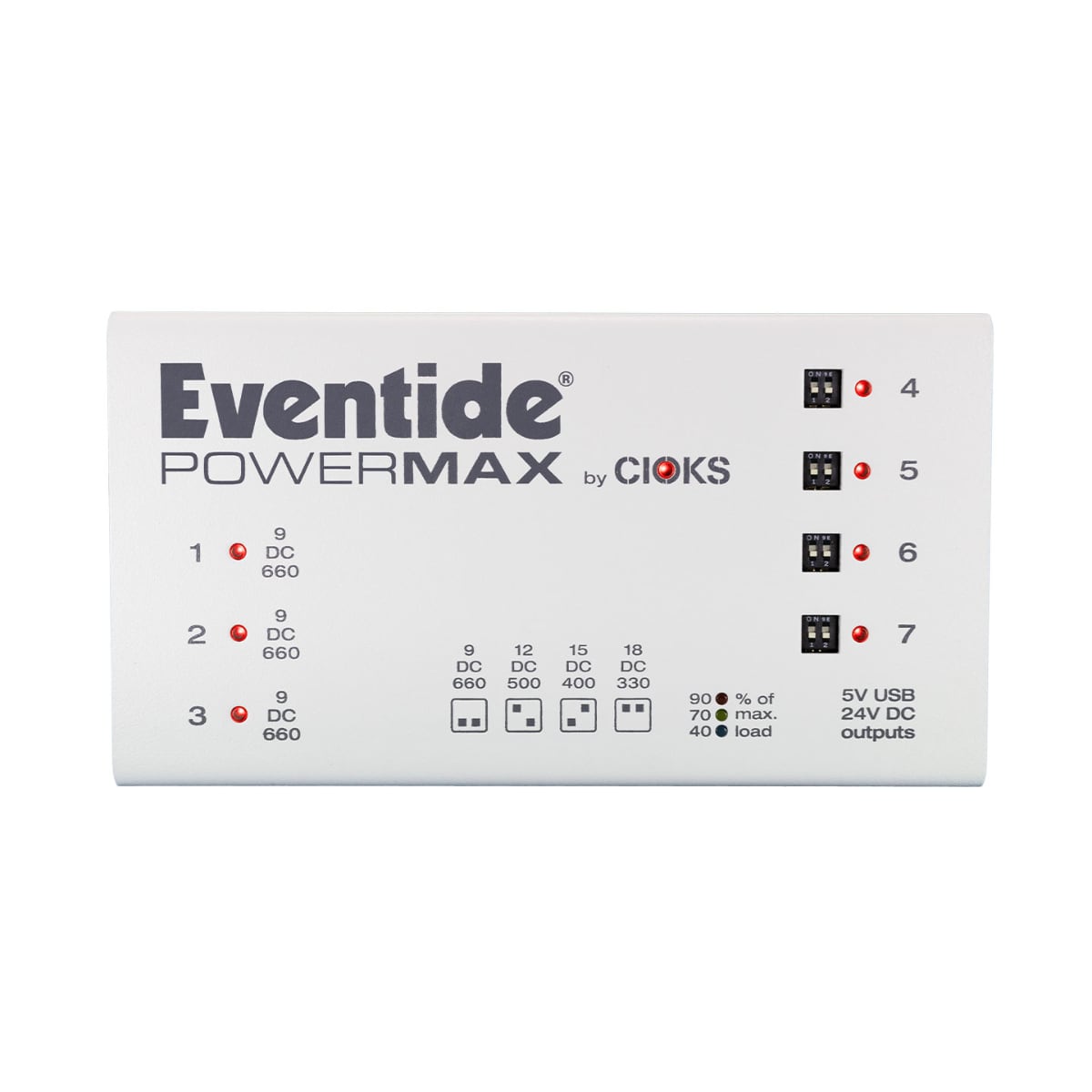

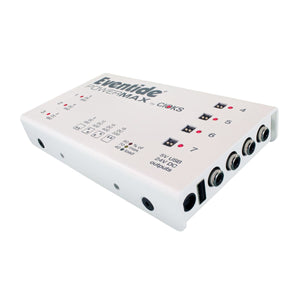

    Eventide PowerMax Ultimate Pedalboard Power Solution

    Notify me when this product is available:


    Features

    • New! 24V DC Aux isolated outlet for PowerMini Expander (adding 4 additional outputs) or other high-power pedals
    • New! 7 isolated DC-outlets at 6W each
      • 3 outlets with 9V DC 660mA
      • 4 outlets each selectable with either 9V, 12V, 15V, or 18V up to 660mA
    • Powers multiple Eventide, Strymon, and other high current pedals
    • Smallest and lightest in its class - only 1" thick and 1.1lb
    • USB outlet for charging a smartphone or tablet (max. 1A)
    • Use anywhere in the world, mains input voltage 90-265V AC
    • Ultra-low noise achieved by multi-stage filtering
    • Individual status LED on each outlet and global status LED
    • State-of-the-art 2-stage switch-mode power supply topology
    • Extremely low profile, only 25mm (1 inch) thick
    • Mounting hardware for Pedaltrain and Temple boards included
      • Optional GRIP bracket provides drill-free mounting on Pedaltrain.
    • Built-in true power meter showing the total load
    • 13 Flex cables included 5 for Eventide pedals
    • Designed in Denmark, assembled in Poland

    Included Flex Cables

    PowerMax comes with 13 flex cables compatible with various pedal types.

    • 1 x 4030-L 5.5/2.5mm centre positive angled DC plug, 30cm / 12”, green, type 4 (for H9s, TimeFactor, PitchFactor, ModFactor or Space)
    • 2 x 4050-L 5.5/2.5mm centre positive angled DC plug, 50cm / 20”, green, type 4 (for H9s, TimeFactor, PitchFactor, ModFactor or Space)
    • 2 x 4080-L 5.5/2.5mm centre positive angled DC plug, 80cm / 31”, green, type 4 (for H9s, TimeFactor, PitchFactor, ModFactor or Space)
    • 3 x 1030-L 5.5/2.1mm centre negative angled DC plug, 30cm / 12”, black, type 1 (BOSS standard)
    • 2 x 1050-L 5.5/2.1mm centre negative angled DC plug, 50cm / 20”, black, type 1 (BOSS standard)
    • 1 x 2050-L 5.5/2.1mm centre positive angled DC plug, 50cm / 20”, red, type 2
    • 1 x 5050-L 3.5mm tip positive angled Jack plug, 50cm / 20”, black, type 5
    • 1 x 1035 Split Flex (Y-cable) with two 5.5/2.1mm centre negative angled DC plugs, 30+50cm / 12+20”, black, type 1 (BOSS standard)

    Specifications

      Mains input 90-265V AC universal IEC type
      Outlets 1-3 9V DC / 660mA
      Outlets 4-7 9V DC / 660mA or 12V DC / 500mA or 15V DC / 400mA or 18V DC / 330mA each
      USB Outlet 5V DC / 1A
      Total output power: max 42W
      Size 160 x 88 x 25.4mm / 6.30" x 3.46" x 1.00” (excl. rubber feet)
      Weight Weight: 460g / 1.1lb
      Warranty 5 years worldwide
