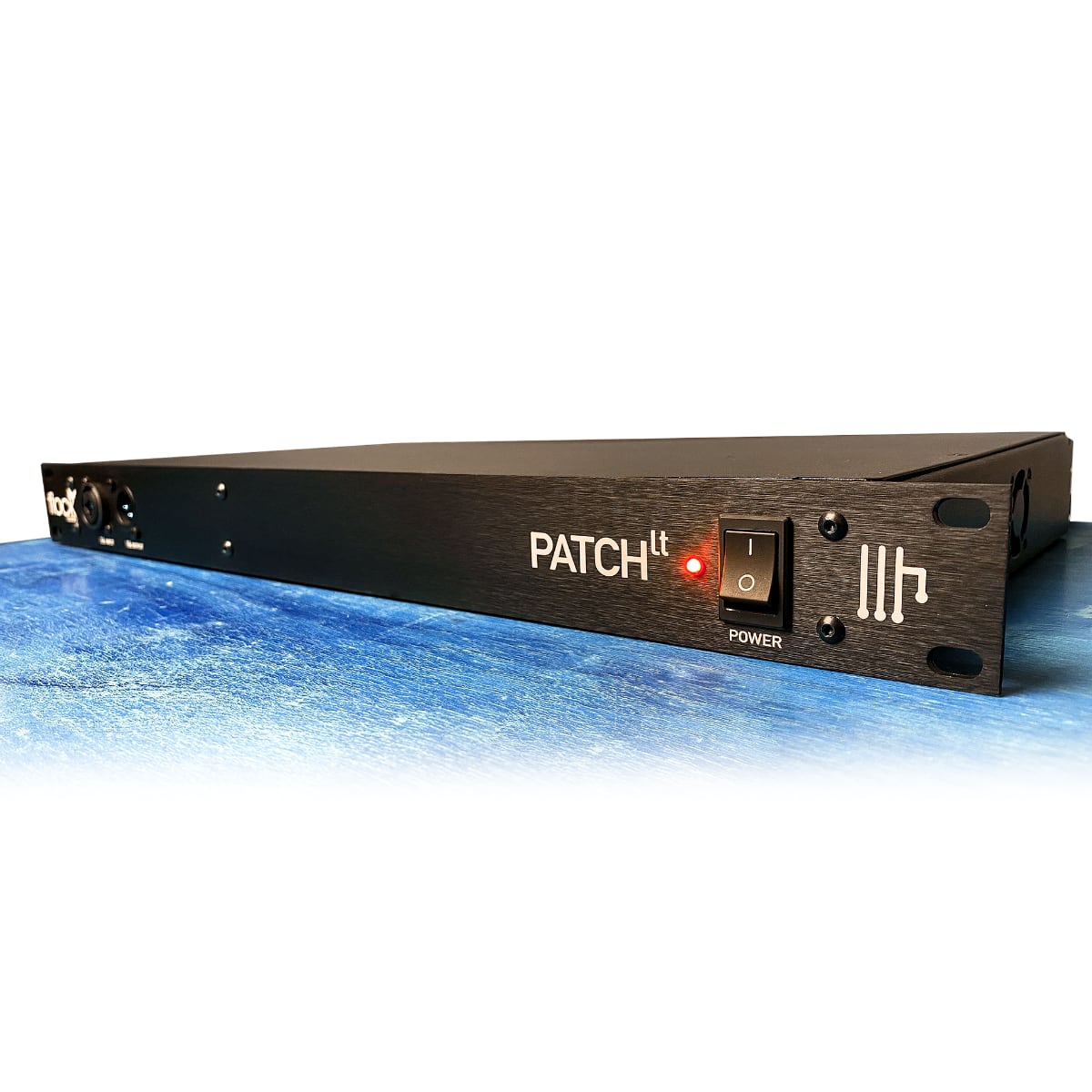

Flock Audio PATCH LT 16x16 32-Point Patchbay

The PATCH LT System was designed with the up & coming producer or budget studio in mind. Using the same Flock Audio Patented Matrix Technology as our Flagship Model "PATCH", LT allows any producer or studio to add the world's most advanced digitally controlled, analog routing system into their studio or post-production suite without compromise.

No matter the model, rest assured every system is a PATCH front to back.

Features

• Standard Tascam 25 Pinout Wiring Format DB-25/D-SUB Connectors

• 4 Cables give you access to the analog routing matrix of your dreams

• Available IO located right on the front panel for quick hardware, instruments, or microphone integration into your routing system

• The same reliable connections as PATCH, designed into PATCH LT

• Power Supply & USB Cables Included

•

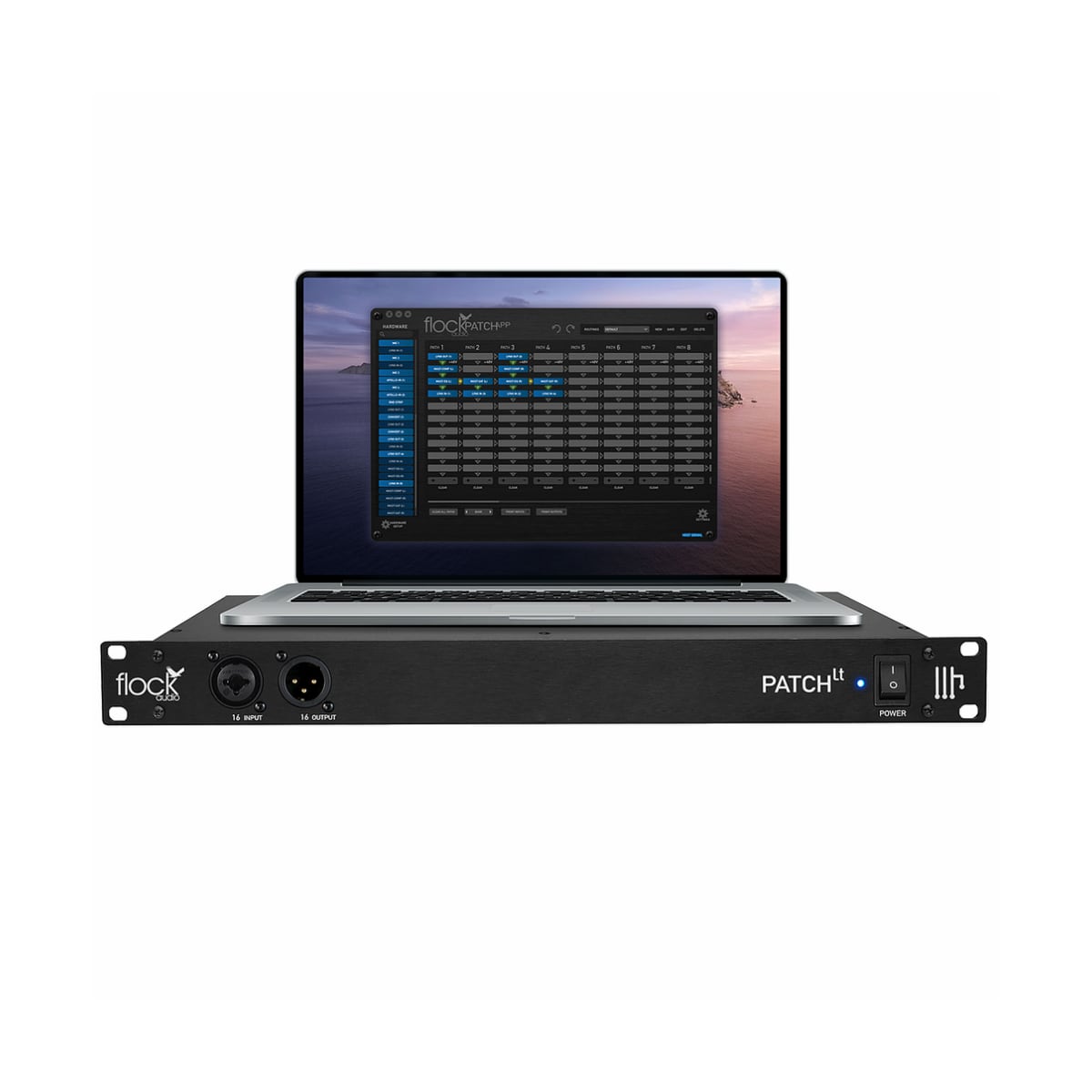

  Software that immediately recognizes your PATCH Model and puts you in control

Specification

• Computer Connectivity: USB 2.0

• Compatibility: OSX 10.7 Lion & Newer / Windows 7 & Newer

• Software: PATCH APP v2.0 (Online Download) - *iOS iPad Coming Soon*

• Chassis: 1U Rackmount (8" Deep)

• Patch Point Connections: 32 Total - 16 Inputs / 16 Outputs (Expandable with all PATCH Models)

• 48v Phantom Power: 16 Channels Independently Controllable

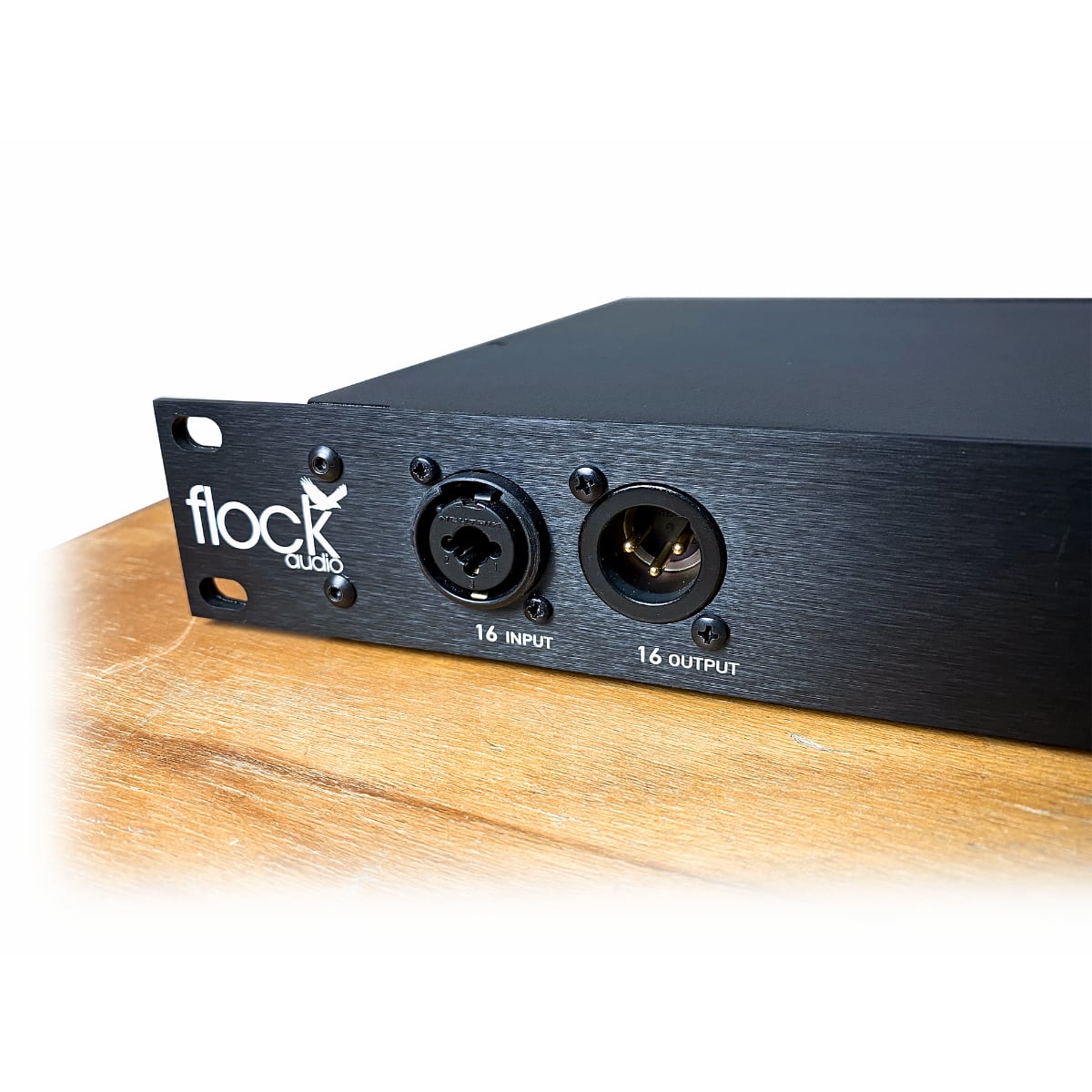

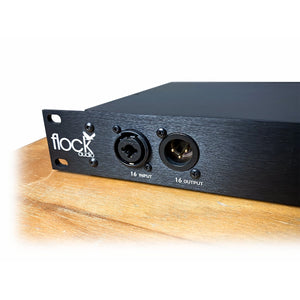

• Front Connectors: 1x Combo TRS/XLR Inputs & 1x XLR Outputs

• D/A or A/D Conversion: No AD/DA Conversion, 100% Analog, Sonically Transparent Audio Path

• Routing System: Patended Flock Audio Matrix Technology

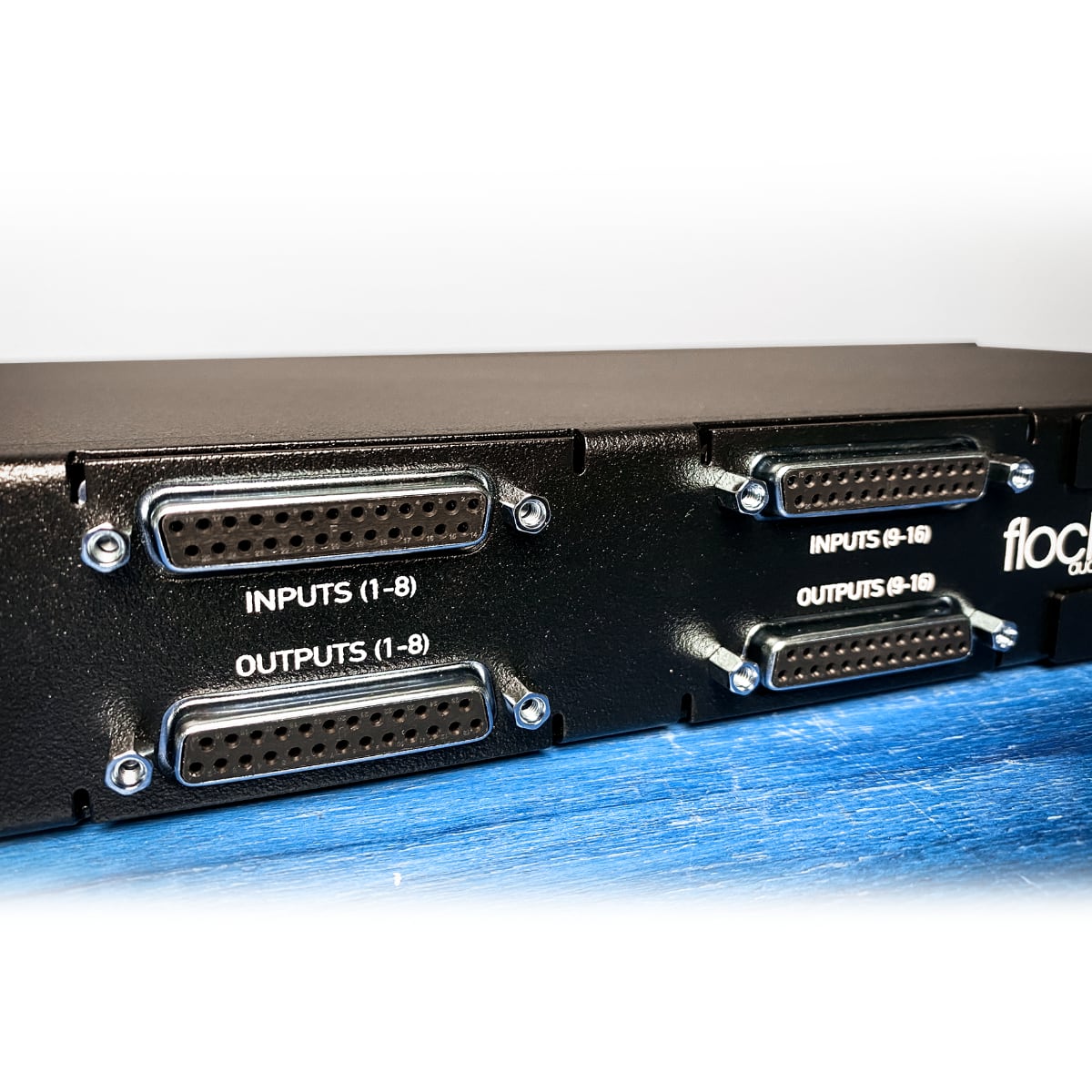

• Analog Connections: DB-25/D-SUB Female Connectors (Standard Tascam Wiring Pinout)

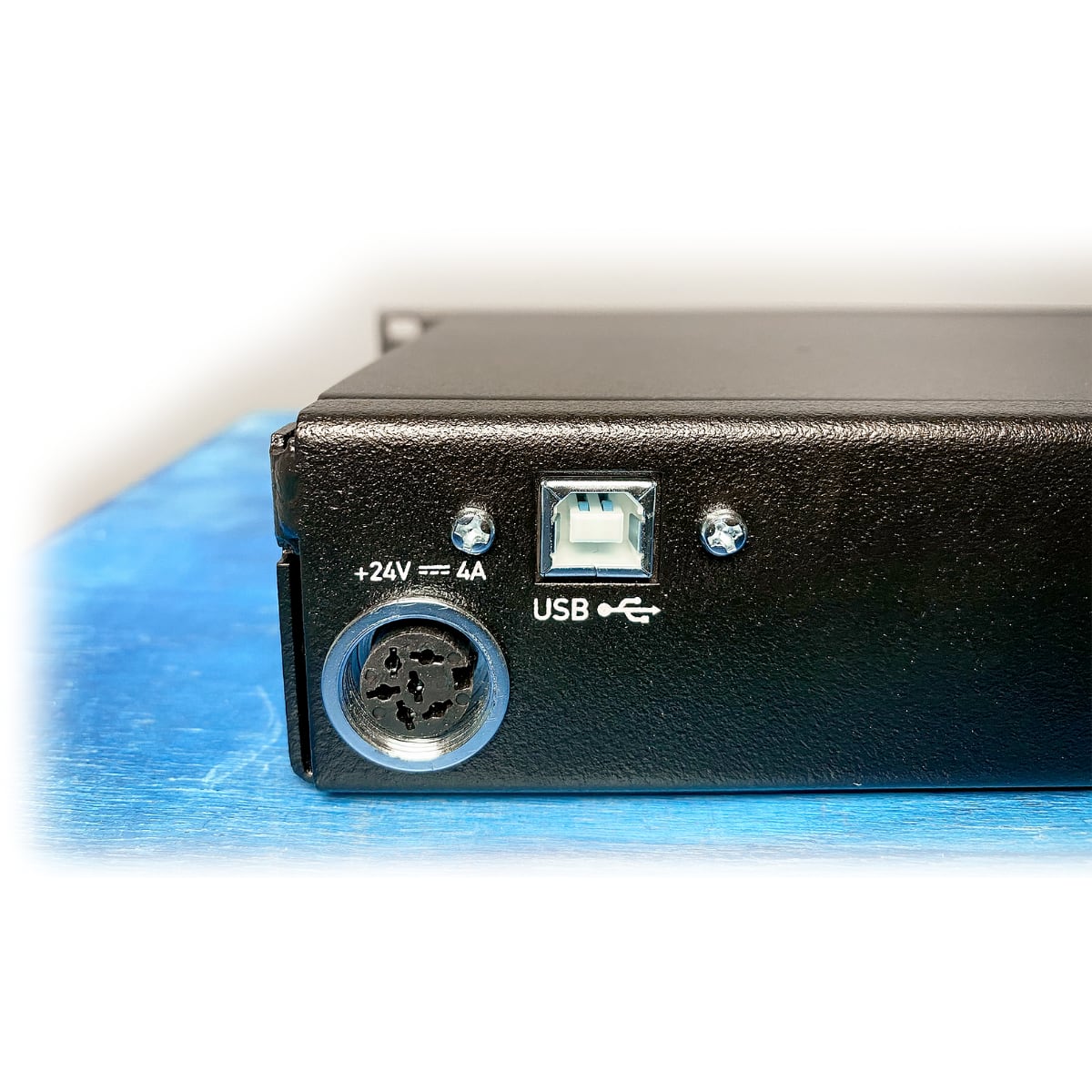

• Power Supply: External 24 VDC Power Supply w/ 5 Pin Threaded Locking Connector

• Warranty: 1 Year Total System + Included Cables Manufacturers Warranty

In the Box

• PATCH - (1U Hardware Rack Unit) Dimensions: 19" (W) x 1.75" (H) x 8" (D)

• USB 2.0 - (10 ft) Host Control Cable (USB-A to USB-B)

• Power Supply - 24VDC (110V or 220V) Power Supply

• Power IEC Cable - (Shipped with IEC Plug based upon customer region)

• 6 Step Quick Start Setup Guide

• Hardware Index Setup Template
