    $1,071.00

    Focal

    FOC-SHAPE50

    Focal Shape 50 - Compact Studio Reference Monitor (SINGLE)

    Notify me when this product is available:


    Type: Active Studio Monitors

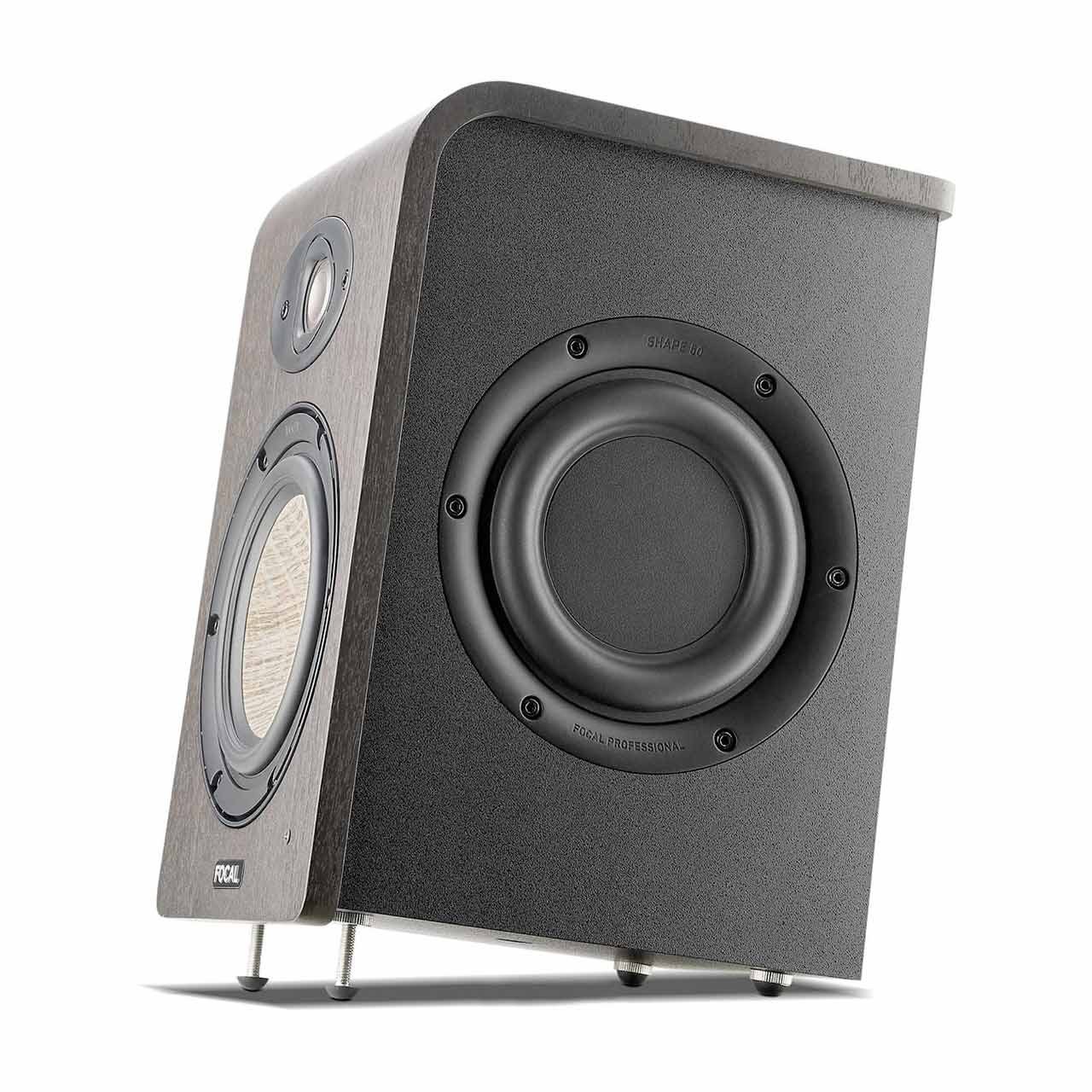

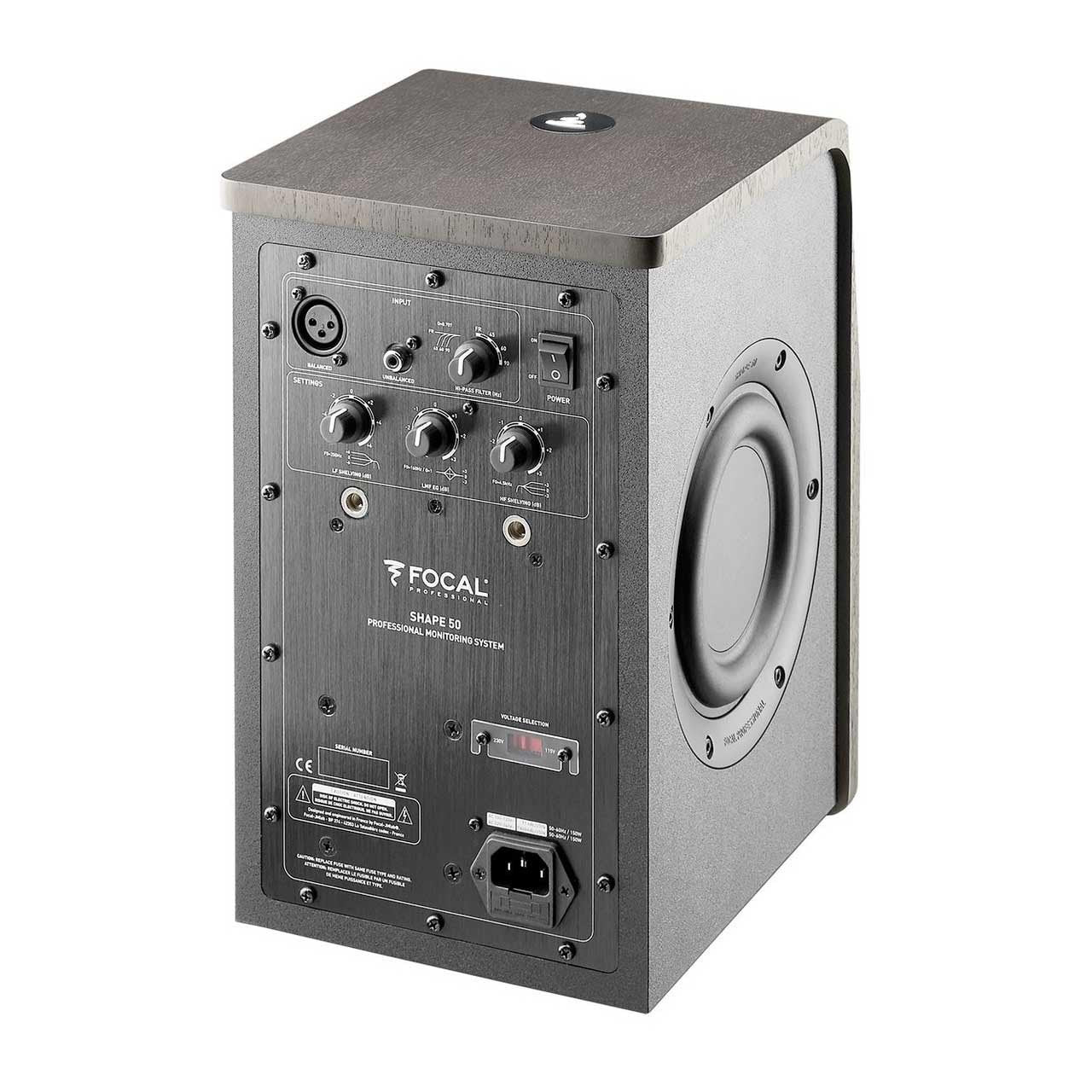

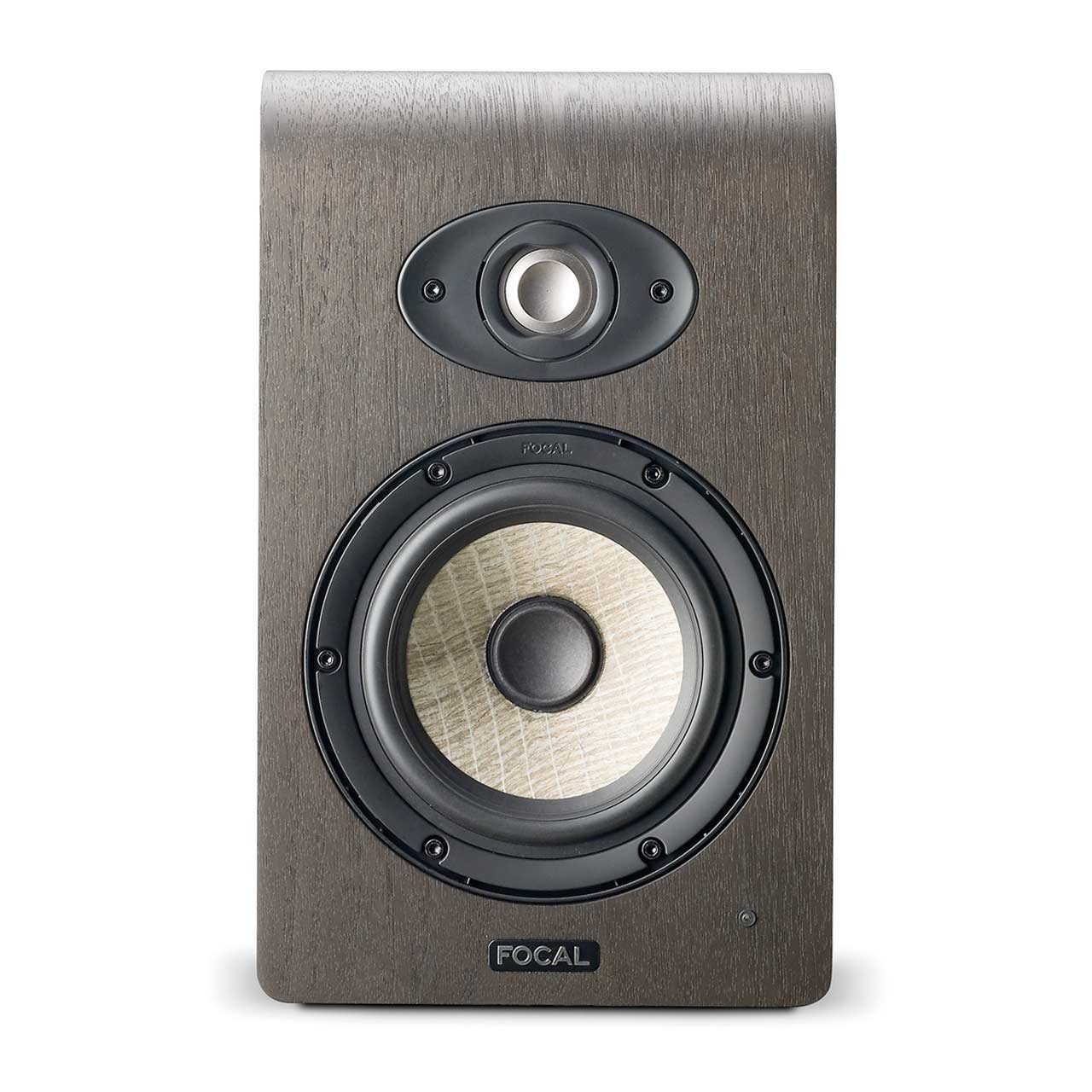

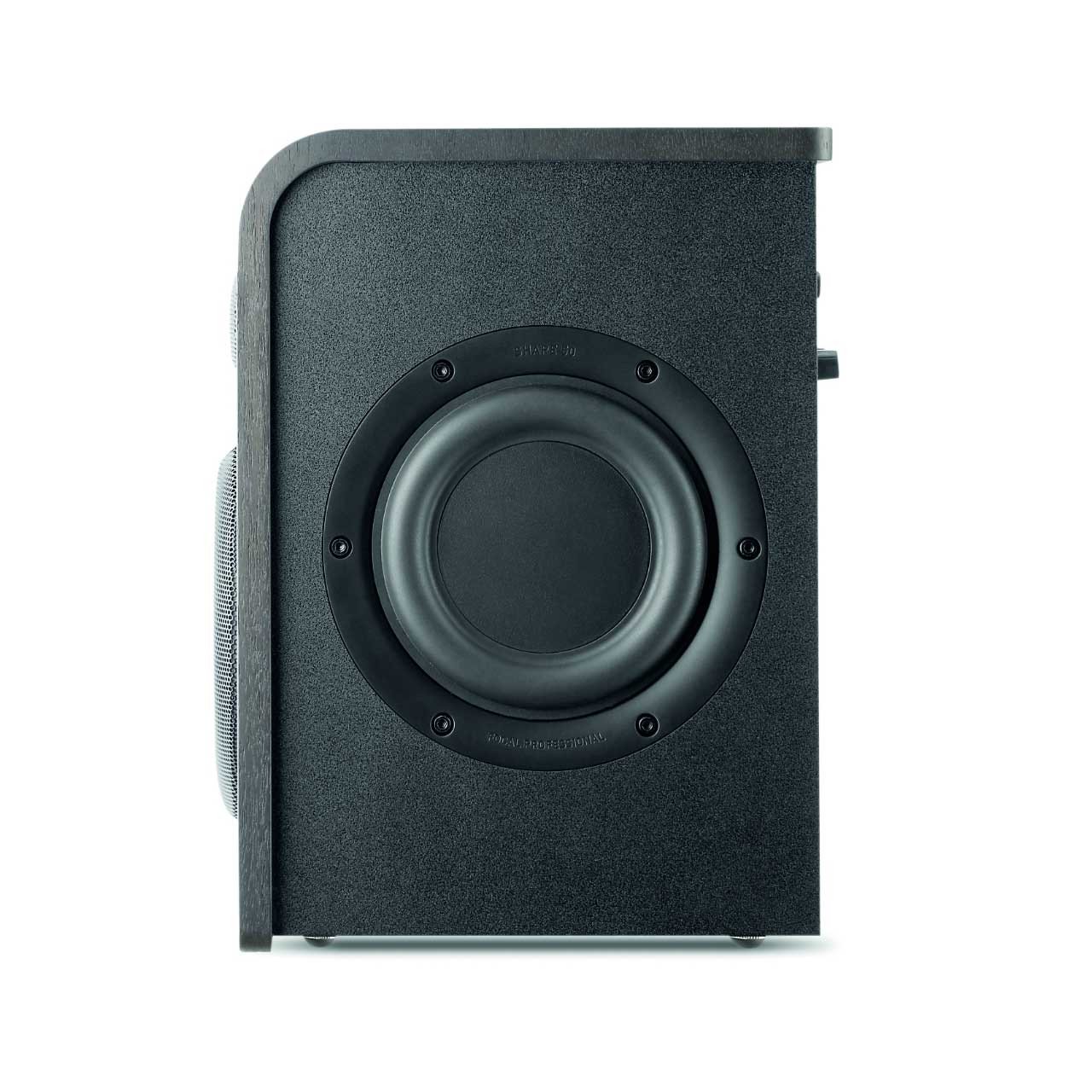

    The Focal Shape 50 studio reference monitors are active 2-way speakers with a 5-inch bass driver and 1-inch inverted dome tweeter. The Shape 50’s are designed for home studios, and smaller rooms lacking in acoustic treatment. They are near-field monitors, optimised to be placed around 80cm from your listening position. Like all Focal Shape monitors, the Shape 50’s features XLR and RCA connectors, standby on/off detection and a range of frequency settings on the rear panel. The Shape 50 also utilises the passive radiator in place of being ported, to optimise low-frequency balance.


    Features

    • Low directivity tweeter for a flexible listening position
    • Designed without a port allowing it to be placed near a wall
    • Numerous settings for optimal integration
    • Accurate control, even in the very high end
    • Flax sandwich cone: controlled and articulated bass, natural and detailed lower mid-range and upper mid-range registers
    • Threads for ceiling and wall mounts (fastening accessories not supplied)

    Specifications

    System SHAPE 50

    • • Frequency response (+/-3dB) 50Hz - 35kHz

    • Maximum SPL (musical signal) 106dB SPL (peak @ 1m)

    Electronic section

    • Inputs/ Impedance Type XLR: balanced 10kOhms Connectors RCA: unbalanced 10kOhms with sensitivity compensation

    • Midrange and low-frequency amplifier 60W, class AB

    • High-frequency amplifier 25W, class AB

    • Automatic standby Standby on After approximately 30 minutes with no signal Standby off Signal detection > 3 mV

    • Electrical supply Voltages 220-240V (T800mAL / 250V fuse) or 100-120V (T1.6AL / 250V fuse) Connection IEC plug and detachable power cord

    • Settings High pass filter Adjustable Full range 45/60/90Hz Bass (0 - 250Hz) Adjustable, +/-6dB Midrange/bass (160Hz, Q=1) Adjustable, +/-3dB

    • Settings High (4.5 - 35kHz) Adjustable, +/-3dB Power On/Power Off On/off switch on the rear panel

    • Standby consumption < 0.5W • Displays and controls LED for power on/off and standby

    Transducers

    • Woofer 5" (13cm) Flax Cone • Tweeter 1" (25mm) 'M' profile Aluminum-Magnesium

    Cabinet

    • Construction 0.6" (15mm) MDF • Finish Vinyl, real walnut and black painting • Dimensions with four rubber feet (HxWxD) 12.3 x 7.5 x 9.5" (312 x 191 x 242mm) • Weight 20.7lb (6.5kg)
