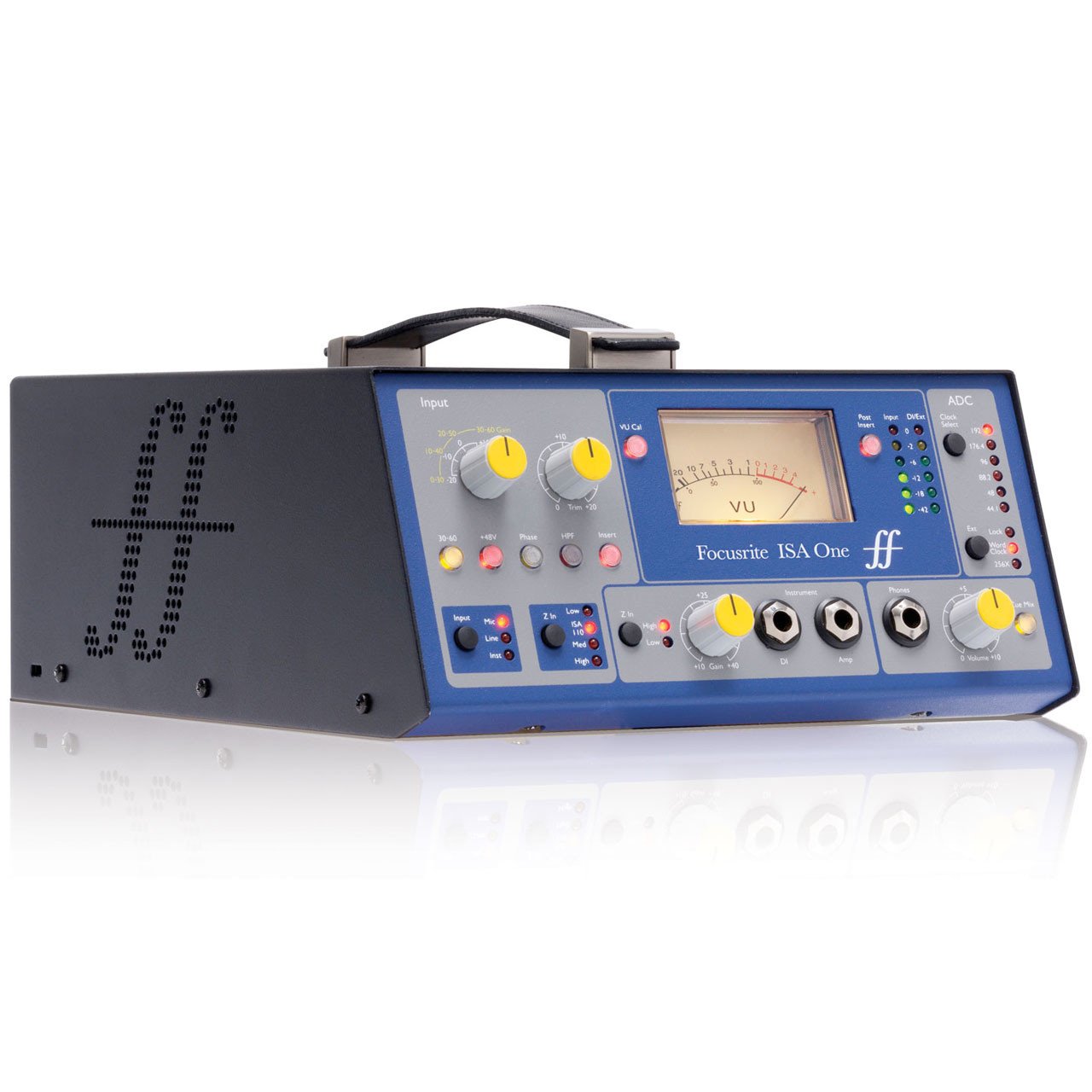

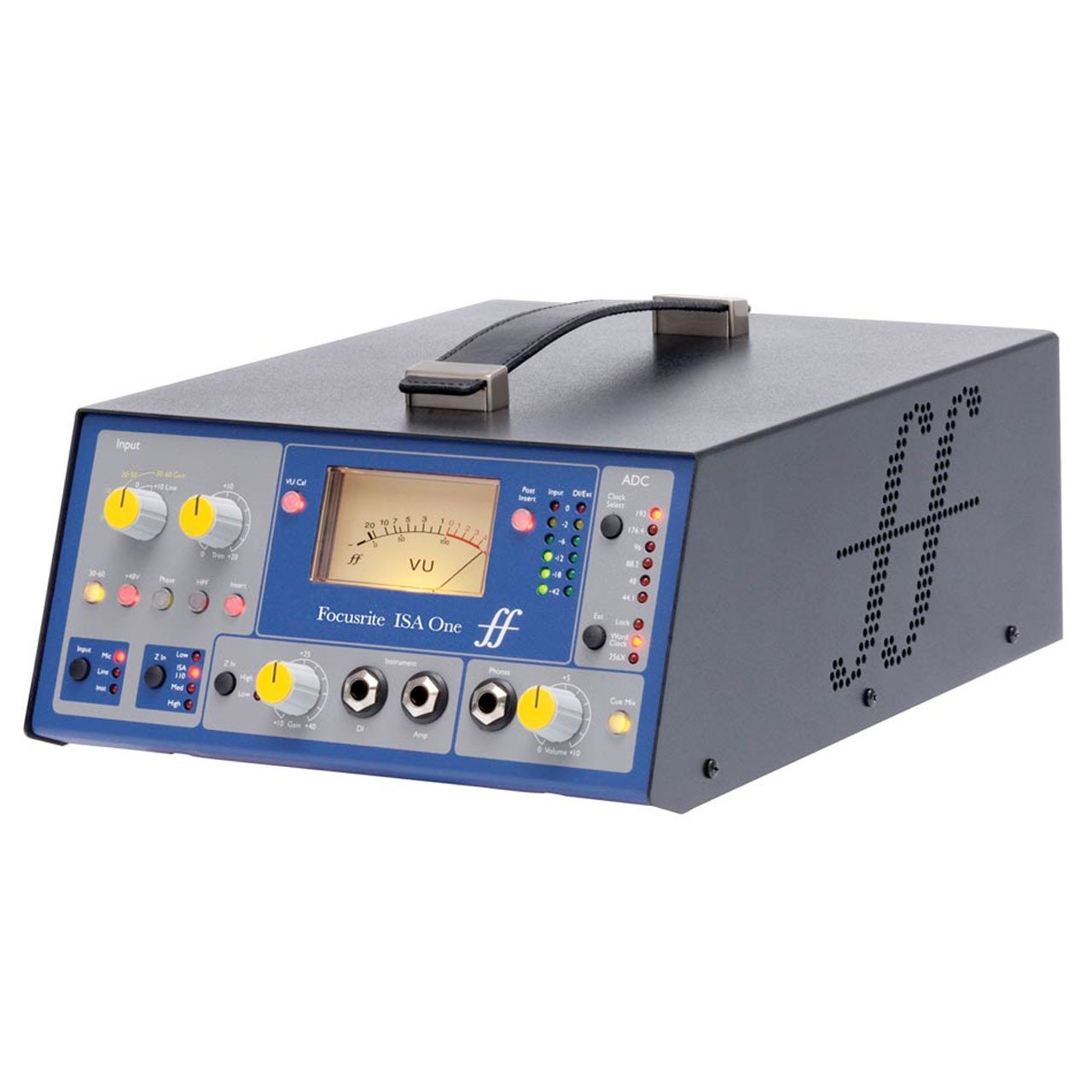

    Focusrite ISA ONE Single Channel Classic ISA Mic Preamp/DI

    Notify me when this product is available:

    The ISA ONE provides a world-class Focusrite microphone pre-amp with the convenience of an independent DI in a travel-friendly solution. Featuring a rugged, portable all-metal enclosure, the ISA One combines the classic Focusrite microphone preamp with a flexible, independent DI channel and optional 192kHz precision A/D conversion.


      • Focusrite ISA ONE PRODUCT FEATURES:

        The Focusrite Heritage Sound - in a versatile, transportable package

        Back in the mid-1980s, Sir George Martin commissioned console design legend Rupert Neve to build a series of new, ‘no compromise’ console modules for AIR studios. They were an enormous hit and formed the basis of the Focusrite Studio Console, widely regarded as the best-sounding analogue recording console of all time. Today, the descendants of those modules are used in leading studios around the world, and their sought-after Focusrite Heritage Sound lies behind thousands of hit records. Today’s ISA Range from Focusrite puts the classic sound of Focusrite into your own studio or live performance.

        Classic Focusrite transformer-based mic preamplifier

        At the heart of the ISA range is the microphone preamplifier with its Lundahl input transformer – essentially the same circuit, based on the original ISA110, that has been used for 30 years in successive Focusrite designs. The input transformer imparts a special character to the sound that can’t be truly emulated in any other way: inseparable from the microphone itself, the transformer input stage is ideal for use with classic microphones. But this mic pre has a twist the original didn’t have, which makes it far more versatile: four carefully-selected impedances allow you to match microphone to input in different ways. Bring out the character of a classic mic or emphasise a special feature, or go for a totally transparent, modern sound – it’s up to you.

        Independent direct input

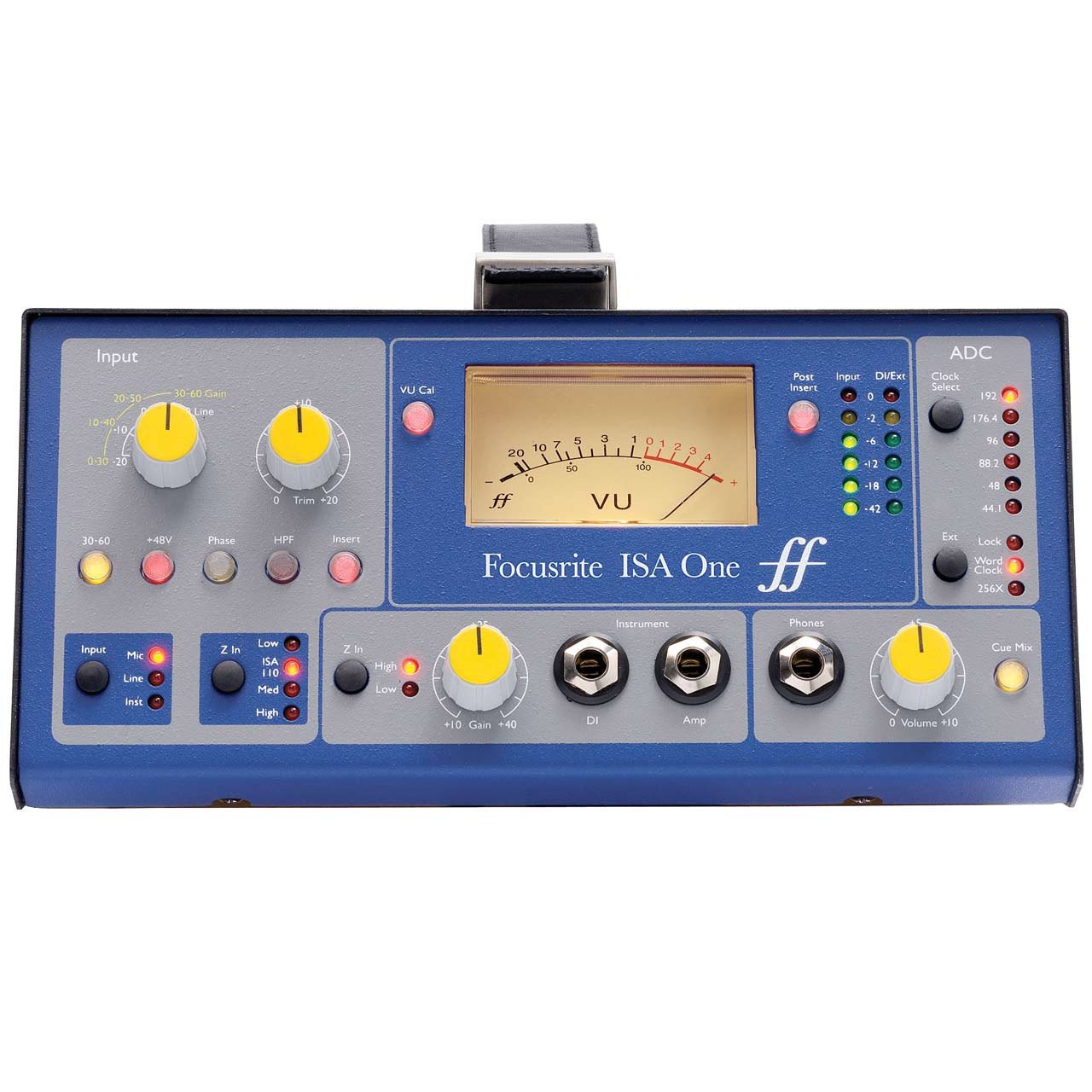

        Whether you’re an artist, engineer or producer, you’ll appreciate the versatility of the ISA One, with its front-panel DI input. The DI includes low/high impedance switching and an amplifier output, and its own feed to the optional A/D converter and separate rear-panel XLR output

      • Focusrite ISA ONE TECHNICAL SPECIFICATIONS:

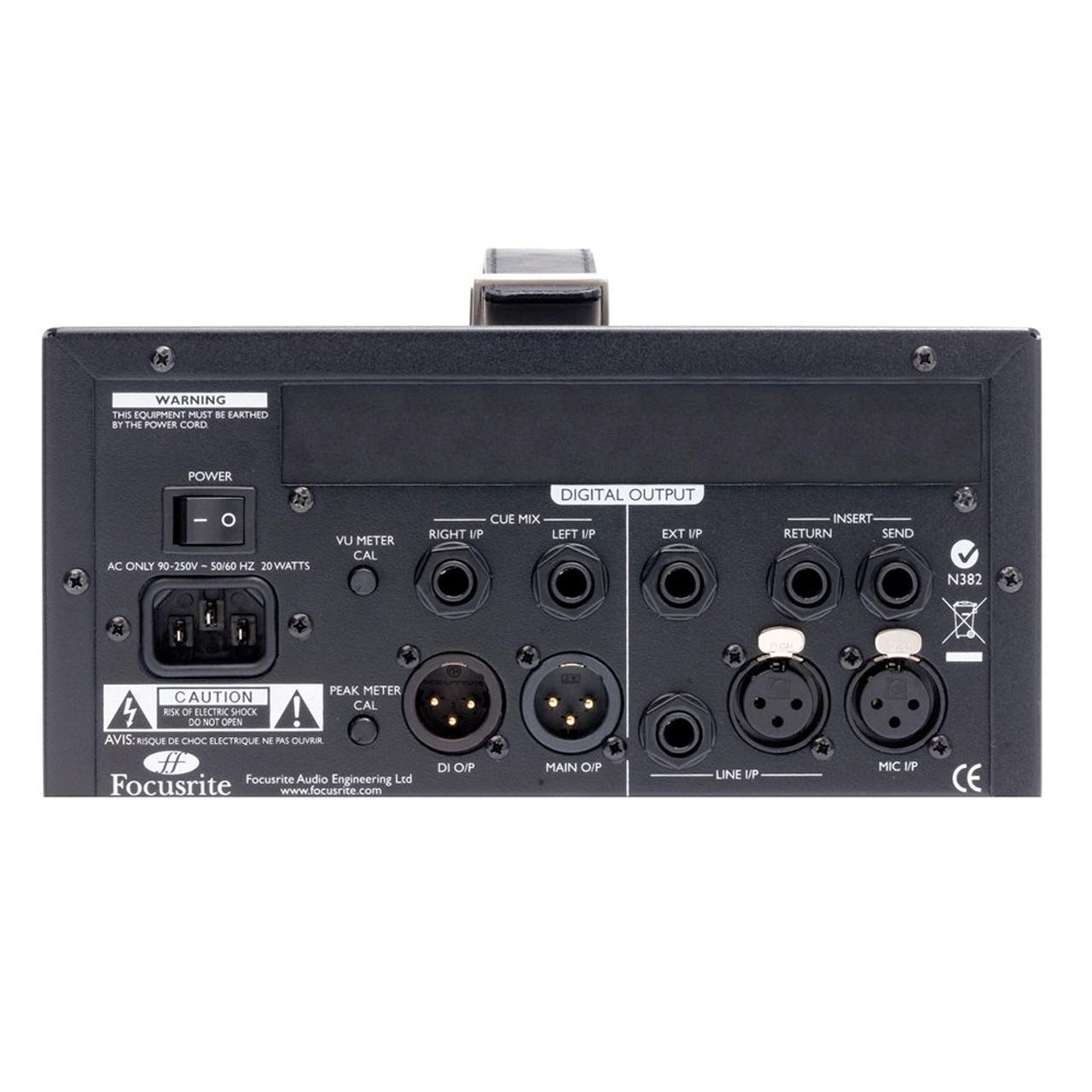

        Analogue Channel Inputs

        • XLR Mic input
        • One XLR and one TRS line input
        • XLR Instrument input TRS Jack
        • External ADC input TRS Jack
        • TRS jack return

        Analogue Channel Outputs

        • TRS jack send
        • XLR balanced line output
        • XLR DI output
        • TS jack DI through

        Analogue Channel Additional I/O

        • TRS Jack cue mix left input
        • TRS Jack cue mix right input
        • 1/4” TRS Jack headphones output

        Mic Input Response

        Gain range

        0dB to 60dB in 10dB steps + 20 dB of variable gain

        Input Impedance

        Switched Impedance setting Equivalent Input Impedance at 1kHz

        Low = 600 Ohms
        ISA110 = 1400 Ohms
        Med = 2400 Ohms
        High = 6800 Ohms

        EIN (Equivalent Input Noise)

        -126dB measured at 60dB of gain with 150 Ohm terminating impedance and 22Hz/22kHz band-pass filter

        Noise

        Noise at output with unity gain (0 dB) and 22 Hz-22 kHz band pass filter

        -97 dBu

        Signal-to-Noise Ratio

        106 dB relative to max headroom (9dBu)

        Total Harmonic Distortion + Noise

        Measured at medium gain (30dB) with a 1kHz -20dBu input signal and with a 22Hz/22kHz band-pass filter

        < 0.0009%

        Frequency Response

        At minimum gain (0 dB)

        -0.5dB down at 10Hz and -3dB down at 125kHz



        At maximum gain (60dB)

        -3dB down at 16Hz and -3dB down 118kHz

        CMRR (Common Mode Rejection Ratio)

        98dB (Channel 1, 1kHz, maximum gain with +24 dBu input)

        Crosstalk Channel to Channel

        With 10dB@1kHz input to chA, chB output =104dBrA. With 10dB@10kHz input to chA, chB output = 84dBrA

        Line Input Response

        Gain range

        -20dB to +10dB in 10dB steps + 20 dB of variable gain

        Input Impedance

        10 kΩ from 10 Hz to 200 kHz

        Noise

        Noise at main output with gain at unity (0 dB) measured with 50 Ω source impedance and a 22Hz - 22 kHz band pass filter

        -96 dBu

        Signal-to-Noise Ratio

        Measured with a 22 Hz-22 kHz band pass filter

        120 dB relative to max headroom (24 dBu)
        118dB relative to 0dBFS (+22dBu)

        Total Harmonic Distortion + Noise

        Measured with a 0 dBu input signal, and a 22 Hz-22 kHz band pass filter

        0.0001%

        Frequency Response

        At unity gain (0 dB)

        -0.3dB down at 10Hz and -3dB down at 200kHz

        Instrument Input Response

        Gain range

        10dB to 40dB continuously variable

        Input Impedance

        High = greater than 1M
        Low =greater than 300k

        Noise

        Measured with 22 Hz-22 kHz band pass filter

        Minimum gain (+10 dB): -92 dBu
        Maximum gain (+40dB): -62dBu

        THD

        At minimum gain (+10)

        Frequency Response

        At minimum gain (+10 dB)

        -10dB input: 10Hz-100kHz +/- 0.6dB



        At maximum gain (+40 dB)

        -40dB input: -2.5dB down at 10Hz and 0dB at 100kHz

        Meters

        Moving Coil (MC) Meter

        factory calibrated to 0VU = +4dBu with 1kHz sinewave. With the VU Cal button pressed the meter can be adjusted on the rear panel to allow 0VU to equal +10dBu to +26dBu with the centre detent being equal to +22dBu.

        Peak LED Meters

        Calibrated in the detent position for 0dBFS = +22dBu, calibration is adjustable on the rear panel to allow 0dBFS to equal +10dBu to +26dBu

        Routing for MC and Peak1 meter is after the HPF, pre insert send or switched post insert return. Peak2 is always pre ADC channel 2, which can be fed by external input or Instrument input.

        LED Levels

        As follows, when peak calibration is set to center detent on the rear panel. (This is when using the internal ADC).

        0 = +22dBu
        -2 = +20dBu
        -6 = +16dBu
        -12 = +10dBu
        -18 = +4dBu
        -42 = -20dBu

        Frequency Response

        At minimum gain (+10 dB)

        -10dB input: 10Hz-100kHz +/- 0.6dB



        At maximum gain (+40 dB)

        -40dB input: -2.5dB down at 10Hz and 0dB at 100kHz

        High-Pass Filter

        Roll-Off

        18 dB per octave (3 pole filter)

        Frequency

        Fixed 75Hz measured at the 3dB down point

        Weight and Dimensions

        W x D x H

        220mm (W) x 104mm (H) x 254 - 290mm (D - top to bottom)

        8.66" (W) x 4.1" (H) x 10" - 11.4" (D - top to bottom)

        Weight

        3.9 kg

        8.6 lbs
