Focusrite

MONF0017AU

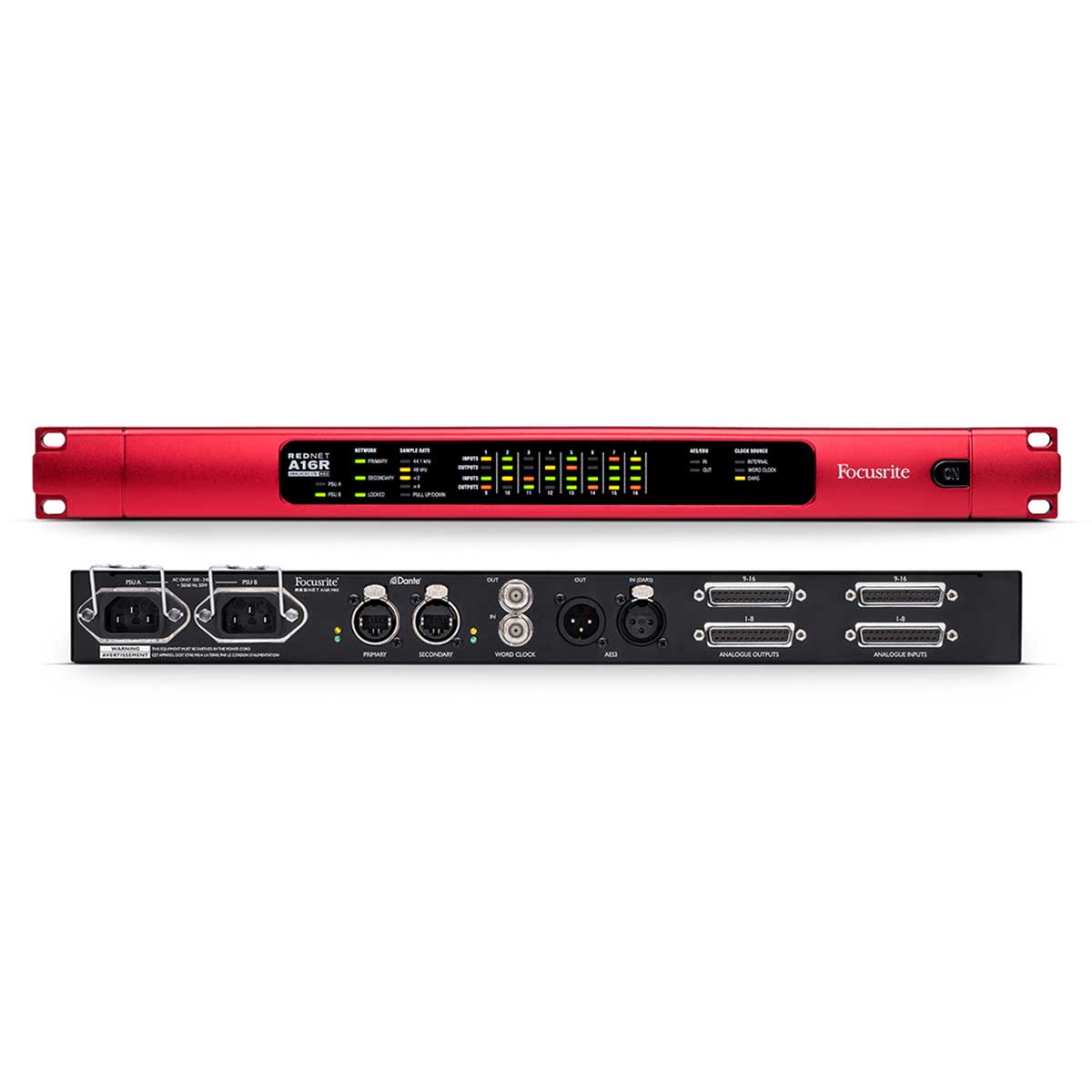

Focusrite Rednet A16R MKII 16 Channel 24/192 Analogue Dante I/O Interface with Level Control and Redundant Network & Power


RedNet A16R MkII is a 16-channel analogue interface for Dante® networks, with two channels of AES3 I/O. Precision A-D and D-A conversion provides 119dB of dynamic range, flat from 20Hz - 20kHz (+/- 0.15dB). Individual input and output channel level controls allow for precise adjustment of all I/O levels using RedNet Control. With two power supplies and primary and secondary EtherCON network connectors, RedNet A16R MkII is perfect for critical-path applications in recording, post production, live sound and broadcast. Built-in redundancy features allow for silent fail-over in the event of power or network outage, providing reassurance for system technicians.

Analogue inputs and outputs are connected through four rear-panel AES59 standard DB25 connectors, while an additional pair of AES3 I/O is provided through male and female XLR for added flexibility. The XLR input can accept DARS signals in addition to AES3. Word Clock I/O on BNC connectors allows external devices to clock to RedNet A16R MkII, or alternatively allows RedNet A16R MkII to act as a network clock grand master, following an external input.

RedNet A16R MkII is well suited to both permanent installation and repeated strike and setup: all connectors lock and remain terminated even under stress, providing worry-free installation and peace of mind once situated in a rack. In addition, all Focusrite Pro products come with a three-year warranty and award-winning customer support.

Features

  • 16 channels of high-quality line-level analogue I/O for Dante Audio-over-IP networks
  • Individual input/output channel level control and calibration available in +/- 1db increments via digital trim fader with mute and dim functions
  • 24-bit precision conversion up to 192kHz
  • 119dB dynamic range, flat from 20Hz – 20kHz, +/-0.15dB
  • Software-selectable +24dBu or +18dBu level alignment
  • AES67, AES70 and SMPTE 2110 compliant
  • Dual power supplies and network connections with full power and network redundancy including locking connectors for maximum reliability
  • Word Clock I/O and DARS input for increased flexibility plus an additional two channels of AES3 I/O
  • Analogue I/O to AES59 standard DB25 connectors
  • Comprehensive front-panel metering and indicators
  • RedNet Control remote monitoring software with powerful graphic user interface
