  • MONF0018AU

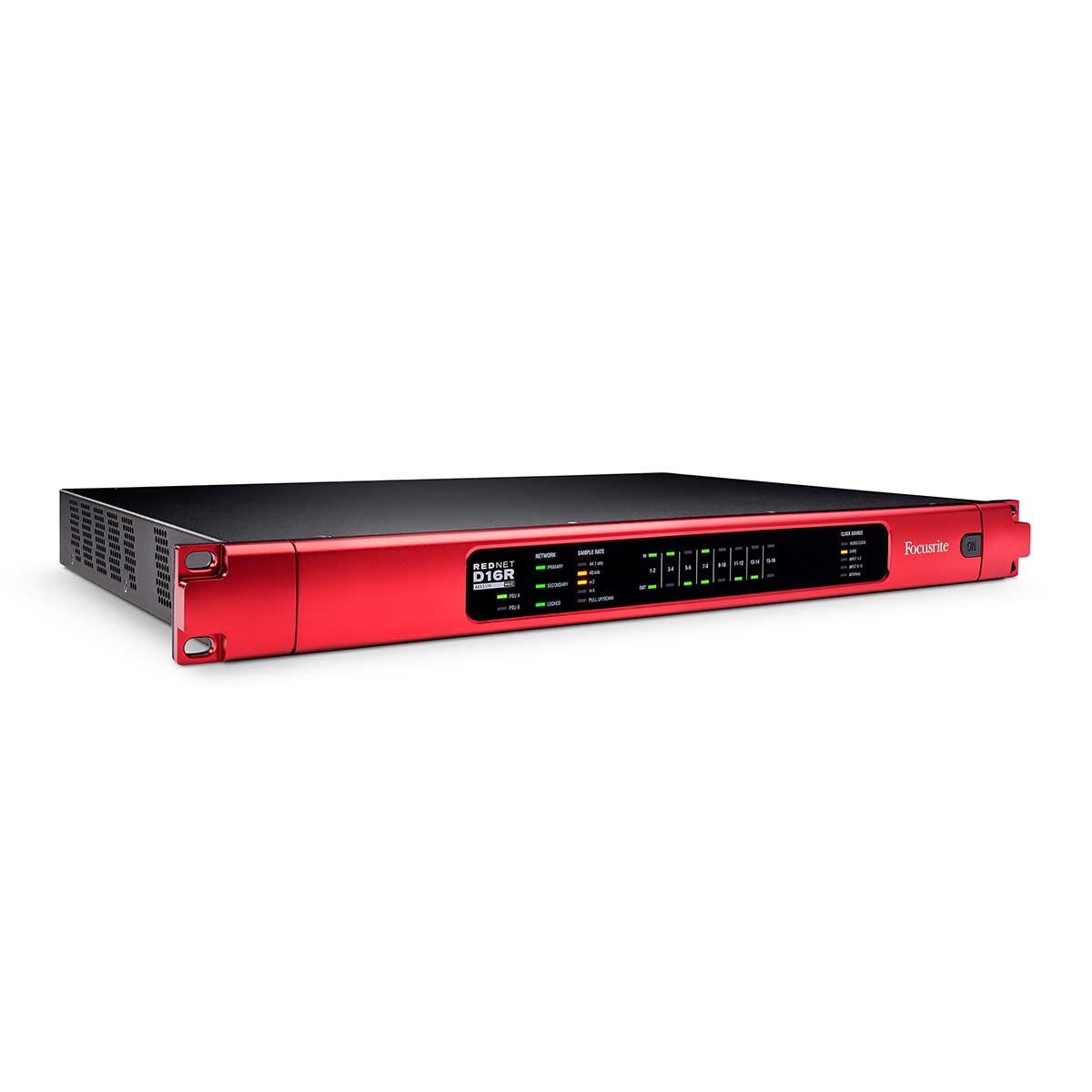

    Focusrite REDNET D16R MKII, 16 Channel AES3 Dante I/O Interface with Level Control and Redundant Network & Power

    Notify me when this product is available:

    RedNet D16R MkII is a 16x16 digital interface for Dante networks, with channel level control for individual inputs and outputs.


    Features

    • 16-channel bi-directional digital interface for Dante networks.
    • Individual input and output channel level control using RedNet Control software.
    • Dual PSUs with locking IEC inlets.
    • Dual locking etherCON connectors for Primary and Secondary network connections.
    • Power supply and ethernet redundancy with auto switchover in case of failure.

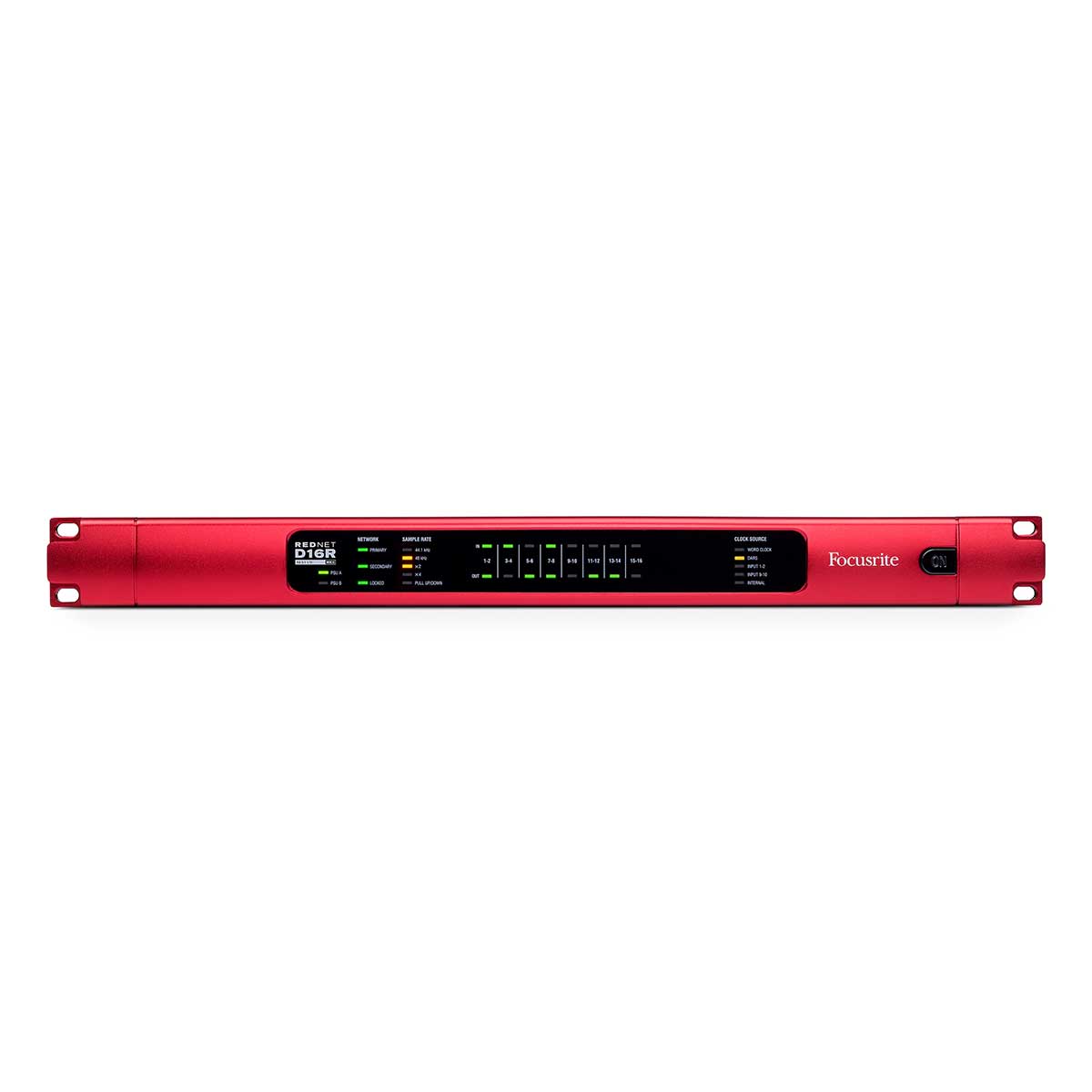

    • Front-panel LED indicators for PSU, network, sample rate, signal present and clock source status.
    • Sample rate conversion on all input channels.

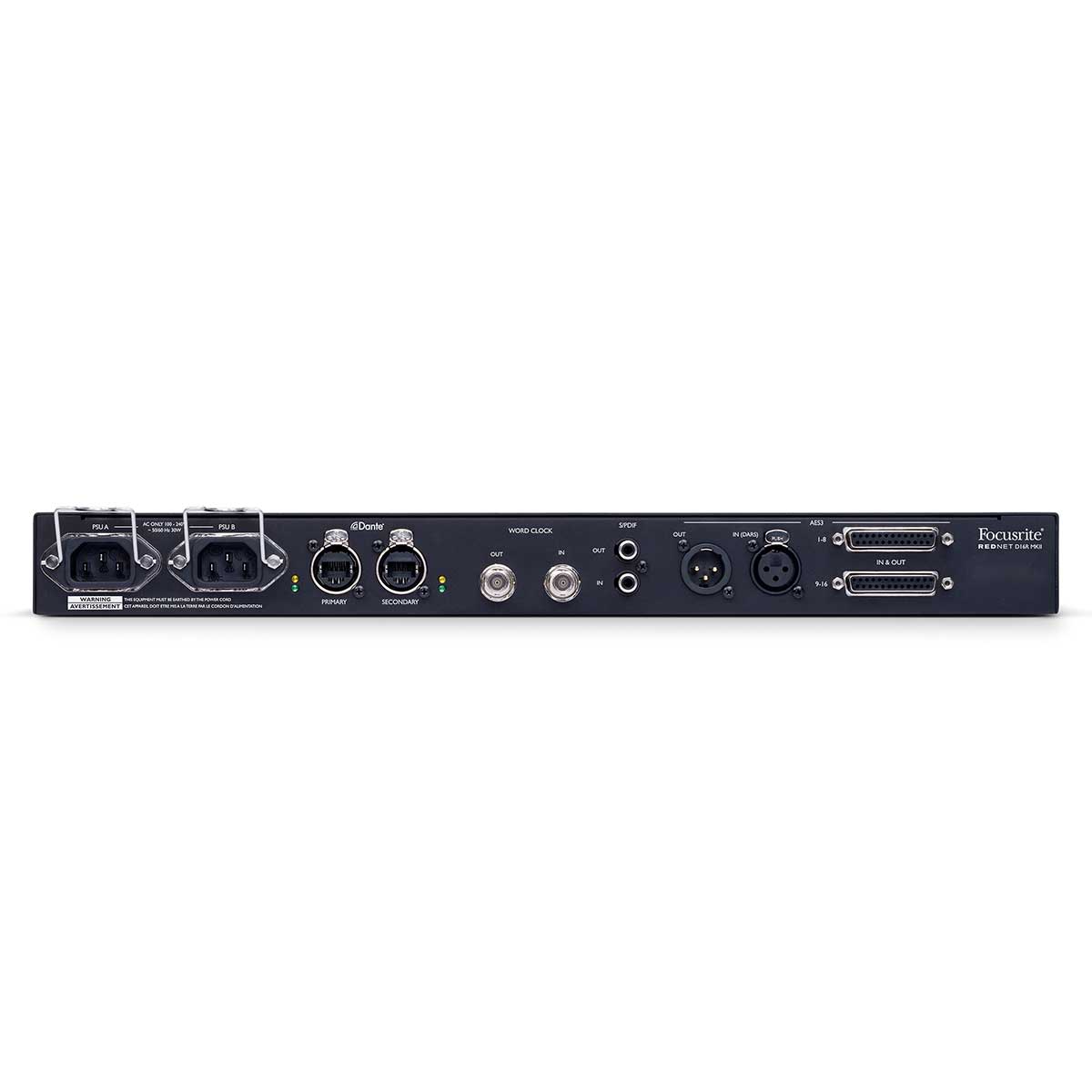

    • Two DB25 connectors with AES59 standard configuration; each carries eight channels of AES3 I/O.
    • RCA connectors for two-channel S/PDIF input and output.
    • XLR connections for alternate AES3 I/O and DARS input.
    • BNC connectors for Word Clock input and output.
    • Compact 1U chassis allows maximum functionality in minimum rack space.
    • Full operability with Focusrite RedNet and Red interfaces, plus all Dante devices from hundreds of manufacturers.
    • Remote routing and control using RedNet Control and Dante Controller.
