  • Home / Products / Fostex 6301N Series Active Monitor
    Active Studio Monitors - Fostex 6301N Series Active Monitor
    Active Studio Monitors - Fostex 6301N Series Active Monitor
    Active Studio Monitors - Fostex 6301N Series Active Monitor
    Active Studio Monitors - Fostex 6301N Series Active Monitor
    Active Studio Monitors - Fostex 6301N Series Active Monitor
    Active Studio Monitors - Fostex 6301N Series Active Monitor
    Active Studio Monitors - Fostex 6301N Series Active Monitor
    Active Studio Monitors - Fostex 6301N Series Active Monitor
    $499.00 - $679.00$519.00 - $699.00

    Fostex

    FO6301NB

    Fostex 6301N Series Active Monitor

    Choose Model

    Notify me when this product is available:

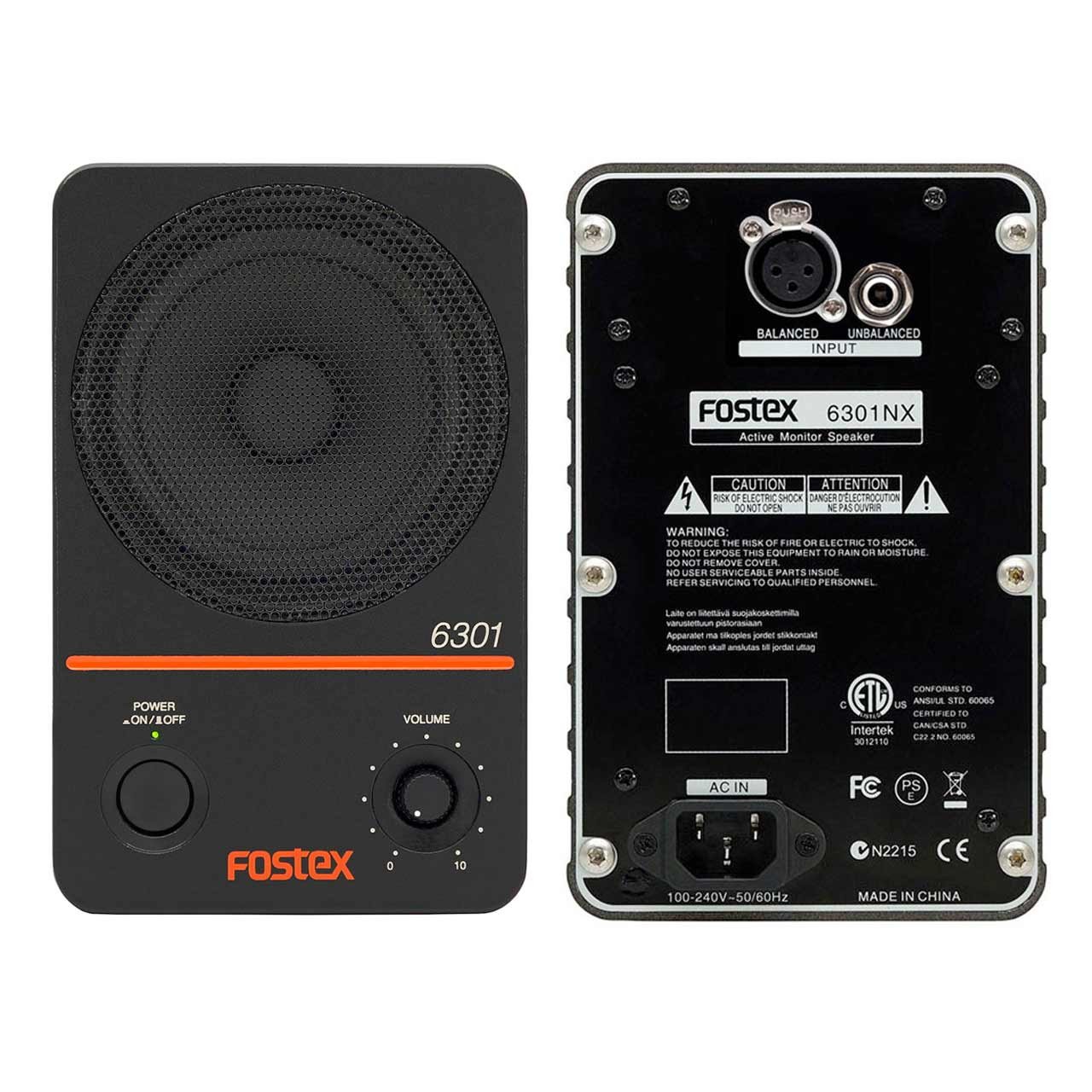

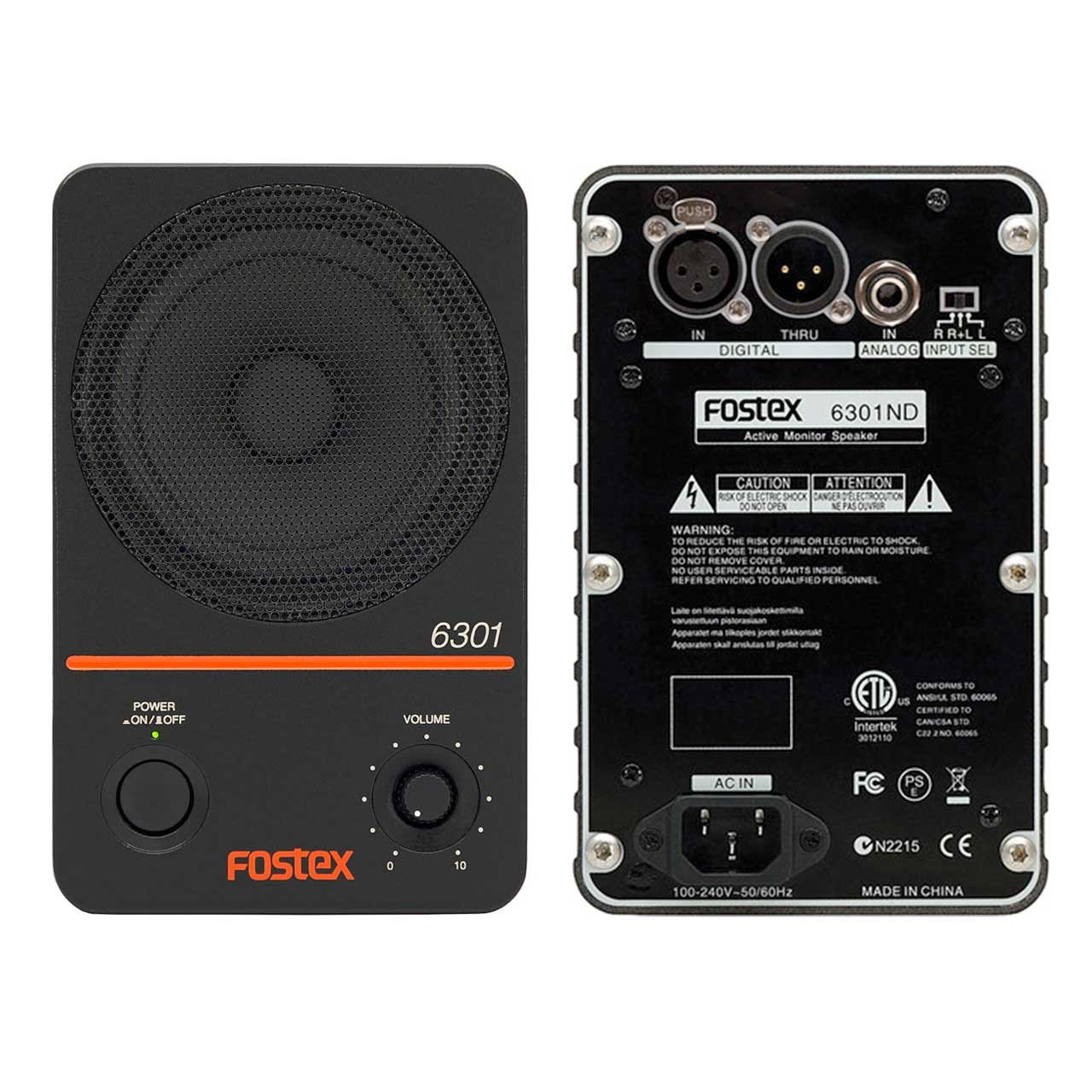

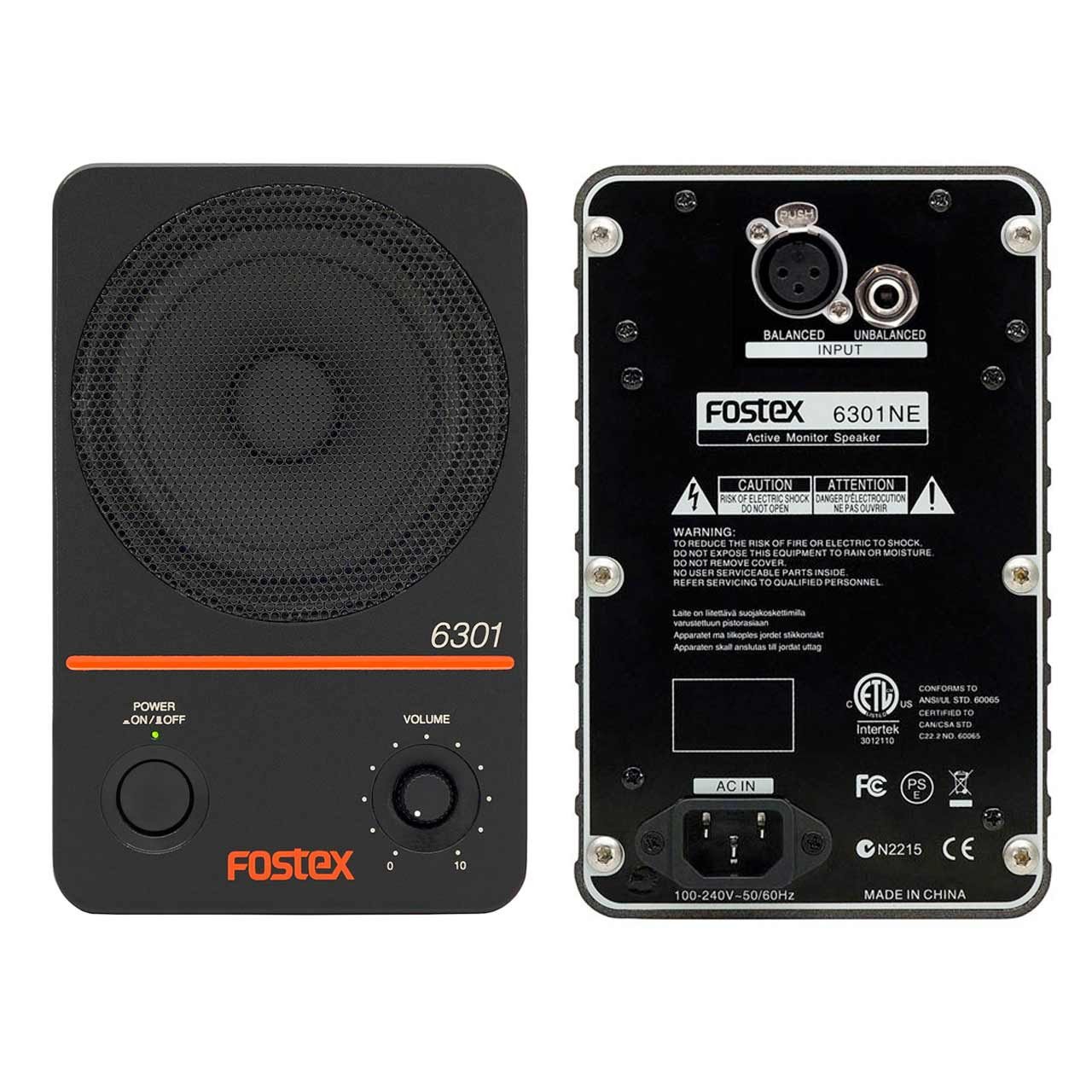

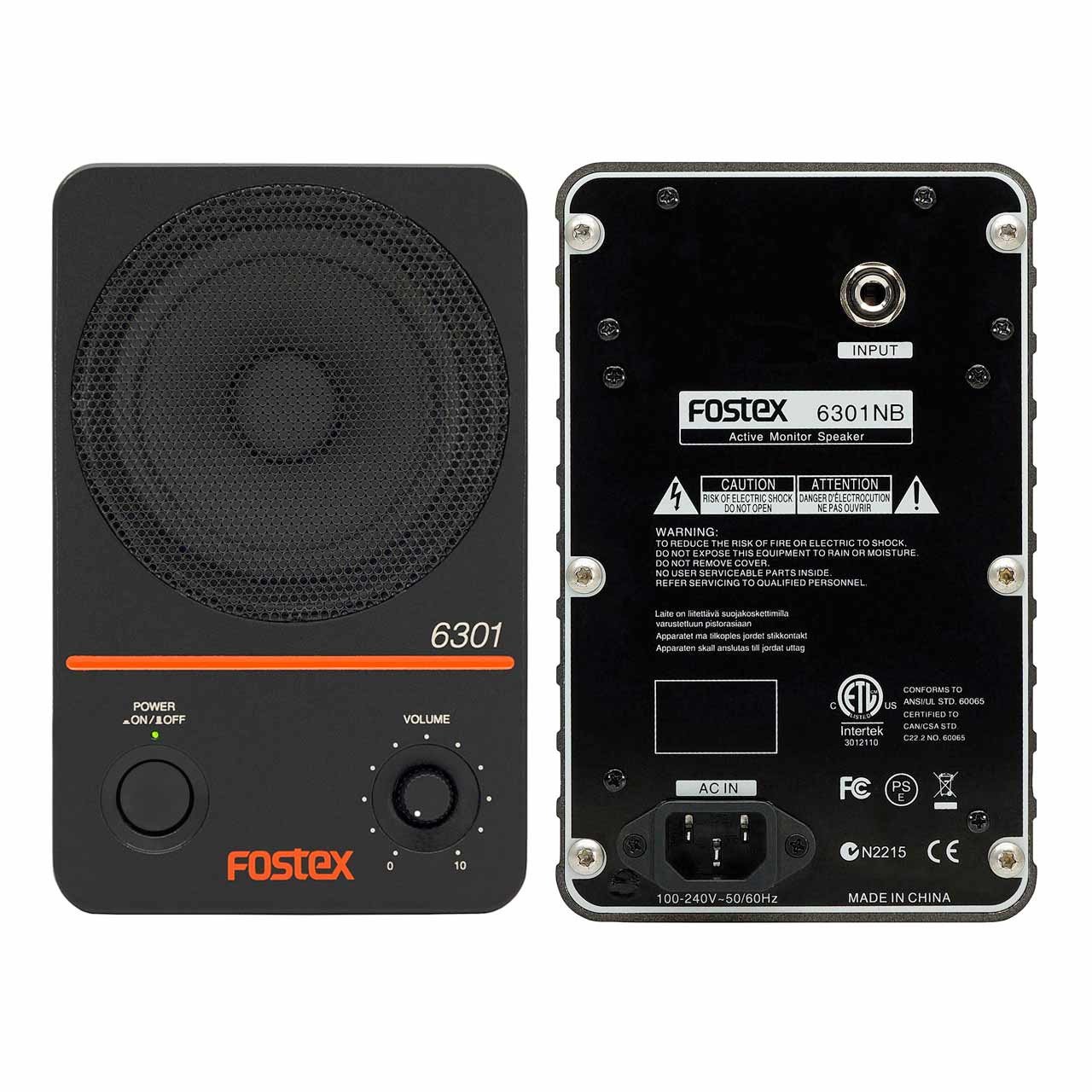

    The Fostex 6301 N series of reference monitors feature a 4-inch single driver with volume control and a variety of models featuring different connectors. The 6301 N series are an outstanding option for broadcast facilities, OB vans, small PA systems such as a recording studio live room, theater spot speakers, and as personal monitors. The NB has a a single unbalanced connector, whilst the NX & NE feature an unbalanced and an XLR input too. The ND has an AES/EDU digital audio input, thru put, plus an unbalanced analog input too.

    Please choose model below. Price is for a single speaker.


    Type: Active Studio Monitors

      • Fostex 6301N Features:

        20W D-class power amplifier for higher output level and less power consumption with no heat sink
        Dedicated 4-inch full range driver for clear audio reproduction
        Traditional rugged enclosure of aluminum die-cast with the physically identical height and width to the current B-series
        Flat panel design to avoid inadvertent power-off or level change
        Auto Stand-by mode (compliant to ErP directive) for energy saving
        Detachable IEC type power inlet with multi-voltage power handling
        Newly designed mounting bracket (EB-6301) for wall mounting with variable angle adjustments

        Model 6301-series have been on the market since 1982 as the standard active monitor speaker in the broadcast and production facilities and now we have re-design the speakers with the latest D-class power amplifier and new driver unit featuring energy saving “auto stand-by” function. The electrically balanced version used to be offered only in North America, but now worldwide.

        Options: EB-6301 U-Bracket (Sold separately)
        The optional rugged EB-6301 U-Bracket for the 6301B/6301N series speakers is available providing a range of mounting options.

      • Fostex 6301N Specifications:

        GENERAL
        Dimensions: 120 (W) x 189 (H) x 120 (D) mm
        Weight:
        NB/NE/ND:2.2kgs
        NX: 2.3kgs
        Power Requirement: AC 100 – 240V (50/60Hz)
        Power Consumption: 10W (less than 0.5W in stand-by mode)

        SPEAKER SECTION
        Enclosure type: Closed
        Unit: 4” full range
        Frequency response: 70 Hz – 15k Hz
        Sound Pressure Level: 85dB / W (1m)
        Maximum SPL: 98dB
    Need more info on the Fostex 6301N?
