Furman PL-PLUS C E Power Conditioner with Voltemeter

Contact us for price / availability $599.00

The Furman PL-PLUS C E is a rack-mountable power conditioner with voltmeter. The Furman PL-PLUS C E features 11 total power outlets with a maximum output current of 10 amps. Part of the classic series, the Furman PL-PLUS C E offers surge & spike proaction, voltage protection and noise filtering.

Type: Power Conditioners

FEATURES
TECH SPECS

Furman PL-PLUS C E PRODUCT FEATURES:
Surge Protection
Furman's exclusive SMP technology provides the highest level of surge & spike protection available.
Noise Filtration
LiFT offers AC power filtering to ensure clean power for unequaled audio & video clarity.
Voltage Protection
Advanced EVS circuitry detects dangerous voltage irregularities and safely powers down itself and connected equipment in unsafe conditions.
Pull-out Lights
Dual smooth track retractable LED lights illuminate equipment in your rack.
Diagnostic Lights
LED status indicators warn you when voltage is outside of nominal range or when protection has been compromised.
LED Voltmeter
Segmented LED voltmeter monitors and displays incoming line voltage.
Isolated Banks
Isolated outlet banks minimize inter-component interference and noise contamination.
10 AMP Rating
10 Amp rating featuring a high inrush magnetic circuit breaker for added protection.
11 Total Outlets

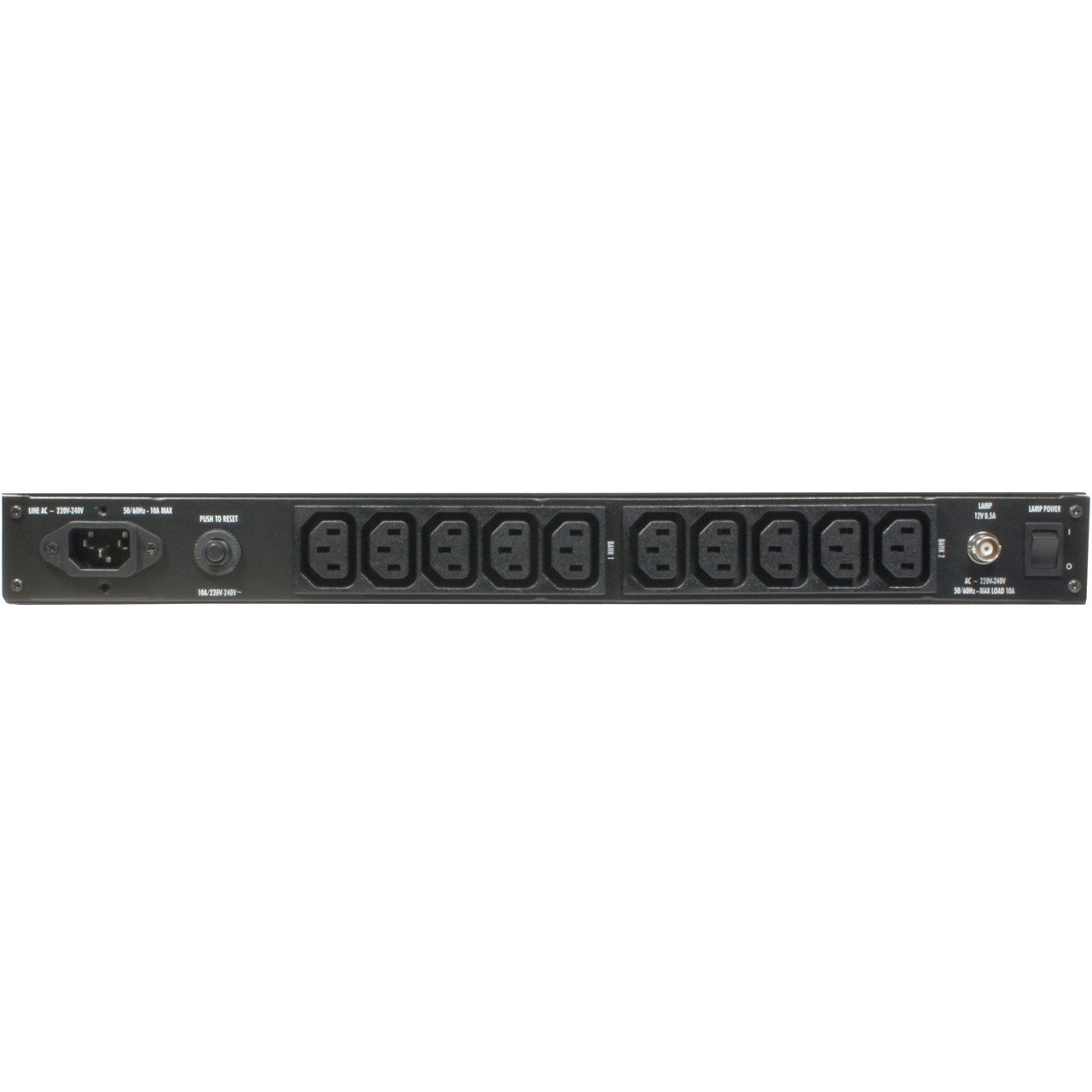

11 total outlets (10 rear panel outlets and one front panel convenience outlet).
BNC Lamp Connector
Rear panel BNC connector powers any standard gooseneck lamp for rear rack illumination.
Furman PL-PLUS C E TECHNICAL SPECIFICATIONS:
Maximum Output Current:
10 amps
Line Cord:
3/1.0MM AWG, 2.5M cord w/IEC female to 10A Schuko plug
Pull-out Lights:
Two multi-LED, dimmable lamps
BNC Socket w/Switch:
Rear rack lamp, 12VAC 500MA maxx (lamp not included)
Operating Voltage:
180 to 274 VAC
Spike Protection Mode:
Line to neutral, zero ground leakage
Spike Clamping Voltage:
375 VAC peak @ 3,000 Amps
Response Time:
1 nanosecond
Maximum Surge Current:
6,500 Amps
Noise Attenuation:
10 dB @ 10 kHz, 40 dB @ 100 kHz, 50 dB @ 500 kHz
Dimensions:
482.6mm W x 266.7mm D x 44.5mm H
Weight:
6 kg.
Power Consumption:
12 watts
Safety Listing:
CE
