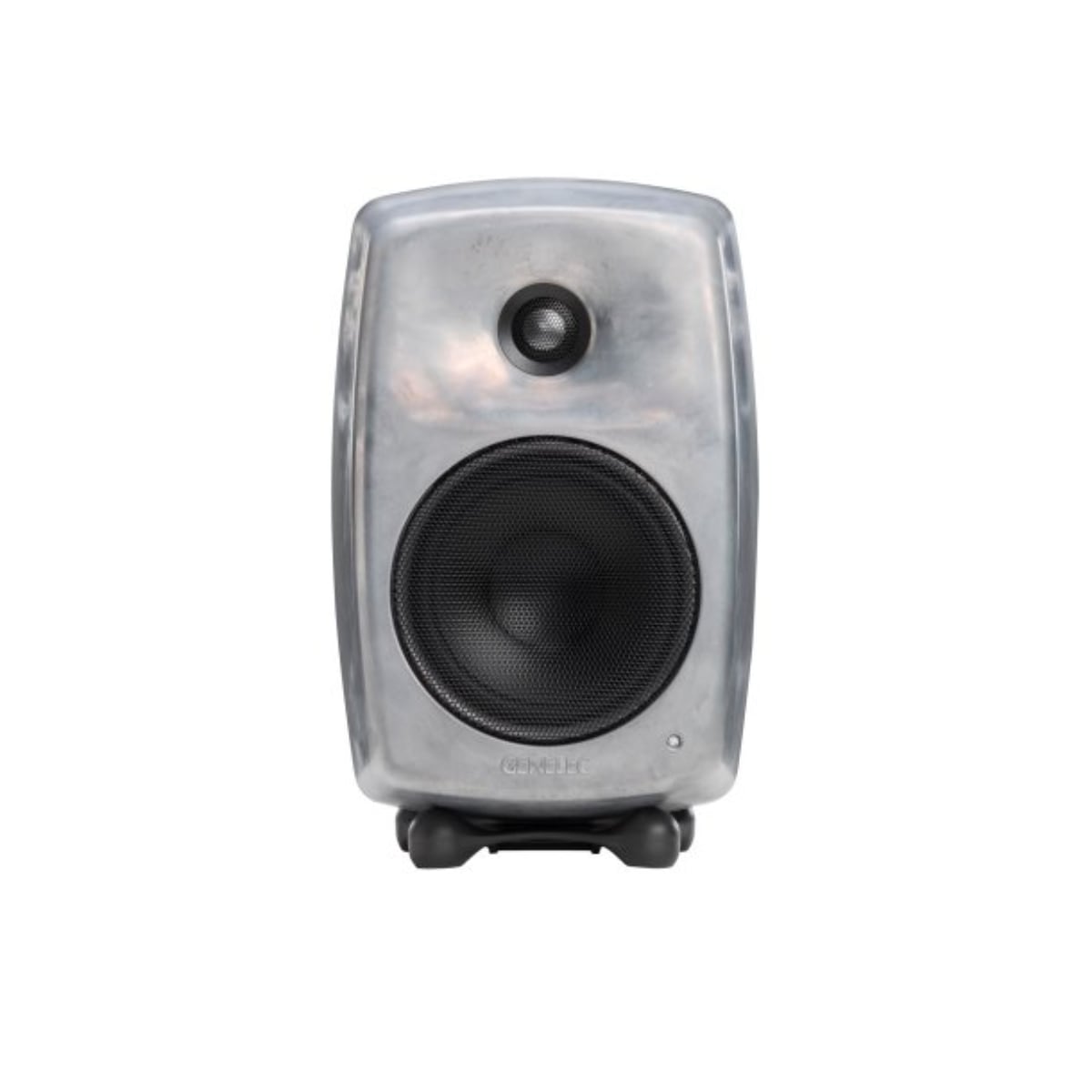

The new Genelec Smart Active Monitor (SAM), series is here! The 8330 is a two-way design with a 5-inch woofer. Classy new design and envious sonic quality! The powerful 8330A SAM™ studio monitor is today's most advanced and flexible monitoring solution. The 8330A features Genelec MDE™ and DCW™ technologies, a flow-optimized reflex port, high SPL, and wide uncoloured response in a very compact enclosure. A new and highly intuitive Genelec Loudspeaker Manager (GLM™ 2.0) control network and software allow adjustments of all aspects of monitor settings and full system control. Genelec AutoCal™ allows to automatically align every monitor on the network for level, timing, and equalization of room response anomalies. An indispensable tool in challenging room acoustic, the 8330A is the monitoring solution for music studios, post-production houses, digital edit suites, radio, TV, and outside broadcasting.
SAM (Smart Active Monitor) Features and Benefits Smart active monitors and subwoofers are easy to operate and can adapt to any environment.
GLM computer control allows for repeatable, consistent performance.
The full complement of the Smart Active Monitoring Line of products provides high scalability to any size environment.
Complete solution-orientated Smart Active Monitoring systems eliminate the guesswork in system configuration and acoustic performance.
GLM network flexibility allows to set up and computer-control up to 30 monitors and subwoofers.
Genelec AutoCal measures the response in the listening area and applies relevant compensation to minimize the room’s acoustical influence.
Reducing the perceived differences between listening environments or positions, SAM systems allow for accurate transfer of audio productions between rooms
In the factory, every single product is calibrated and 100% evaluated for acoustic performance guaranteeing excellent similarity between products and consistent high performance.
Genelec quality and reliability ensure long-term investments and outstanding audio quality.
Max SPL - 104 dB *
Frequency Response - 45 Hz - 23 kHz (-6dB)
Cross-over Frequency - 3.0 kHz
Woofer - 130mm (5 in) +
Tweeter - 19mm (3/4 in)
metal dome + DCW™
H 299 x W 189 x D 178
Woofer 50 W +
Tweeter 50 W
1 x XLR input
2 x XLR AES/EBU input / output
2 x RJ45 control network
*Maximum short-term sine wave sound pressure level averaged from 100 Hz to 3 kHz, measured in half-space, on-axis at 1 meter. Please visit Genelec’s product page for detailed technical specifications, documentation, and downloads by following the link below.
