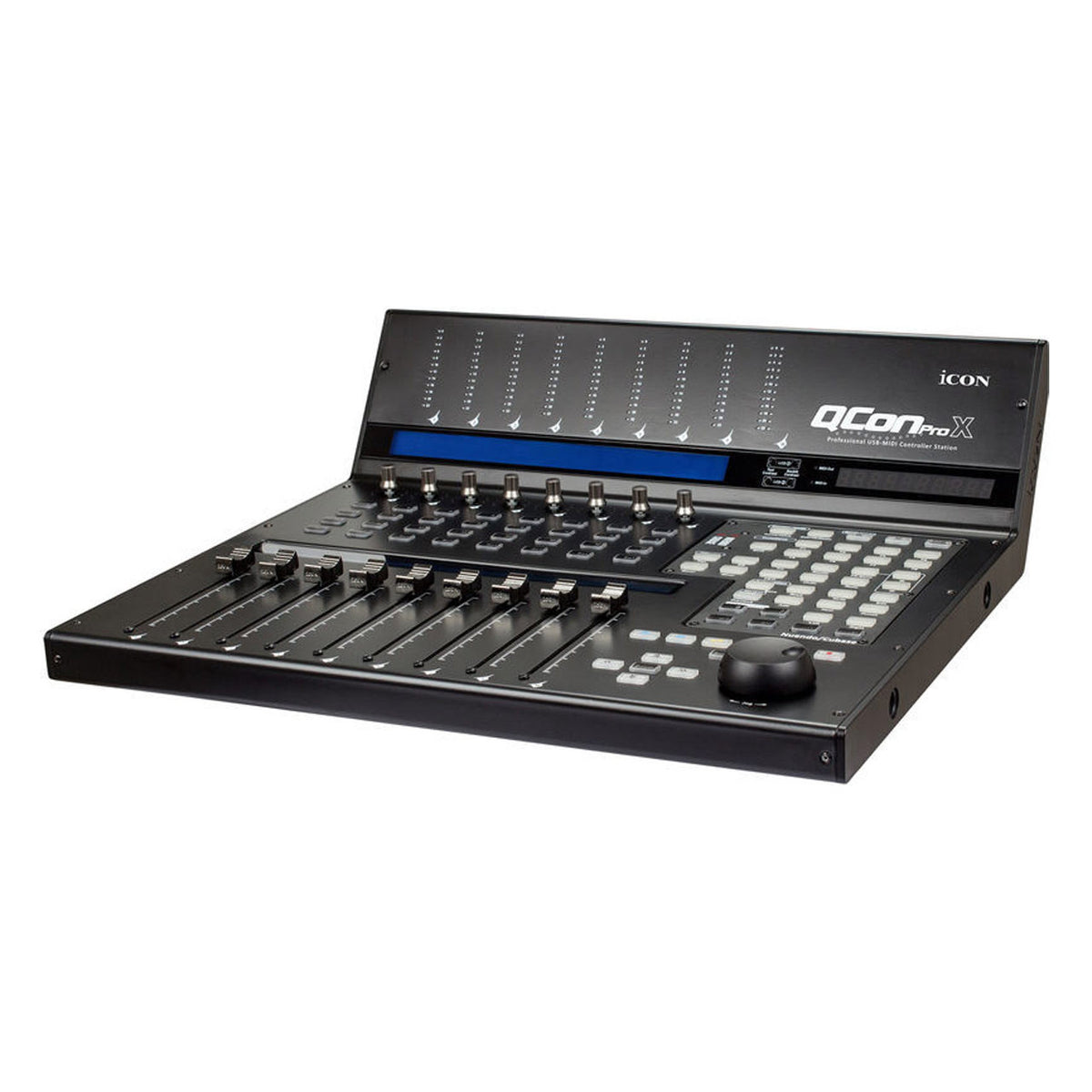

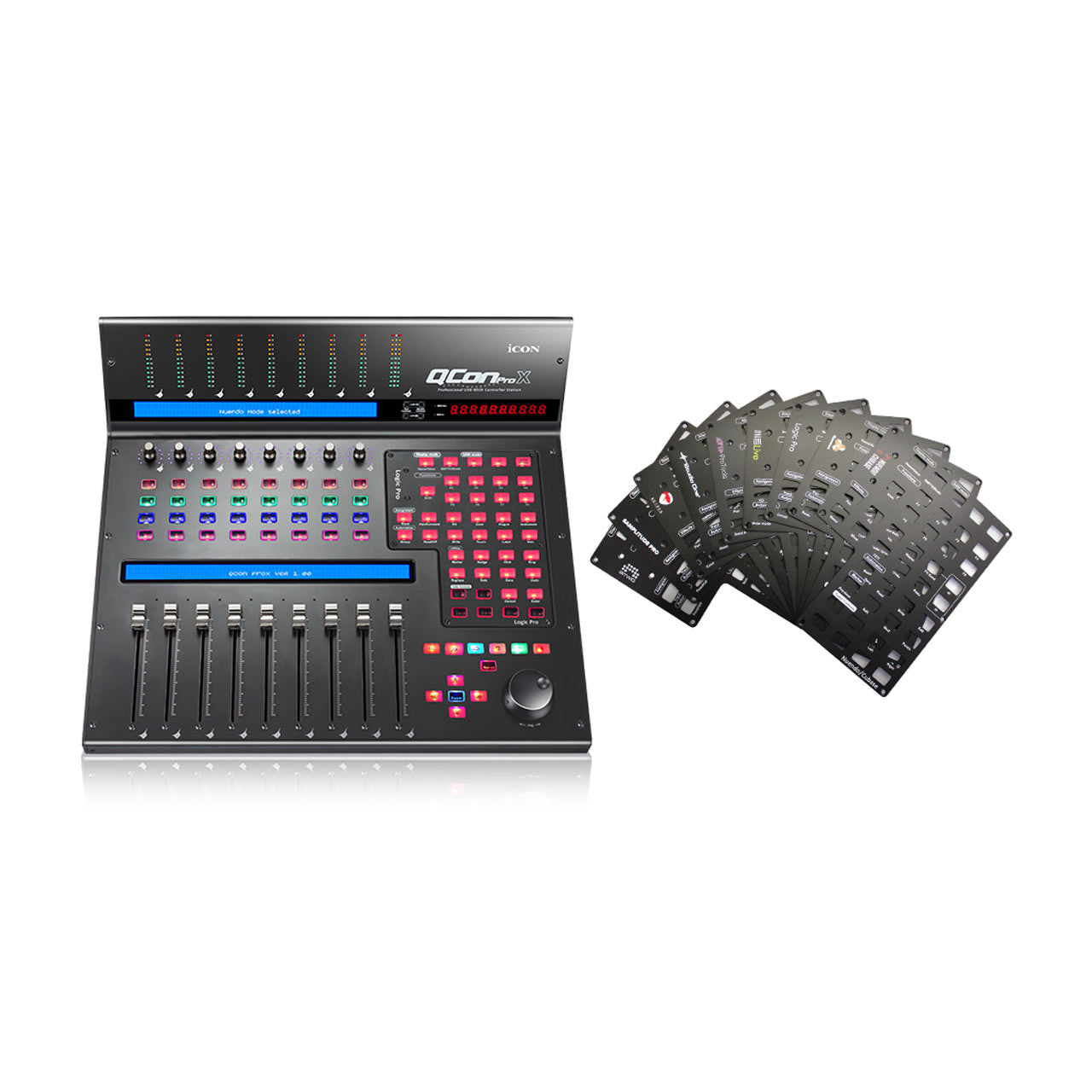

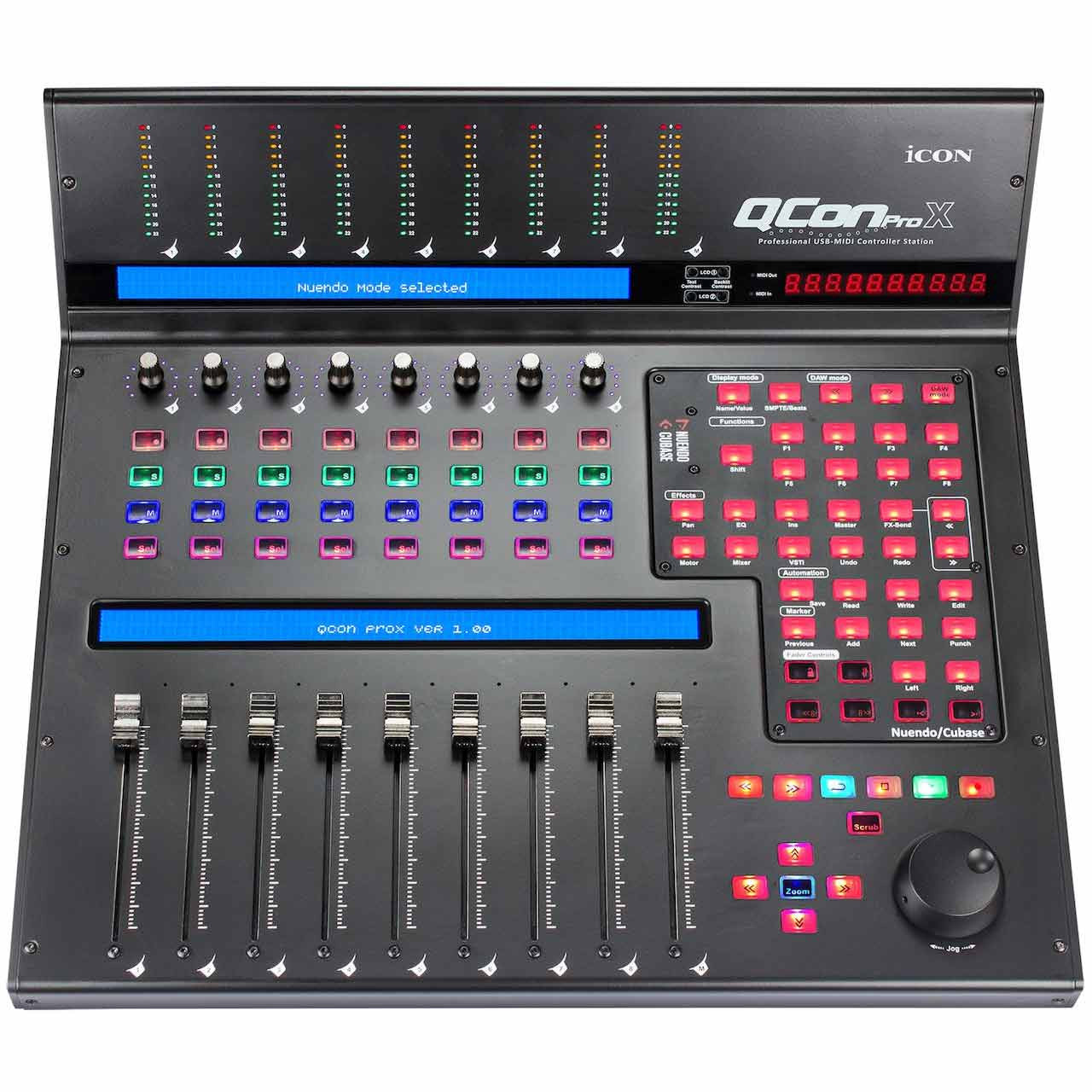

The iCON QCon Pro X Control Surface is a professional USB/MIDI mixing solution compatible with all major DAW’s.The QCon Pro X, is an upgraded version of the QCon Pro, that features an impressive metre-bridge, and an additional LCD display. The QCon Pro X utilises the Mackie Control Protocol, and there are templates available for Cubase/Nuendo, Logic, Live, Reaper, Studio ONE and Reason. For Pro Tools, the QCon Pro X can be set to HUI mode. There are 9 touch sensitive 10 bit motorised Alps faders, transport section, multiple function buttons and channel strip settings with Record, Mute, Solo and Select below endless rotary encoders.
8+1 touch-sensitive motorized faders with 10-bit resolution 12 segment LED meter bridge Stereo LED master channel level metering on metering bridge 8 Dual function encoders with multi-color LED indication ring 11-segment multi-color LED surrounding the encoders to indicate the rotation position Dual 2×56 large backlit LCDs to display channel name, control values etc. for each channel 12-segment LED display showing time location of your project in either SMPTE or BBT format 18 assignable buttons Jog shuttle wheel for scrubbing, fast search and control Illuminated buttons for each channel including Record Enable, Solo, Mute, Select and Monitor 6 illuminated transport buttons including Play, Stop, Rec, Rewind, Fast Forward and Loop Illuminated ZOOM button with 4 direction buttons 9 illuminated assignable MIDI function buttons Expandable to 32-channels using 3 QCon XS expander units (coming soon) Optional expander units with motorized joysticks for surround sound mixing, extra button units and extra knob units (also coming soon) Two (2) 1/4” connectors for foot switches and pedals Automatic and manual mode switch for accessing different DAW modes Class-compliant with Windows XP, Vista (32-bit), Windows 7 (32-bit & 64-bit), Windows 8 (32-bit & 64-bit), Windows 10 (32-bit & 64-bit) and Mac OS X USB 2.0 high speed connectivity ICON “Quick-Setup” driver is available for Cubase, Nuendo, Reason and Bitwig for instant plug & play compatibility Optional automatic DAW detection mode is available for Cubase, Nuendo, Ableton Live, ProTools, Logic, Reason, Studio One, Bitwig, Samplitude and Reaper via custom module Built-in Mackie Control for all DAWs listed (except for ProTools which uses Mackie HUI Protocol) PVC overlays are included for all DAWs listed (except Cubase and Nuendo which is the stock module) Bundled with ICON edition Cubase LE and Samplitude LE User self-defined (MIDI Learn) mode for other DAWs not supported with presets Easy firmware upgrade available via USB connection and iMap software Superior build quality and robust metal casing with Kensington lock port
iCON QCon Pro X Specifications:
Connector: To computer: USB connector (standard type) Connector: To extender : USB connector (B-Type) Power supply: 12V2.5A DC Current consumption: 2A or less Weight: 6kg Dimensions: 473(L) x 416(W) x 188(H)mm
iCON QCon Pro X System Requirements:
Supported OS: Mac OS 10.8(Intel CPU/32-bit) Mac OS 10.8(Intel CPU/64-bit) Mac OS X 10.9 Mac OS X 10.10 Mac OS X 10.11 Windows XP (32-bit) Windows XP (64-bit) Vista (32-bit) Yes Vista (64-bit) Yes Windows 7 (32-bit) Windows 7 (64-bit) Windows 8 (32-bit) Windows 8 (64-bit) Windows 8.1 (32-bit) Windows 8.1 (64-bit) Windows 10 (32-bit) Windows 10 (64-bit)
Does NOT support iOS 7-9
** Please note, system requirements may change. For the most recent system requirements please visit the manufacturer's official product listing **
