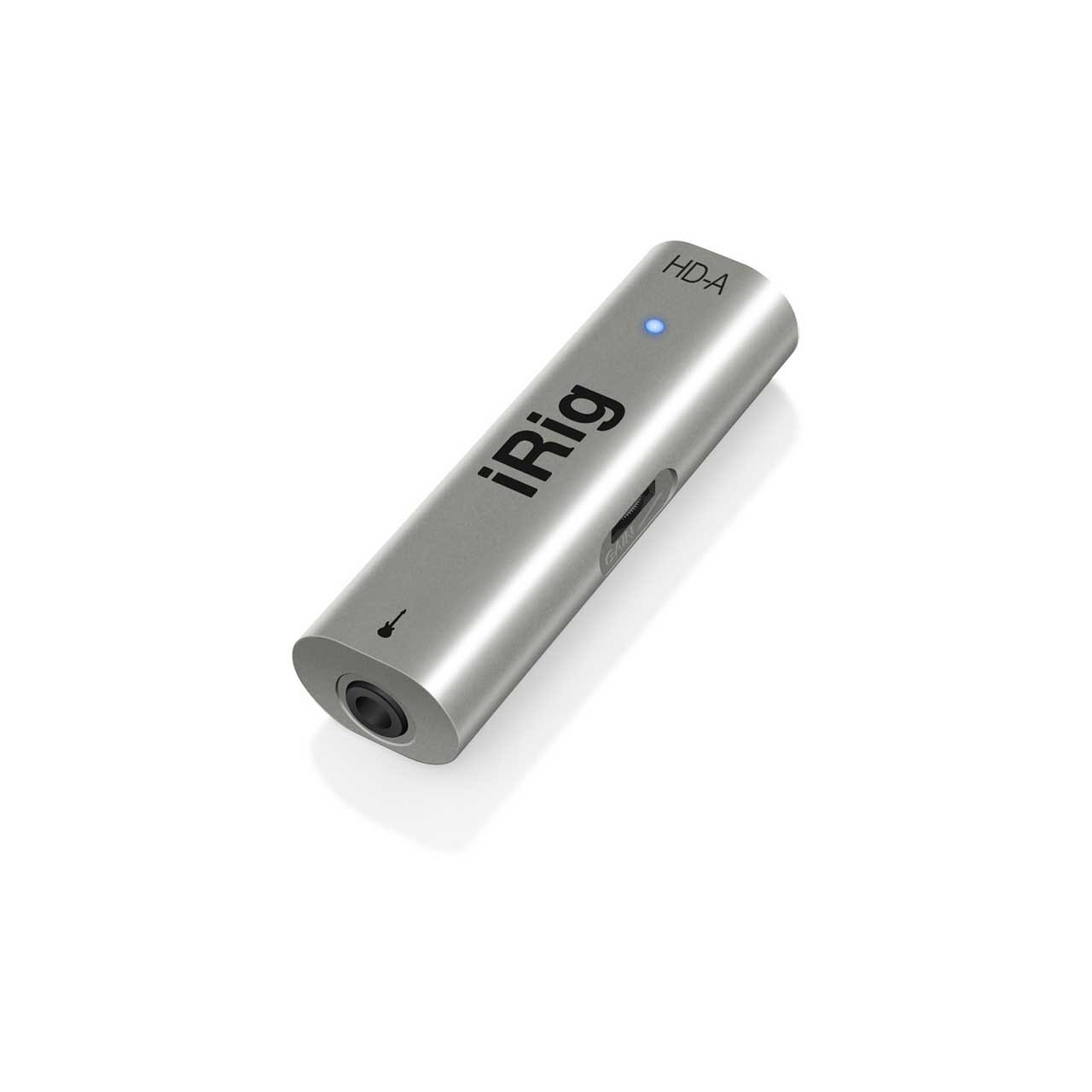

IK Multimedia iRig HD-A Digital guitar interface for Android

The IK Multimedia iRig HD-A is the first high-quality 24-bit audio interface for guitar that fits in your pocket and connects directly to your Android device and PC. The iRig HD-A has ultra-low-draw power consumption circuitry so it's easily powered via the connection to your device.  The onboard gain control allows precise input levels for your instruments, and a multicolour LED shows signal activity.  The iRig HD-A is compatible with AmpliTube for Samsung Pro Audio as well as any other app that supports USB/OTG audio input.


    • IK Multimedia iRig HD-A PRODUCT FEATURES:

      • High-quality instrument-level 1/4” Hi-Z input jack
      • Detachable cables for OTG and USB connector compatibility
      • Preamp gain control
      • High-quality low-noise, high-definition preamp
      • High-quality 24-bit A/D conversion
      • 44.1 and 48 kHz sampling rate
      • Powered by the mobile device or USB
      • Connect electric guitar or bass
      • Also works with line level signals from synthesizers, keyboards and mixers
      • Ultra-compact and lightweight

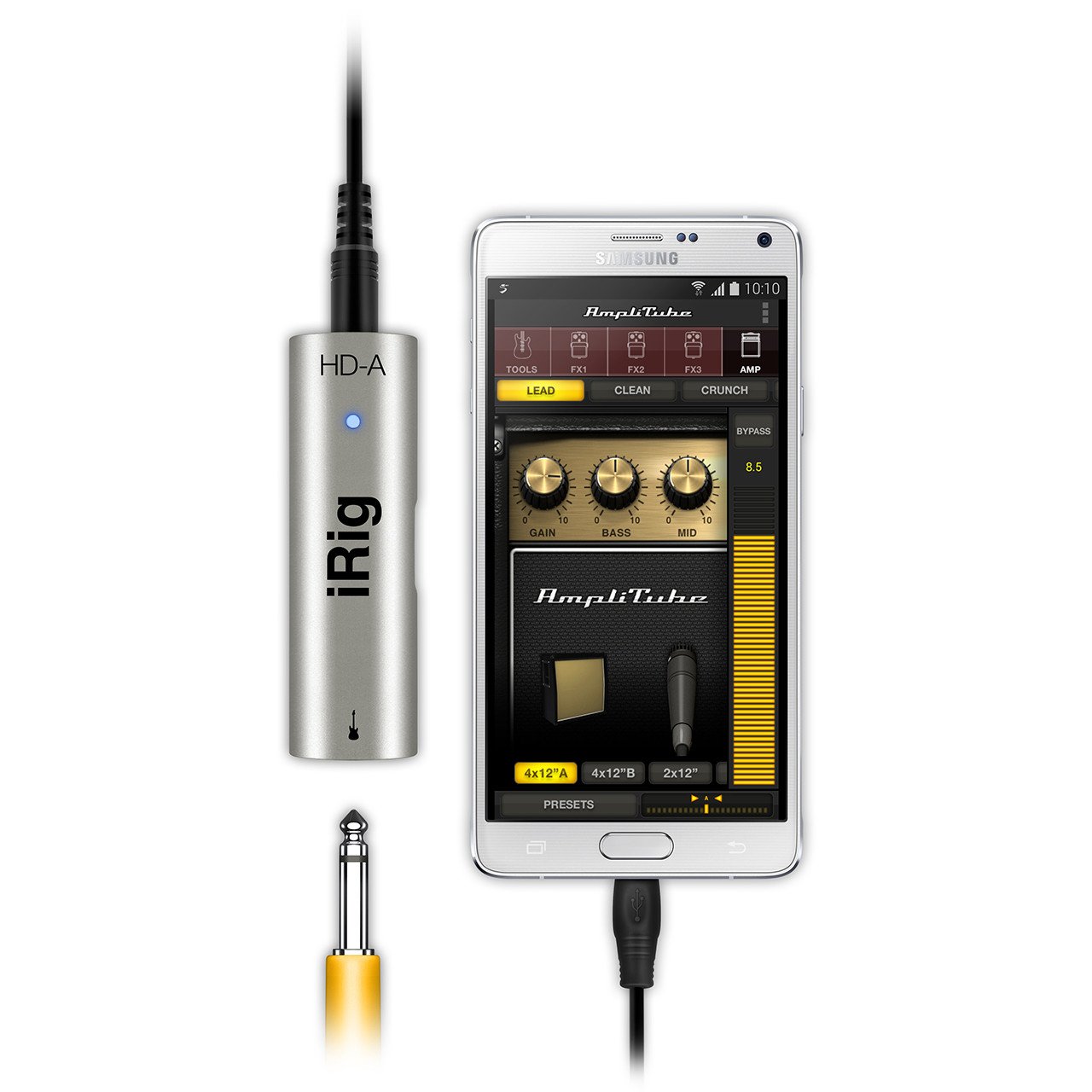

      • Comes with AmpliTube FREE for Samsung Pro Audio app (free download on Samsung Galaxy Store)

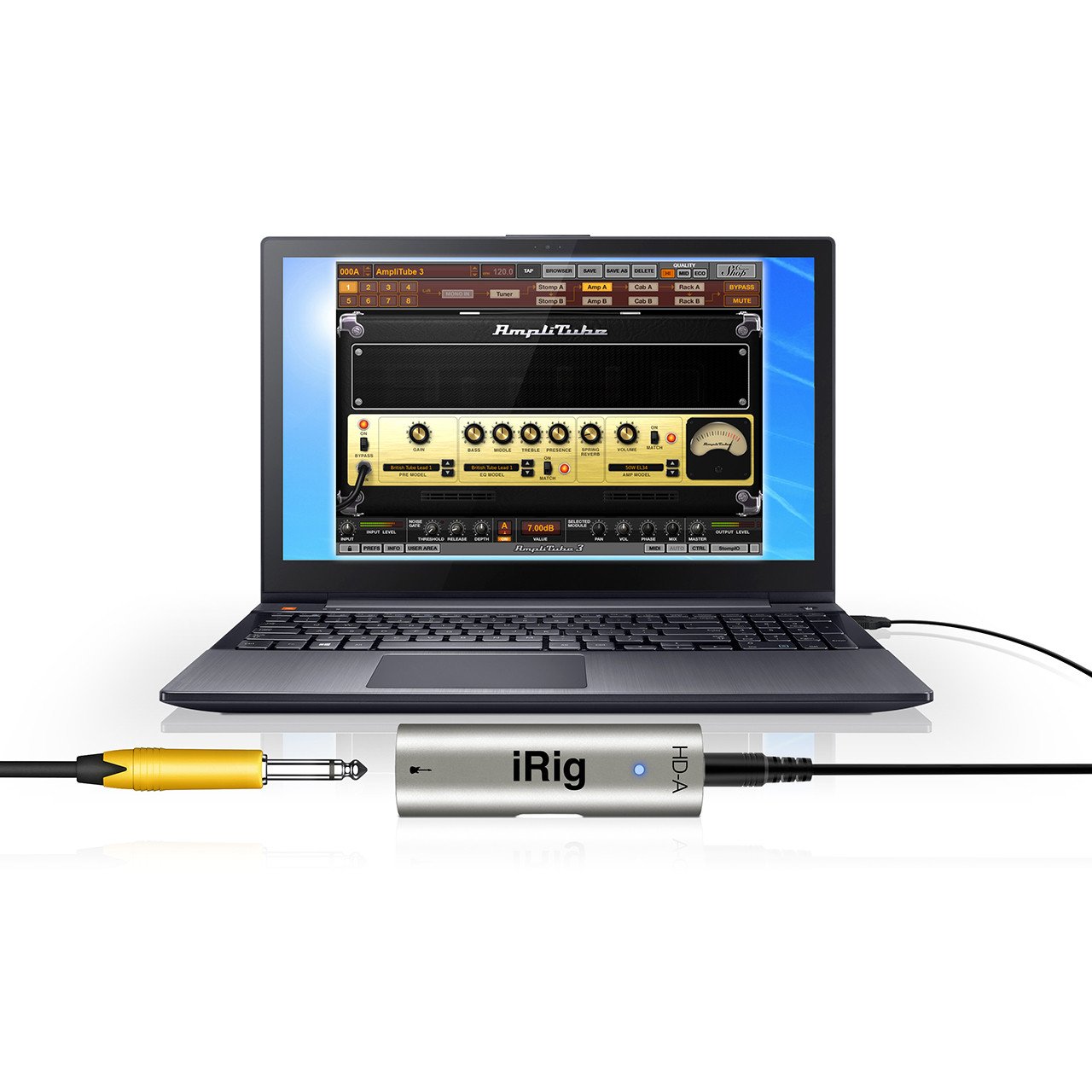

      • Free AmpliTube Custom Shop software (download from IK site) and free download of AmpliTube Metalcollection for PC users
      • Compatible with Android devices that support Samsung Professional Audio technology, like the Samsung Galaxy Note 4 and Galaxy Note Edge. Samsung Galaxy S5 and Galaxy Note 3 require Android 5
      • Compatible with Android devices via USB (OTG) connector running Android apps that use USB (OTG) audio input
      • Compatible with any Android devices via USB (OTG) connector running Android 5
    • IK Multimedia iRig HD-A TECHNICAL SPECIFICATIONS:

      • Maximum Input Level: from 330 mVpp to 7 Vpp
      • Gain Control Range: 26 dB
      • Input Noise: -97 dB RMS
      • Distortion (THD): 0.005%
      • Frequency Response: 20Hz-20kHz +/- 0.2 dB
      • Conversion: 24-bit A/D
      • Sampling Rate: 44.1 and 48 kHz
    • IK Multimedia iRig HD-A SYSTEM REQUIREMENTS:

      Android Devices

      Compatible with Android devices that support Samsung Professional Audio technology, like the Samsung Galaxy Note 4 and Galaxy Note Edge. Samsung Galaxy S5 and Galaxy Note 3 require Android 5.

      Compatible with Android devices with USB (OTG) connector running Android apps that use USB (OTG) audio input.

      Compatible with any Android devices with USB (OTG) connector running Android 5.

      Computers

      Windows®: Support using the ASIO4ALL driver on Windows XP/Vista/7/8. See the FAQ here for further details.
