  • ISP-HUMEX

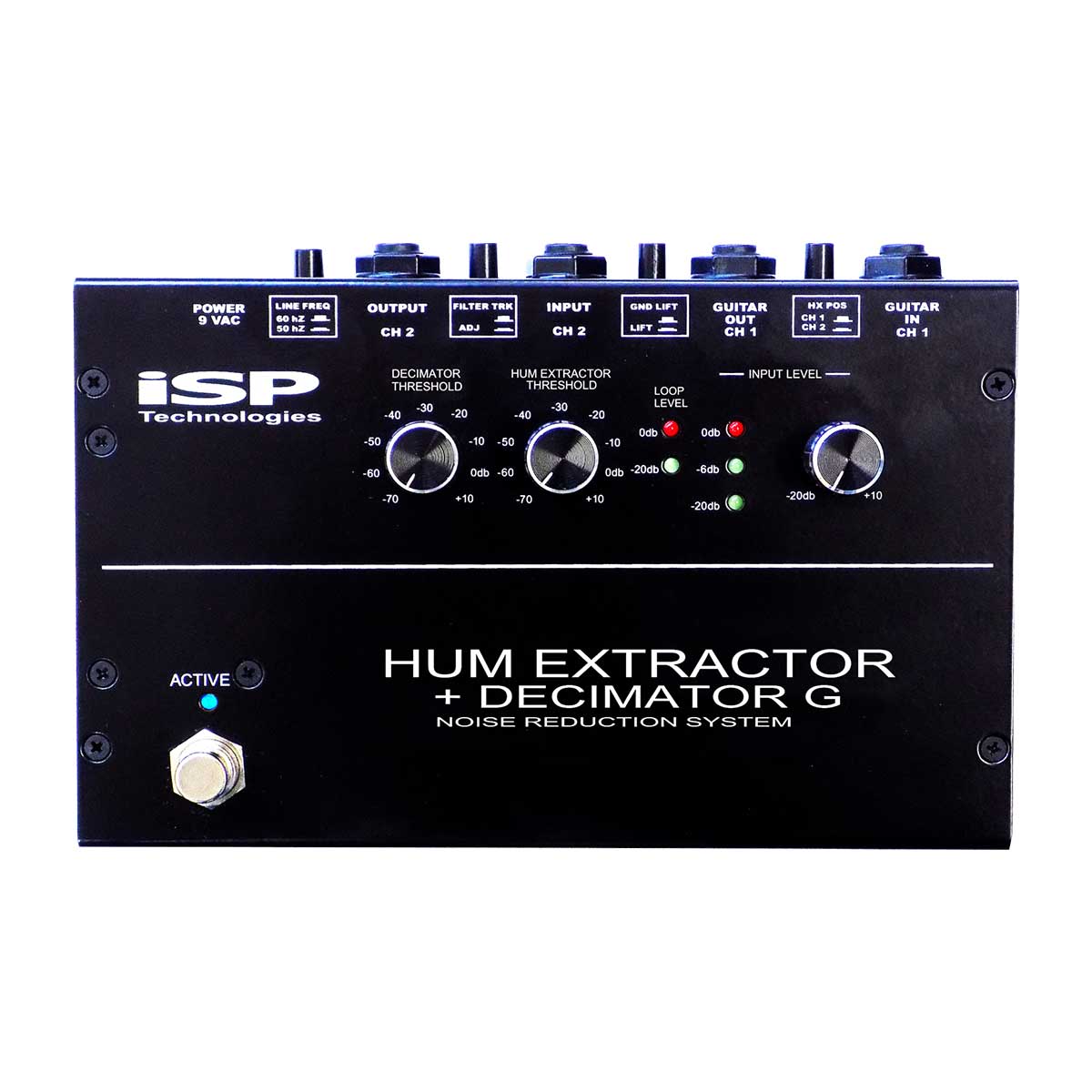

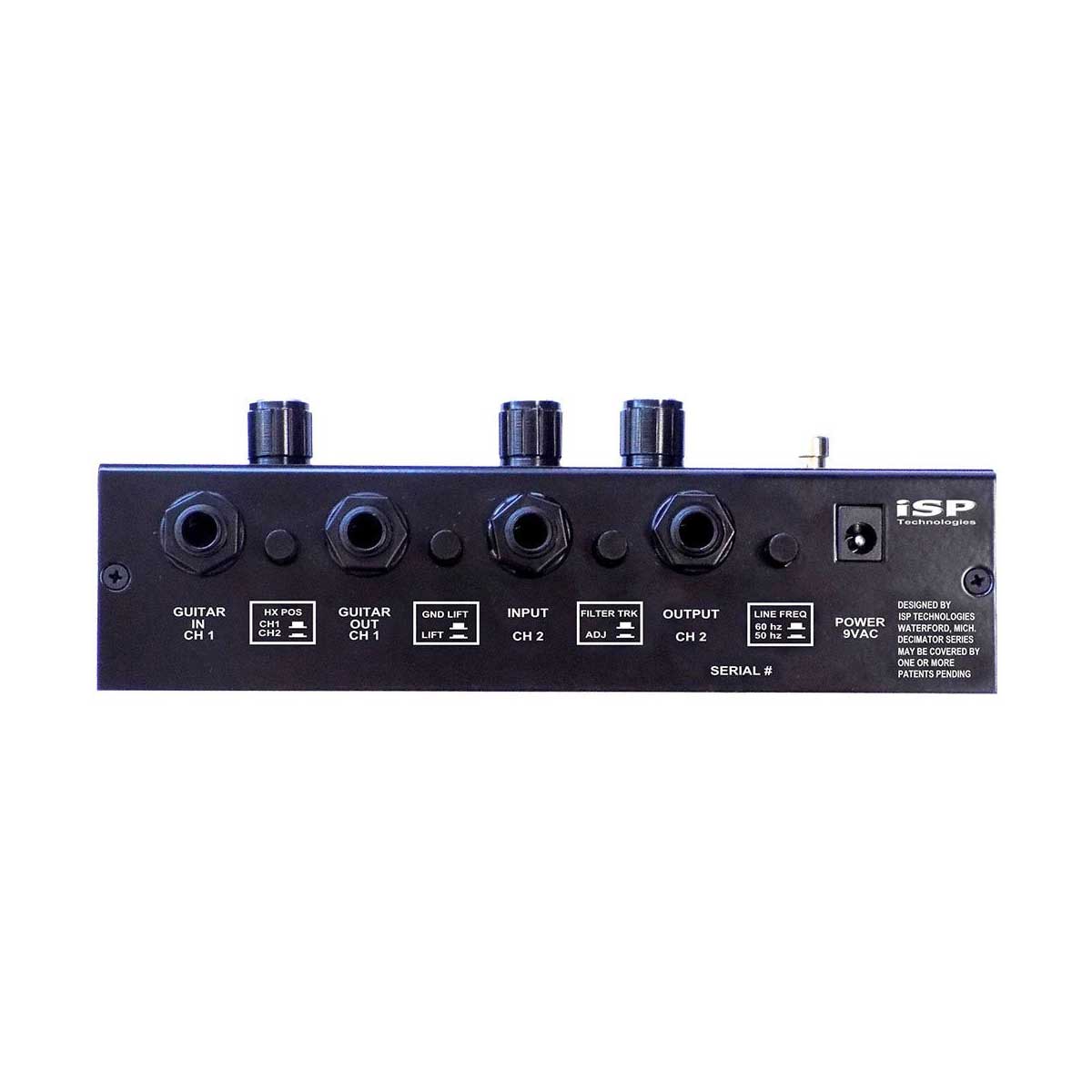

    ISP Hum extractor and Decimator G

    Notify me when this product is available:

    ISP Technologies introduces the revolutionary patent pending HUM EXTRACTOR™ + DECIMATOR G, a two-channel, ultimate noise reduction system. After years of musicians fighting the major noise problem of power line frequency hum, ISP Technologies eliminates this dreaded noise with the new patent pending HUM EXTRACTOR™. Power line frequency hum is most commonly caused by stray magnetic fields generated from transformers or power lines in close proximity to the instrument pickups. While Hum Bucking pickups have been in use for years to help reduce this problem if the level of hum is severe, even Hum Bucking pickups are not enough and many players still prefer the sound quality and tone of single coil pickups.

    Features

    • HUM EXTRACTOR + DECIMATOR with zero digital aliasing

    • DECIMATOR downward Expander plus DECIMATOR DYNAMIC FILTERING both with DECIMATOR X technology

    • HUM EXTRACTOR with totally transparent operation

    • 2 Channel system allows DECIMATOR to be inserted after gaining noise with direct guitar tracking

    • Selectable location for HUM EXTRACTOR block

    • State-of-the-art signal processing with super low noise signal path

    • 50Hz / 60Hz operation

    • Greater than 80dB effective noise reduction

    Specifications

    INPUT IMPEDANCE

    470K OHM

    INPUT LEVEL TRIM

    21.5db / input level -8dbu to +13.5dbu

    MAXIMUM INPUT SIGNAL

    +13.5dbu

    NOISE FLOOR

    - 104dbu A WTD

    DYNAMIC RANGE

    117db A WTD

    DECIMATOR / MAX NOISE RED

    80db

    FREQUENCY RESPONSE

    20Hz – 20KHz = +0 / -.5db

    OUTPUTS

    Max Level +13.5dbu

    DIMENSIONS

    7.15” W x 1.85” H x 4.5” D

    WEIGHT

    1.2 lbs

    POWER

    9VAC RMS / 1.5 AMPS

    NOTE:0dbu = .775 VRMS
