IN-8-II

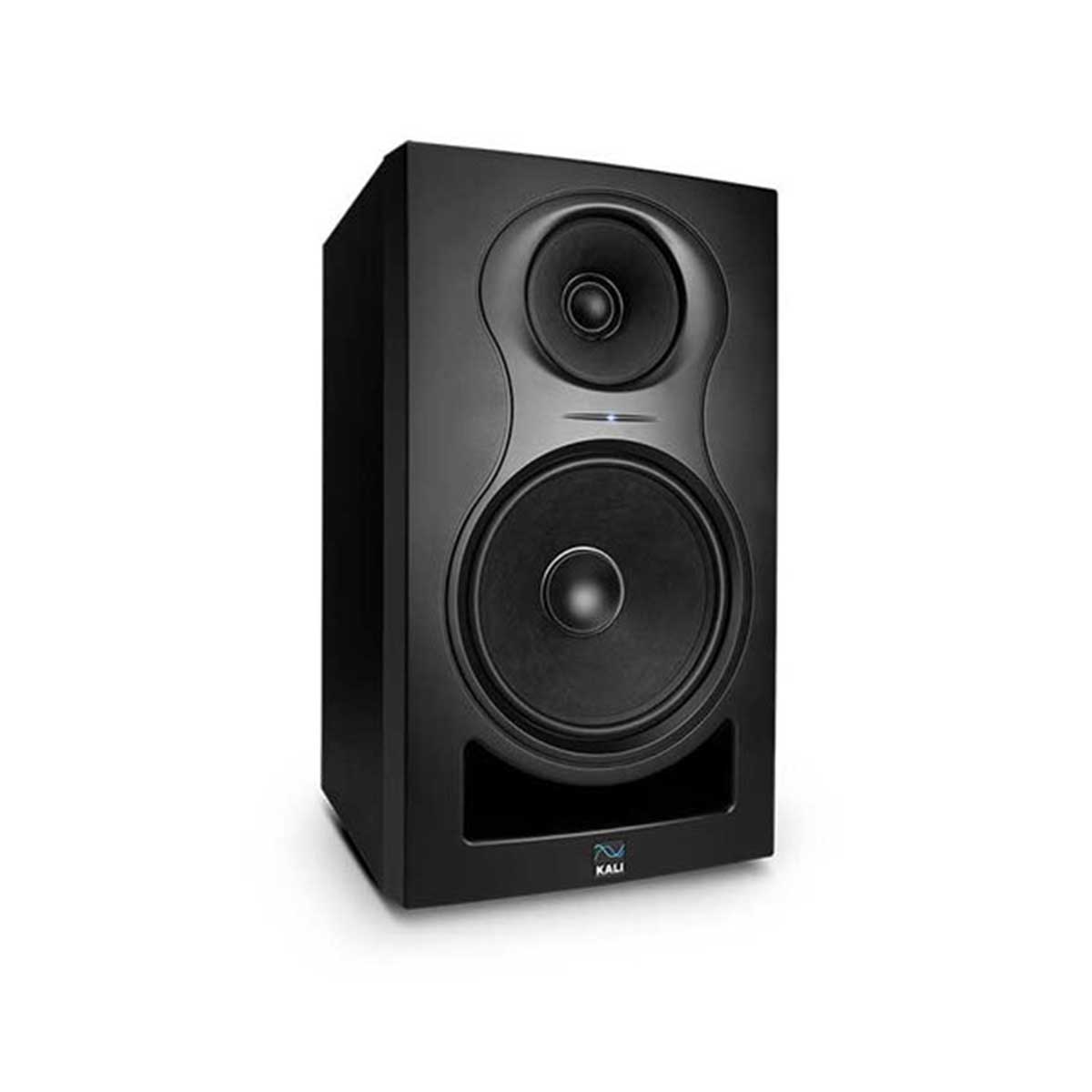

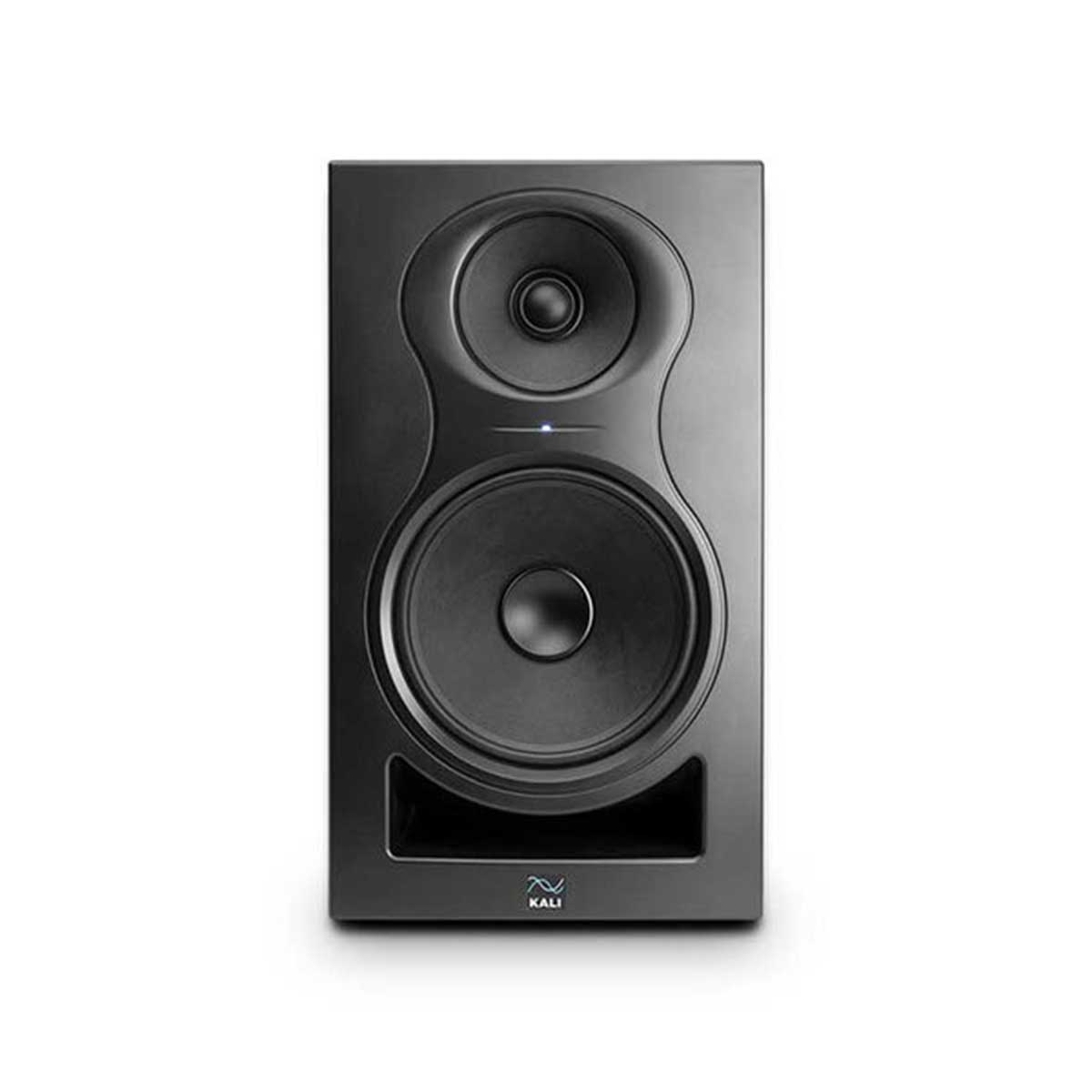

Kali Audio IN-8 3-Way Studio Monitor (Second Wave Model) (SINGLE)
Type: Active Studio Monitors
Features
Co-Axial Midrange and Tweeter
A three-way with impeccable imaging.8-Inch Woofer
Powerful, clean bass. Crossed over at 330 Hz to make the IN-8 an acoustic point source.Low Noise Port Tube
Precisely engineered using airflow simulations for powerful bass without port noise.Imaging
2-way systems with good waveguides, like Kali’s LP-6 and LP-8, do a good job at conveying this spatial information. However, because the tweeter and woofer on those speakers (and most studio monitors!) are separate, this information gets lost in the space immediately above and below the speaker. This means that at the listening position, you’re not hearing the full stereo picture.
The IN-8 solves this problem. The tweeter and midrange share an acoustic center, and the woofer is crossed over at 330 Hz, so the distance between the woofer and midrange is well under a quarter wavelength at the crossover point. This means that the IN-8 is acoustically a point source. As such, it has the same excellent directivity that the LP-6 and LP-8 have at their sides in a full 360 degrees around the speaker. You’re hearing all of the spatial information at the listening position, so the soundstage that you hear will have every detail that’s present in the mix.
The IN-8 solves this problem. The tweeter and midrange share an acoustic center, and the woofer is crossed over at 330 Hz, so the distance between the woofer and midrange is well under a quarter wavelength at the crossover point. This means that the IN-8 is acoustically a point source. As such, it has the same excellent directivity that the LP-6 and LP-8 have at their sides in a full 360 degrees around the speaker. You’re hearing all of the spatial information at the listening position, so the soundstage that you hear will have every detail that’s present in the mix.
Clarity
The IN-8’s total harmonic distortion is less than 1.4%, which is exceptional. This is the result of unburdening both the woofer and the tweeter, so that both are doing less work. The woofer is crossed over at 330 Hz, a full 2.5 octaves lower than on the LP-8.
The tweeter is crossed over at 3000 Hz, nearly an octave higher than on the LP-8. Taking up the space in between in the hero of the IN-8 system: the 4-Inch, profile-optimized midrange driver. This driver has a lot of work to do. In addition to reproducing midrange frequencies, it also acts as the waveguide for the tweeter. This means that the shape needed to be precisely engineered to provide an ideal dispersion characteristic for the tweeter.
It also means that the midrange needs to stay still. In many other co-axial or concentric systems, high excursion from the larger driver causes intermodulation distortion, and degrades the accuracy of the system. The midrange on the IN-8 is limited to less than 1 millimeter peak excursion, making it acoustically stationary while still providing midrange to keep up with the powerful woofer and tweeter.
The tweeter is crossed over at 3000 Hz, nearly an octave higher than on the LP-8. Taking up the space in between in the hero of the IN-8 system: the 4-Inch, profile-optimized midrange driver. This driver has a lot of work to do. In addition to reproducing midrange frequencies, it also acts as the waveguide for the tweeter. This means that the shape needed to be precisely engineered to provide an ideal dispersion characteristic for the tweeter.
It also means that the midrange needs to stay still. In many other co-axial or concentric systems, high excursion from the larger driver causes intermodulation distortion, and degrades the accuracy of the system. The midrange on the IN-8 is limited to less than 1 millimeter peak excursion, making it acoustically stationary while still providing midrange to keep up with the powerful woofer and tweeter.
Specifications
| IN-8 v2 | ||
|---|---|---|
| Powered: | Yes | |
| Amp Class: | D | |
| DSP Functions: | Loudspeaker Tuning, Limiter, Crossover, Boundary EQ Settings | |
| Power Config: | Tri-Amped | |
| LF Power: | 60 W | |
| MF Power: | 40 W | |
| HF Power: | 40 W | |
| Total Power: | 140 W | |
| LF Driver: | 8" Paper | |
| Mid-Range Driver: | 4" Optimized Profile Paper | |
| HF Driver: | 1-Inch Textile Dome | |
| Freq. Response (-10 dB): | 37 Hz - 25 kHz | |
| Freq. Range (±3 dB): | 45 Hz - 21 kHz | |
| LF to Mid-Range Crossover: | 280 Hz | |
| Mid-Range to HF Crossover: | 2800 Hz | |
| Recommended Listening Distance: | 0.5 - 3.5 Meters | |
| Max SPL: | 117 dB |
