Product Features:
Includes a huge collection of Rigs from the world’s best tone creators.
Studio-grade and stomp FX, featuring the big machine-type delays and reverb FX that are unparalleled in sound and versatility.
Illuminated sunlight-proof display
Five buttons allow direct access to five different Rigs per Performance
Four Effect Buttons can be assigned individually per Rig
Up to four expression pedals can be connected to control continuous parameters of the sound.
Dedicated Stereo Monitor Outputs for driving two either full range or standard guitar cabinets simultaneously and independently from the direct stereo feed
Two stereo effect loops with stereo returns for each allow for connecting both pedals and outboard studio effects.
Build-In Looper with up to 60 seconds of recording time
-
System Requirements:
DIMENSIONS
PROFILER Head and PROFILER PowerHead:
Height: 21,7 cm (8.54 inches) Width: 37,8 cm (14.88 inches) Depth: 17,3 cm (6.81 inches)
PROFILER Rack and PROFILER PowerRack:
Height: 13,9 cm (5.47 inches), 3 HE (3 RU)
Width: 48,3 cm (19 inches) Depth: 22 cm (8.66 inches)

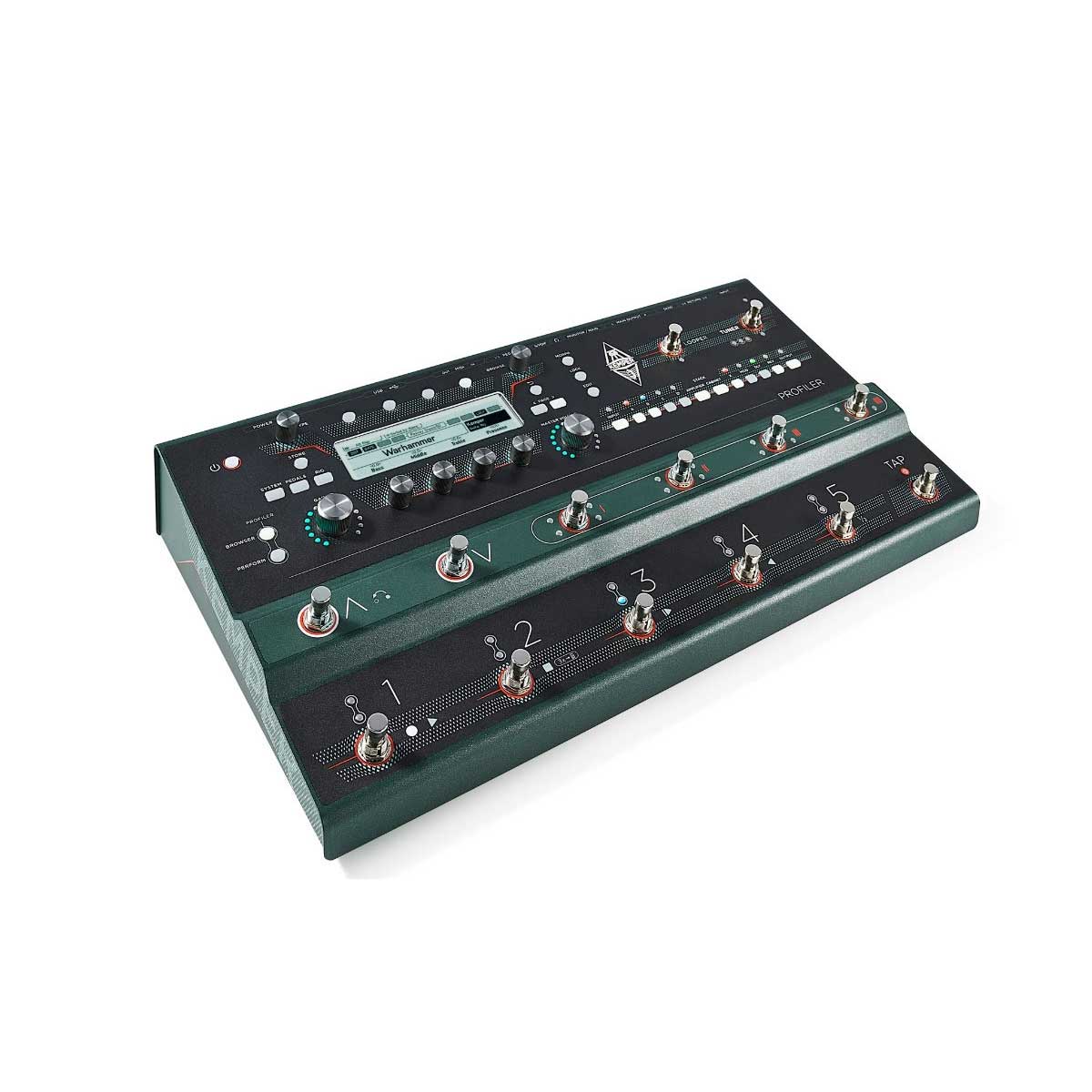

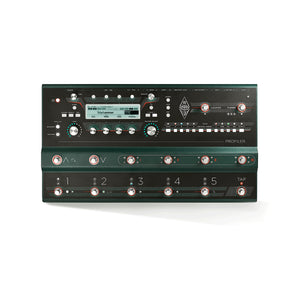

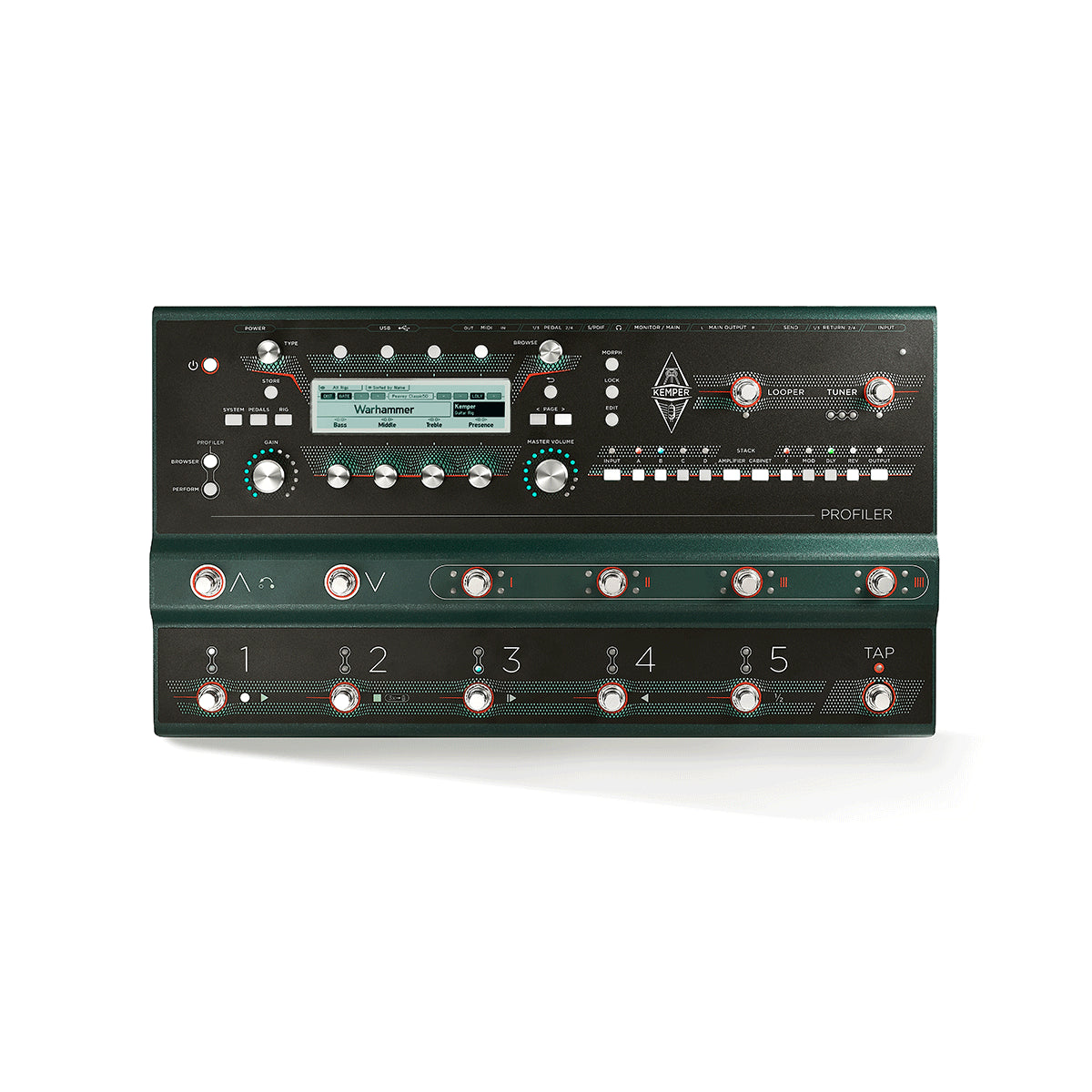

PROFILER Stage:
Height: 8,5 cm (3.35 inches) Width: 47 cm (18.5 inches) Depth: 26 cm (10.24 inches)
PROFILER Remote:
Height: 7,5 cm (2.95 inches) Width: 42 cm (16.53 inches) Depth: 18 cm (7.09 inches)
WEIGHT
PROFILER Head: 5,32 kg (11.73 pounds)
PROFILER Rack: 5,00 kg (11.02 pounds)
PROFILER PowerHead: 6,50 kg (14.33 pounds)
PROFILER PowerRack: 6,18 kg (13.62 pounds)
PROFILER Stage: 4.6 kg (10.14 pounds)
PROFILER Remote: 2.9 kg (6.39 pounds)
ANALOG INPUTS PROFILER HEAD, POWERHEAD,
RACK, AND POWERRACK
Front INPUT:
1⁄4 inch TS unbalanced, dynamic range >108 dB, impedance 1 megohms
ALTERNATIVE INPUT:
1⁄4 inch TRS balanced with ground lift, dynamic range =105 dB, impedance 825 kohms
RETURN:
XLR balanced, 1⁄4 inch balanced with ground lift, dynamic range =105 dB, impedance 825 kohms

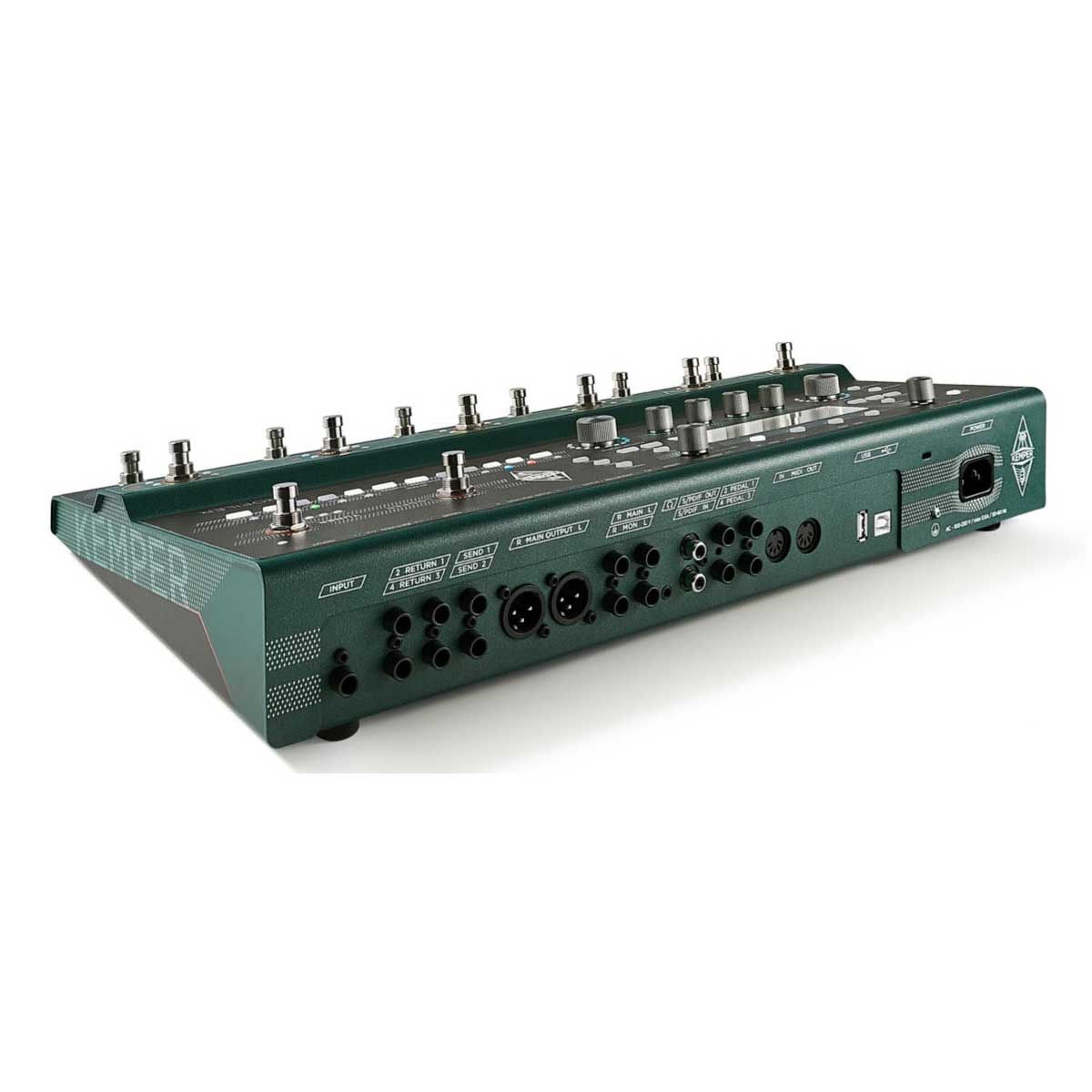

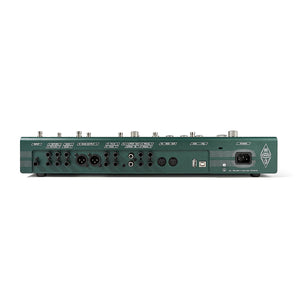

ANALOG INPUTS PROFILER STAGE
INPUT:
1⁄4 inch TS unbalanced, dynamic range >108 dB, impedance 22 kohms - 1 megohms selectable
RETURN 1-4:
1⁄4 inch TRS balanced with ground lifts, dynamic range =105 dB, impedance 100 kohms
ANALOG OUTPUTS PROFILER HEAD, POWERHEAD,
RACK, AND POWERRACK
MAIN OUTPUT L and R:
XLR balanced, 1⁄4 inch TS unbalanced with ground lift max. output level: XLR +22 dBu, TS +16
dBu
MONITOR OUTPUT:
1⁄4 inch TS unbalanced with ground lift max. output level: +16 dBu
DIRECT OUTPUT/SEND:
1⁄4 inch TS unbalanced with ground lift max. output level: +16 dBu, output dynamic range: >108
dB
HEADPHONE Output:
1⁄4 inch TRS stereo, 32-600 ohms, 330 mW @ 32 ohms, 220 mW @ 600 ohms
ANALOG OUTPUTS PROFILER STAGE
MAIN OUTPUT L and R:
XLR balanced, 1⁄4 inch TS unbalanced with ground lift max. output level: XLR +15 dBu, TS +15
dBu
MONITOR OUTPUT L and R:
1⁄4 inch TS unbalanced, max. output level: +15 dBu
SEND 1+2:
1⁄4 inch TS unbalanced with ground lift max. output level: +15 dBu, output dynamic range: >108
dB
HEADPHONE Output:
3.5 mm TRS stereo, 32-600 ohms, 330 mW @ 32 ohms, 220 mW @ 600 ohms
DIGITAL INPUTS AND OUTPUTS PROFILER HEAD,
POWERHEAD, RACK, AND POWERRACK
S/PDIF Input/Output 44.1/48/88.2/96 kHz (24 bit) with RCA phone connectors for coax cables
(master only)
DIGITAL INPUTS AND OUTPUTS PROFILER STAGE
S/PDIF Input/Output 44.1/48/88.2/96 kHz (24 bit) with RCA phone connectors for coax cables
(master or slave)
POWER AMP PROFILER POWERHEAD AND PROFILER
POWERRACK
SPEAKER OUTPUT: 600 Watts at 8 Ohm, 300 Watts at 16 Ohm
CONTROL AND DATA INTERFACES
MIDI IN/OUT/THRU:
5-pin DIN connectors
SWITCH/PEDAL:
1⁄4 inch TRS, each for
mono/stereo switch or expression pedal
(10 kohms min, 100 kohms max. impedance)
Network:
RJ45 connector (not applicable on PROFILER Stage)
USB:
USB 2.0 (FS) compatible device,
USB-A and USB-B connectors
ELECTRICAL REQUIREMENTS
Line Voltage:
Head/Rack 90-275 V AC, max. 0.5 A
PowerHead/ PowerRack 100-125 or 190-245 V AC, max. 10 A Stage 100-230 V AC, max. 0.5 A
Frequency:
50 Hz to 60 Hz, single phase
