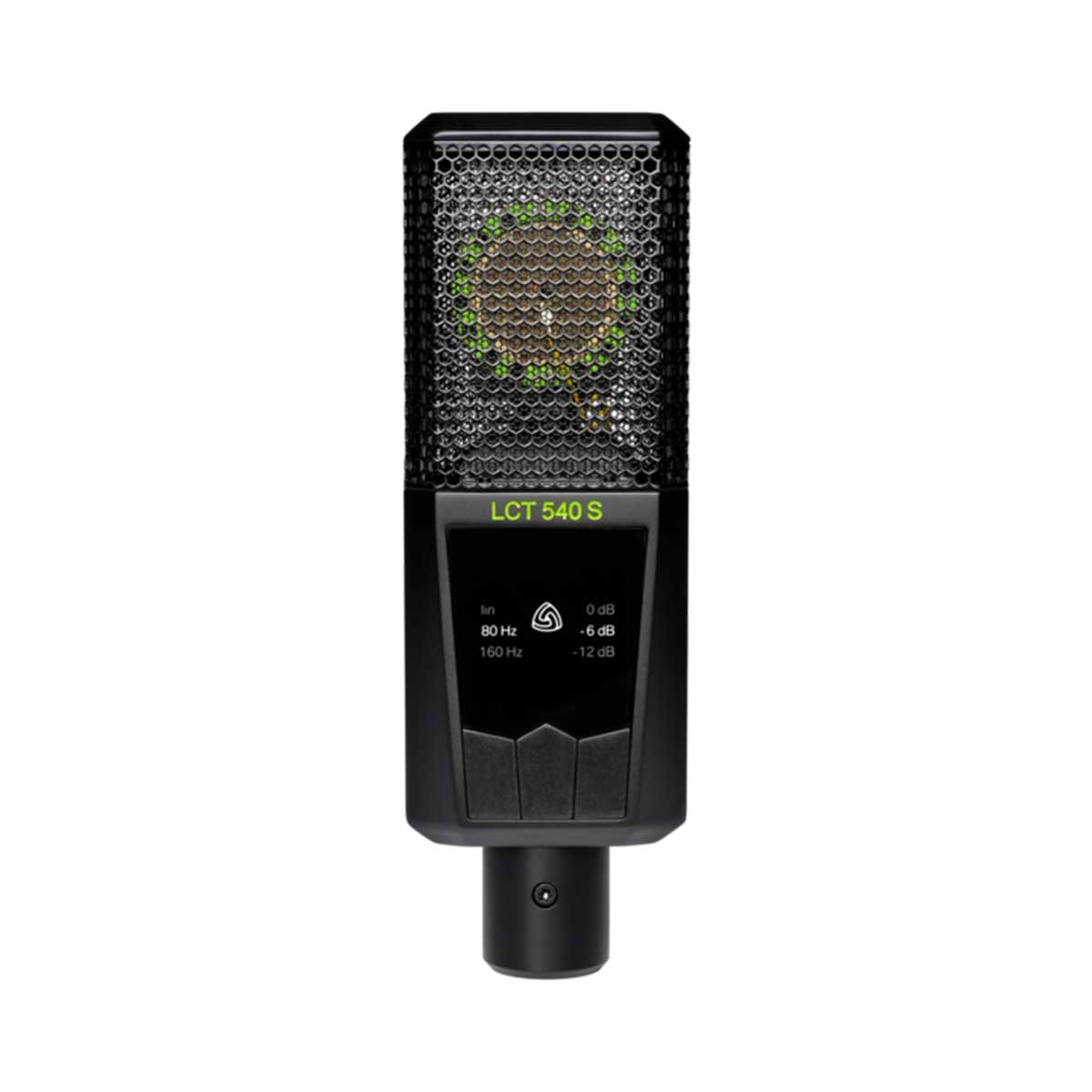

    Lewitt LCT 540 S SUBZERO 1" True Condenser Studio Microphone

    6 In Stock

    Our unique approach towards electronics and capsule design makes the microphone better than human hearing. With the LCT 540 S, we set a new benchmark in terms of capturing fine-grained details of your recording source.

    Record details of your voice and instruments that usually wouldn’t even be audible. Make every detail count.


    Features

    • 1" true condenser studio microphone
    • Self-noise below the threshold of human hearing
    • Ideal for extreme processing
    • Low-cut filters and attenuation
    • Cardioid polar pattern

    Fit for extreme processing

    Even the subtlest nuances sound crystal clear.

    With its cutting-edge circuit and capsule design, the LCT 540 SUBZERO  features an impressive dynamic range of 132 dB to capture everything from loud to subtle. You won’t hear the self-noise of the mic even after heavily compressing the signal.

    Material recorded with the LCT 540 SUBZERO is fit for extreme processing.

    How is this mic better

    Self-noise values below the threshold of human hearing

    Our hearing threshold is very frequency-dependent. It is less sensitive towards low and very high frequencies and most sensitive around 2 – 5 kHz. With our specific and unique approach towards circuit and capsule design, we were able to realize self-noise that'll stay below the threshold of hearing across the entire frequency spectrum.

    Yes, we like science

    We had to elevate measurement to a new level.

    To measure the self-noise of the LCT 540 SUBZERO, we built a unique device. It's ten times more massive than conventional ones, weighing over 4500 kg or 9900 lbs in total. This amount of mass will dampen frequencies up to a 1/10,000th of their sound pressure. The frequency range from 20 Hz to 20,000 Hz is dampened by 60 dB, up to 80 dB on the higher frequencies.

    Specifications

    Acoustical operating principle

    Pressure gradient transducer, externally polarized

    Diaphragm

    3 micron gold sputtered Mylar

    Transducer Ø

    25.4 mm, 1 in

    Polar pattern

    Cardioid

    Sensitivity

    41 mV/Pa, -28 dBV/Pa

    Equivalent noise level

    4 dB (A)

    Max. SPL for 0.5 % THD

    136 dBSPL, 0 dB pre-attenuation

    Signal / noise ratio

    90 dB (A)

    Dynamic range

    132 dB (A)

    Pre-attenuation pad

     0 dB
    -6 dB
    -12 dB

    Low-cut filter

    linear
    80 Hz (6 dB/oct)
    160 Hz (6 dB/oct)

    Internal impedance

    68 Ω

    Supply voltage

    48 V ± 4 V

    Current consumption

    3.6 mA

    Mic enclosure

    Zinc die cast

    Connector

    Gold plated 3-pin XLR

    Microphone dimensions

    158 x 52 x 36 mm, 6.22 x 2.04 x 1.42 in

    Microphone net weight

    371 g, 13.1 oz
