58/LCT940

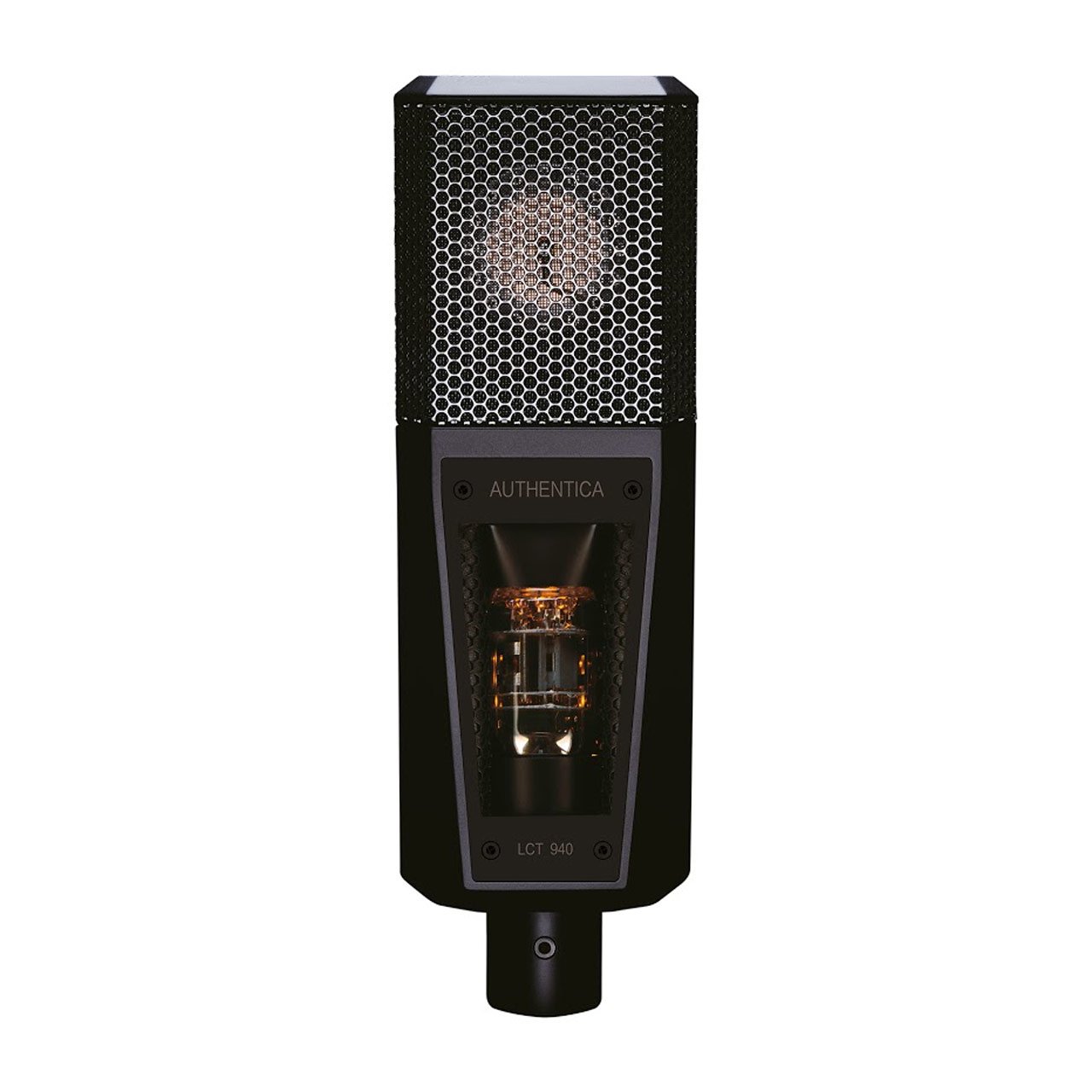

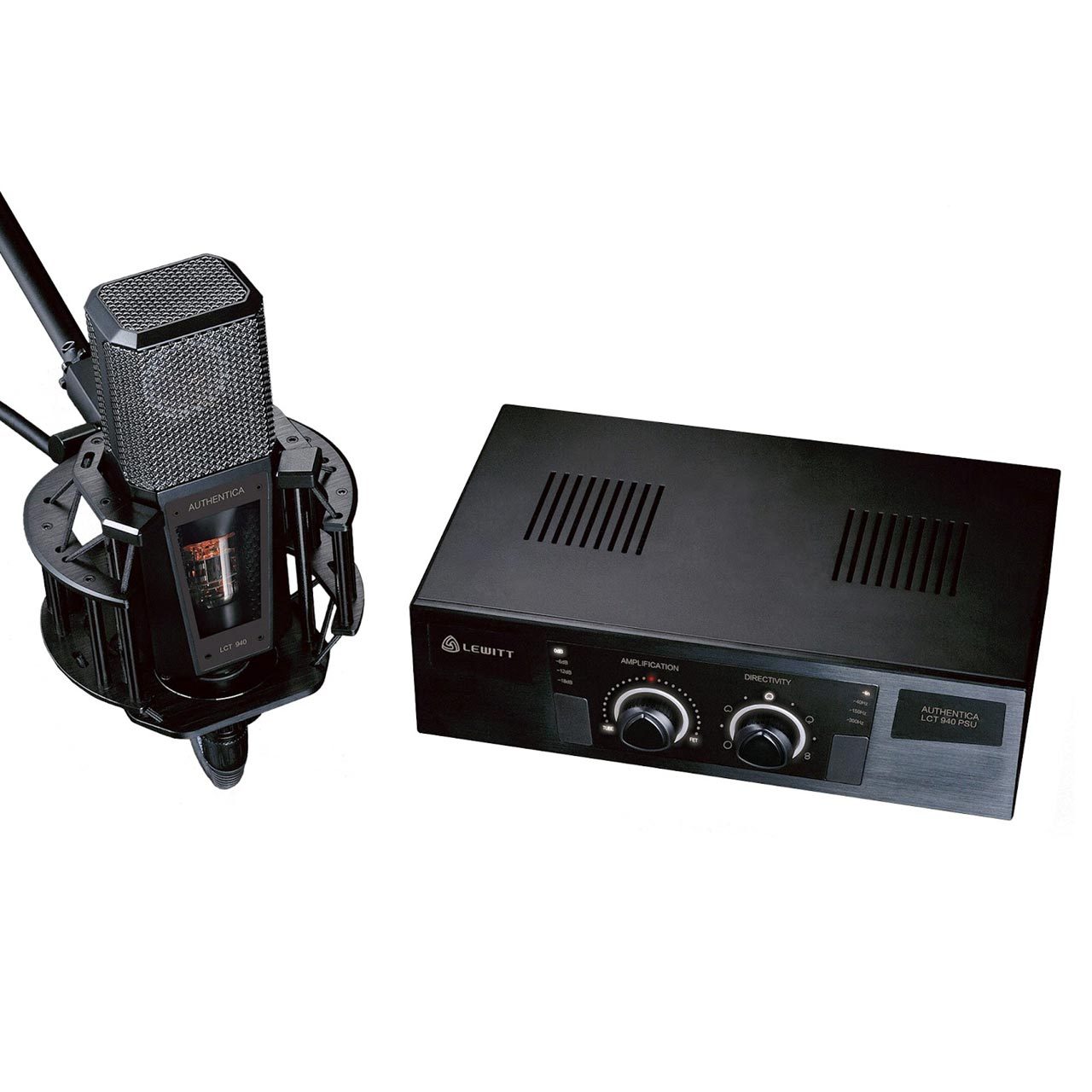

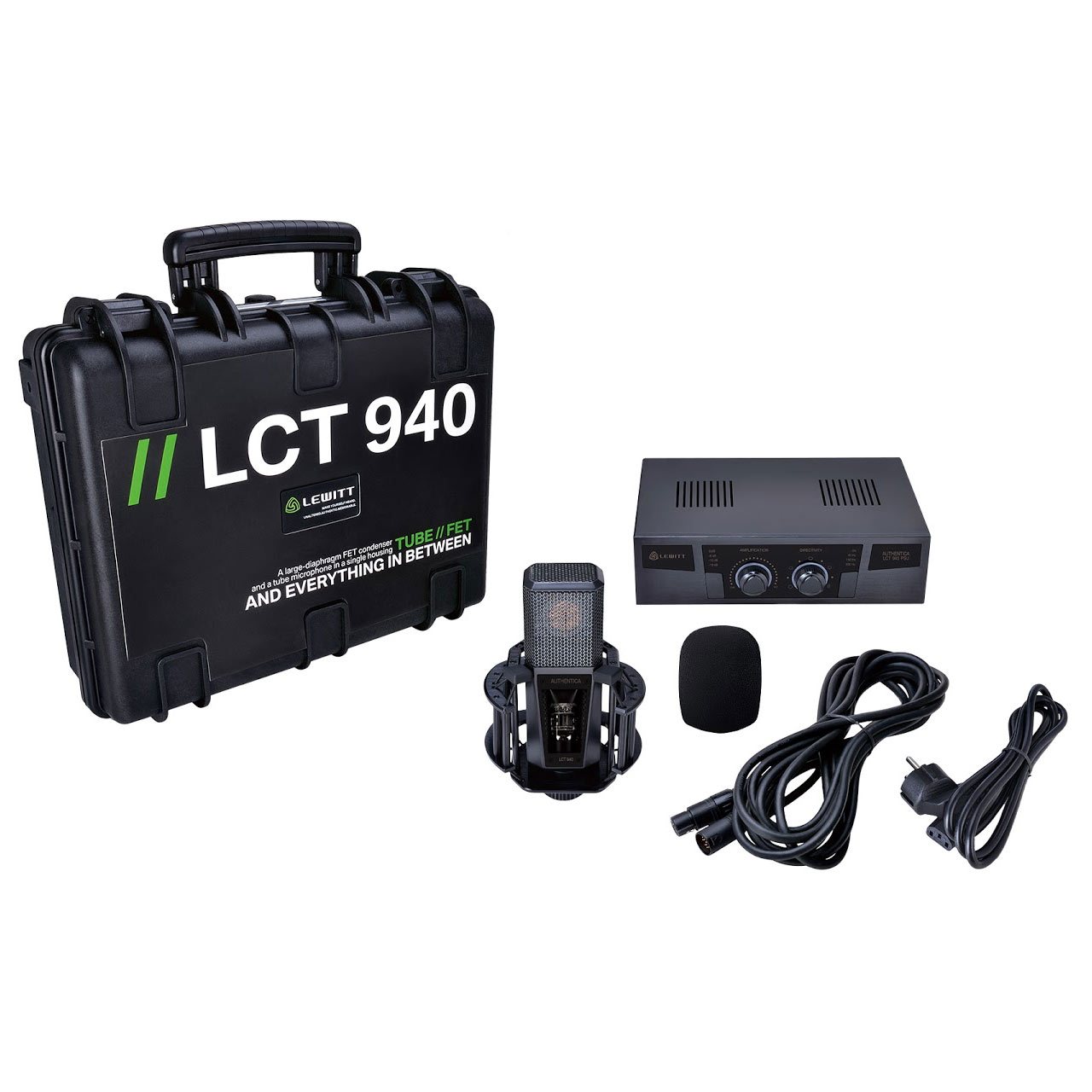

Lewitt LCT 940 Tube / FET Large Diaphragm Condenser Microphone
Type: Tube Microphones
-
Lewitt LCT 940 PRODUCT FEATURES:
Tube // FET and everything in between
The LCT 940 unifies the specific characteristics of a premium large-diaphragm FET condenser microphone and a top-notch tube microphone. "Tube" delivers warmth and musical harmonics, while "FET" stands for the clear and nuanced sound for which LEWITT condenser microphones are renowned for. Use the Tube // FET blend control - find your ideal mix. The LCT 940 features a total of nine different polar patterns – five "standard" polar patterns omnidirectional, cardioid, figure-8, wide- and supercardioid and four additional intermediate patterns. The illuminated display of the remote control unit guarantees easy handling in dark environments. Automatic Attenuation, Clipping History, four pre-attenuation and low-cut filter settings round off the feature list of this outstanding microphone. The LCT 940 opens up a new dimension of sound reproduction and its unrivaled set of qualities makes this microphone a must-have for recording professionals who strive for nothing less than perfection. -
Lewitt LCT 940 TECHNICAL SPECIFICATIONS:
Type: Condenser, externally polarized
Acoustical operating principle: Pressure gradient transducer
Transducer Ø: 25.4 mm, 1 in
Polar pattern: Omni, wide cardioid, cardioid, supercardioid, figure-8, four intermediate patterns
Frequency range: 20 ... 20,000 Hz
Sensitivity: 23 mV/Pa, -33 dBV/Pa (cardioid), 20 mV/Pa, -34 dBV/Pa (omni), 23 mV/Pa, -33 dBV/Pa (figure-8)
Equivalent noise level (FET): 8 dB (A), cardioid, 9 dB (A), omni, 8 dB (A), figure-8
Equivalent noise level (Tube): 12 dB (A), cardioid, 13 dB (A), omni, 12 dB (A), figure-8
Max. SPL for 0.5 % THD (FET): 143 dBSPL, 0 dB pre-attenuation
Max. SPL for 0.5% THD (Tube): 140 dBSPL, 0 dB pre-attenuation
Signal / noise ratio (FET): 86 dB (A)
Signal / noise ratio (Tube): 82 dB (A)
Dynamic range of FET mic. Amp: 135 dB (A)
Dynamic range of Tube mic. Amp: 128 dB (A)
Pre-attenuation pad: 0 dB / -6 dB / -12 dB / -18 dB
Low-cut filter: linear 40 Hz (12 dB/oct), 150 Hz (6 dB/oct), 300 Hz (6 dB/oct)
Internal impedance: 200 Ω
Rated load impedance: 1,000 Ω
PSU - supply voltage: 230 V, 50 Hz / 110 V, 60 Hz
Current consumption: 170 mA
Connector: Gold plated 11-pin XLR
Microphone dimensions: 192 x 60 x 46 mm, 7.5 x 2.4 x 1.8 in

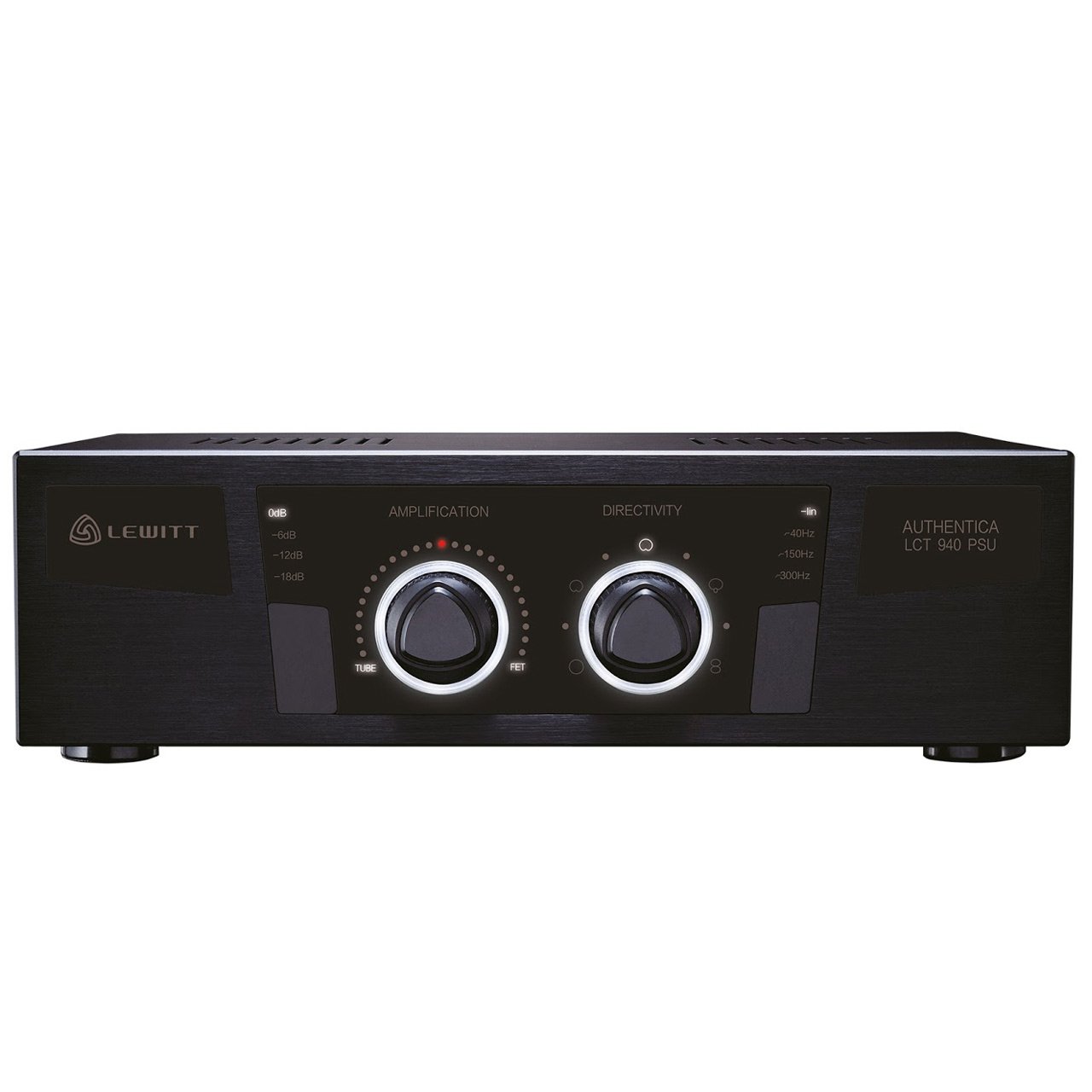

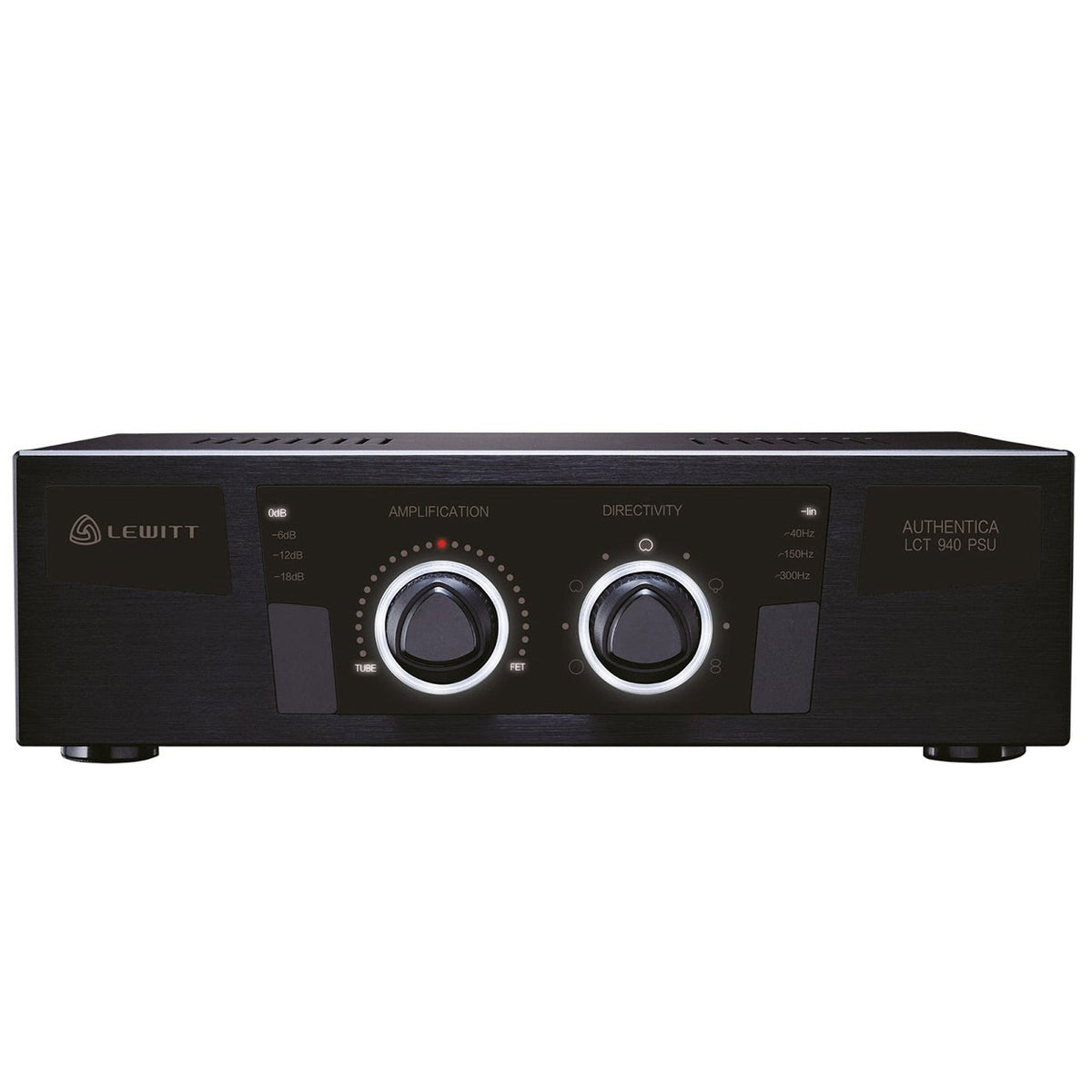

PSU dimensions: 250 x 150 x 70 mm, 9.8 x 5.9 x 2.8 in
Microphone net weight: 662 g, 23.3 oz
PSU net weight: 1930 g, 68.1 oz
