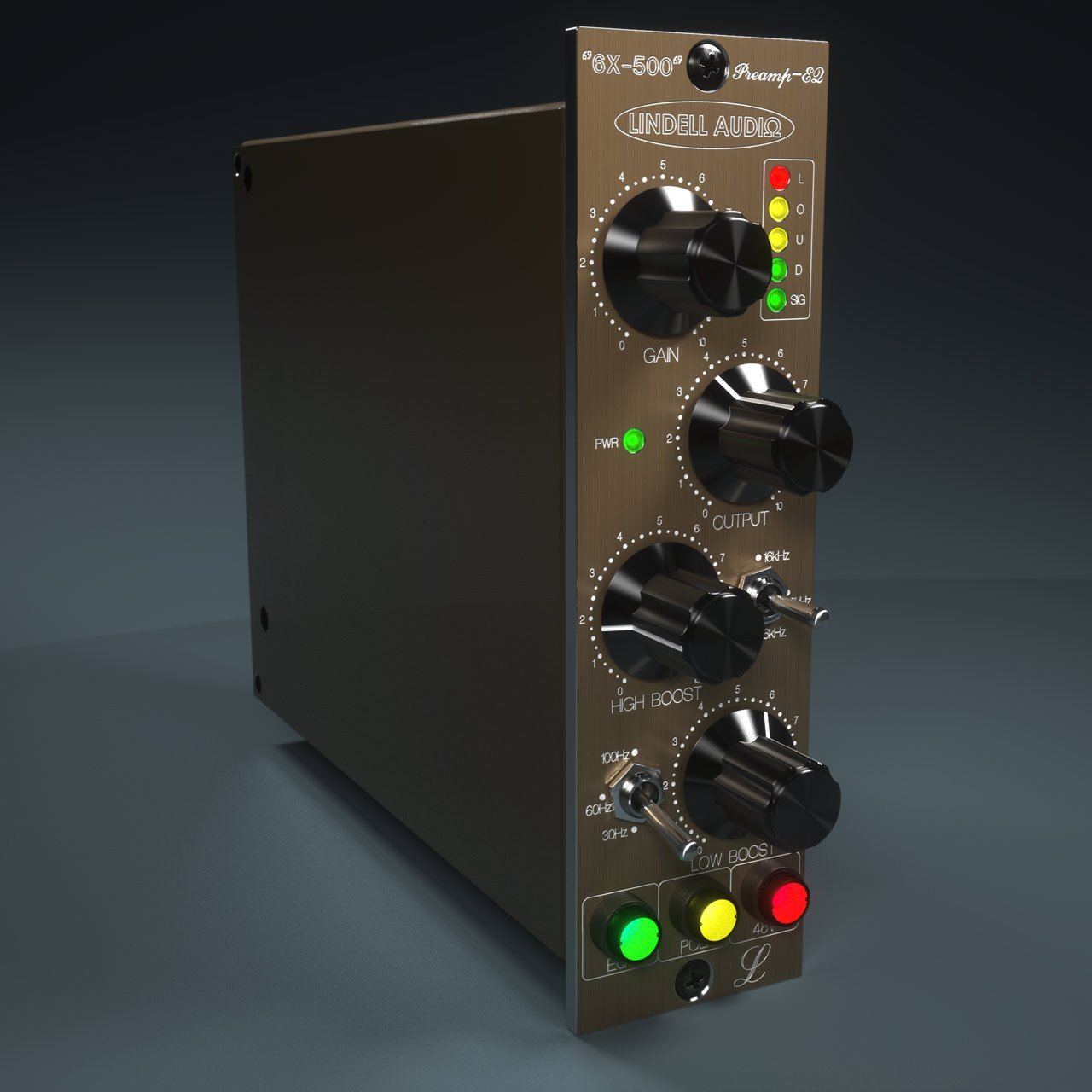

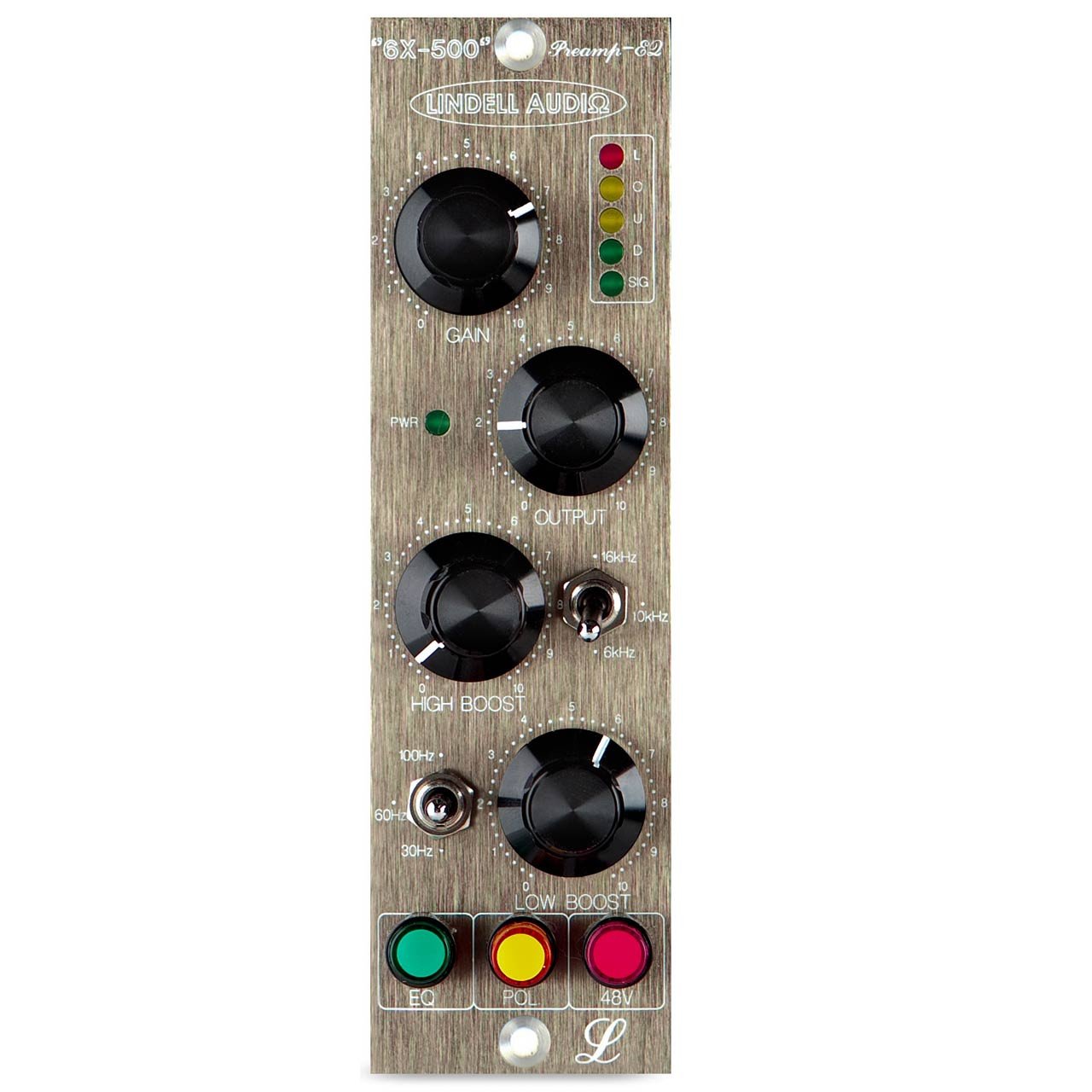

LIN-6X-500
Swedish company Lindell Audio make inexpensive, boutique 500-series modules. The 6X-500 is a dual stage single pre-amp, with high and low shelving EQ. Very tempting price-point, given the quality.
Type: 500 Series
The Six X Five Hundred is a one channel transformer coupled Microphone Preamplifier and Passive 2 Band Equalizer. The Preamp is an all discrete design based upon our hybrid amplifier. (It can be upgraded with our Vintage OPA)
The Equalizer is our take on the magical classic Pultec design. It’s got 15db boost of the creamiest high end you’ve ever heard and the most punchy low end heard the 21th Century.
The Sound can be described as ”Fast” ”Punchy” and ”In ya face”.
Transformer coupled Balanced inputs and Balanced Outputs
Up to 65db of Gain
Passive Pultec Equalizer. Inductor + hybrid gain make-up amplifier
3 Step Switched Eq Low Freq Boost 30Hz, 60Hz, 100Hz +/-10%
3 Step Switched Eq High Freq Bosst 6kHz, 10kHz, 16kHz +/-10%
Selectable High Boost Bandwidth on pcb
Polarity Reverse
48V Phantom Power
5-LED VU Meters
Gold Plated Pcb
Please visit Lindell Audio’s website for more detailed documentation regarding their 500-series modules. Requires a 500-series power supply chassis to operate.
