MIX-16

LiveMix MIX-16 16 personal monitor mix distributor

Notify me when this product is available:

The MIX-16 is the central mixer for the Livemix personal monitor system. The MIX-16 supplies mix streams as well as power to each of the connected personal mixers.

The MIX-16 will generally be placed near the personal mixers, likely in a rack near the stage. The MIX-16 receives input data over a network cable, either from the AD-24 (shielded) or a Dante network via the LM-DANTE-EXP Dante card.

Each port on the MIX-16 supports two discrete personal monitor mixes. Connect a single CS-DUO or up to two CS-SOLOs to each port with standard network cable. Maximum combined CAT5e cable (shielded or unshielded) distance is 100 meters

FEATURES


  • 24 Channel + 4 Accessory Channels

    The MIX-16 receives 24 channels of audio from the AD-24 (for analog sources) or the LM-DANTE-EXP option card (for digital sources from a Dante™ Network). This is more than enough to handle the needs of church, studio, and live event stages while still being simple to use with the intuitive mix interface.


  • 24-bit Mixing

    High quality audio processing means mixes come together quicker and easier. Clear separation of instruments with no smearing and accurate sound reproduction make Livemix the best sounding personal monitor mixer on the market. Digital Audio Labs’s decades of experience in digital audio give you the very best sounding mixes possible.


  • Expansion Port (Option Card)

    With the built-in expansion port, you never have to worry about future compatibility. The audio world is always changing and Livemix will support those changes so you can be assured that your personal monitor system will provide many years of best-in-class functionality.


  • Output to Analog for Transmitters

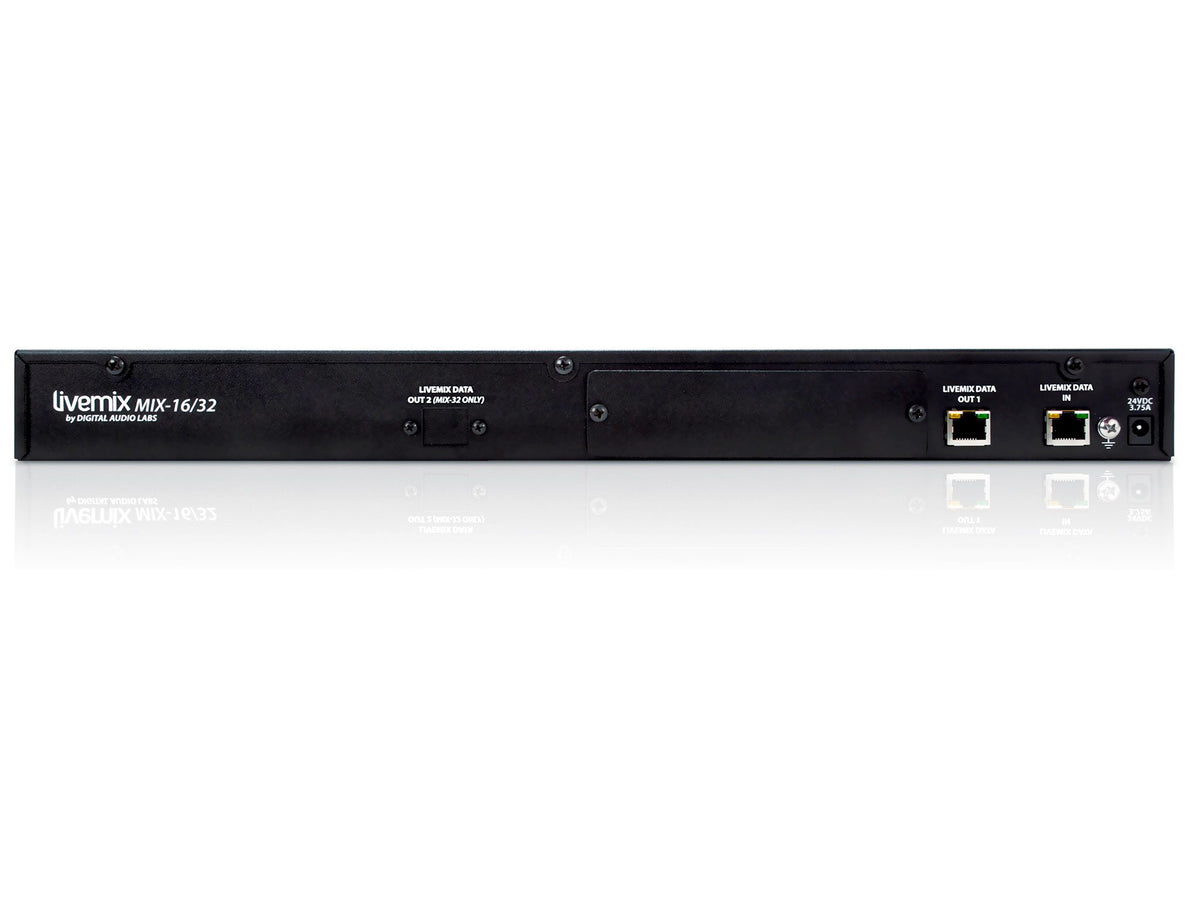

    Each MIX-16 has an output port for connection to the optional Livemix DA-816 analog output unit. This lets you assign personal monitor mixes to one of 8 stereo outputs for easy wireless in-ear monitor integration.


  • Supports Up to 16 Personal Mixers

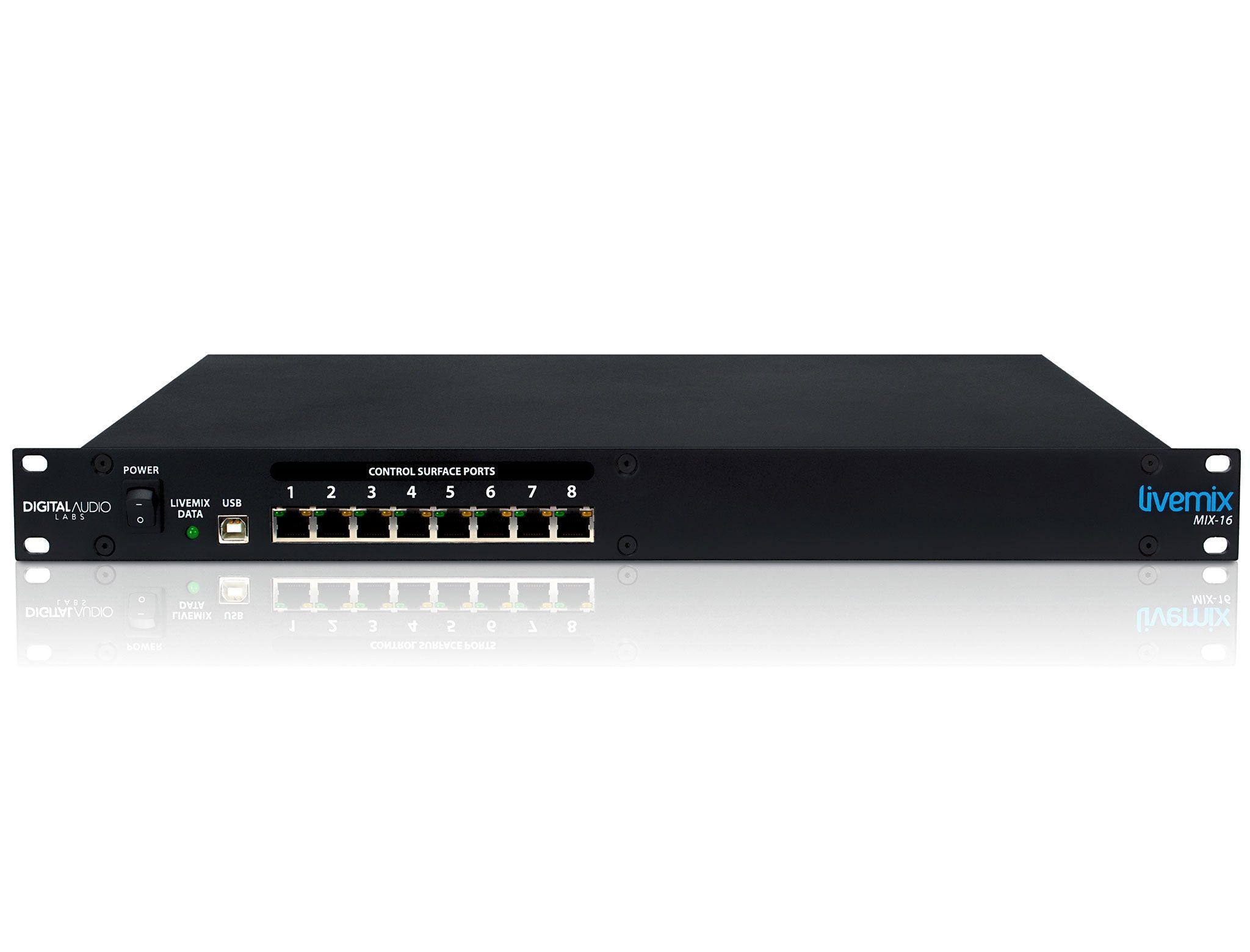

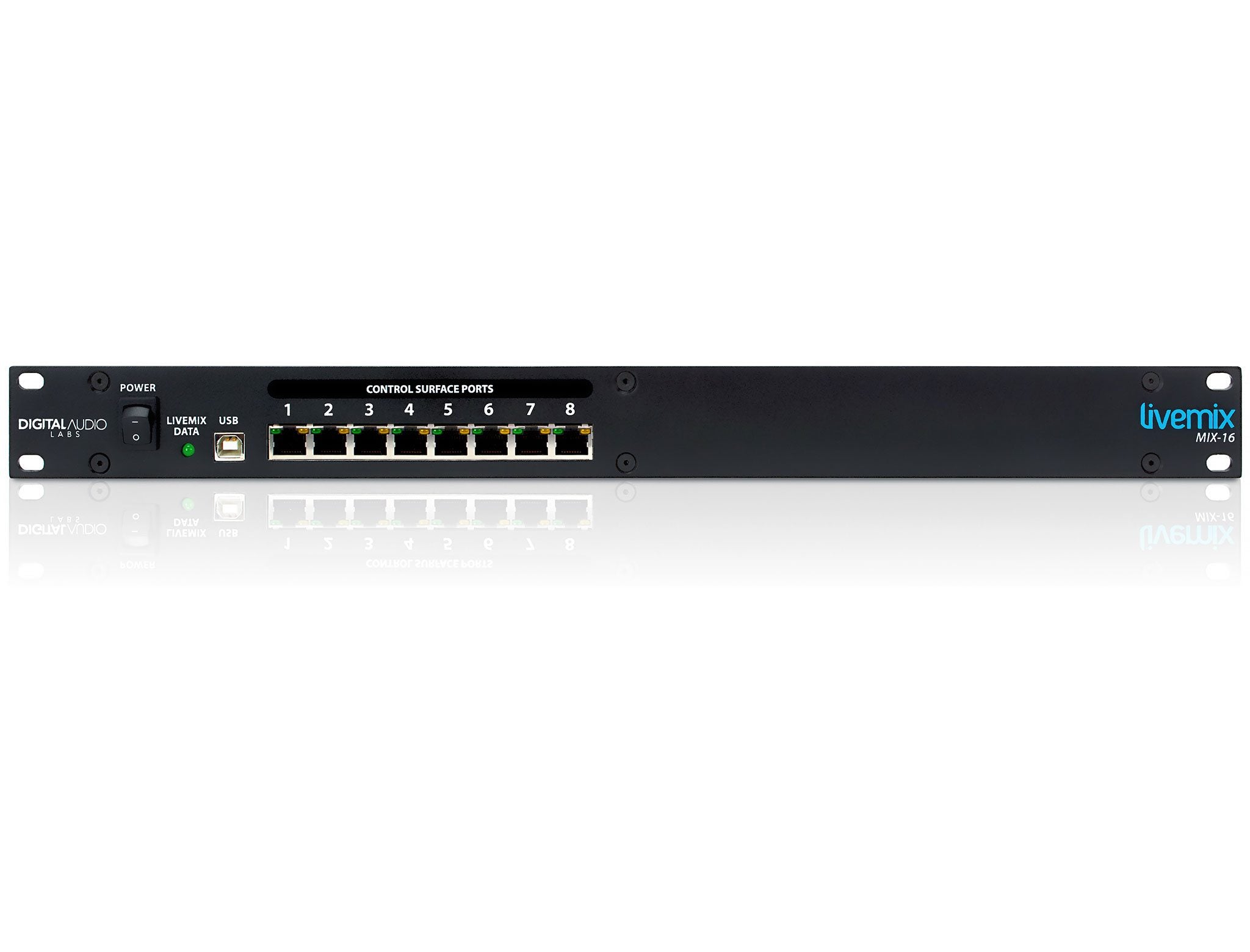

    8 front panel ethernet ports provide power and mix capabilities to up to 16 personal monitor mixes. This can be through 8 dual mix CS-DUO units, 16 single mix CS-SOLOs or a combination.

    Specifications

    LIVEMIX MIX-16
    Max Cable Length
    to CS-SOLO/CS-DUO
    100m CAT5e cable (shielded recommended)
    Max Cable Length
    to AD-24/DA-816
    100m CAT5e cable (shielded required)
    Bit Rate 24-bit Digital Mixing and Processing
    Sample Rate 48 kHz internal system rate
    Up to 96kHz sample rate input accepted from Dante network
    Digital Format Proprietary in system
    Expansion Option Card Slot
