Looptrotter Audio Engineering

SAT824

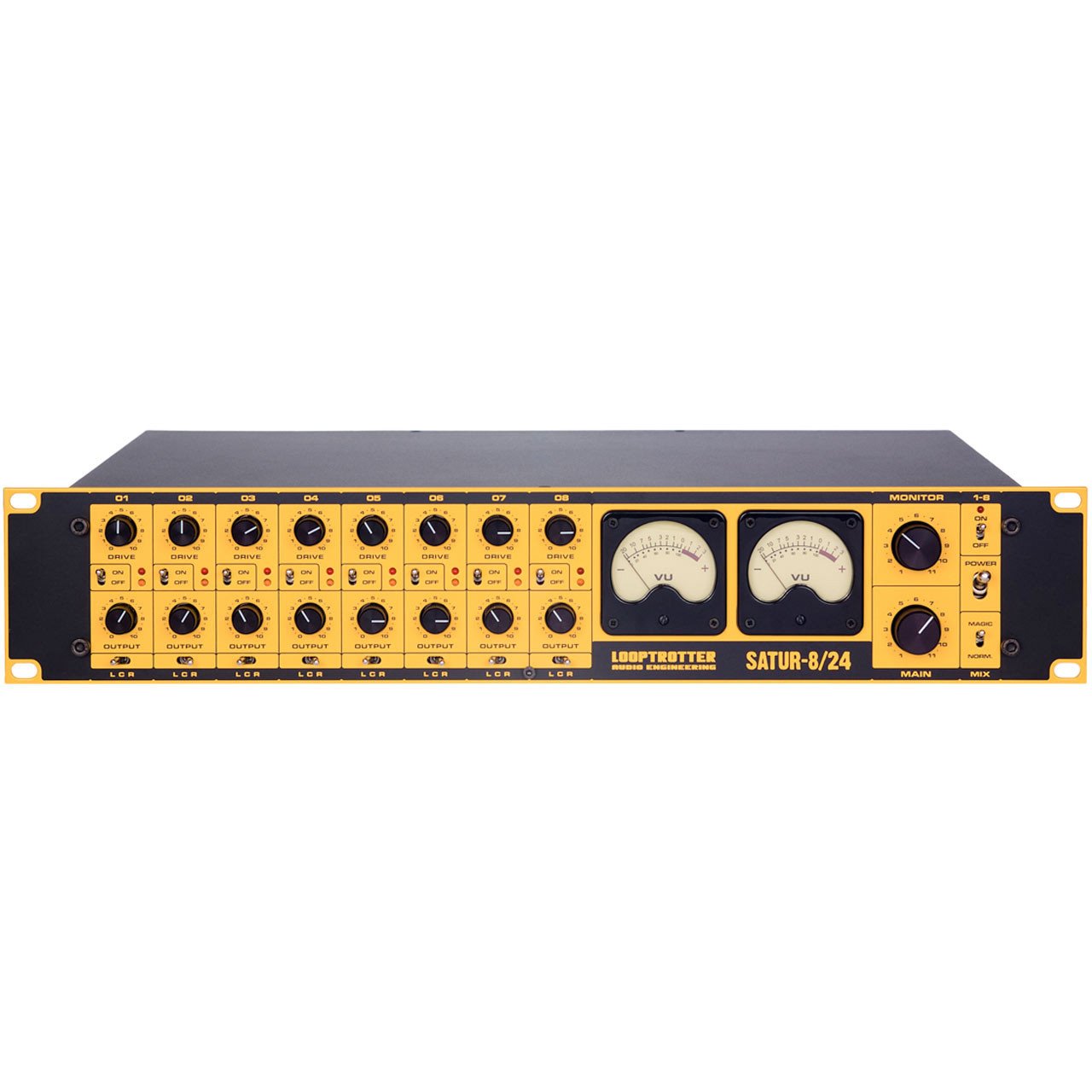

Looptrotter SATUR-8/24 - 24 Ch Summing Unit with 8 Ch of Saturation

1 IN STOCK

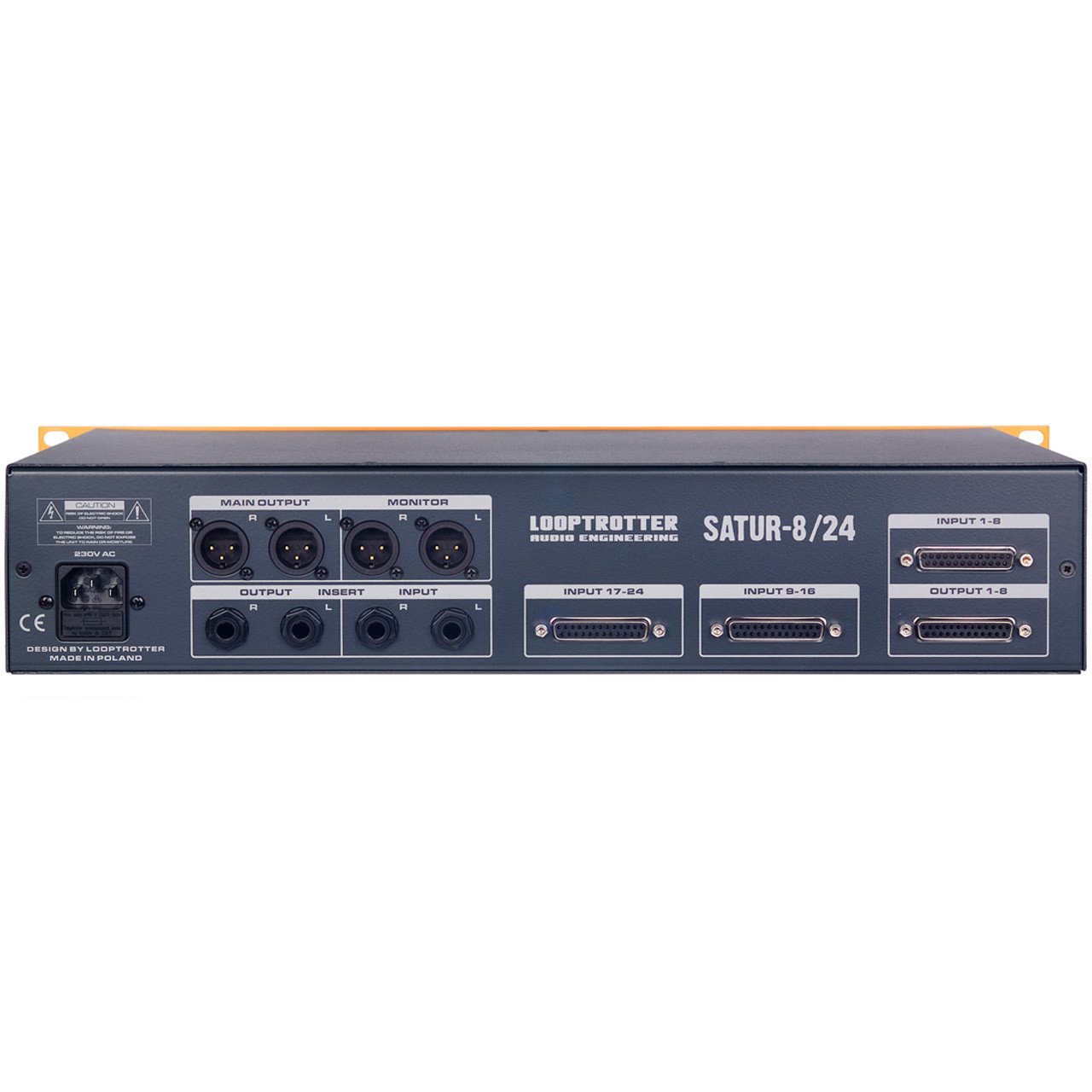

The Looptrotter SATUR-8/24 is a summing mixer featuring 8 channels of Looptrotter’s acclaimed Saturation circuits on the output stage. The SATUR-8-24 has 24 analog inputs, and 8 outputs all via DB-25 connectors on the back plate. It also includes main and monitor stereo outputs, and stereo inserts too. Essentially the SATUR-8/24 has two functions: It provides 8 mono channels of solid-state saturation, and an analog stereo summing mixer. Great for mixing down stems. Daisy-chaining additional units together is possible too! Another very handy feature, is the LCR panning on each channel.


    • Looptrotter SATUR-8/24 Product Features:

      SATUR-8/24 is the 24 channel summing unit containing 8 channels with analog saturation. The design refers to the sound of old tube mixing consoles and tape recorders.

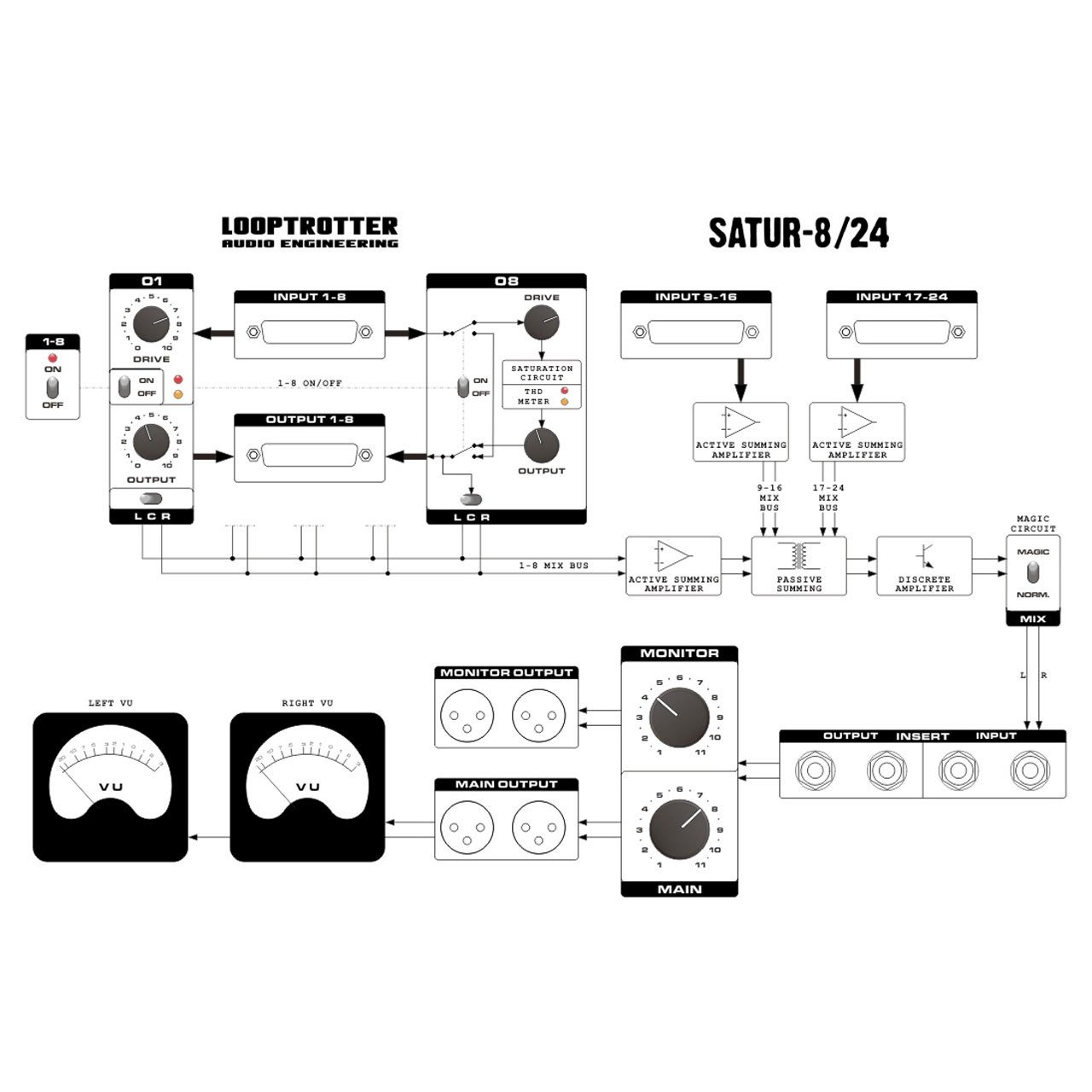

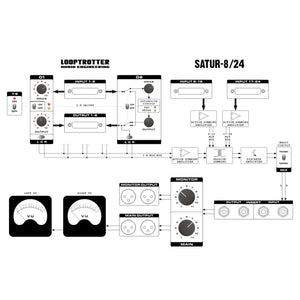

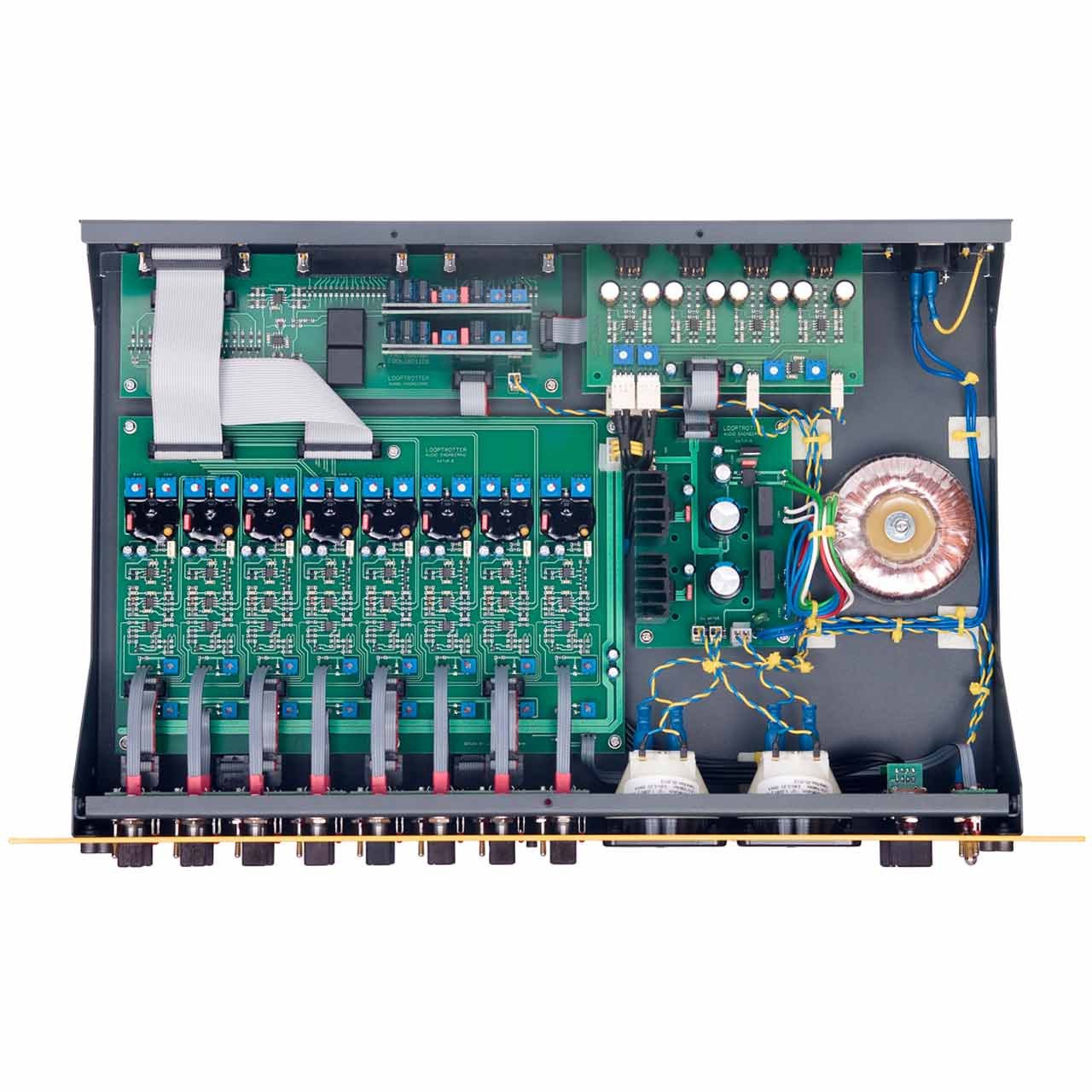

      The summing module is an original combination of active summing, run by operational amplifiers and passive voltage summing based on transformers. The mixed signal is amplified by a transistor preamplifier operating in pure class A, built of discrete elements, inspired by the early designs of transistor preamps from the 60's.

      Additionally the summing circuit is fitted with a “Magic” module, which magically nears, widens and thickens the whole mix, giving it a vivid, analog sound.

      SATUR-8/24 is both versatile and creative tool for processing of tracks, subgroups and the entire mix.
Need more info on the Looptrotter SATUR-8/24?
