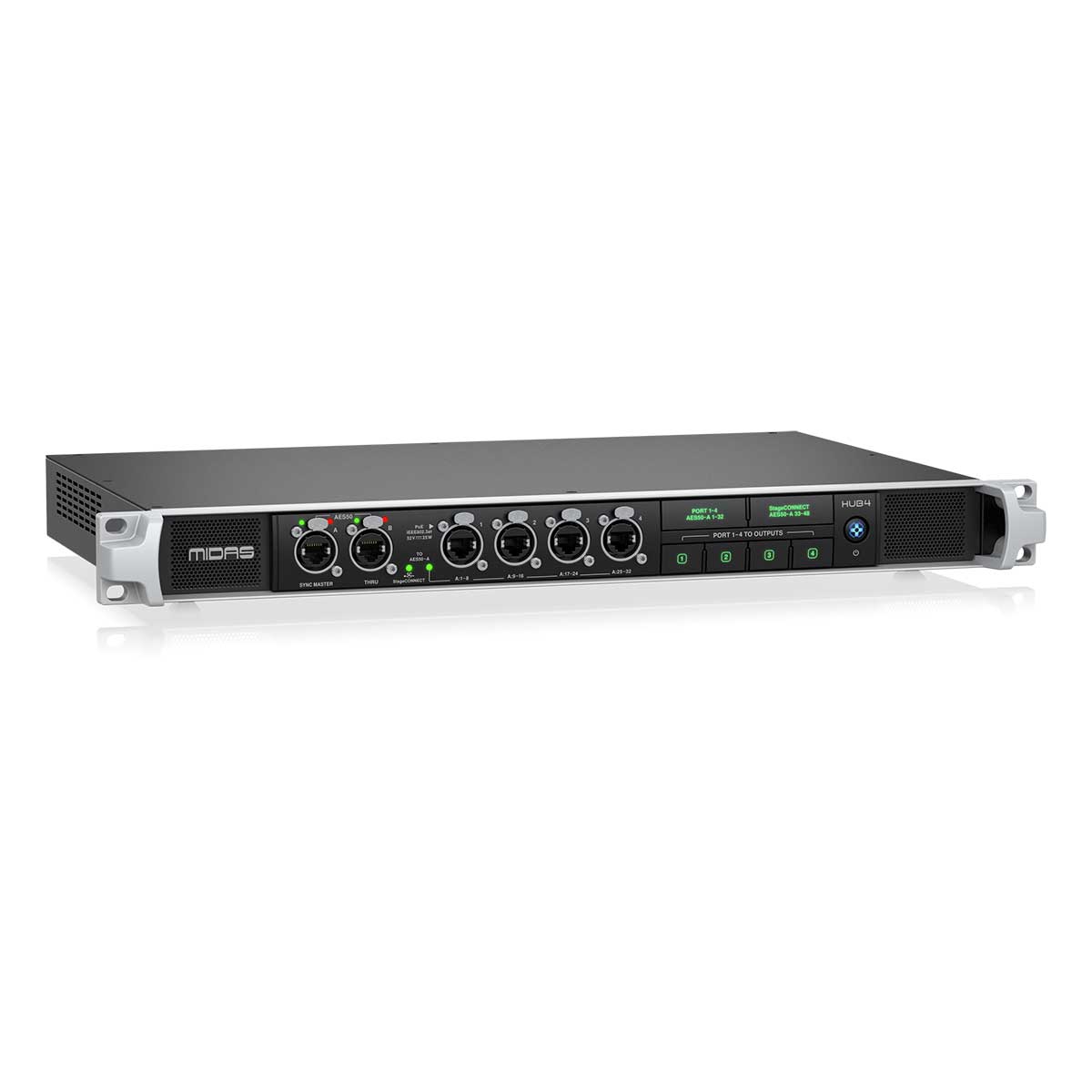

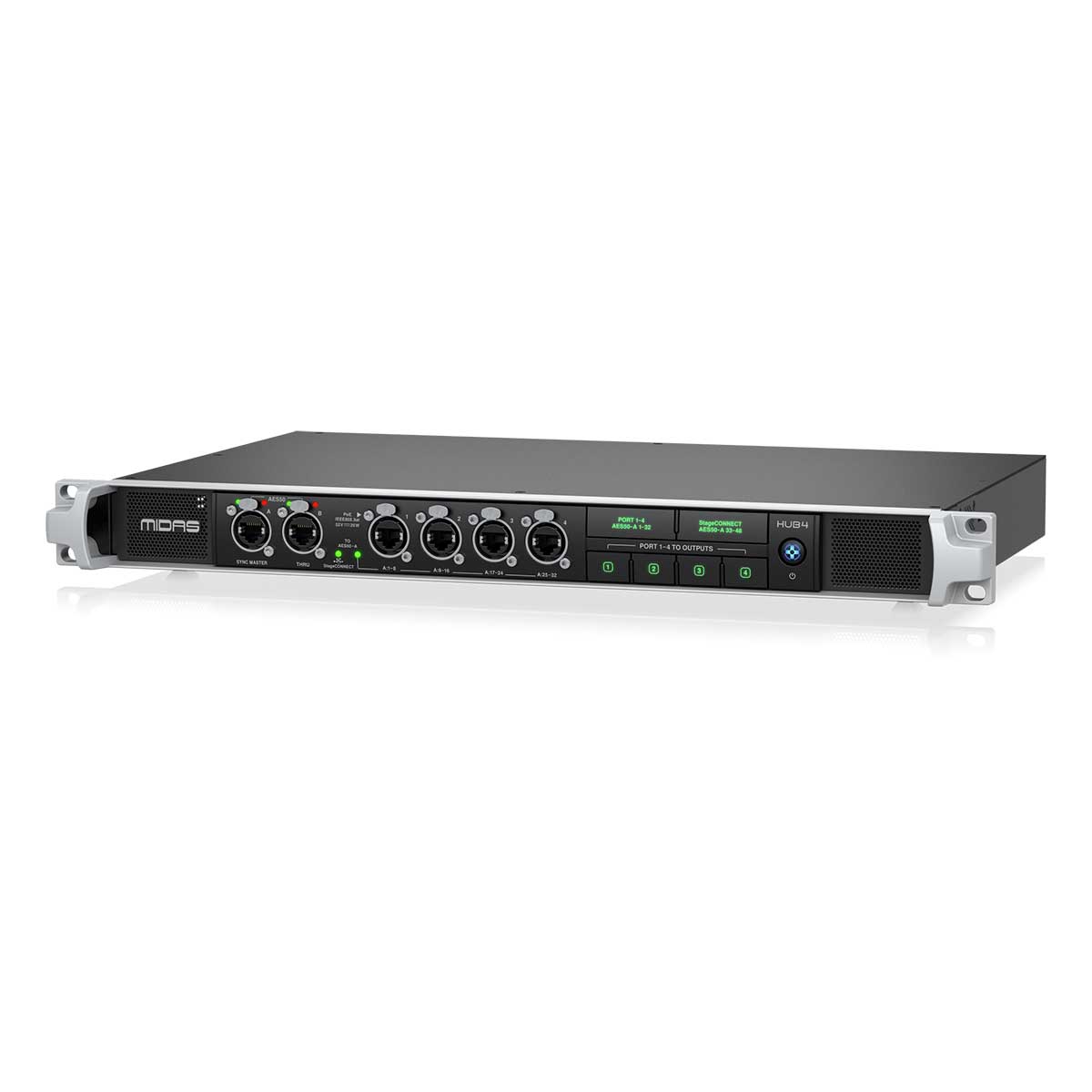

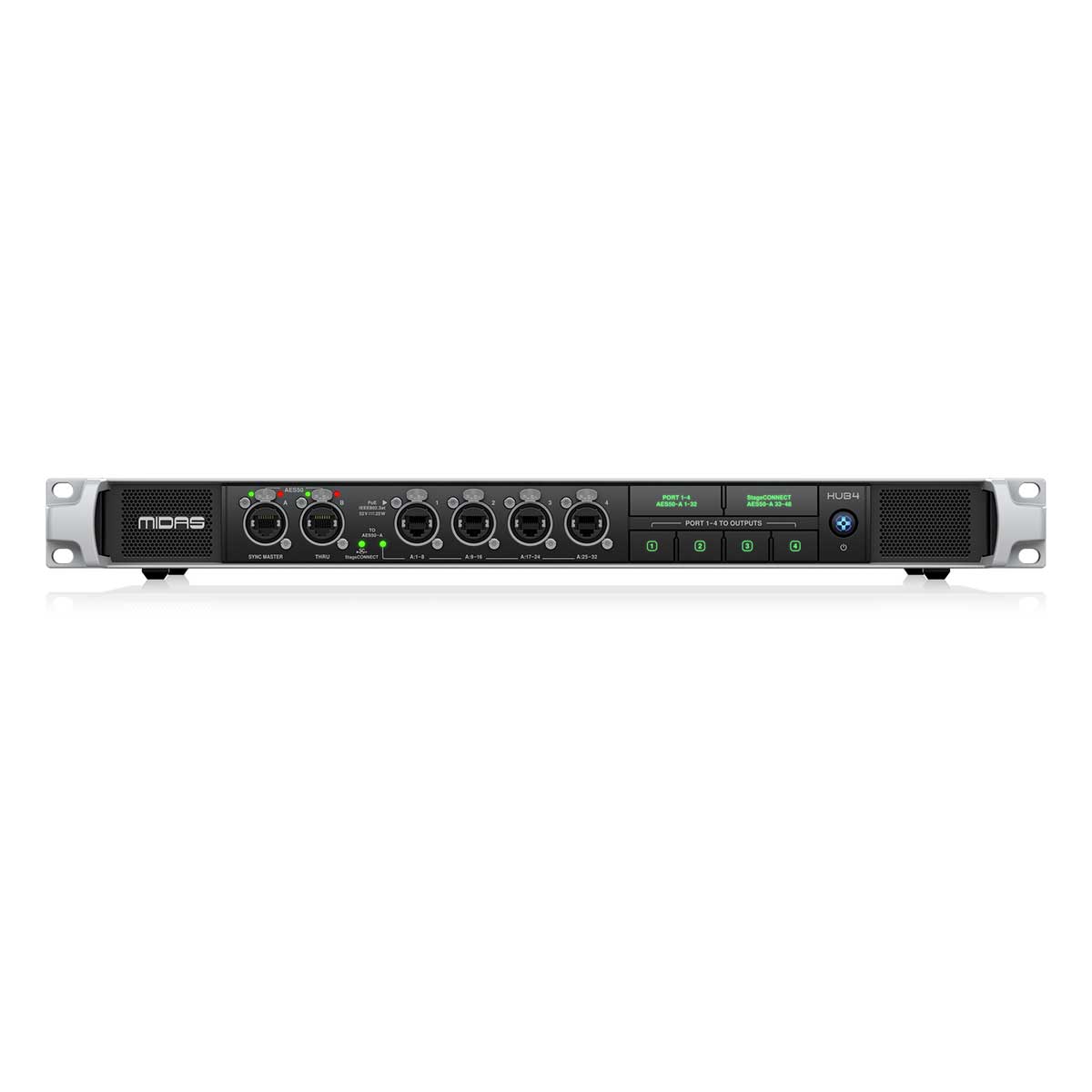

    Midas Hub4 Monitor System Hub

    2 In Stock

    Monitor System Hub with 4 PoE Ports for Personal Mixers or Compatible Stage Boxes, 48/44.1 kHz AES50 In and Through, StageCONNECT and 16-Channel Analogue Out

    Features

    • Personal monitoring system hub with PoE remote powering for up to 4 DP48 personal mixers and compatible stage boxes

    • AES50 IN and THRU ports for cascading hubs or stage boxes with 48 bidirectional channels at 48/44.1 kHz

    • 16 balanced analogue outputs for sending 4x2 personal stereo mixes to IEM transmitters in the side rack

    • Channel naming and Group assignments can be distributed from compatible M32 consoles

    • Midas DL8 Stage Boxes can be connected and powered from ports 1-4

    • Personal mix outputs can be monitored via AES50 upstream to connected consoles

    • Supports remote control forwarding of a DP48 personal mixer from another DP48

    • Front panel buttons for sending signals to analogue output groups 1-4, for StageCONNECT and for AES50-A upstream

    • StageCONNECT output with phantom power for connecting other StageCONNECT devices, sharing 32-channel audio, 24-Bit uncompressed PCM, 44.1/48 kHz, at sub-milisecond latency, over any standard XLR microphone or DMX cable

    • Remote operation via shielded CAT5e cable up to 260 ft / 80 m length recommended

    • Features Neutrik etherCON* AES50 network ports

    • Rugged 1U chassis for durability in portable applications

    • Auto-ranging universal switch-mode power supply

    • 10-Year Warranty Program*

    • Designed and engineered in the U.K.
