Mojave

MA101MP

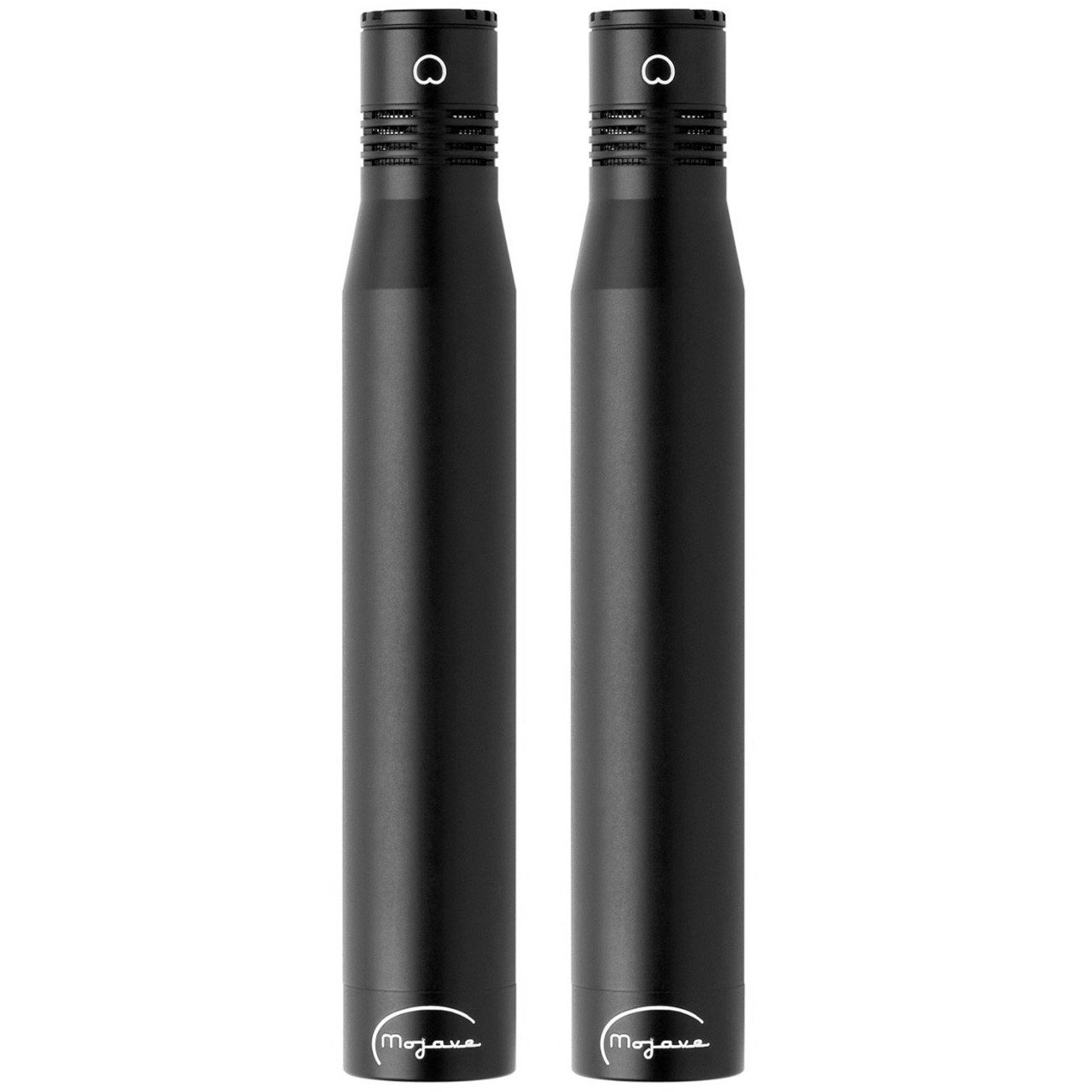

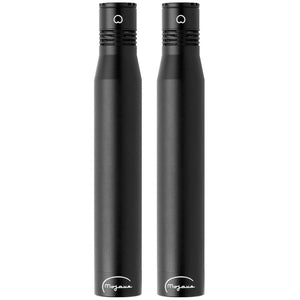

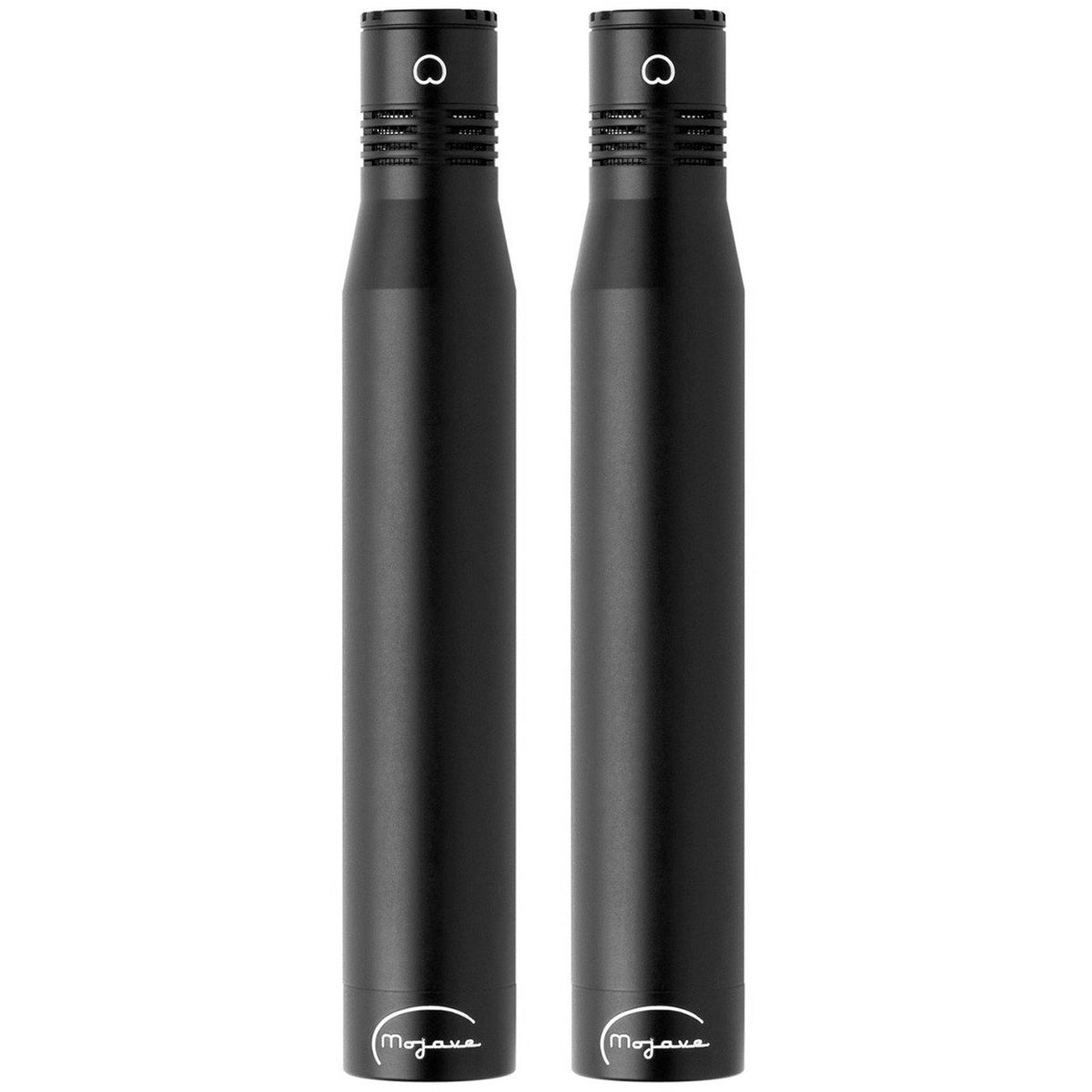

Mojave MA-101SP Condenser Microphones MATCHED PAIR

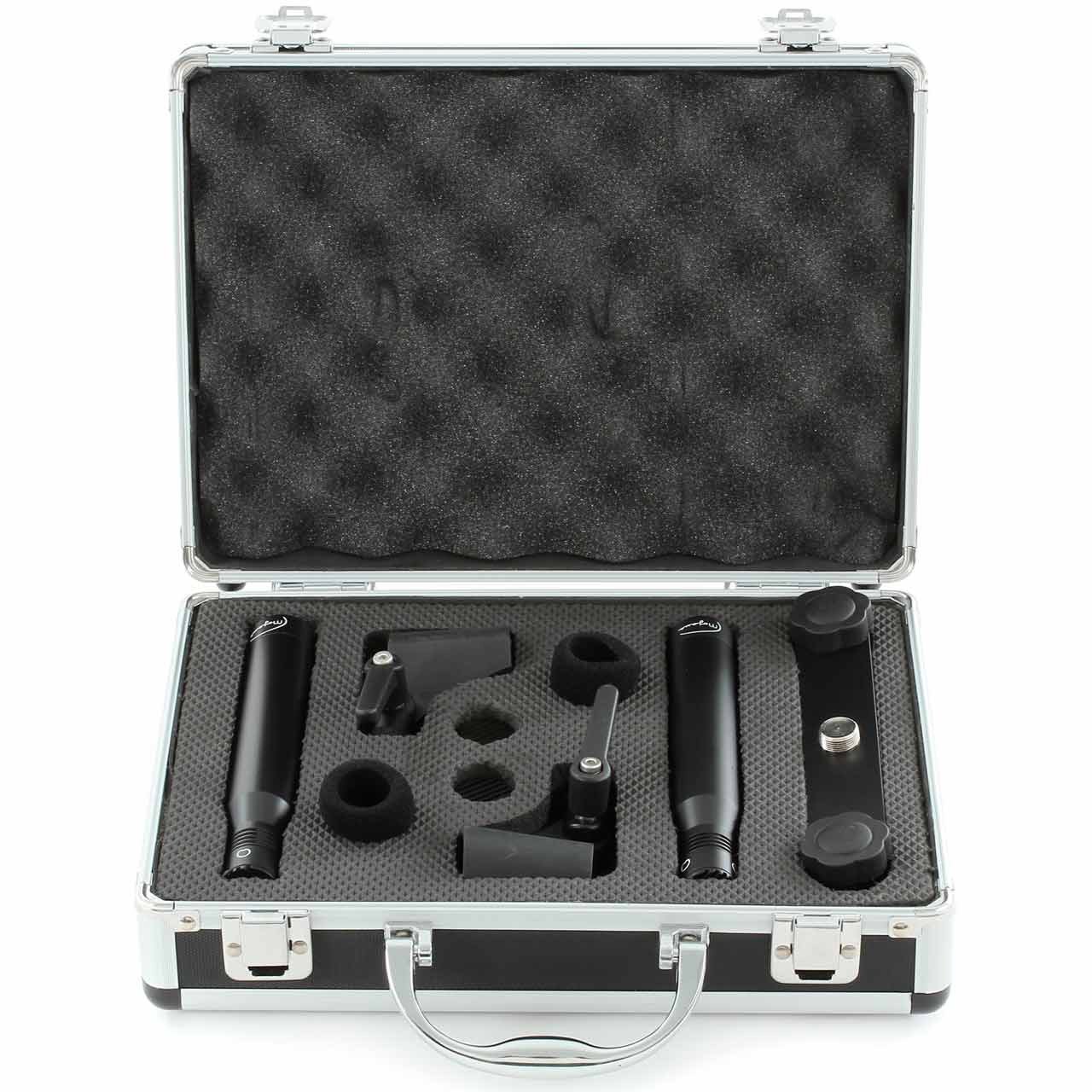

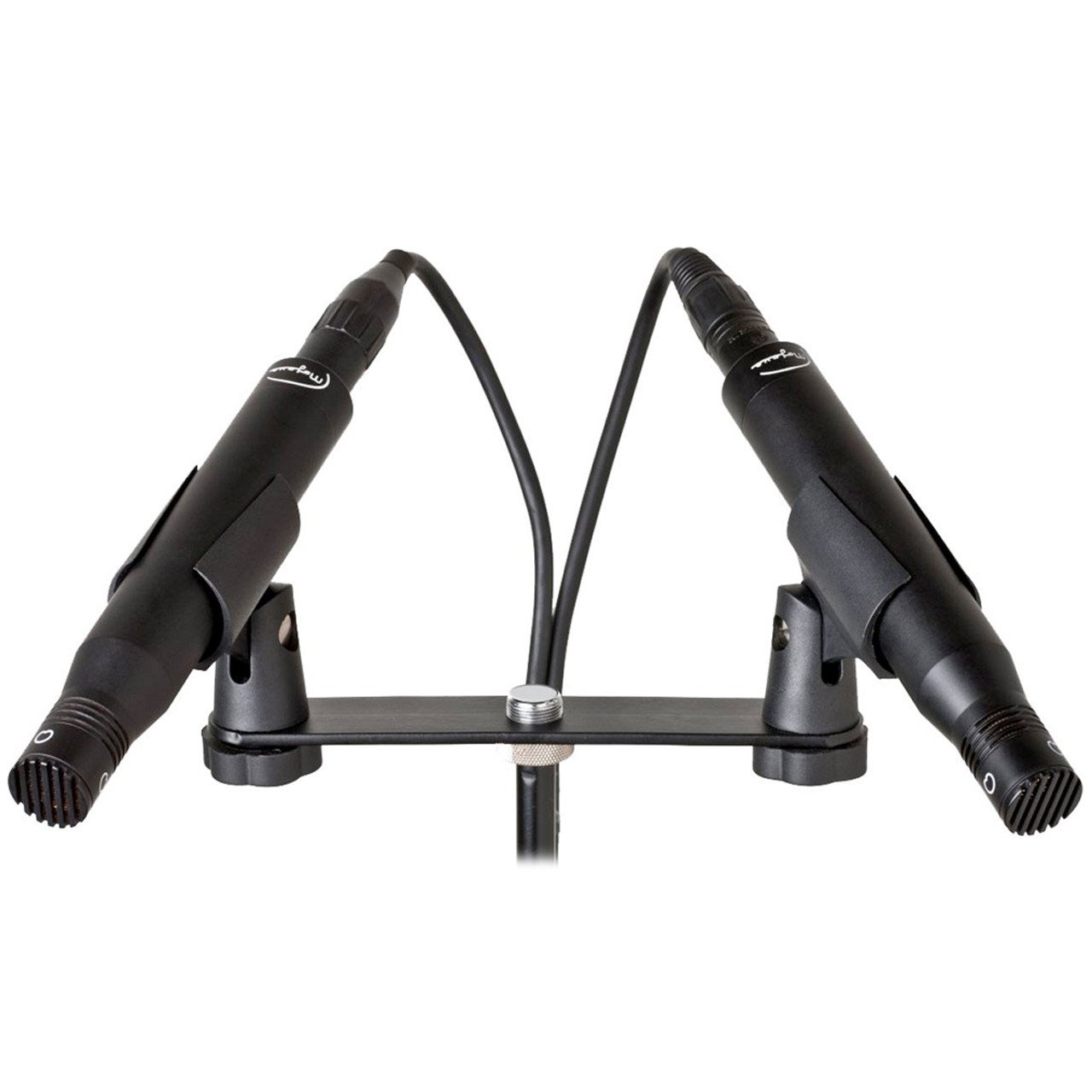

The Mojave MA-101SP is a matched pair of MA-101fet mics, with interchangeable cardioid and omnidirectional capsules for highly versatile use. Packaged in a single carrying case, the MA-101SP provides professional recording engineers with a convenient, easy to set up system for stereo recording applications.


    • Mojave MA-101SP PRODUCT FEATURES:

      Designed by renowned microphone designer David Royer, the MA101fet combines the features of two of Mojave Audio's popular models - the cardioid and omnidirectional capsules from the MA-100 with the electronics from the MA-201fet. New to the MA-101fet is an internally switchable -15dB pad, increasing the headroom to an ear shattering 135dB SPL. This makes the MA-101fet suitable for everything from capturing the subtle nuances of acoustic instruments to the loudesst of electric guitars and drums - great for location recording, too.

      Featuring hand selected, 3-micron cardioid and omni capsules, a high quality Jensen audio transformer and military-grade FET and custom designed low noise resistors; the MA-101fet is designed to offer excellent performance for a wide variety of applications. Each MA-101fet microphone is carefully tested and evaluated, then packaged in its protective case.

      Features

      • Interchangeable cardioid and omnidirectional hand-selected 3-micron capsules
      • Internally switchable -15dB attenuator
      • Jensen audio transformer
      • Military-grade FET
      • Custom designed low-noise resistors
      • Ultra clean signal path

      Recommended applications

      • Acoustic Instruments
      • Location Recording
      • High SPL sources, such as Kick Drums and Bass Guitar Amps
      • Electric Guitars
      • Piano
      • Snare Drums, Toms, Drum Overheads
    • Mojave MA-101SP TECHNICAL SPECIFICATIONS:

      TECHNICAL DATA:

      Capsules: Interchangeable Cardioid and Omnidirectional
      Diaphragm: .8" (20.5 mm) diameter
      Diaphragm thickness: 3-micron
      Frequency Response: 20 Hz - 20 kHz +/- 2.5 dB
      Sensitivity: -39 dB re.1V/pa +/- 1.5 dB
      Maximum SPL: 125 dB pad off, 140dB pad on.
      Distortion: <1% @ 120dB pad off, <1 135db="" pad="" on="" br=""> Self Noise: 14 dB nominal, not to exceed 16 dB (A weighted)
      Impedance: 550 ohms, transformer balanced (Jensen)
      Power Requirements: 48VDC phantom power; .68 mA wall current

      DIMENSIONS AND WEIGHT:

      Carrying Case with microphone: 8.3" x 6.7" x 3.3" (21 x 17 x 8.5 cm), weight 1.8 lbs, (0.82 KG)
      Microphone: 6.75" x 1.12", weight 8 oz

Need more info on the Mojave MA-101SP? Click HERE for the manufacturer's website >>>
